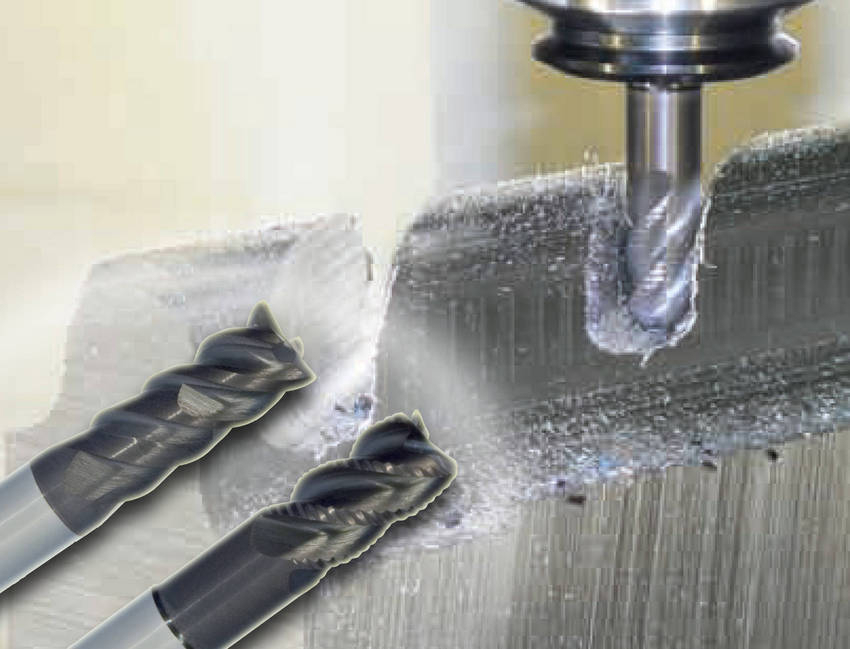

End Mills perform both roughing and finishing.

Emuge Corp.    West Boylston, MA 01583-2121

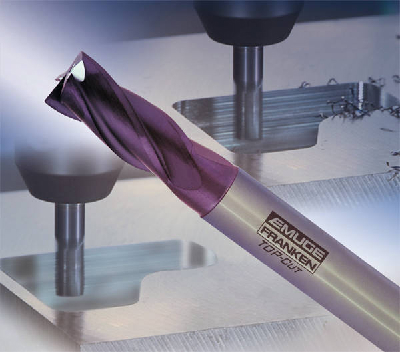

Apr 26, 2013 Available in full range of inch and metric sizes, TOP-Cut™ Carbide End Mills feature variable helix angles that eliminate harmonic oscillation to minimize vibrations and optimize surface quality. Carbide substrate, combined with micro-geometry and high heat-resistant TiALN coating, ensures process safety and extended tool life, even in most diverse materials. For maximum efficiency, stable design features recessed neck.

Forming Tap produces threads within 2B and 3B classes.

Emuge Corp.    West Boylston, MA 01583-2121
Feb 18, 2013 Made with DIN length shank for extra reach, MultiTAP-Form is suitable for use with carbon steel, steel alloys, stainless steel, aluminum, copper, brass, and bronze. TiN coated high-speed steel tap features short chamfer lead of 1.5–2 pitch, which is suited for bottom tapping. Lubrication grooves allow coolant flow-to-form action for holes requiring long thread length. Taps are available for UNC or UNF threads, from #4-40 to 3/8-24 in. sizes and  metric sizes from M4 x 0.7 to M10 x 1.5.

Carbide End Mills suit mold/die, general milling applications.

Emuge Corp.    West Boylston, MA 01583-2121
Nov 30, 2012 Lending to roughing and finishing cutting capabilities, Top Cut™ end mills are made of micro-grain carbide and feature relief ground cutting edges. Variable helix flute technology, variant of high heat-resistant TiAlN coating, and internal coolant capabilities promote efficient material removal with minimal vibration and wear. Offered in various styles and geometries as well as metric and inch sizes, end mills can be used for milling of diverse materials, including hard steel at up to 55 HRC.

Modular Tap Holders suit machines with synchronous spindles.

Emuge Corp.    West Boylston, MA 01583-2121
Nov 16, 2012 Featuring variable exchangeable transfer elements and length adjustment screws, Softsynchro® HD and MQL Modular System makes it possible for same tool holder body to be used for minimal quantity lubricant (MQL) or HSK coolant applications. Heli-coil mechanism compensates for axial movement that occurs during tightening of collet nut, preventing unwanted displacement and potential damage to tap or MQL adjusting screw. Modular bodies are available in sizes KSN1 ER20 and KSN3 ER32.

Tap Holders target large capacity applications.

Emuge Corp.    West Boylston, MA 01583-2121
Oct 25, 2012 Suited for tap sizes M16–M56 and ANSI sizes to 1 ¾ in., Softsynchro® KSN5 Series uses ER50GB collet and is also available with integral shank CAT50 or HSK100A. Softsynchro® KSN6 Series, designed for M24–M76 sizes, uses Emuge HE2 large QC Tap Adapters. Both feature coolant-through capability up to 50 bar and have 2 mm of tension and compression for rigid tapping cycles. Holders support tapping operations in components used in oil, power generation, and wind turbine applications.

End Mills cut Inconel 718, Titanium, and stainless steels.

Emuge Corp.    West Boylston, MA 01583-2121

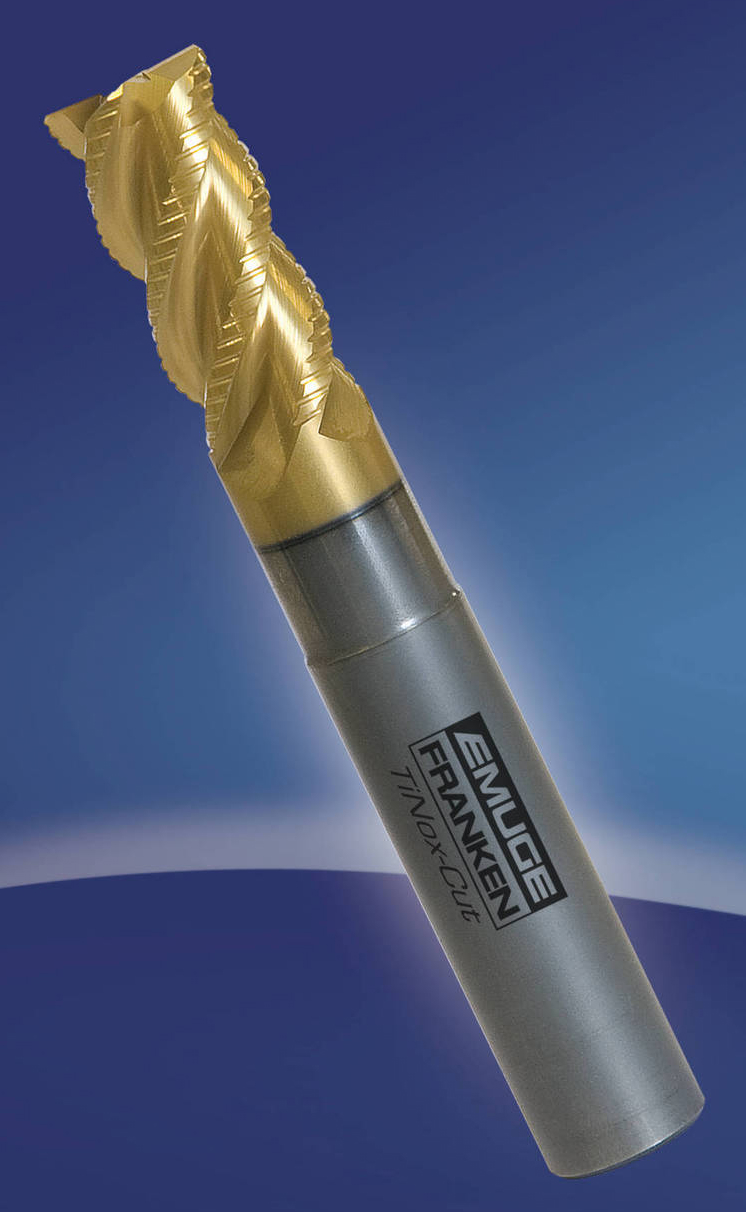

Oct 17, 2012 Featuring heat-resistant TiN/TiAlN coating, TiNox-Cut series has variable flute spacing and serrated chip breaker profile along cutting edge that optimize material removal rate and RA values for roughing and semi-finishing while also minimizing tool wear. Design maximizes material removal rate and tool life when machining nickel alloys, such as Inconel 718, Nimonic, and Waspaloy; Titanium 6Al-4V; and tough steels, such as Stainless 316, used in aerospace and other demanding industries.

Precision Ground Taps feature productivity enhancing flute.

Emuge Corp.    West Boylston, MA 01583-2121
May 24, 2012 NPT Taper Pipe Taps have flute with variable skip tooth geometry that optimizes chip flow and clearance while also lowering tapping torque. Design accommodates materials that produce long, stringy chip formations. Constructed of premium high speed steel and PVD coated for extended life, tools come in pipe sizes 1/16-1 in. NPT and in 2 overall lengths: standard ANSI length, and longer DIN length that allows for additional reach, chip clearance, and coolant delivery.

Cobalt Steel Taps feature chip-breaking technology.

Emuge Corp.    West Boylston, MA 01583-2121
Oct 18, 2011 Ground with eccentrically relieved threads that feature full pitch diameter relief, Rekord DZ Series eliminates formation of continuous chips that occur when tapping carbon steels, alloy steels, and austenitic stainless steels. Cutting face geometry and spiral flute form combine to affect chip flow, chip curl, and chip length. Ground with 2BX increased pitch diameter, taps also feature TIN surface treatment and can be used in horizontal/vertical machining.

JIS Taps produce threads with JIS Class 2 tolerance.

Emuge Corp.    West Boylston, MA 01583-2121
Jan 26, 2011 Suited for through- or blind-hole applications, Emuge JIS Taps produce threads in steels, stainless steels, cast and non-ferrous, titanium and titanium alloys, nickel and nickel-base, and cobalt-base alloys. Taps are coated with titanium carbonitride or titanium nitride to extend tool life. Available in sizes from M 5 x 0.8 to M 12 x 1.75 in metric coarse and M 10 x 1.25 to M 20 x 1.5 in metric fine, taps come in straight-flute, spiral point, slow- and fast-spiral flute configurations.

End Mill Cutters support diverse materials and applications.

Emuge Corp.    West Boylston, MA 01583-2121
Dec 21, 2010 Ranging from 1-20 mm dia depending on design, High Productivity Cutting (HPC) End Mills are made from micro-grain carbide and address applications such as complex 3D machining, roughing, and pre-finishing operations. Combination of cutting tool technologies, such as variable pitch and flute spacing, minimize vibrations even at elevated speeds and substantial cutting depths. Reliability and chip evacuation features maximize cutting performance and tool life.
