Dispensing Tip precisely deposits thick assembly fluids.

EFD Inc.    East Providence, RI 02914-1342
Feb 06, 2008 Designed for use with air-powered dispensing equipment, 27 gauge tapered dispensing tip makes it possible to apply accurate amounts of silicones, epoxies, lubricants, and other thick assembly fluids. Silicone-free solution is molded from clear polyethylene, which will not scratch delicate surfaces, and has tapered design that promotes flow. SafetyLok(TM) threads provide safe, secure attachment, while tip produces consistent dots and lines as small 0.008 in. wide.

Solder Dispensing Formulation suits mechanical soldering.

EFD Inc.    East Providence, RI 02914-1342
Sep 07, 2007 Designed for gap filling and application on vertical surfaces, Model SAC305 no-drip solder paste dispensing formulation wicks around metal surfaces such as silver, silver-plated, nickel, brass, and copper to produce solder joints. Featuring lead-free, no-clean formulation, product helps customers solder joint around heat tube (or heat sink) container.

Flexible Dispense Tips access hard-to-reach areas.

EFD Inc.    East Providence, RI 02914-1342
Oct 05, 2006 Ultra® PP dispense tips, featuring flexible polypropylene shafts, are suited for working with scratch-prone substrates. Used with air-powered benchtop dispensers or automated dispense valves, products ensure trouble-free application of adhesives, lubricants, and other assembly fluids. Available in ½ or 1½ in. lengths, tip come with IDs from .054-.010 in. Color-coded hubs feature SafetyLok(TM) threads for secure attachment to syringe barrels or dispense valves.

Dispensing Station prevents variations in adhesive deposits.

EFD Inc.    East Providence, RI 02914-1342
Sep 22, 2006 Using precisely timed air pulse to determine amount of material to be dispensed, Model Ultra® 2415 Workstation is designed to deposit identical amount of adhesive on every assembly. Cyanoacrylate or super glue is dispensed from syringe barrel that can be hand-held or mounted on optional arm. Features include 0-15 psi pressure regulator, microprocessor-based digital timer, and simultaneous digital display of all dispensing parameters.

Control System minimizes variability of fluid temperatures.

EFD Inc.    East Providence, RI 02914-1342
Aug 03, 2006 Used with benchtop dispensers and automated dispense valves, ProcessMate(TM) 6500 eliminates temperature fluctuations in assembly fluids that can cause variations in shot size, viscosity, and pot life when dispensing solder pastes and thermal-cure epoxies. System maintains precise temperature control within ±0.10°C across operating range of 10-40°C. It is available with static-dissipative enclosures for automated, handheld, benchtop, and cartridge dispensing applications.

Benchtop Centrifuge removes bubbles from assembly fluids.

EFD Inc.    East Providence, RI 02914-1342
Mar 28, 2006 Used with prepackaged or user-loaded syringes, ProcessMate(TM) 5000 purges medium- to high-viscosity fluids like epoxies, greases, and silicones of bubbles and air pockets that can affect shot-to-shot consistency in pneumatic dispensing processes. Unit purges up to four 3, 5, 10, or 30 cc syringes at a time. Centrifuge includes on-off switch, timer, tachometer, locking lid, and electric brake that quickly stops rotor before lid is opened.

Solder Paste suits multiple-step component assembly.

EFD Inc.    East Providence, RI 02914-1342
Sep 16, 2005 High-temperature, lead-free Type SN89/SB10.5/CU0.5 features solidus temperature of 242°C, 22°C delta above SAC. It exhibits tensile strength of 12,000 psi and has pasty range of 21°C from 263-242°C, which minimizes tombstoning. Available in all flux systems and alloy types II, III, IV, and V, dispensing and printing paste is suited for multi-step assembly where component will later be attached to PCB using SAC alloy.

Dispense Valve applies cyanoacrylate adhesives.

EFD Inc.    East Providence, RI 02914-1342
Jan 14, 2005 Pneumatically-operated 752 Series applies consistent amounts of adhesives and other assembly fluids on automated production lines. Fast, clean cutoff after each shot eliminates dripping, waste, and cosmetic damage to parts. Amount of cyanoacrylate dispensed is determined by fluid pressure, flow rate, and valve open time. Adjustable stroke control allows flow rate to be fine-tuned, while valve open time is regulated with microprocessor-based VALVEMATEâ„¢ controller.

Dispensing Workstation provides waste-free application.

EFD Inc.    East Providence, RI 02914-1342
Dec 21, 2004 Benchtop Model 2400 uses air regulator and microprocessor-controlled timer to make uniform dots and neat beads, or fill cavities with consistent amounts of grease. Amount of grease applied is determined by air pressure, tip size, and dispense time. Rated at 0–100 psi, regulator handles viscosities from light lubricants to thick grease. Dispense time can be adjusted in .1, .01, .001, or .0001 sec increments for precise control of deposit size.

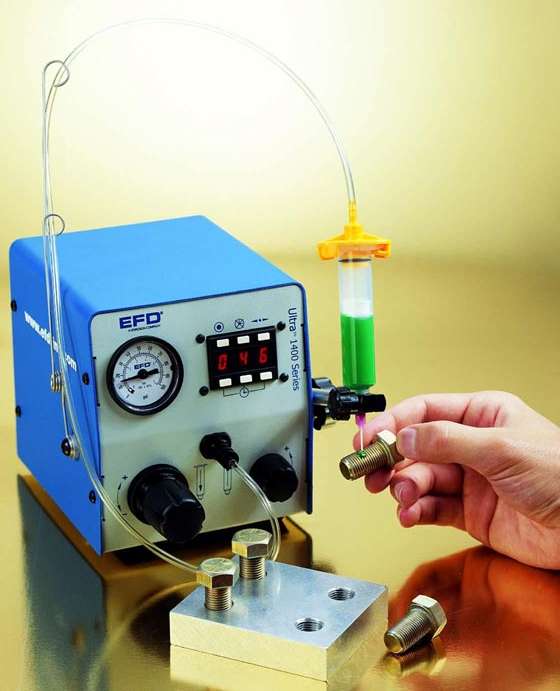

Dispensing System applies uniform amounts of threadlocker.

EFD Inc.    East Providence, RI 02914-1342
Oct 27, 2004 Ultraâ„¢ 1400 reduces rework and rejects and lowers threadlocker consumption. Operating on compressed air and electricity, it incorporates air regulator and digital timer in compact cabinet. Dispense time can be adjusted in 0.001 sec increments. Threadlocker is contained in disposable syringe barrel, and precision piston wipes syringe clean as threadlocker is dispensed to eliminate waste. Adjustable vacuum control prevents dripping between shots.
