Pressure Transducer offers multiple configuration options.

Setra Systems, Inc.    Boxborough, MA 01719
May 06, 2013 Used for measurement of air or other clean gases, AccuSense™ Model ASL variable capacitive pressure sensor can be configured with mA or voltage output, 3 ft cable or 6-pin male bayonet connector electrical terminations, <±0.07% FS RSS or <±0.15% of reading accuracy, and standard or high overpressure options. Sensor can also be configured for both unidirectional and bidirectional ranges and features accuracy at <±0.07% FS over low differential pressure ranges of 0–2.5 in. WC to 0–1 psid.

Digital Pressure Transducer targets clean dry air and gases.

Setra Systems, Inc.    Boxborough, MA 01719
Jan 26, 2010 With compensated temperature range between -20 and 65°C and operating temperature range from -40 to 75°C, model 470T digital pressure transducer suits weather observation applications in extreme environmental conditions. Utilizing Setra's Setraceram (TM) sensor, and advanced digital electronic circuitry, microprocessor based instrument achieves system accuracy of better than +0.02% full scale, in pressure ranges from 0 to 10, 20, 50, and 100 psia; 600-1,100 or 800-1,100 mbar.

Pressure Transducer provides in-situ pressure calibration.

Setra Systems, Inc.    Boxborough, MA 01719
Nov 21, 2008 Designed for critical environments, Model 269 is provided with removable process head, allowing for field certification without disturbing process tubing. Digitally-based differential pressure transducer offers accuracies including non-linearity of ±0.15% and ±0.35% full scale (terminal-based). Installation is via either base mount or din rail, and removable electrical terminal strip simplifies wiring.

Digital Current Switches have solid or split core design.

Setra Systems, Inc.    Boxborough, MA 01719
Jan 17, 2008 CSS and CSC Series self-powered switches utilize magnetic current sensing technology, are offered with 135 or 200 A output, and have switch load capacity of 1 A at 30 V ac/dc maximum. CSS has solid core with wide orifice for pass-through of conductor and is available in 3 models with setpoints as low as 0.25 A. Featuring split core and suited for retrofit applications, CSC series is offered in 5 models available with setpoints down to 0.15 A.

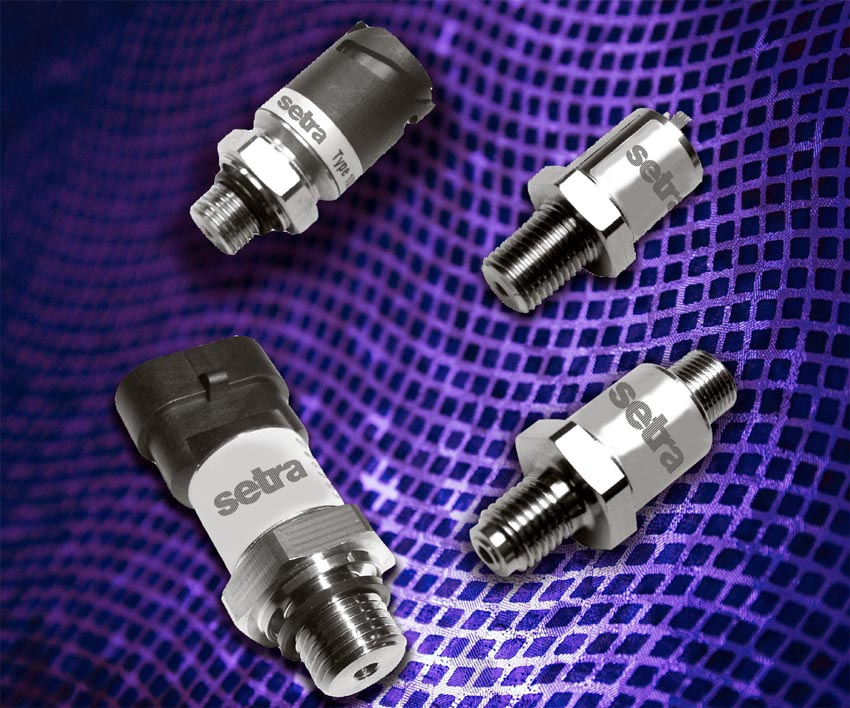

Pressure Transducer suits limited-space OEM applications.

Setra Systems, Inc.    Boxborough, MA 01719
Jul 13, 2007 With footprint of less than 1 in. dia, compact 3100 Series features all-stainless steel construction resistant to corrosive media. Thin film technology and custom-designed ASIC lend to accuracy of 0.25% FS, long-term stability of 0.1%/yr, and thermal stability accurate to within 1.0%/100°F over full compensated temperature range. Offered in pressure ranges from 100-30,000 psi, solution is available with various outputs, pressure fittings, and electrical connectors.

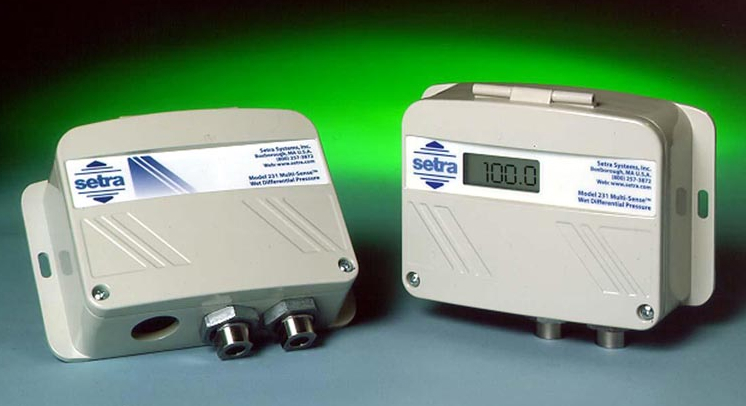

Differential Pressure Transducer features dual sensor design.

Setra Systems, Inc.    Boxborough, MA 01719
Apr 20, 2007 Model 231 Multi-Sense® wet-to-wet, differential pressure transducer has selectable analog outputs that include true 2-wire 4-20 mA ouput, 3-wire 0-5 Vdc, 0-10 Vdc, and 1-5 Vdc output, and unidirectional and bidirectional ranging of span. It is temperature compensated to 32-130°F with zero and span accurate to within 0.02%/°F. Versions include MS1 with ranges from ±5-50 psid, MS2 from ±10-100 psid, and MS3 from ±25-250 psid.

Pressure Transducer targets OEM applications.

Setra Systems, Inc.    Boxborough, MA 01719
Oct 06, 2006 Measuring less than 1 in. in dia, Compact 3100 Series pressure transducer is suited for space-constrained installations. It has accuracy to 0.25% full scale, long-term stability of 0.1%/yr, and thermal stability accurate to within 1.0%/100°F over compensated temperature range of -40 to 250°F. Offered in pressure ranges from 100-30,000 psi, CE compliant and corrosion resistant series is available with wide variety of outputs.

Low Differential Pressure Transducer offers 1% FS accuracy.

Setra Systems, Inc.    Boxborough, MA 01719
Jun 06, 2006 Suited for automated weather systems, Model 260 features user-selectable pressure ranges and analog outputs, standard LCD, and AC/DC excitation on voltage output operation. With configure-on-the-fly ability, unit offers pressure ranges from 0.1-10 in. WC full scale, and may be field-configured as unidirectional or bi-directional. External push button for field zeroing provides fast, accurate zero, without compromising full-scale performance.

Transducer Termination Enclosure protects against moisture.

Setra Systems, Inc.    Boxborough, MA 01719
Jan 18, 2006 Designed for field-termination of pressure transducers, Model 299 Dri-Sense reduces failure caused by humidity migrating down cable and causing short circuit. Desiccant material contained within cover captures and condenses moisture, turning from blue to pink to indicate desiccant status. Desiccant can be regenerated by baking at 200°F until returned to blue (3-4 hr). Enclosure, constructed of plastic glass-filled polycarbonate, also protects against surges to 2,000 V.

Submersible Pressure Transducer has 318SS wetted parts.

Setra Systems, Inc.    Boxborough, MA 01719
Nov 11, 2005 Manufactured in 318SS enclosure rated IP68 to 200 mWG, Model 595 features integral specific gravity compensation that provides true level reading - even when subjected to media temperature changes over 23-113°F range. Hermetic header eliminates possibility of water entering transducer. Resistant to effects of humidity, product is offered with 2-wire/4-20 mA, SDI-12 w/4-20 mA, RS485, or SDI-12 output. It comes in gauge pressure ranges from 5-40 mWG.
