Plastic Enclosure protects Freescale development board.

Bud Industries, Inc.    Willoughby, OH 44094
Mar 11, 2013 Measuring 3.62 x 2.60 x 1.10 in., FBB-3665 Enclosure is designed for KL25Z Freescale Freedom Development Platform. Board slips into place, secured in enclosure by snug fit rather than by potentially damaging hardware. Cutouts in front panel allow for connection to board's 2 USB ports and provide access to reset button, while round knockout plugs in rear accommodate optional miniature cable gland. Slot on each side of enclosure accommodates flat cables from I/O header banks.

Dual-Compartment, IP65 Enclosures protect sensitive circuits.

Bud Industries, Inc.    Willoughby, OH 44094
Nov 15, 2012 While upper compartment of DCH Series has transparent, screw-on or hinged cover that lets users view meters and other indicators as well as access system components that may require maintenance, lower compartment is designed to protect delicate components and contain electrical components that could pose touch hazard as well as other components not requiring frequent access. ABS plastic enclosures include 5 models with size from 6.34 x 6.54 x 3.66 in. to 11.06 x 11.65 x 6.22 in.

DIN Rails comply with EN 60715 standard.

Bud Industries, Inc.    Willoughby, OH 44094
Aug 29, 2012 Measuring 35 mm wide x 7.5 mm high x 1 m long, DIN Rails are made from 1 mm thick zinc-plated steel with 18 x 6.3 mm oblong slots spaced at 25 mm center to center for flexibility in mounting. Rails are suitable for mounting Bud DB, DPB, DMB, and TS-16 series enclosures and accessories. DIN rail mounting clips are also available.

NEMA-Rated Box protects outdoor electrical control wiring.

Bud Industries, Inc.    Willoughby, OH 44094
Jun 28, 2012 Compliant with NEMA and UL-50 Type 3R rating, NEMA box provides protection against rain, sleet, and damage from formation of external ice. Enclosure is constructed of heavy-duty 16 GA galvanized steel that provides corrosion protection and is coated with ASA-70 gray powder. While internal zinc-plated steel panel facilitates component mounting, external mounting brackets allow installation on vertical surfaces without opening cover and exposing internal components.

Open Rack Equipment Shelves support up to 150 lb.

Bud Industries, Inc.    Willoughby, OH 44094
May 15, 2012 Constructed of 16-gauge steel with flanged front lip that keeps equipment securely in place, SA Series fits open racks with 19 and 23 in. wide panel spaces and 5.25 in. of panel height. Units are 15 in. deep and can be mounted facing forward or backward in relay rack. Available in both ventilated and non-ventilated configurations, shelves may be requested in black texture or metallic gray powder coat finish.

Swing Frame 19-Inch Rack simplifies equipment storage.

Bud Industries, Inc.    Willoughby, OH 44094
Mar 28, 2012 Offering open construction and removable door to aid hardware upgrades and maintenance, Swing Frame Rack combines wall-mounted rack functionality with swing-out frame. Product can be hinged left or right and provides storage for networking equipment. With 75 lb load capacity, each unit accepts No. 12-24 panel mounting hardware and mounts on 16 in. hole centers in back for stability. Frames come in 21 and 35 in. panel space heights and mount to 18 in. depth.

Pre-Drilled Push Button Box protects switching components.

Bud Industries, Inc.    Willoughby, OH 44094
Nov 22, 2011 Constructed from 14 GA steel with ANSI 61 grey powder coating, SPB Series meets NEMA 12/13 specifications. Cover has die-cut gasket for protection against dust, water, and oil. Cover screws thread into sealed nuts for additional sealing protection. Available in 4 sizes to accommodate either 22.5 or 30.5 mm push buttons, box can be mounted to wall or machine, providing protection for emergency shut-off controls in factory automation systems.

Plastic Electronic Enclosure has integral mounting brackets.

Bud Industries, Inc.    Willoughby, OH 44094
Sep 06, 2011 Carrying NEMA 4 rating, PN-Series is offered in various plastic materials and with clear or solid cover. Molded-in external mounting brackets on back allow mounting on wall, panel, or machine, while cover-attaching screws outside sealing area provide additional shielding from moisture and dust. Most models have internal guide slots for mounting PCB assemblies vertically, and internal bosses allow for mounting of PCBs horizontally or for connection of terminals into threaded brass inserts.

Steel Server Rack is EIA-310 compliant.

Bud Industries, Inc.    Willoughby, OH 44094
Jun 20, 2011 Available with 4 casters, portable BudRack Professional Series features ventilated tempered glass front door, solid steel locking rear door, and removable locking sides for security and quick access. It handles 19 in. rack-mount component equipment such as computer servers, monitors, KVMs, networking, and test instruments. Rack has 2 pairs of fully-adjustable 14 ga panel mounting rails, and comes complete with either two 23 in. or four 31 in. depth fans to expel air from cabinet.

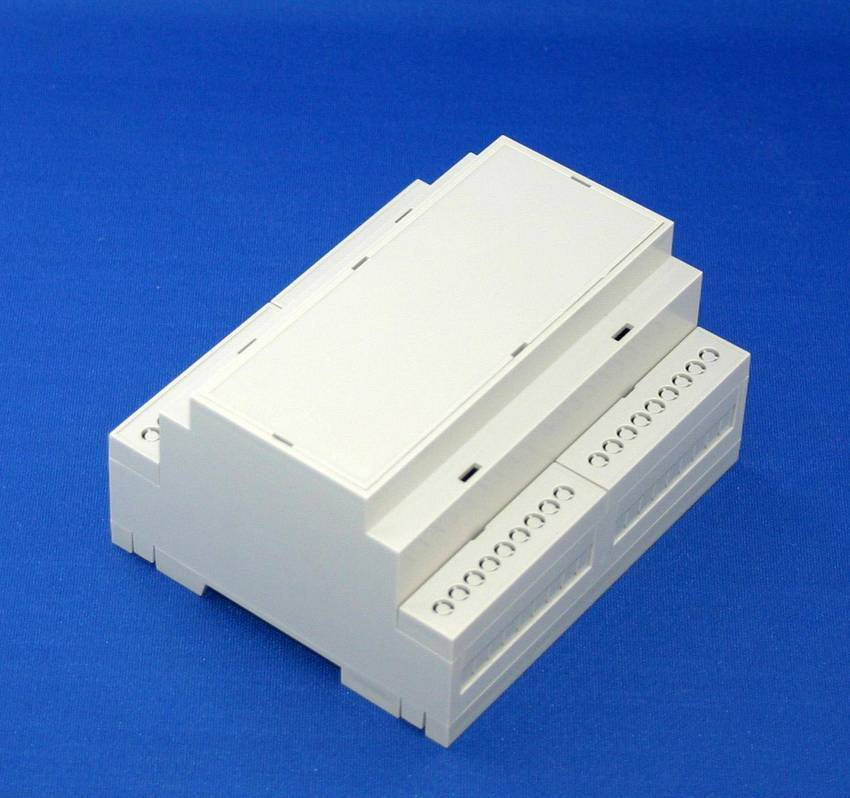

Terminal Block Enclosure houses up to 3 circuit boards.

Bud Industries, Inc.    Willoughby, OH 44094
May 03, 2011 Featuring snap-fit design, DIN-rail-mount terminal block enclosure houses PCBs and terminal blocks used in industrial controls, relays, and test equipment. Unit is designed for modularity, so functions and features can be varied by substituting secondary circuit boards. Sizes from 1.43 x 3.55 x 2.55 in. to 6.28 x 3.55 x 2.26 in. are available, and product accommodates 12-54 terminals. Enclosure is manufactured with UL94V-0 rated ABS/PC blend plastic.
