Miniature Diaphragm Air Pump offers chemical resistance.

Clark Solutions    Hudson, MA 01749
May 13, 2013 Featuring chemical resistant wetted components, including FKM seals, valves, and diaphragms and POM pump bodies, Model 8018GT is suited for medical equipment, automated chemistry systems, or environmental sampling equipment. Pump features 24 V Namiki brushless DC motor with integrated sensor drive-type circuit. With max flow rate of 2,000 ml/min, vacuum to 563 mm Hg, and pressure to 1.7 bar, pump is also suited for pick-and-place systems, ink jet printers, and food packaging equipment.

Gear Pumps transfer water to 2.6 gpm and oil to 52.9 gph.

Clark Solutions    Hudson, MA 01749
May 10, 2013 Constructed with helical bronze gears, nickel-plated brass body, and stainless steel shaft, UP2/Oil Gear Pumps transfer both water and engine oils. UP2/P Gear Pumps, featuring PTFE gears, are suitable for transferring fresh and salt water as well as diesel fuel. All electric pumps are self-priming and measure just 4 3/8 in. in length to fit in tight spaces.  Available in 12 or 24 Vdc, pumps have motor life of approximately 2,000 hours and max operating temperature of 140°F.

Two-Way Inert Isolation Valves handle aggressive media.

Clark Solutions    Hudson, MA 01749
May 10, 2013 Available in choice of wetted materials suitable for use with aggressive media being transferred at temperatures from 5 to 50°C, WTA-2 series are solenoid operated, feature PTFE isolation diaphragms, and Perfluor or Viton® soft seal valve seat design. Elastomeric seals resist damage from particulate matter, accommodating analytical and clinical chemistry applications. While Model WTA-2R valves have molded PPS bodies, Model WTA-2K valves are designed with molded PEEK bodies.

Exchangeable Turbine Flow Sensor serves low-flow applications.

Clark Solutions    Hudson, MA 01749
Mar 29, 2013 With accuracy of 1% of reading, Model PFAD serves applications with flow rates of .06–20 Lpm. Design lets users exchange flow tubes in biomedical, chemical feed, and flow control loop applications. Originally designed for pharmaceutical industry, chemical- and corrosion-resistant sensor has PFA wetted parts with ruby bearings. Optional elements include programmable K factor, flow switch, and programmable batch feedback function for pump control.

Portable Datalogger/Indicator supports diverse range of sensors.

Clark Solutions    Hudson, MA 01749
Mar 29, 2013 Offering 65+ measuring ranges, MA2590 supports sensors for measuring pressure, liquid and air flow, temperature, light intensity, pH, conductivity, gas concentration, relative humidity, rotational speed, and linear displacement. Features include 2, 3, or 4 input electrically isolated sockets for all ALMEMO sensors and 4 additional internal function channels. There are also 2 output sockets, with standard cables available for analog, V24, USB, and Ethernet interface.

DC-Powered Peristaltic Pumps provide dispensing accuracy.

Clark Solutions    Hudson, MA 01749
Mar 14, 2013 Available with 8 or 4 rollers/channel as well as multiple channel designs, Boxer 6000 Series offers gear-box or stepper-motor driven versions, with optional Stepper Motor Control board which installs either remotely or directly to back of stepper motor. Optional Controlled Stepper Drive allows for programming of up to 10 operating pump protocols. In addition to wide range of tubing diameters, pumps offer color-coded tube clips matching various tube diameters, eliminating need for adjustments.

Magnet Drive Rotary Vane Pump handles up to 330 gph, 260 psi.

Clark Solutions    Hudson, MA 01749
Dec 20, 2012 Available in brass or AISI 303 stainless steel housing, Model TM features totally sealed body helps extend service life and does not have any mechanical seals. Pump is offered with NBR, Viton, or EPDM static seals with carbon graphite internal components, and optional built-in relief/bypass valve is available. Product also features noiseless operation and is suitable for use as alternative to conventional rotary drive pumps.

Pressure Transmitters utilize ceramic sensor technology.

Clark Solutions    Hudson, MA 01749
Dec 20, 2012 Rated for FS ranges from 30 in. Hg vacuum to 7,500 psi, Series 511 is suitable for liquids and gases and meets highest specification for mechanical stress and EMC compatibility. Ceramic sensor, utilizing integrated electronics, maintains linearity even in instances of over-pressure. Capable of  monitoring media with temperature range of -40 to 125°C, transmitters include rupture sealing device in connector to prevent media leakage in event of sensor failure.

BTU/Energy Meter monitors heating/cooling process systems.

Clark Solutions    Hudson, MA 01749
Nov 14, 2012 Compatible with ¼, 3/8, ½, or ¾ in. piping, Model DN-EM supports 0.25–22.50 gpm flow rates and measures compatible fluids with temperatures to 212°F. Liquid volume is measured via pulse-generating vortex flow transmitter, while RTD sensor built into flowmeter measures temperature at meter. Remote temperature is measured via RTD sensor mounted in pipe tee. Along with Modbus 485 communications, energy flow monitor offers configurable scaled pulse output and non-volatile memory.

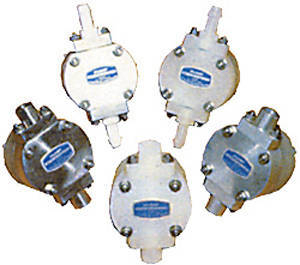

Miniature Diaphragm Pumps handle high viscosity liquids.

Clark Solutions    Hudson, MA 01749
Nov 13, 2012 Rated for liquid flow rates up to 1.32 gpm and pressures to 99.7 psi, Model MID Air Operated Pumps are suited for pumping liquids with viscosities up to 50,000 cps at 20°C, even if containing suspended solids. Units are self-priming and capable of dry operation without suffering damage. Available with wide choice of component materials, pumps are compatible with variety of chemicals and are specifically designed for demanding applications with high humidity or potentially explosive atmospheres.

Diaphragm Pumps operate in high-humidity environments.

Clark Solutions    Hudson, MA 01749
Nov 13, 2012 Capable of transferring liquids with very high apparent viscosity up to 50,000 cps at 20°C, even if containing suspended solids, Debem Series Air Operated Diaphragm Pumps feature self-priming dry capacity, fine tuning of speed without pressure loss, and possibility of dry operation without damage. Providing flow rates of 7.9–238 gpm, units are available with plastic diaphragm for use with highly aggressive liquids and acids, or metal diaphragm for use with paints or solvent-based liquids.

Magnetic Drive Gear Pumps feature integrated driver circuit.

Clark Solutions    Hudson, MA 01749
Sep 05, 2012 Incorporating magnetic drive and 24 V brushless DC drive motor in rotor-less configuration, FG Series provides precise transfer of aggressive fluids. Chemical-resistant pumps feature AISI 316L or PPS housings and PEEK/PTFE gears and bushings. Providing pulsation-free flow up to 205 lph, pumps are suited for medical devices and scientific/laboratory systems as well as food processing and water purification systems.

Peristaltic Pump is suited for automatic chemical dosing.

Clark Solutions    Hudson, MA 01749
Aug 06, 2012 With integrated 6-12 Vdc or 24 Vdc stepper motor and wetted materials of santoprene or silicone, Boxer Unoverse 9000 delivers smooth, low-pulse flow and accurate liquid dispensing in bioengineering, medical, scientific, and diagnostics instrumentation. Continuous-duty, panel mount, self-priming solution has hinged lid that facilitates tube replacement and choice of 1, 2, or 3 mm dia tubes. Three-roller peristaltic pump system enables delivery rates from 0.2-270 mL/min.

Compact Pneumatic Diaphragm Pump is safe for hazardous areas.

Clark Solutions    Hudson, MA 01749
Jun 21, 2012 Rated to 3 LPM max, Pageboy Series SFD15 is suited for solvents, light oils, and other low-viscosity fluids. Self-priming pump is designed for vertical-upward flow, operates from 80-100 psig supply, and consumes 0.5 cfm. Stress-free diaphragm design promotes reliability and life expectancy, and choice of body materials includes polypropylene, PTFE, 316SS, and aluminum. Rated for 87 psig max, pump measures 133 x 80 x 56 mm and offered various connection based on body material.

Inert Isolation Valves feature particle-tolerant soft seat.

Clark Solutions    Hudson, MA 01749
Jun 21, 2012 Available with 4 or 6 mm orifice, Model PKV-R/K Valves are constructed with PPS or PEEK molded body, PTFE isolation diaphragm, and FPM valve seat seal. Units come in 2-way and 3-way models with power consumption of 6 W and 10 W, respectively. Insulation Resistance is 50 MW at 500 Vdc and dielectric strength is 1,500 Vac/1 min. Rated at 12 or 24 Vdc, valves are suitable for control of waste fluid lines on automated chemistry equipment.

Turbine Flow Sensor is suited for underground installations.

Clark Solutions    Hudson, MA 01749
Apr 11, 2012 Designed for 3 and 4 in. pipe systems, FSI-S00 is constructed with 4-bladed, HDPE impeller; Type 1 PVC sensor housing; tungsten carbide impeller shaft; and BUNA-N O-ring. Sensor is rated to 150 psi and outputs square wave digital signal proportional to flow. Also, pulse signal output will travel up to 2,000 ft without amplification. Installation requires end user to drill pipe and mount saddle, and sensor insert mounts in housing that controls depth and alignment of impeller.

Turbine Low Flow Sensors include molded mounting tee.

Clark Solutions    Hudson, MA 01749
Apr 11, 2012 Designed for 1, 1½, and 2 in. pipe systems, FSI-T00 Series is constructed with 4-bladed HDPE impeller, Type 1 PVC sensor housing, tungsten carbide impeller shaft, and Buna-N O-ring. Units deliver square wave digital signal output proportional to flow that will travel up to 2,000 ft without amplification. Equipped with threaded retaining nut for servicing, sensors are suited for water treatment systems, water dispensing, cooling loops, irrigation systems, and large scale aquariums.

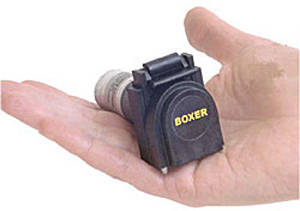

Miniature Diaphragm Pumps offer single or dual pump heads.

Clark Solutions    Hudson, MA 01749
May 20, 2011 Available in 12 or 24 Vdc models, Boxer Series 10K delivers flow rates to 0.8 lpm for liquids and 4 lpm for gases. Dual head configuration provides pulsation-free flow, and all models have integrated pulsation and vibration dampers for smooth transfer. Featuring corrosion-resistant design, pumps are available with parallel heads for max flow or series head configuration for max vacuum and pressure. Wetted materials include PPS, neoprene, silicone, or nitrile.

Energy Monitor suits solar, submetering, energy transfer systems.

Clark Solutions    Hudson, MA 01749
Apr 05, 2011 To aid in accounting for energy usage as well as allocation of costs to end users, Model DN-EM BTU/Energy Monitor measures thermal energy flow rate and totalized energy consumption in water and water/glycol based heating and cooling applications. System employs pulse generating Clark vortex flow transmitter, RTD sensors, Modbus 485 communications, and non-volatile memory. Generated scaled pulse output can be configured to report flow rate or energy total.

Vortex Flow Transmitters offer flow ranges from 0.3-22 gpm.

Clark Solutions    Hudson, MA 01749
Apr 05, 2011 Utilizing Kármán Vortex Trail principle of operation, DN-420 Series is suited for liquid media flow monitoring and control in ¼-¾ in. piping systems. Loop-powered units use piezoelectric sensors embedded in ETFE vane located downstream of bluff to detect generated vortices. Frequency measured represents flow velocity, and flow factor is provided to convert frequency to volume flow rate. Each model delivers frequency/pulse output and linear 4-20 mA output proportional to flow.
