RF Coaxial Connectors feature finger-safe design.

Tru-Connector Corporation    Peabody, MA 01960 5099
Nov 21, 2003 Quick-release TRU QRM Series Connectors feature recessed female contacts and dielectric at tip of male contacts to protect users. They handle high power applications up to 6,000 W at 100 MHz and DC to 4.0 GHz frequency range. Rated for 50 ohm impedance and 2,600 V, units feature nickel-plated brass bodies, silicone rubber gaskets, PTFE insulators, gold-plated brass center contacts, and beryllium-copper outer contacts. Plugs, jacks, and receptacles are available.

RF Coaxial Connectors have center contacts.

Tru-Connector Corporation    Peabody, MA 01960 5099
Oct 31, 2003 Suited for military and commercial applications, LC Series connectors feature female with closed-slot center contact and male version with rounded center pin. They are available as straight thru or right angle plugs and female receptacles, and as between series adapters. Rated for 50 ohm impedance, DC to 1 GHz, and 5,000 V, they are constructed with brass body, beryllium-copper female contact, brass male contact, and choice of insulator materials.

Strain Relief Clamp prevents twisting/flexing problems.

Tru-Connector Corporation    Peabody, MA 01960 5099
Sep 24, 2003 SR-Series Clamp Attachment fits onto back end of RF coaxial connectors to reinforce cable assemblies subjected to excessive twisting and flexing. Product features rolling clamp nut design that provides axial and rotational support and prevents distortion of cable caused by over-tightening. Suited for cables from ¼â€“¾ in. OD, product is fully compatible with RG214, RG393, and RG217 connectors and is constructed from nickel- or silver-plated brass.

EIA Connectors are offered in 7/8 and 1 5/8 in. sizes.

Tru-Connector Corporation    Peabody, MA 01960 5099
Jul 29, 2003 Suited for use with flexible coaxial cables with ODs from 0.5–1.2 in., power connectors feature silver-plated, beryllium-copper inner conductors with Teflon® dielectrics and nickel- or silver-plated bodies. Supplied as straight and right-angle plugs, receptacles, and jacks, products operate at frequencies from dc to 3,000 MHz. Characteristics include peak power rating of 132 kW, average power rating of 35 kW @ 13.56 MHz, and 11 kV dc voltage rating.

Coaxial Adapters connect equipment to Mil-C-39012 interfaces.

Tru-Connector Corporation    Peabody, MA 01960 5099
May 30, 2003 TRU Precision Adapters feature 7 mm interface on one end and SMA, Type N, TNC, HN, and SC on other. These 50 ohm RF coaxial adapters operate from dc to 18 GHz with VSWR of 1.10 max, in -55 to +85°C temperature range. Features include 6-slot center contact on 7 mm end, gold-plated stainless steel body, passivated, stainless steel coupling nut, gold-plated brass center contact, and Noryl insulator.

RF Coaxial Connectors suit limited space applications.

Tru-Connector Corporation    Peabody, MA 01960 5099
May 01, 2003 Series BMMA consists of sub-miniature BMA connectors with push-on blind mate interfaces. Inner conductors and insulators are mechanically captivated to prevent RF leakage. Connectors are suitable for dc to 28 GHz applications, provide 50 Ohm impedance, 675 VRMS dielectric withstanding voltage, 5,000 megohms min insulation resistance, and -90 dB RF leakage. They have 303 SST bodies, beryllium-copper center contacts, PTFE insulators, and operate over -65°C to +125°C range.

Flexible Coaxial Communications Cable is weather-resistant.

Tru-Connector Corporation    Peabody, MA 01960 5099
Apr 16, 2003 With greater than 90 dB shielding, low loss, 50-Ohm cintru™ cable operates over frequency range of dc to 6 GHz, depending on connector type. Broadband cable can be supplied in bulk or as complete cable assemblies with connectors. Product is constructed with copper center conductor, aluminum tape bonded to polyethylene foam dielectric, tinned copper outer braid, and polyethylene outer jacket. Cable comes in 0.195–0.600 in. dia sizes.

RF Microwave Connectors have snap-on interfaces.

Tru-Connector Corporation    Peabody, MA 01960 5099
Mar 20, 2003 TRU Subminiature MCX/MMCX Series are constructed of brass bodies, brass gold-plated male contacts, beryllium copper gold plated female contacts, and Teflon® insulators. Suited for SMT applications from dc to 6 GHz, 50-ohm connectors provide 750 VRMS dielectric withstanding, 1.15:1 VSWR @ 6 GHz, and conform to CEECC 22220 standards. Units are suited for automotive, GPS, test and measurement, wireless, and additional surface-mount applications.

Coaxial Adapters simplify between-series interconnects.

Tru-Connector Corporation    Peabody, MA 01960 5099
Dec 11, 2002 In-Series 7-16 adapters eliminate need for multiple adapters when interconnecting 7-16 to type N, HN, C, LC, SQS, 7/8-EIA, and 1-5/8 EIA RF coaxial connectors. With ratings to 2,700 Vrms, 50 Ohm adapters are offered in customer-specified male or female interface combinations. Adapters are constructed with nickel- or silver-plated brass bodies, silver-plated, beryllium-copper female contacts, and silver- or gold-plated brass male contacts.

Connectors fit semi-rigid and flexible cables.

Tru-Connector Corporation    Peabody, MA 01960 5099

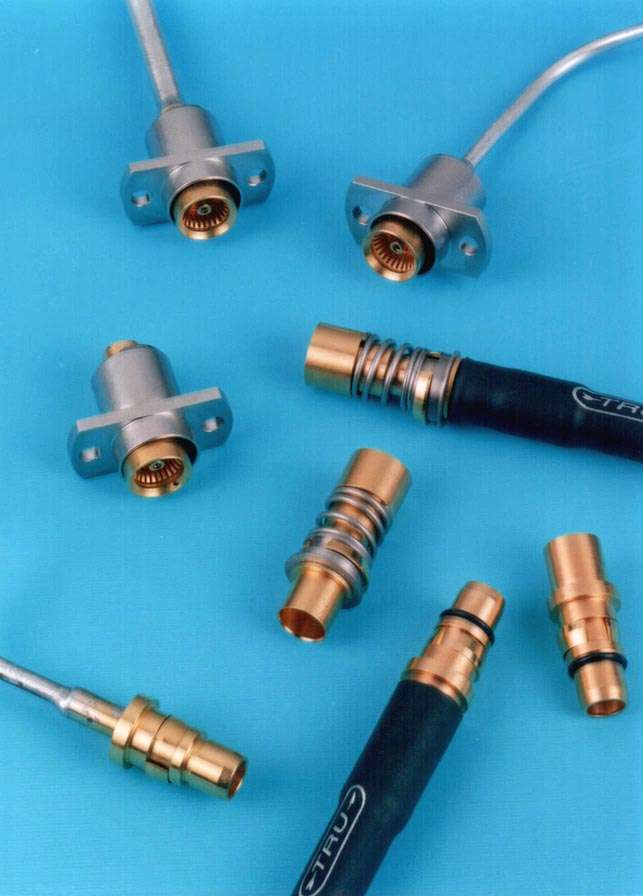

Oct 01, 2002 TRU BMA connectors fit cables with tape-wrapped Teflon® and foamed polyethylene dielectrics. Push-on SMA interface is suitable for dense modular connector arrays. BMA connectors fit semi-rigid cable sizes from .0865 to .141 in. and flexible cables from .190 to .24 in. with crimp and solder attachment. Providing positive alignment interface with minimal insertion force, TRU BMA Series Connectors accommodate maximum .060 in. axial and ±.020 in. radial misalignment.

Connectors eliminate need for rigid line.

Tru-Connector Corporation    Peabody, MA 01960 5099
May 30, 2002 EIA connectors, suitable for flexible braided cable, simplify routing. Available as straight and right angle plugs, receptacles, and adapters in 7/8 and 1 5/8 in. line sizes, they suit high power applications up to 10,000 W. Construction features silver-plated beryllium-copper inner conductors; Teflon® dielectrics; and brass and nickel or silver-plated bodies. They provide 50 ohm impedance and can handle 6,000 V.

RF Coaxial Adapters feature metrology-grade construction.

Tru-Connector Corporation    Peabody, MA 01960 5099

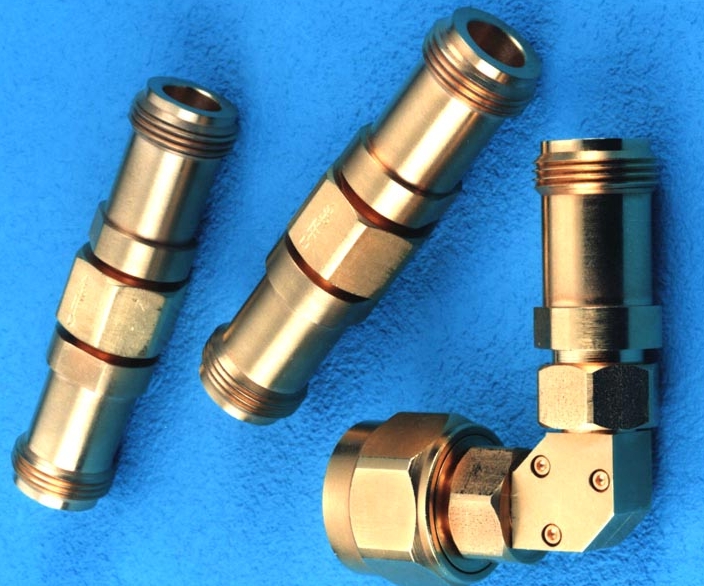

Jan 23, 2002 Precision N Adapters have gold-plated 303 stainless-steel bodies, BeCu center conductors, Teflon® insulators, and come in straight and right-angle designs with swept center contact. Mated pairs exhibit 1.20 VSWR, from dc to 18 GHz. Available in female-female, female-male, and male-male combinations, N Adapters provide MIL-STD-348 interface, are rated at 50 ohm, and operate over -55 to +85°C temperature range.

Coaxial Connectors feature DC to 40 GHz performance.

Tru-Connector Corporation    Peabody, MA 01960 5099

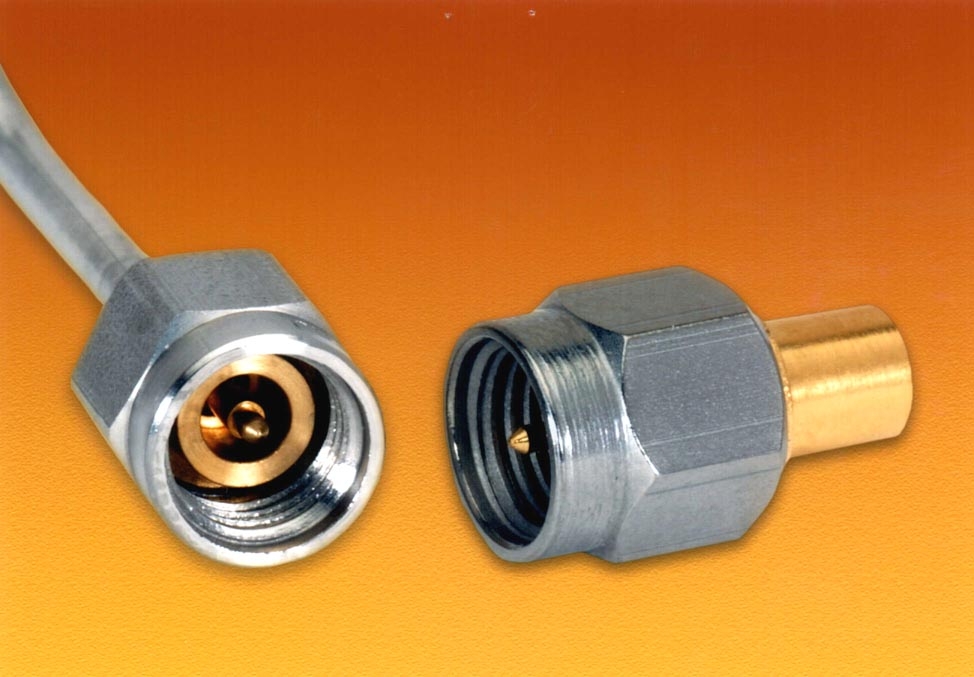

Jan 02, 2002 2.92mm coaxial connectors provide high repeatability, and are compatible with K, SMA, and 3.5mm series connectors. They are designed for demanding applications at -55° to 125° C temperatures. Featuring type 303 stainless steel bodies and gold plated BeCu contacts, they require 8 to 10 in-lbs. coupling nut tightening torque, and are rated for >500 matings. 50 Ohm coaxial connectors have 750 VRMS dielectric withstanding voltage.

Connectors are available in threaded mate or snap-on.

Tru-Connector Corporation    Peabody, MA 01960 5099

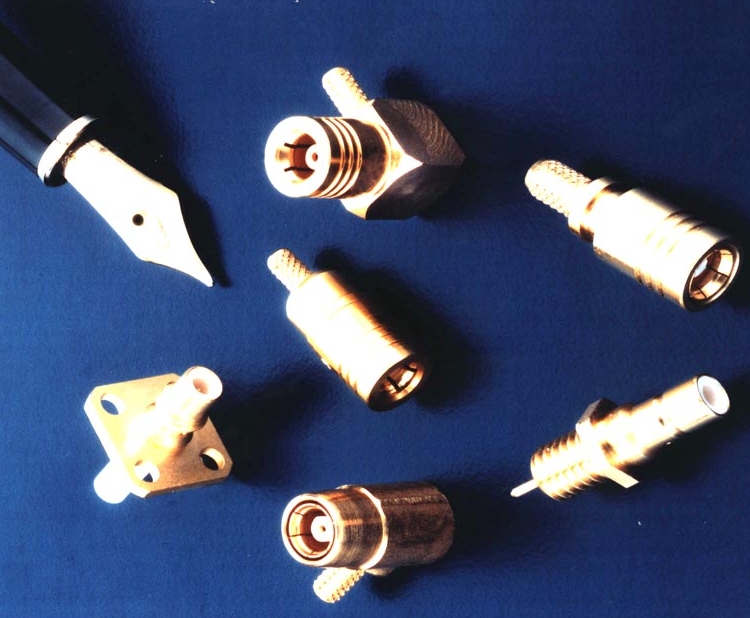

Nov 28, 2001 SMB/SMC Series Subminiature Coaxial Connectors are machined from brass, gold plated to resist corrosion, and have beryllium-copper female contacts and Teflon® insulators. Providing service life of 500 matings, 50 Ohm connectors are rated for 750 Vrms dielecric withstanding voltage and operating temperature from -65°C to +165°C. Frequency range is 0 to 4 GHz for SMB Series and 0 to 10 GHz for SMC. Connectors meet MIL-PRF-39012 and MIL-STD-202 standards.
