Adjustable Levelers are designed for automated equipment.

AirLoc Products    Franklin, MA 02038
Jan 07, 2008 Type PRS and PRSK Jacmount® levelers meet precise positioning requirements and vibration isolation of fully automated equipment, such as injection molding; grinding and milling; and cutting and piercing machines. Ruggedly designed units feature adjustable load plate that will not come apart during installation or relocation of machinery. Integrated components are interlocking and well suited for applications with high horizontal forces.

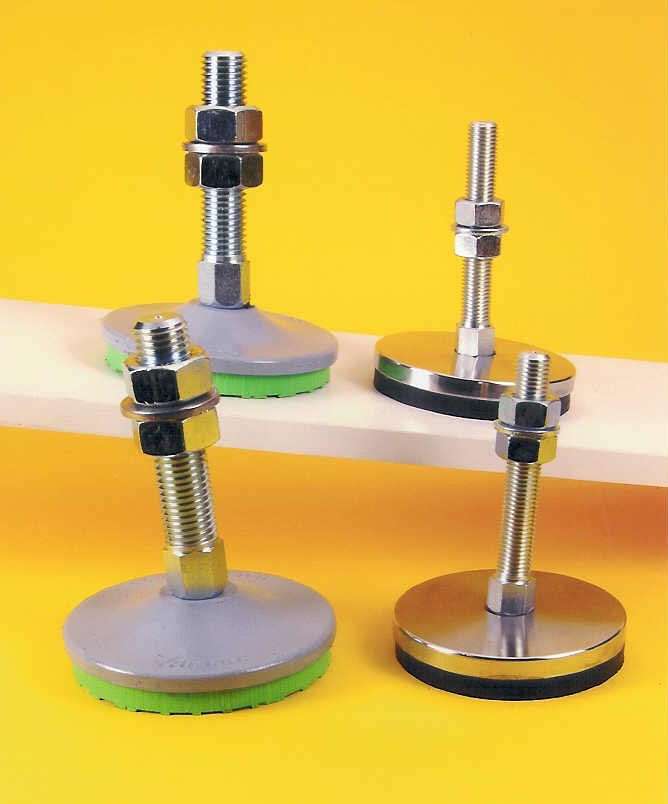

Leveling Mounts adjust to uneven floors.

AirLoc Products    Franklin, MA 02038
Dec 30, 2003 Jacmount® PRG Series Adjustable Levelers provide up to 2 in. vertical adjustability and ±4° range of spherical motion. Available in cast iron or stainless steel, units feature interlocking stud and body that cannot accidently pull apart. Capacities range from 50–13,500 lb each. Energy absorption pads are high-damping, green 70 D nitrile, and vibration isolation pads are black 45 D neoprene with plain or non-skid surfaces.

Horizontal Machine Supports prevent walking and stop sway.

AirLoc Products    Franklin, MA 02038
Jul 07, 2003 AirLoc Horizontal Wedgmount® Machine Supports offer integral damping and cushioning capabilities that dissipate up to 90% of horizontal load forces. Available with different mounting brackets, hardware, and vibration control pads, products can be adapted to customer requirements for machines and presses up to 3,000 tons or more. Installations include 4 individual supports offered in sizes that can withstand horizontal load forces from 5,000–250,000 lb.

Mounting Brackets permanently bolt down machine levelers.

AirLoc Products    Franklin, MA 02038
Mar 28, 2003 KaBloc Brackets for Wedgmount® Precision Levelers prevent slippage or correct twisting and bending of long-bed machines. They can be fixed with M-20 bolts and chemical anchors. Capacities range from 25,000–50,000 lb. Providing up to 3° of self alignment, with 9–25 mm vertical adjustability and 0.01 mm accuracy using hex wrench, levelers are offered with interlocking split-disc spacers in 6–30 mm thick sizes for changing height further without disassembly.

Vibration-Control Pads suit free-standing machines.

AirLoc Products    Franklin, MA 02038
Jan 09, 2003 PAD-PAK® Vibration Control Pads are prepackaged to provide proper leveling and loading for machines having 4 points of support. Offered in 45 durometer neoprene, for low-frequency applications, and 70 durometer nitrile, for high damping, each set contains 4 base pads and 4 shim leveling pads. Cross pattern on tops and bottoms assures stable, non-slip surface. Sizes range from 2–10 in. sq with varying thickness to support machine weights from 200–20,000 lb.

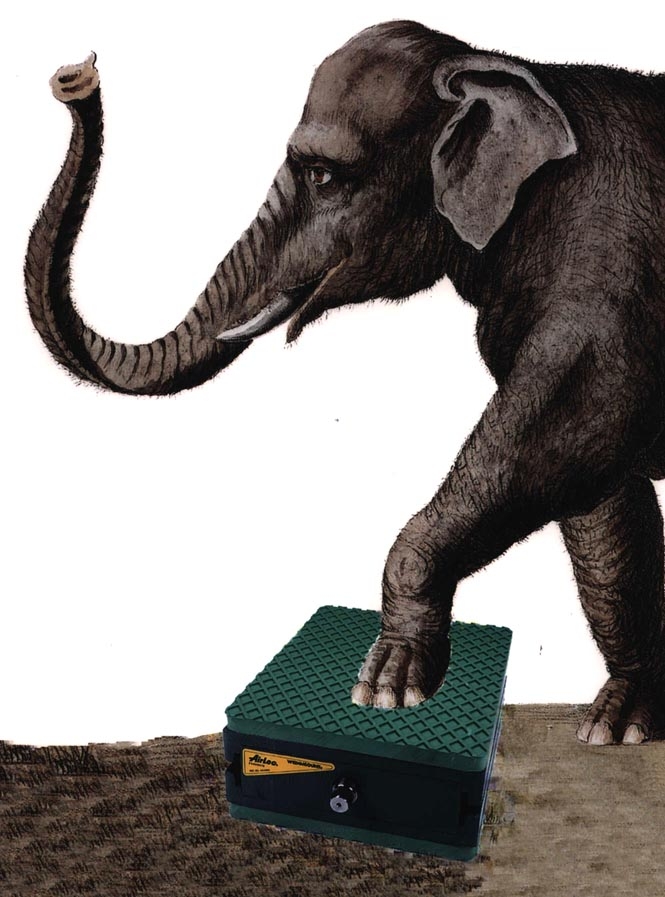

Leveling Mounts are free-standing to fit where needed.

AirLoc Products    Franklin, MA 02038
Aug 20, 2002 Wedgmount® VRC Series High Damping Leveling Mounts provide leveling from 15 to 22 mm, accurate to 0.01 mm, and are available with individual capacities ranging from 20,000 to 250,000 lbs. Isolation pads, made from elastomer with 30 to 42% damping ratio, can dissipate up to 90% of energy generated by machine. Mounts incorporate pads from 3 to 50 mm thick to match any application. They are mechanically adjustable under full load, using ratchet wrench.

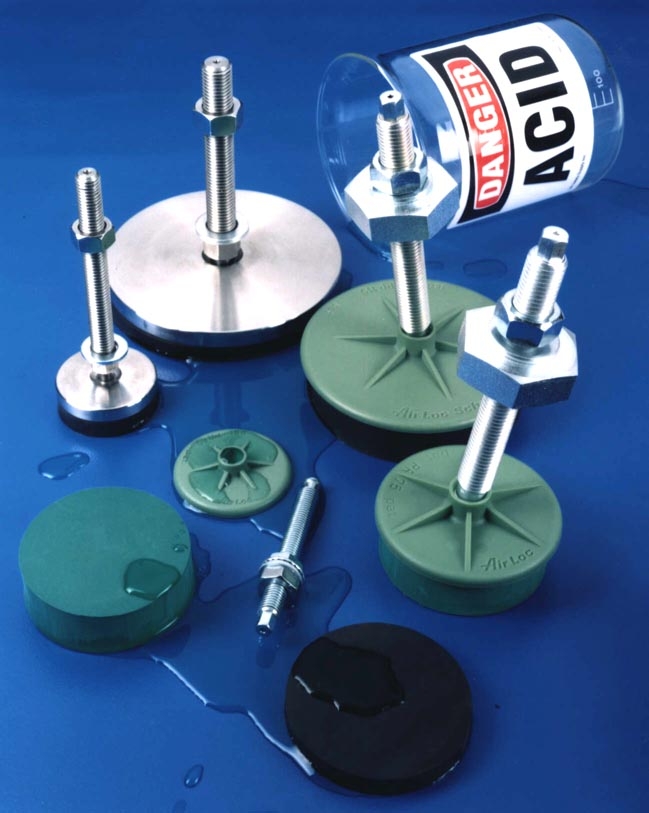

Leveling Mounts are wash-down and acid-resistant.

AirLoc Products    Franklin, MA 02038
Mar 14, 2002 Airloc Jackmount® Adjustable PR Series machine leveling mounts are available with rubber or neoprene vibration isolation pads from 40 to 90 durometer with smooth non-skid surfaces. Rubber or neoprene pads come in 5, 10, 15, and 25 mm thicknesses. Offered in all stainless steel or thermoplastic bodies, mounts provide spherical support with ±4 deg range of motion. Available in capacities from 50 to 2,000 lbs, they are offered in 2 to 5 in. dia sizes.

Isolation Pads protect floors and reduce noise.

AirLoc Products    Franklin, MA 02038
Jan 22, 2002 Series 400, 700 and 900 vibration control pads are offered in variety of configurations such as low frequency, high damping, high loading, level stability, and high coefficient of friction. Available from 2 to 25 mm thick with smooth or non-skid profiles, pads measure 500 x 1000 mm and handle up to 100 tons. They can be cut to fit special applications and combined with free-standing leveling mounts.

Machine Supports prevent walking and dissipate energy.

AirLoc Products    Franklin, MA 02038
Nov 08, 2001 Horizontal Wedgmount® Machine Supports absorb shock to stop machines, which create extreme horizontal impact forces from walking. Featuring integral high damping and cushioning mount that can dissipate up to 90% of impact forces, each support has adjustable resistance level, heavy-duty structural steel bracket, and comes with 3 anchor bolts. Mounts are offered in sizes that can withstand horizontal load forces ranging from 10,000 lbs. to 250,000 lbs.
