Attrition Mill reduces particles down to 100 mesh.

Munson Machinery Co., Inc.    Utica, NY 13503
Apr 16, 2013 Able to reduce friable chemicals and minerals, metal powders, wood flour, fertilizers, insecticides, and fibers, Model SK-24-MS produces particles from 10–100 mesh. This 24 in. dia mill is equipped with outer stationary milling disc and inner rotating milling disc. Precision of machining and alignment of discs, together with constant spring pressure, maximize size uniformity of reduced material. Static and dynamic balancing of rotating runner head assembly provides vibration-free operation.

High Temperature Blender offers blend rates to 2,000 cfh.

Munson Machinery Co., Inc.    Utica, NY 13503
Jan 08, 2013 Able to achieve homogenous blends in 15-60 sec, HM-165-AR Continuous Blender mixes asphalt, paints, resins, adhesives and other abrasive, sticky, or tacky compounds, slurries, emulsions, and pastes that require high heat to maintain consistency. Unit's horizontal, cylindrical vessel with single agitator is supported by externally mounted flange block bearings. Consisting of solid shaft with 180° adjustable paddles, agitator offers variable speeds to 3,600 rpm, depending on application.

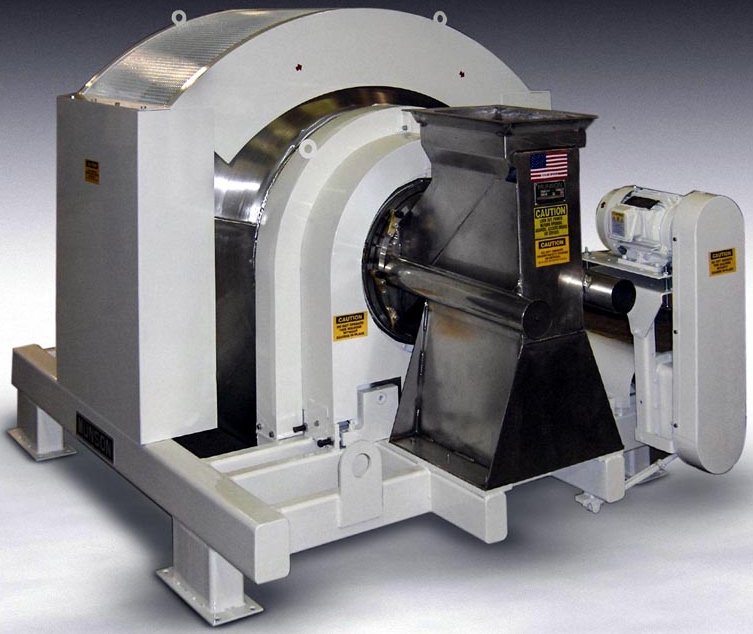

Sanitary Attrition Mill produces particles from 10-100 mesh.

Munson Machinery Co., Inc.    Utica, NY 13503
Oct 22, 2012 Constructed of 304 SS or 316 SS to sanitary standards, with statically and dynamically balanced rotating runner head assembly, Model SK-30-SS is suited for reduction of fibrous and friable materials, and cracking of grains. Unit is equipped with outer stationary milling disc and inner rotating milling disc that adjusts to vary gap between discs. Precise machining and alignment of discs, together with constant spring pressure, maximize size uniformity of reduced material.

Screen Classifying Cutter delivers uniform particle sizes.

Munson Machinery Co., Inc.    Utica, NY 13503
Aug 02, 2012 Equipped with direct-coupled, gear-reduced drive that rotates shaft at speeds down to 10 rpm, Model SCC-15-SS reduces hard materials and friable products into controlled particle sizes down to 20-30 mesh. Rotor design is comprised of cutter bits attached to helical array of staggered holders, called interconnected parallelograms, which continuously cut and crush materials against twin, stationary bed knives. Cutter's 15 in. throat width accommodates up to 30 parallelograms with 60 bit inserts.

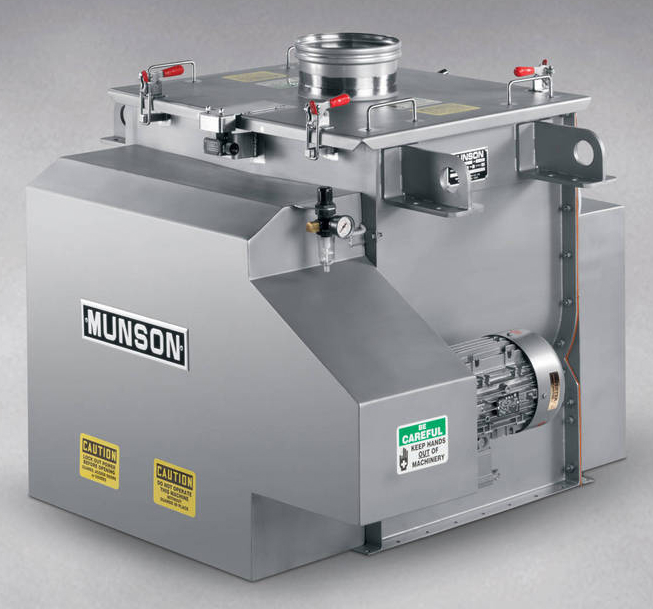

Fluidized Bed Mixer combines fast operation, gentle handling.

Munson Machinery Co., Inc.    Utica, NY 13503
Jun 07, 2012 With 5 ft³ capacity and flat, angular paddles with overlapping paths, model MF-5-SS gently mixes low- to medium-density bulk materials, including liquid additions, in 10 sec to 2 min (30 sec typ). It uses 2 counter-rotating shafts turning paddle agitators within 2 parallel U-shaped troughs. Mixing action minimizes shear, and liquids can be added in relatively high ratios while maintaining free-flowing characteristics of batch. Unit discharges through full-length, drop-bottom gates.

Sanitary Vee-Cone Blender discharges material completely.

Munson Machinery Co., Inc.    Utica, NY 13503
Feb 28, 2012 Providing 10 ft³ capacity, Model VB-10-316S features smooth internal surfaces that are free of baffles, shafts, and bearings, allowing unobstructed material flow, as well as complete discharge through gate valve. Absence of residual material, together with access to internal surfaces, allows sanitizing to prevent cross-contamination. Intended for dry and granular materials, blender achieves uniform blends in 5-15 min with equal efficiency at fill volumes from 100% to 25% of rated capacity.

Variable-Speed Sanitary Pin Mill reduces friable solids.

Munson Machinery Co., Inc.    Utica, NY 13503
Dec 26, 2011 With infinitely variable rotor speed from several hundred rpm to 5,400 rpm, 34 in. sanitary stainless steel model CIM-34-SS performs coarse to fine grinding (down to 400 mesh) of friable powders, flakes, and granules into controlled particle sizes. Desired particle size distribution is obtained by controlling rotor speed, and vertically orientated mill housing minimizes footprint while fostering access to all product contact surfaces for cleaning/inspection.

Screen Classifying Cutter produces uniform, controlled particle sizes.

Munson Machinery Co., Inc.    Utica, NY 13503
May 17, 2011 Model SCC-15-B has rotor design consisting of cutter heads attached to helical array of staggered holders that shear oversize materials against twin, stationary bed knives. Cutter tips, available in stainless steel, tool steel, and tungsten carbide, slide onto blade holders and are secured with one retaining socket-head screw. Perforations of bed screen range from 1/32 to 1½ in. in dia and up to 3 in. square, enabling reduction of materials into uniform particle sizes down to 20-30 mesh.

Centrifugal Impact Mill woks in space-restricted areas.

Munson Machinery Co., Inc.    Utica, NY 13503
Mar 07, 2011 Employing direct drive system, 18 in. dia model CIM-18-SS provides coarse to fine (400 mesh) grinding of friable materials into controlled particle sizes as well as de-agglomerating and conditioning of dry solids. Setting infinitely variable rotor speed between several hundred rpm and 5,400 rpm provides flexibility to obtain desired tight particle size distribution. This 15 hp unit features 5 intermeshing rows of rotating and stationary pins.

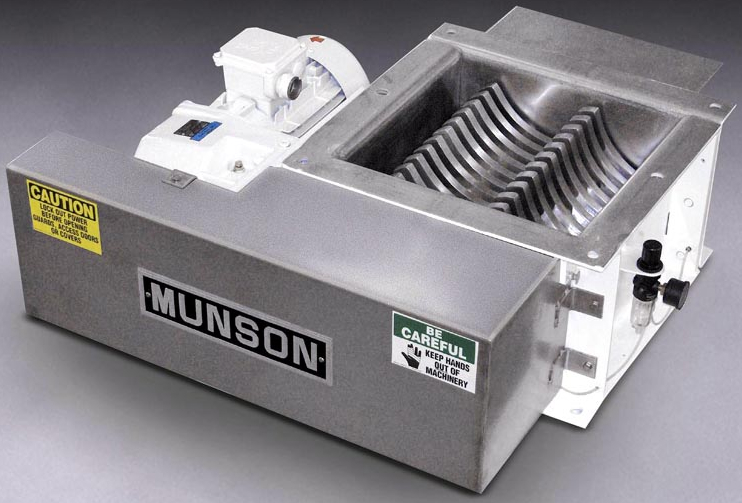

Low-Profile Rotary Lump Breaker has side removal screens.

Munson Machinery Co., Inc.    Utica, NY 13503
Nov 08, 2010 Model RDC1515-SS reduces agglomerates and friable materials discharged from process equipment, storage vessels, and shipping containers. Machine features 15 in. square inlet for material entry, and dual rotors with 3-point breaking heads, while on-size material exits through apertures in 1/32-2½ in. dia twin bedscreens. Measuring 11 in. high, unit is powered by 3 hp motor with gear reducer and serpentine timing drive. Product's synchronized shafts rotate at 100 rpm to avoid heating.

Sanitary Lump Breaker features side removal bed screens.

Munson Machinery Co., Inc.    Utica, NY 13503
Nov 02, 2010 Model RDC1515-SS Sanitary Lump Breaker reduces agglomerates and friable materials discharged from process equipment, storage vessels, and shipping containers. Unit has 15 in. square inlet for material entry, and dual rotors with 3-point, stainless steel breaking heads inside curved, perforated bedscreen. Material exits through apertures in 1/32-2½ in. dia twin bedscreens. Measuring 11 in. high, system is powered by 3 hp motor and is constructed of #304 stainless steel.

Rotary Knife Cutter delivers tight control of end product size.

Munson Machinery Co., Inc.    Utica, NY 13503
Jun 17, 2010 Available in carbon steel or all-stainless construction, Rotary Knife Cutter features machined, one-piece rotor assembly containing 5 adjustable rotating knives that cut against 4 reversible screen-mounted stationary knives. It rotates at 550 rpm, propelling on-size particles through perforated screens having apertures from 1/16 to ¾ in. Suited for cutting corn, grains, spices, and related food products, unit has hinged doors on both sides for quick cleaning and inspection.

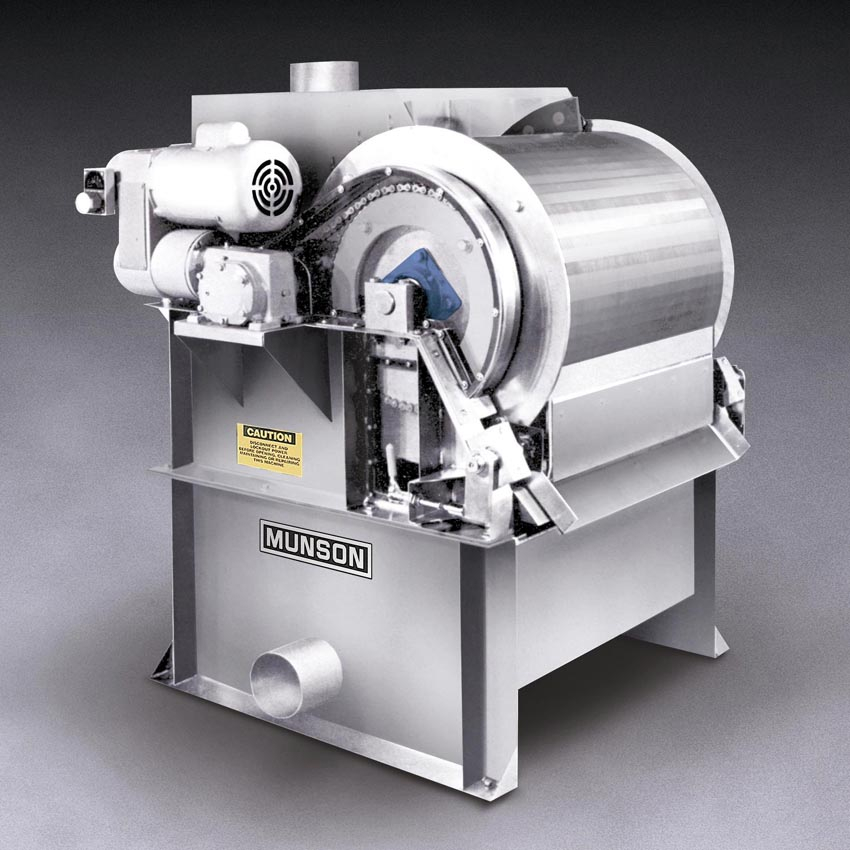

Rotary Drum Screen removes solids from effluent streams.

Munson Machinery Co., Inc.    Utica, NY 13503
May 17, 2010 Intended for applications where solids must be removed from slurries in high volumes, self-cleaning model 24RDS24 contains 24 in. dia x 24 in. long rotating cylinder constructed of wedgewire screen. Doctor blade scrapes sludge and debris collected on outside of cylinder, while an internal spray line dislodges particles blinding screen. Variable-speed unit is equipped with wedgewire screen in 7 orifice sizes from .010-.100 in., offering respective capacities from 200-930 gpm.

Miniature Rotary Batch Mixer blends batches up to 5 ft³.

Munson Machinery Co., Inc.    Utica, NY 13503
May 26, 2009 Suited for 3-A and USDA applications, Model 700-TH-5-SS blends batches from 0.25-5 ft³ in parts as small as one per million with complete uniformity in less than 3 min, evacuates batch with no residual, and can be sanitized rapidly with no tools. Stainless steel, sanitary unit features stationary inlet and outlet for inline operation, and rotating drum with mixing flights that tumble, turn, and fold material gently. Batch weight capacity is 500 lb.

Rotary Drum Screen separates solid debris from wastewater.

Munson Machinery Co., Inc.    Utica, NY 13503
Sep 03, 2008 With few moving parts, self-cleaning Rotary Drum Screen contains rotating cylinder which is constructed of wedge wire screen with stationary doctor blade on outside of cylinder and internal spray line. Models are available with drums of 24 in. dia in 24, 36, 48, 50, and 72 in. lengths, and with drums of 36 in. dia in 96 and 120 in. lengths. With 200-1,000 gpm capacities, unit is intended for sewage treatment, pulp and paper, rendering, and pelletizing applications.

Cutter is suited for hard, soft, and fibrous materials.

Munson Machinery Co., Inc.    Utica, NY 13503
Aug 04, 2008 Employed for coarse grinding of materials into particles of uniform sizes ranging from granules down to 20-30 mesh, Model SCC-15 Screen Classifying Cutter has 15 in. throat width and can be fitted with 30 parallelograms with 60 cutter inserts. Bed screen perforations range from 1/32 to 1½ in. in dia and up to 3 in. square, according to material characteristics and desired particle size. Shaft rotates at 30-3,600 rpm producing up to 500 cu ft/hr of sized product, depending on application.

Rotary Batch Mixer blends, heats, cools, and adds liquids.

Munson Machinery Co., Inc.    Utica, NY 13503
May 14, 2008 Model MX-1-SSJ features internal spray line for liquid additions, discharge chute to direct flow of discharged materials, and insulated/jacketed mixing drum that can be piped to oil, steam, or chiller system. With 1 cu ft capacity, it can distribute micro ingredients with 100% uniformity regardless of disparities in bulk densities, particle sizes, or flow characteristics of batch ingredients. Unit is suited for 3-A and USDA lab or production applications as well as industrial applications.

Dryer-Dehumidifier-Cooler processes bulk solid materials.

Munson Machinery Co., Inc.    Utica, NY 13503
Feb 22, 2008 Intended for 3-A and USDA applications as well as applications involving contamination-sensitive materials, Rotary Batch Dryer-Dehumidifier-Cooler features all-stainless contact surfaces, continuous polished welds, and external removable seals. Configurations are available for both direct and indirect drying, dehumidifying, and cooling. Offering usable batch capacity of 20 cu-ft and total capacity of 48 cu-ft, unit can also blend ingredients in parts as small as 1 ppm with 100% uniformity.

Batch Mixer dries/dehumidifies/cools bulk solid materials.

Munson Machinery Co., Inc.    Utica, NY 13503
Feb 15, 2008 With all-stainless contact surfaces and suitable for 3-A and USDA applications, Rotary Batch Dryer-Dehumidifier-Cooler uses diagonal, vertical tumbling and spilling motion to optimize particle exposure. This, along with lifters inside drum, minimizes material degradation and promotes process efficiency. Lifters also serve to direct material into discharge spout for 100% evacuation. Ingredients can be blended in parts as small as 1 ppm with 100% uniformity in less than 3 min.

Rotary De-Clumper has sanitary, low-profile design.

Munson Machinery Co., Inc.    Utica, NY 13503
Oct 24, 2007 At 11 in. high, model 15X15-SS reduces agglomerates and friable materials being discharged from process equipment, storage vessels, and shipping containers. Material entering 15 in.² inlet is reduced by dual rotors with 3-point, single-piece, stainless steel breaking heads rotating inside curved, perforated bedscreen. On-size material exits through apertures in bedscreen from 1/32-2½ in. dia. Powered by 3 hp motor, synchronized shafts rotate at 100 rpm to avoid heating product.
