Hobbing Machine is designed for large cylindrical gears.

Gleason Corp.    Rochester, NY 14692 2970
Dec 27, 2011 Designed for workpiece diameters up to 1,200 mm, Titan® 1200H optimizes chip disposal for dry machining while simultaneously promoting work area accessibility. Efficiency is further enhanced via automated ring loader and X-Pandisk® workholding system, which automatically clamps and centers parts as heavy as 2,000 kg. System stiffness, rigidity, and damping characteristics are bolstered by composite steel machine bed and combination slideway/anti-friction guideway design.

Universal Testers target large bevel and cylindrical gears.

Gleason Corp.    Rochester, NY 14692 2970
May 25, 2011 Comprised of 6-axis, CNC gear testers, Gleason 1000T/1600T/2000T/2500T series can perform roll testing and single flank testing of bevel, angular bevel, and parallel-axis gears with diameters up to 2,500 mm. CNC-controlled pivoting gearhead can swing from 0°-180°, enabling it to precisely mesh pinion and ring gears of varying angles and types as well as cylindrical gears - both parallel axis and off-angle. Functionality facilitates relation to machine via virtual gear set axes.

Gear Inspection System handles gears up to 650 mm diameter.

Gleason Corp.    Rochester, NY 14692 2970
Mar 23, 2011 Equipped with Renishaw SP80H 3-D scanning probe, Gleason 650GMS provides ±2.5 mm probe travel in Y/Z directions and ±1.5 mm travel in X axis. System includes fully digital 3D scanning head with 20 nm resolution, kinematic probe mount system, and Automatic Probe Change system. Offering menu-driven HMI, GAMA(TM) 2.0 Windows® software features inspection programs for external and internal cylindrical, spiral bevel, and straight bevel gears, as well as worms, rotors, and gear tools.

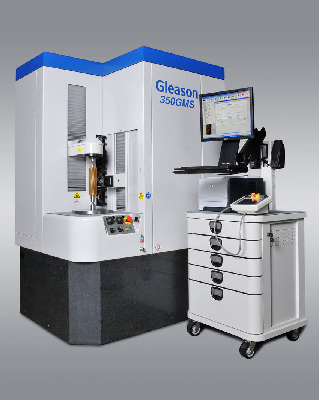

Analytical Test System inspects gears up to 350 mm diameter.

Gleason Corp.    Rochester, NY 14692 2970
Nov 04, 2010 Featuring solid granite base, Meehanite® cast-iron slide assemblies, and linear drive motors, Model 350GMS utilizes Renishaw® SP80H 3-D scanning probe for measurement, which delivers ±2.5 mm travel in Y and Z directions and ±1.5 mm travel in X axis with 20 nm resolution. GAMA(TM) v2.0 Windows® object-oriented software suite provides menu-driven HMI and is compatible with LAN and WAN networks, enabling users to interface inspection results with gear design and production resources.

Honing Wheels minimize initial tool dressing time.

Gleason Corp.    Rochester, NY 14692 2970
Aug 23, 2010 Available in variety of materials for wide range of applications, Opti-Form® Honing Wheels feature outside diameters from 270-400 mm with widths up to 60 mm and modules from 0.8-5 mm. Wheels are supplied with features like profile, lead crowning, and low run-out, minimizing amount of dressing and stock removal required before going into production.

Bevel Gear Grinding Wheels suit wide range of applications.

Gleason Corp.    Rochester, NY 14692 2970
Apr 30, 2010 High-performance bevel gear grinding wheels feature abrasive materials and designs that result in accelerated and aggressive metal removal. Series covers any bevel gear or Curvic® Coupling application involving all ranges of steels and very hard materials. Reducing equipment and tool expenditure, setup times, and cycle times, wheels make bevel gear grinding from solid gear blank viable alternative to traditional process of rough cutting prior to grinding.

Multifunction System offers complete cylindrical gear machining.

Gleason Corp.    Rochester, NY 14692 2970
Mar 25, 2010 AGILUS® 180TH performs turning, drilling, milling, hobbing, and chamfering/deburring operations in one setup for all types of shaft- and disc-type cylindrical gears up to 180 mm dia with shaft lengths up to 500 mm. Equipped with tool turret for locating fixed or driven tools, machine also offers workpiece loading/unloading function and CNC-controlled tailstock. Universal automation interface facilitates integration into existing manufacturing environments.

Dry Cutting Tool System aids straight bevel gear manufacture.

Gleason Corp.    Rochester, NY 14692 2970
Jan 15, 2010 CONIFLEX®Plus peripheral stick blade cutting tool system features positive blade seating, which reduces cutting time while promoting quality and rolling characteristics for straight bevel gears. In high-speed dry cutting environment, use of coated carbide cutting tools avoids use of cutting fluids and minimizes energy consumption. Free design of profile curvature, dish angle edge radius, and blade point grants freedoms for strength and noise optimizations.

Cutter Head extends tool life and promotes productivity.

Gleason Corp.    Rochester, NY 14692 2970
Oct 07, 2009 Along with cutters using multiple face blade geometry, PENTAC PLUS bevel gear cutting system has blade clamp block design that facilitates height/radial adjustments. This promotes precise axial blade movement during cutter building and truing. Design, which enhances chip flow and prevents chip packing, allows gears to be cut with more efficient cycles without premature degradation of cutting blade efficiency. System is available for face hobbing and face milling in all cutter sizes.

Expanding Mandrel provides 0.0002 in. TIR accuracy.

Gleason Corp.    Rochester, NY 14692 2970
May 14, 2009 Featuring sliding-jaw design with mechanical rotary mechanism for clamping workpiece, LeCount® Type G Expanding Twist Mandrel provides optimal torsional and axial holding power, and wide expansion range to accommodate bore sizes from 1-3 in. Mandrel is suited for O.D. and face grinding operations where parts have smooth bore, as well as non-gear grinding process applications such as cylindrical grinding.
