Hard Metric Female Connector enables data rates of 20 Gb+.

ERNI Electronics, Inc.    Midlothian, VA 23112

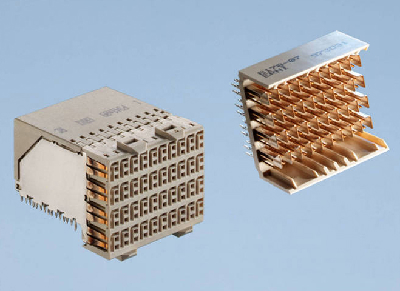

Dec 27, 2012 For optimized layout on daughter cards, ZDplus Connector combines optimal signal routing configuration with pressfit termination of female connector options. Dual beam leaf contacts, available with 40 differential pairs per linear inch, use one ground blade for every signal pair, with 2.5 mm pitch from wafer-to-wafer. In-line ground arrangement at termination and grounding shield allows for optimized pre-alignment guide and polarizing features via 4 rigid blades in all modules.

Board-to-Board Connector supports 10 Gbps speeds.

ERNI Electronics, Inc.    Midlothian, VA 23112
Dec 12, 2012 Featuring 1.0 mm pitch, MicroSpeed™ System is available in mezzanine, right angle, and coplanar configurations. Open pin field design can accommodate differential or single-ended signals. Added security measure for system integration is afforded by mis-mating allowances of contact design, which provides longitudinal misalignment tolerance of ±0.7 mm and angular misalignment tolerance up to 4°. Available in SMT and SMT/THR termination styles, connector provides up to 500 mating cycles.

Wire-to-Board Connector targets lighting applications.

ERNI Electronics, Inc.    Midlothian, VA 23112
Nov 29, 2012 With 1.27 mm pitch, MiniBridge™ single row connector system is rated up to 4 A per contact. Unit is available in vertical or right angle terminations with ribbon cable or discrete wire options that are suitable for up to 24 AWG cable. Available in 2, 3, 4, 6, 8, 10, and 12 positions with air and creepage distance of 0.4 mm, connector is compatible with RoHS-compliant SMT soldering profiles. Construction incorporates board hold-downs for maximum retention and vibration protection on PCBs.

Mezzanine Connector handles up to 1.6 A per contact.

ERNI Electronics, Inc.    Midlothian, VA 23112
Oct 19, 2012 Featuring hermaphroditic design that combines male and female connector halves, MicroStac® Connector incorporates 2 points of contact for applications where shock and vibration are encountered. Available in 5 mm stack height, unit offers mis-mating tolerance up to 0.7 mm of side-to-side float and ±4° of angular misalignment between connector halves and their respective PCBs. Contact design provides up to 1.5 mm of wipe length, for use in applications requiring up to 6 mm stack height.

I/O Modules support decentralized installations.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jan 22, 2009 UL/CSA approved M8/M12 distribution boxes feature IP65/IP67 protected housing that withstands oil, lubricants, and vibration. M8 modules are available with 3- and 4-pin sockets, while M12 modules come with 4- and 5-pin sockets (A coded). Control level is connected by pre-assembled hybrid trunk cable, which acts as both power supply and data link for sensors and actuators connected to I/O box. All boxes utilize LEDs to display status and operation mode of I/O ports.

SMT PCB Connector enables data rates up to 10 Gbit/sec.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jan 20, 2009 Featuring blind-mate design for mezzanine card applications, 1.0 mm pitch system MicroSpeed connector is available in 50 signal contact modules and is designed to be used in multiples between two parallel cards without mating issues from negative tolerance stack up. It is available in 16 different stack heights or board-to-board heights from 5-20 mm with every height in between in 1 mm increments. Male and female connectors are supplied in tape-on-reel packaging.

Right Angled D-Sub Connectors feature press-fit termination.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jan 19, 2009 Available with assembly height of 7.3 mm, right-angled D-sub connector can be screwed to PCB with M3 or 4 #40 UNC threads after press fitting to provide more secure attachment. Connectors are available with 9, 12, 25 or 37 pins; male contacts are gold-plated, while female contacts are tin-plated. Compliant with IEC 807-3 and DIN 41652, connectors also feature integrated locking jack screws that provide low-impedance ground connection and also anchor cable housing to connector.

Subminiature Connectors come in antistatic versions.

ERNI Electronics, Inc.    Midlothian, VA 23112

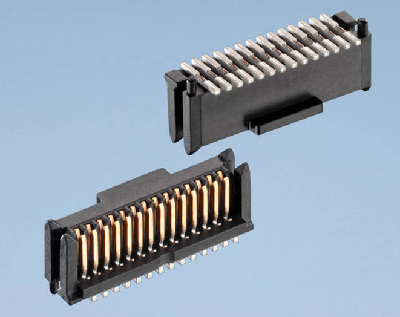

Jan 12, 2009 Available in single-row models with 6, 9, 10, 12, or 14 pins and 2-row versions with 50 or 54 pins, 0.8 mm pitch MicroStac® SMT Board-to-Board Connectors feature tilt-proof contact principle with dual side positioning of contact on PCB. Depending on connector version, board-to-board height ranges from 3.0 mm to between 5-6.5 mm. With ambient temperature of 20°C and current feed to all contacts, MicroStac 50-pin connector can transfer 1.6 A per contact.

Right-angled Card Edge Connectors meet PCIe requirements.

ERNI Electronics, Inc.    Midlothian, VA 23112

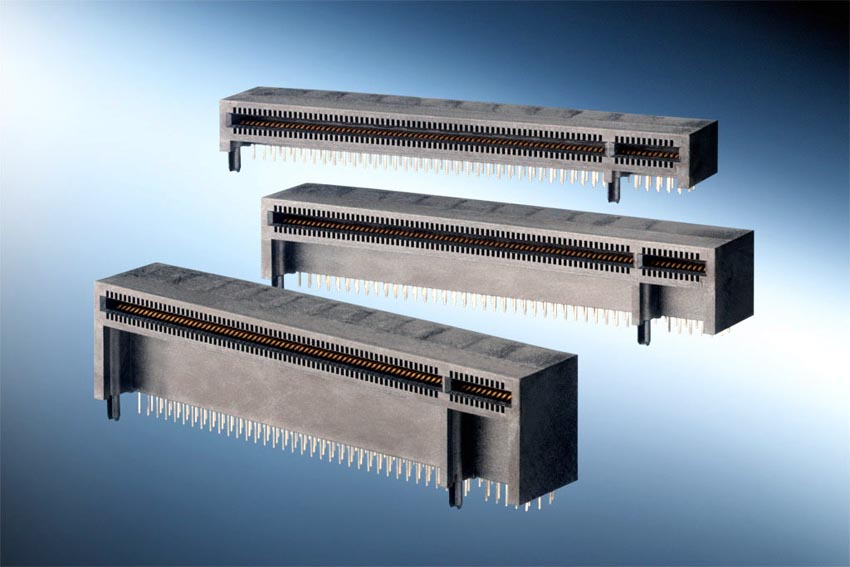

Nov 05, 2008 Available with 36, 64, 98, or 164 pins, 1 mm centerline right-angled connectors offer board-to-board distances from 5.84-16.68 mm and are compatible with 1.6-2.4 mm thick motherboards and 1.6 mm daughter cards. Connector layout is arranged in 4-row format with 2 mm pitch and provision of 2 holes for locater pegs. Units provide solder termination with length of 2.54 mm. Available in 3 stack heights, they include molded polarization keys to prevent improper insertion of daughter cards.

SMC Board-to-Board Adapter features 1.27 mm pitch.

ERNI Electronics, Inc.    Midlothian, VA 23112
Aug 15, 2008 Available in 12, 26 and 50 pins, SMC Board-to-Board Adapter stretches flexible mezzanine distances from 20-40 mm in 2 mm increments. Unit has male contacts on both component ends, and securely locks into standard low-profile SMT female SMC connector. Secure soldering is maintained with SMT coplanarity of less than 0.004 in. and integrated metal SMT mounting clips for mechanical stress relief. Offered in antistatic tray packaging, adapter operates from -55 to +125°C.
