Electrically Heated Hoses offer customization options.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 14, 2013 Designed for heating and conveying Diesel Exhaust Fluid through SCR system on commercial vehicles, Electrically Heated SCR Hose Assemblies are available in 3 and 4 mm Nylon options along with 4 and 5.5 mm EPDM hoses. SCR hoses encapsulate heating elements with extruded sheath for protection and uniform heating, and have overmold on fittings for impact and water resistance. Available for 12 or 24 V systems, hoses offer multiple options for fittings, electrical connectors, and overall lengths.

Heated Hose Assemblies support range of fittings/connectors.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 06, 2013 Electrically Heated SCR Hose Assemblies include 3 and 4 mm Nylon options along with 4 and 5.5 mm EPDM heated hoses. Also, custom solutions for DEF fill lines and other on-engine heated lines are available in sizes from 7.5–24 mm ID. Designed for heating and conveying DEF (Diesel Exhaust Fluid) throughout SCR system on commercial vehicles, SCR Hose features optimized thaw profile and encapsulate heating elements with extruded sheath for protection and uniform heating.

Hose and Fitting System is designed to accelerate connection.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
Sep 24, 2012 Intended for low-pressure hydraulic and pneumatic systems, Rapid Assembly Hose system consists of Parflex 515H hose and Parker RA (Rapid Assembly) quick connecting hose fittings and adapters. This quick to connect hose and fitting system improves assembly time as well as system weight. Parflex 515H hose is suited for routing through tight spaces while maintaining flexibility, and sizes range from 3/16–½ in. ID in single- or multi-line assembly.

Thermoplastic Hose features non-conductive design.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 09, 2012 Available in 1/8, 3/16, and ¼ in. sizes, Model 518 is designed to withstand harsh environments, both internally and externally. Core material is resistant to permeation of hydraulic fluids, while outer jacket provides abrasion resistance. Special reinforcement package reduces reinforcement diameter, allowing for increase in thickness of PFX cover.

Retractable Coiled Hose targets aerial lift trucks.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
Feb 08, 2011 Available in 3/8 in. ID, Fast-Stor® DURA-flex(TM) Twin Line Hydraulic Hose features optimal flexibility, promoting easy handling, even in extremely cold temperatures. Bend restrictors allow hose to bend freely while minimizing kink potential. Featuring UV and ozone resistant jacket, hose eliminates cracking and moisture ingression. Product exceeds SAE J517 for less than 50 µA leakage at 75,000 V/ft, maintaining non-conductivity and keeping operator safe from electric shock.

Twin Line Retractable Coiled Hose offers lightweight flexibility.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
Jun 11, 2010 Fast-Stor® DURA-flex(TM) exhibits flexibility that facilitates handling, even in cold extremes, and incorporates bend restrictors that allow hose to bend freely while reducing kink potential. Lightweight construction helps reduce operator fatigue, and tight coil design reduces chance for entanglement with tree limbs or operator's feet. Hose has UV- and ozone-resistant jacket, exceeds SAE J517 for less than 50 µA leakage at 75,000 V/ft, and maintains non-conductivity.

Electrically Heated Hose Assemblies help OEMs become EPA Compliant.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 26, 2010 Designed for heating and conveying diesel exhaust fluid through SCR system on commercial vehicles, Parflex SCR hose assemblies have heated fittings that create uniform heating throughout entire assembly. Extruded cover locks-in electrical heating wires and overmold finish protects connections from water/dust ingress. Available in 6 mm ID sizes, Parflex SCR Suction/Throttle hose has thermoplastic core and jacket, while Pressure Line hose has polyamide core tube to handle higher temperatures.

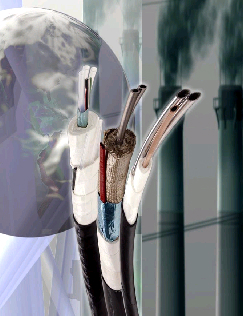

Tube Bundles measure mercury concentrations.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
Feb 02, 2007 Available in continuous lengths up to 1,000 ft, Multitube® Bundles offer consistent high-temperature maintenance and low/high ambient fluctuation durability without need for field input power splice connections. Constant-watt heating element eliminates cold spots that could affect analyzer readings. Even during extreme ambient temperature fluctuation of -30°F, product maintains critical temperature levels consistently with accuracy rating of 99%.

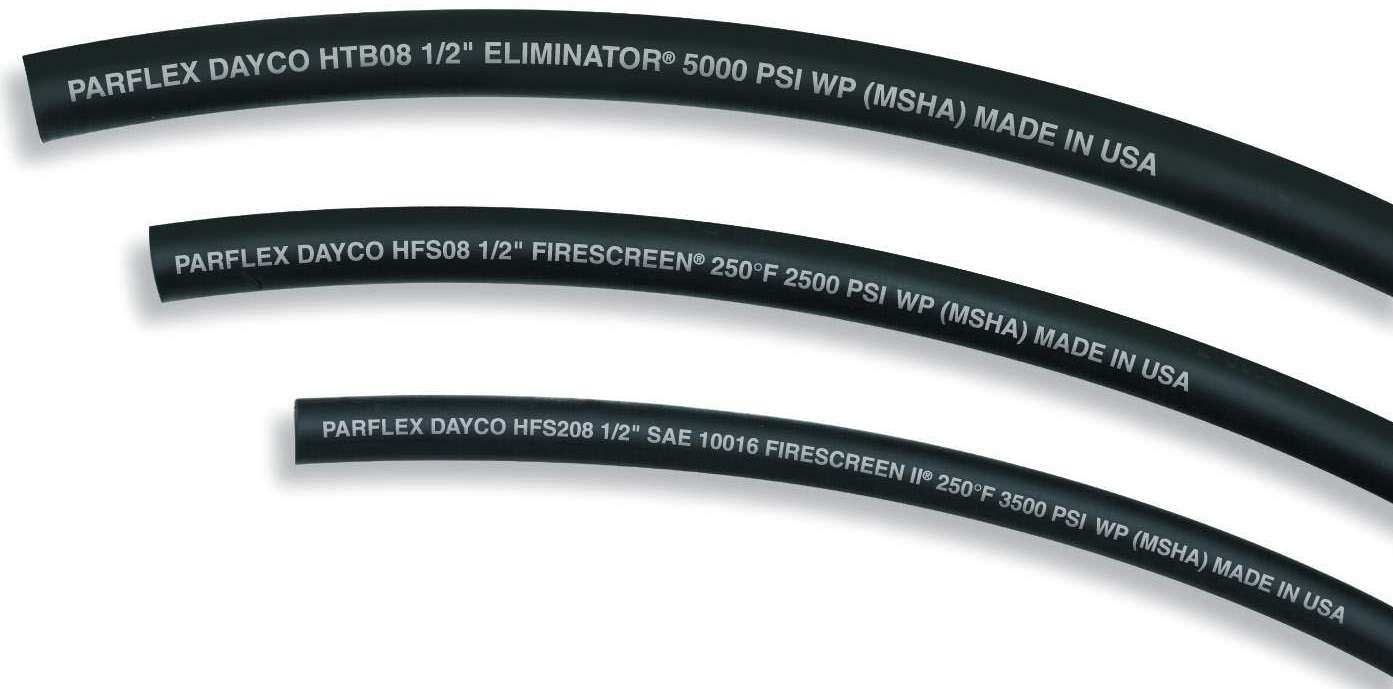

Hydraulic Hose does not need lubricated mandrel.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
Jan 07, 2003 Parflex hybrid hydraulic hose features clean, chemically resistant, high-tensile elastomeric inner tube that provides chemical compatibility and resists permeation. Inner tube is self-supporting, remains free from contamination, and forms secure mechanical bond with high-tensile wire braid reinforcement. Smooth rubber cover jacket provides adhesion to wire braid reinforcement and flexibility. Hose is alternative to thermoplastic and rubber hoses.
