Valves, Tubing, and Connectors suit surface, subsea applications.

Swagelok Company    Solon, OH 44139-3492
May 02, 2013 Suitable for surface and subsea installation, instrumentation, injection, and sampling systems, IPT series medium- and high-pressure products are made standard from cold worked, 316 stainless steel; annealed 316 stainless steel and other corrosion-resistant special alloys are available to meet NACE MR0175/ISO 15156 requirements. Series comprises check valves, trunnion ball valves, relief valves, needle valves, tubing and nipples, coned and thread connections, and coning and threading kits.

Jacketed Tube Connector eliminates sleeves and sealing tape.

Swagelok Company    Solon, OH 44139-3492

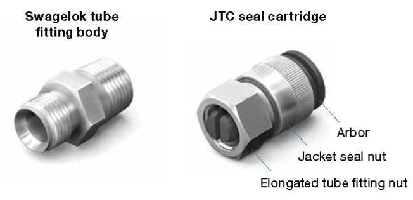

Apr 03, 2013 Engineered to connect jacketed tubing systems, Swagelok® Jacketed Tube Connector protects tubing from external degradation in corrosive environments. Design combines tube fitting technology with O-ring seal and environmental jacket seal nut, providing leak-tight seal on stainless steel core of jacketed tubing and water-tight seal on outer diameter of tubing. Operating from -67 to 180°F, connector is available for ¼, 3/8, and ½ in. tubing with up to 1/16 in. in nominal jacketed thickness.

Portable Calibration Unit maintains power supplies on-site.

Swagelok Company    Solon, OH 44139-3492
Apr 03, 2013 Designed to streamline orbital welding power supply maintenance, Swagelok® M200 performs various diagnostics and measures output levels. Automatic current calibration ensures proper current output for future welds, while on-screen adjustments for voltage enable user to match actual values with expected values. Electrode travel speed is verified and adjusted in real-time via M200 operating software, eliminating need for frequent calibration.

Pressure Regulators control 1/2 to 2 in. systems.

Swagelok Company    Solon, OH 44139-3492

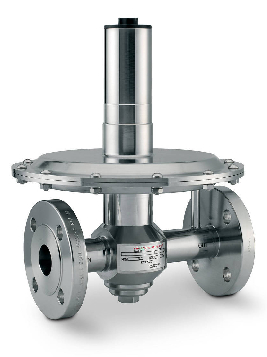

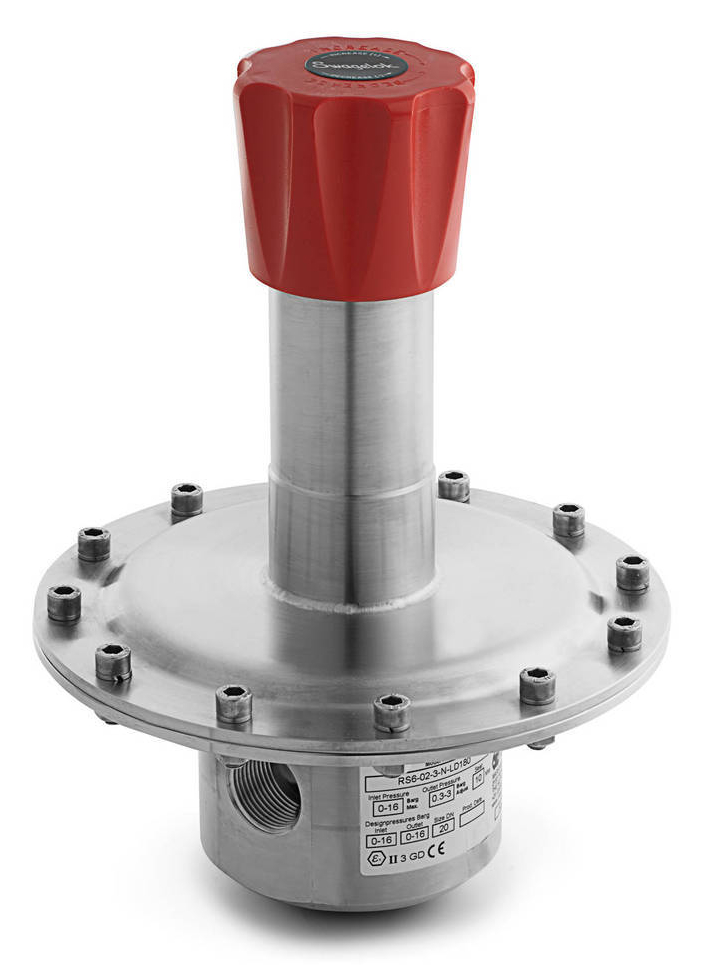

Jul 26, 2011 RHPS series controls pressures from 0-5,800 psig in gas and liquid systems. Depending on desired outlet pressure range, RS and RSH model regulators employ either spring-loaded diaphragm or piston as sensing element. Depending on models, outlet ranges vary from 0-43 psig to 0-5,075 psig, 0-43 psig to 0-10,150 psig, and 1.5-43 psig. End connection sizes and types are ½-2 in. NPT or BSPP pipe thread and ANSI or DIN pipe flanges. Also, ¼ in. female NPT gauge connection is standard.

Pressure Regulators suit low-pressure gas systems.

Swagelok Company    Solon, OH 44139-3492
Jun 22, 2011 Installed on tank's inlet and outlet, respectively, RHPS Series Models TBRS and TBVS maintain tank's blanketing gas at constant pressure. Spring-loaded, pressure reducing TBRS accommodates inlet pressures from 1.5-230 psig and can regulate outlet pressures down to 0.07-7.3 psig, while spring-loaded back pressure TBVS senses pressure from 0.07-7.3 psig. Available in ½-2 in. sizes with operating temperature of -4 to 280°F, both feature 316L SS body, PTFE diaphragms, and fluorocarbon seals.

Proportional Relief Valves suit piping systems up to 1 in.

Swagelok Company    Solon, OH 44139-3492
May 25, 2011 Used to proportionally vent overpressure, RHPS series PRV model offers NPT female, BSPP female, and BSPP male end connections in ¼, ½, ¾, and 1 in. sizes. Available threaded adapters convert from BSPP to NPT to facilitate product installation. Offering smooth operation, valve has balanced design unaffected by system back pressure up to 50% of valve's set pressure, which is offered in 5 ranges from 145-580 to 4,060-5,800 psig. Flow coefficients (Cv) range from 0.49-4.36.

Domeloaded Pressure Regulators .exhibit minimal droop.

Swagelok Company    Solon, OH 44139-3492
May 02, 2011 Used to control pressure of liquids and gases, RHPS series features domeloaded design that relies on pressurized chamber above elastomer diaphragm to operate regulator. Inlet pressures range to 5,800 psig, and regulated pressures spans include 1.4-29 psig, 0-1,000 psig, 0-2,900 psig, and 0-5,800 psig. Available for pipe sizes from ¼-4 in. with corresponding Cv values from 0.1-73, regulators use 316L stainless steel for body, dome, and trim.

Insulated Hoses manage fluids in cooling applications.

Swagelok Company    Solon, OH 44139-3492
Aug 11, 2010 Available in 1/8 to 1 in. sizes with working pressures to 3,500 psig, S Series Hoses feature PTFE core for chemical resistance. Inner fiber braid is surrounded by outer braid of 304 stainless steel wire and non-contaminating silicone cover. W Series Hoses, ranging from 3/8-½ in. with pressures to 1,000 psig, share similar construction but add insulation wrap between 2 braid layers and carbon black-filled PTFE core in place of standard PTFE core. Both operate from -65 to 450°F.

Medium-Pressure Ball Valves feature direct load design.

Swagelok Company    Solon, OH 44139-3492
May 28, 2010 Providing leak-tight seal for applications up to 15,000 psig, FKB Series includes 2-way Model 8FKB with 0.375 in. orifice and choice of ½ in. gaugeable medium-pressure tube fitting end connections or ½ in. female NPT. Model 6FKB, featuring .209 in. orifice, is available with ¼, 3/8, or ½ in. medium-pressure tube fitting end connections, or female NPT end connections. Rated for temperatures from 0-250°F, all feature 316 stainless steel body and reinforced PEEK seat seals.

Radial Diaphragm Valves manage sterile flow streams.

Swagelok Company    Solon, OH 44139-3492
May 06, 2009 Optimized for drainability and system compatibility, DR series can be manufactured in range of configurations to include multiple valves and ports as well as point of use valves. Single body valve design with boreline seal minimizes entrapment areas, and design affords precise open/close control. Available in 5 sizes from ½-2 in., valves are made from 316L stainless steel with modified PTFE wetted single-piece diaphragms and handle pressures to 150 psig and operating temperatures to 280°F.
