Explosion-Proof Instrument Enclosure comes in stainless steel.

Adalet    Cleveland, OH 44135 3301
May 07, 2013 Resistant to corrosion, XIHNS rugged instrument enclosure features 4 1/16 in. throat opening, allowing it to accommodate variety of instruments and devices. Removable, internal mounting pan aids in device installation. There are three ¾ in. NPT conduit entries (up to 6 optionally) and 2 cast-on mounting tabs included. Enclosure's glass cover has viewing window of 3.31 in., while front boss supports optional mounting bracket holes or conduit entry up to 1 in. NPT.

Instrument Housings feature explosionproof design.

Adalet    Cleveland, OH 44135 3301
Apr 30, 2013 Made of 316 investment cast, stainless steel for applications where severe corrosion exists, XIHNS Series features large bored throat opening of 4 1/16 in. for variety of OEM instruments and devices. Units offer three ¾ in. NPT conduit entries as standard, but are available with up to 6 entries. Two solid cover and 2 glass cover options accommodate various depth instruments. Offering 3.31 in. viewing window, glass cover features tab-free retaining ring for maximum instrument clearance.

Explosionproof Enclosures withstand corrosive environments.

Adalet    Cleveland, OH 44135 3301
Nov 16, 2012 Constructed from 316L stainless steel, XCESX series is rated for Class I, Division 1/Zone 1 hazardous locations and carries UL, cUL, ATEX, and IECEx approvals. There are 5 standard sizes, and internal dimensions range from 10 x 14 x 8 in. to 24 x 36 x 10 in. Designed for use in corrosive areas, enclosures feature watertight gasket and stainless steel cover bolts for Type 4X/IP66 ratings and are suited for use in offshore, petrochem, or volatile industrial areas.

Factory Sealed Panelboards suit hazardous locations.

Adalet    Cleveland, OH 44135 3301
Jul 28, 2011 Designed for use in Class I, Div 2, Groups BCD and U.S. Zone 2 areas such as refineries and petrochemical installations, pre-wired Panelboards are factory sealed from the circuit breakers inside cast aluminum explosionproof enclosure to main distribution block and branch terminals housed in IP66/NEMA4X stainless steel enclosure. Units are equipped with padlockable external operating handles, copper bus, isolated neutral and ground bar, and GFI or EPF breakers.

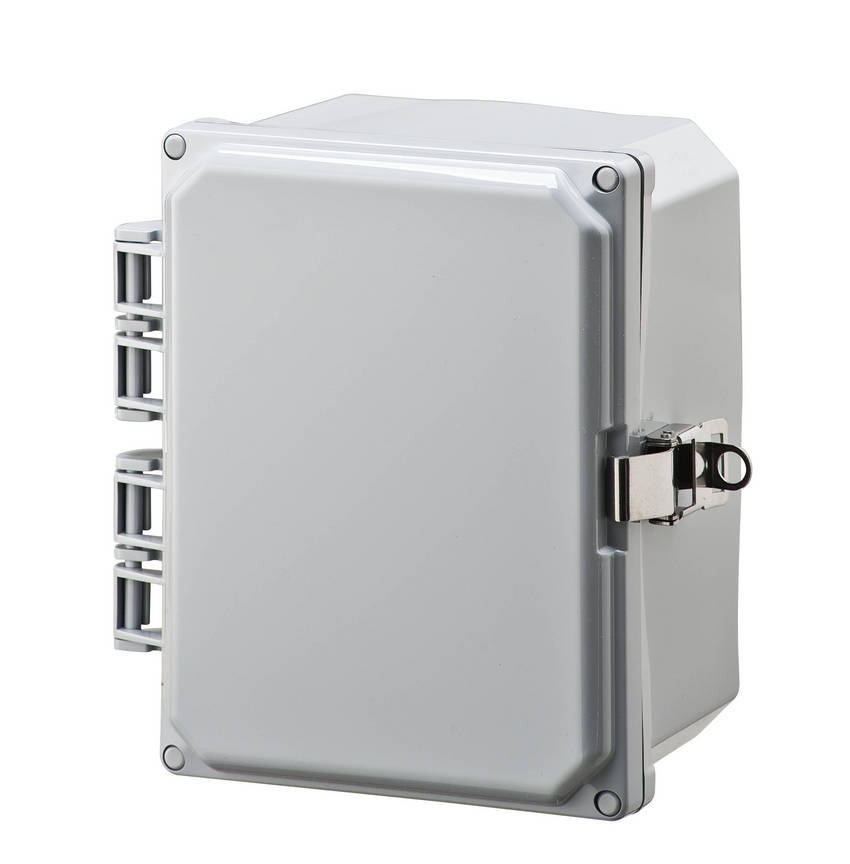

Polycarbonate Enclosures feature non-corrosive design.

Adalet    Cleveland, OH 44135 3301
Apr 15, 2010 Ranging in sizes from 6 x 6 x 4 to 18 x 16 x 10 in., lightweight N4XP enclosures provide high impact resistance of over 900 lb/in. and UV protection when exposed to sunlight. They come with cover gasket providing watertight seal for NEMA 4 applications, and add-on mounting feet for wall mounting. Available in opaque or clear covers, UL/cUL listed units are non-conductive and can be used in extreme environments. Modifications such as holes, slots, or cut-outs can be specified.

Pendant Stations have explosionproof design.

Adalet    Cleveland, OH 44135 3301
Mar 19, 2010 Designed for pushbutton control in Class I, Division 1 & 2 or Zone 1 & 2 locations, rugged safety yellow painted pendant stations feature cast aluminum enclosure and heavy duty operators for management of overhead cranes, hoists, lifts, and other remote controlled equipment. They are offered 1-18 hole configurations and can be assembled with explosionproof pushbuttons, emergency stop pushbuttons, pilot lights, and selector switches.

Explosionproof Motor Starter features modular trip blocks.

Adalet    Cleveland, OH 44135 3301
Feb 08, 2010 Using one frame size to control and protect motors up to 30 hp at 480 V or 25 hp at 600 V, Explosion Proof Combination Motor Starter provides universal enclosure and starter assembly for Size 0 through Size 3 applications. Exchanging trip modules does not require tools or re-wiring. Measuring 10 x 14 x 6 in., units are available in both AC and DC, full voltage non-reversing and full voltage reversing models up to 42 A continuous current. FVNR versions are mounted on standard 35 mm DIN rail.

High Voltage Termination Enclosures handle up to 8 kV.

Adalet    Cleveland, OH 44135 3301
Jan 18, 2010 Featuring single door style with clamped cover, HV4X series of increased safety (Exe) enclosures are available in stainless steel 316L or 304, in sizes from 12 x 6 x 24 to 36 x 16 x 60 in. for 1 x 1 connection series, and 20 x 8 x 20 to 36 x 10 x 60 in. for 2 x 2 connection series. Designed for use in explosionproof/flameproof applications, XHVX series cast aluminum enclosures carry IP66 rating and feature maximum current rating of 1,000 Amps.

Mini Dual-Sided Instrument Housing is explosion proof.

Adalet    Cleveland, OH 44135 3301
Aug 19, 2009 With only 2¼ in. internal dia, XDHI mini dual-sided instrument housing can accommodate miniature instrumentation or control devices. UL, cUL, and ATEX certified product includes back to back chambers separated by 3/16 in. thick dividing wall. Solid or glass covers are available in either standard flat cover or domes version for added depth. Features included are conduit feed-through hubs, internal/external ground screws, watertight gasket, and external safety blue polyester power coating.

Dual-Sided Instrument Housing has explosionproof design.

Adalet    Cleveland, OH 44135 3301
Aug 06, 2009 With 2¼ in. ID, XDHI mini dual-sided instrument housing is designed to house small instruments or control devices and includes back-to-back chambers separated by solid 3/16 in. thick dividing wall. Solid or glass covers are available in standard flat cover or domed version. Along with conduit feed-through hubs, standard features include internal/external ground screws, watertight gasket, and external safety blue polyester power coating.
