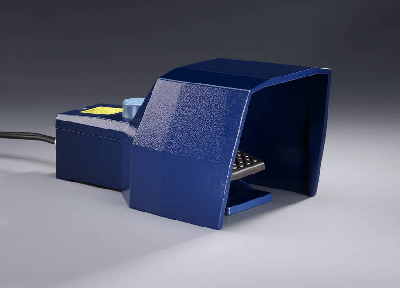

Foot Switches feature explosion protected design.

STEUTE Xtreme    Ridgefield, CT 06877
Dec 04, 2012 Certified for use in Zone 1 and Zone 21 environments, ATEX/IEC Ex-rated Foot Switches are available with positive-break contacts and offer mechanical life expectancy in excess of 1 million operations. Each features IP65-rated metal housing and carries cCSAus-listing. Available with optional foot rest and carrying handle, switches are suitable for safety guarding applications or those requiring heavy-duty design. Special-order units are also available for Zone 22 usage.

Coded-Magnet Sensors withstand extreme environments.

STEUTE Xtreme    Ridgefield, CT 06877
Oct 02, 2012 Featuring corrosion-resistant, stainless steel design with IP69K rating, RC Si Series withstands high-pressure/high-temperature wash downs. Non-contact, coded-magnet actuator supports switching distances up to 8 mm. For explosive environments, ATEX/IEC Ex-rated Zone 1 and Zone 21 versions are also available. Typical applications include valve monitoring, food processing, mining, fuel handling, chemical processing, packaging lines, and machine safety guarding.

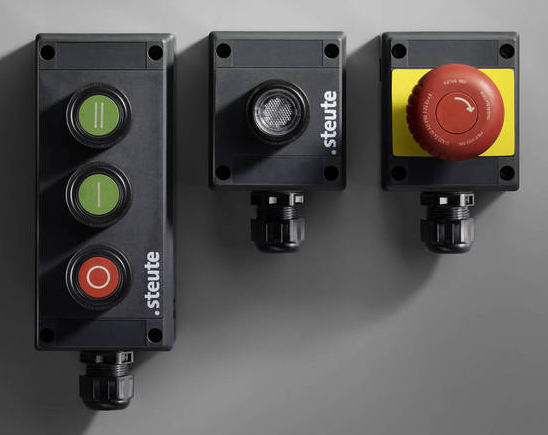

IP66-Rated Command Stations carry IEC Ex and ATEX ratings.

STEUTE Xtreme    Ridgefield, CT 06877
Sep 24, 2012 Command Station Series, intended for extreme environments, feature corrosion-resistant housings that accommodate one, 2, or 3 actuators, which may be pushbuttons, key-operated switches, selector switches, or E-Stops. Products are available for use in -50 to +60°C environments as well as ATEX/IEC Ex-rated Zone 1 and Zone 21 explosive environments. Typical applications include, food processing, mining, fuel handling, chemical processing, packaging lines, and machine safety guarding.

Safety Interlock Switches carry ATEX and IEC Ex ratings.

STEUTE Xtreme    Ridgefield, CT 06877
Sep 05, 2012 Suited for use in Ex Zones 1/21 and Zones 2/22, Series Ex STM295 solenoid-latching, keyed safety interlock switches feature 2 NO and 2 NC contacts and are available in power-to-lock as well as spring-to-lock designs. These c CSA us-certified, IEC Ex- and ATEX-rated switches, when used with safety relay module, satisfy Performance Level e (EN ISO 13849) and SIL 3 (per EN 61508). Life expectancy exceeds 500,000 operations.

Emergency Pull-Wire Switches carry IP69K and IEC Ex ratings.

STEUTE Xtreme    Ridgefield, CT 06877
Aug 20, 2012 Suited for emergency-stop applications in corrosive environments, ZS71 and ZS91 Series are designed to withstand high-pressure/high-temperature washdowns (IP69K) and come in engineered plastic housing with stainless steel screws. IP67-rated ZS80 Series features integral E-Stop button, allowing optional E-Stop operation directly at switch. Each Series is also available for ATEX/IEC Ex-rated Zone 1 and Zone 21 explosive environments.
