Vibration Monitor Meter accelerates in-field surveys.

Quality Bearings & Components    New Hyde Park, NY 11042
Feb 12, 2013 Used to trend vibration levels on rotating process machinery, BETEX professional VibChecker model TB-C780201 has built-in probe and button-based operation and delivers portable vibration measurement in 10–1,000 Hz frequency range. Measurement results are immediately and automatically evaluated against ISO standards. Green, yellow, and red LEDs indicate vibration severity, while real-time FFT spectrum is produced for pattern recognition. Results can be stored for documentation and follow-up.

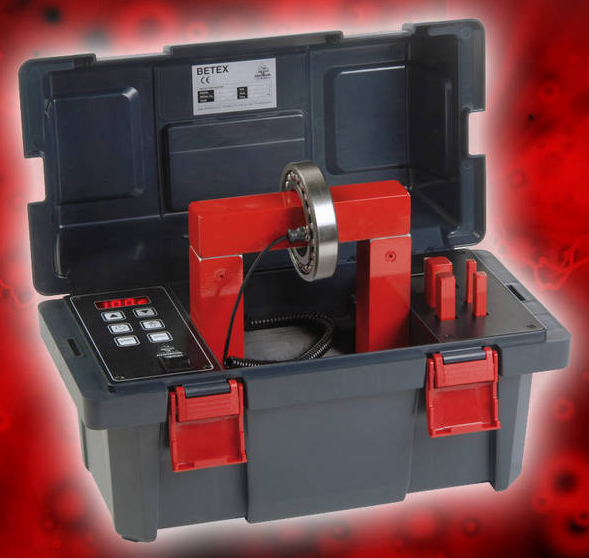

Bench Top Induction Heater handles components up to 88 lb.

Quality Bearings & Components    New Hyde Park, NY 11042
Sep 14, 2012 Featuring 3.6 kVA rating, BETEX 22 ESD Model TB-280620S is designed for heating bearings, pulleys, coupling, and rings so they can be mounted in maintenance and/or production applications. Unit accepts components with minimum ID of .59 in. and max OD of 13.38 in. Digital electronics ensure optimum control during heating process. To ensure even and rapid heating, controller automatically regulates most efficient use of power.

Induction Heater heats bearings, pulleys, and couplings.

Quality Bearings & Components    New Hyde Park, NY 11042
Jul 20, 2012 Featuring portable design with carrying case, 3.6 kVA BETEX 22 ELD TB-270600S heats components such as bearings, couplings, and rings so they can be mounted in maintenance and/or production applications. Unit will accept components with minimum ID of .39 in. and max OD of 9.45 in., plus max width of 4.72 in. In addition to LED display and digital electronics, heater has controller that automatically regulates most efficient use of power to ensure even and rapid heating.

Portable Induction Heater aids MRO/OEM component mounting.

Quality Bearings & Components    New Hyde Park, NY 11042
Jul 17, 2012 Rated at 3.6 kva, BETEX 22 ELD (TB-270600S) is designed for heating bearings, pulleys, couplings, and rings as to facilitate their mounting in maintenance (MRO)/production (OEM) applications. Built-in LED display promotes usability, digital electronics maximize control during heating process, and controller automatically regulates power for even heating. Heater accepts up to 33 lb of components with .39 in. min ID and 9.45 in. max OD and max width of 4.72 in.

Flanged Sleeve Bearings feature maintenance-free design.

Quality Bearings & Components    New Hyde Park, NY 11042
Apr 02, 2012 Available in 44 models, Frelon®-lined Flanged Sleeve Bearings include BSLFLN-PF Series in inch sizes and BSLFLNM Series in metric sizes. Self-lubricating units fit shafts ranging from .1890-3.0015 in./6.028-50.062 mm diameter and are designed to replace sintered and plastic bearings. Overall diameter of flanges ranges from .4370-3.5000 in.

Flanged Sleeve Bearings are designed to be maintenance-free.

Quality Bearings & Components    New Hyde Park, NY 11042
Jan 24, 2012 Identified as BSLFLN-PF... Series in inch sizes and BSLFLNM... Series in metric sizes, 44 Frelon® lined flanged sleeve bearings are designed to replace sintered and plastic bearings. These self-lubricating products are made to fit shafts from .1890-3.0015 in. dia (6.028-50.062 mm) and feature flange ODs from .4370-3.5000 in. (14-70 mm).

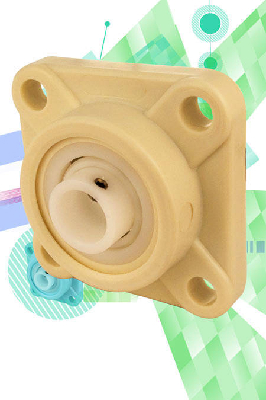

Plastic Flange Mounting Blocks have 4-bolt design.

Quality Bearings & Components    New Hyde Park, NY 11042
Jul 08, 2011 BBPBLD Series standard-duty 4-bolt flange mounting blocks have polyester housing, removable acetal bearing insert, and 316 stainless steel ball bearings. Designed to fit shafts ranging from ½ to 1¼ in. in diameter they can contribute to making machinery efficient, functional, and safe. Two-bolt flange mounting blocks with insert ball bearings are also available.

Integral Studded Guide Wheels are designed for V groove rails.

Quality Bearings & Components    New Hyde Park, NY 11042
Jan 28, 2011 Made of 52100 chrome steel, integral studded standard guide wheels of BGXCOMMSW Series feature nylon retainers and are offered in concentric and eccentric stud types. Rails for these guide wheels are also available. Products, designed for optimal material cleanliness, surface finish, and straightness, deliver maximum performance, life, and safety. Minimal maintenance is required.

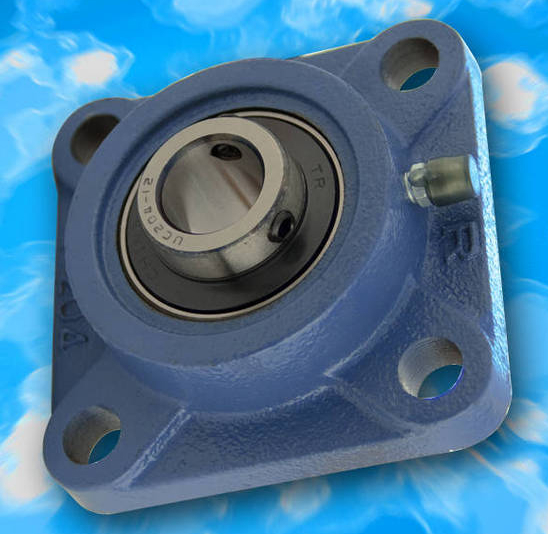

Flange Mounting Blocks feature locking collars, set screws.

Quality Bearings & Components    New Hyde Park, NY 11042
Apr 07, 2010 Flange Mounting Blocks in BBXBLK-HCF and BBXBLK-UCF Series include cast iron housing in addition to dual seal. Designed to fit shafts with ½-3½ in. dia, standard duty 4-bolt units allow machinery to be efficient and safe.

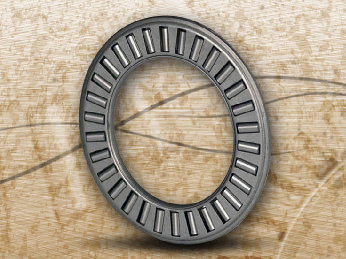

Thrust Bearings feature steel needle rollers.

Quality Bearings & Components    New Hyde Park, NY 11042
Dec 01, 2009 Available in widths from 2-5 mm, BTHBNGMAXK Series axial needle roller thrust bearings feature outside diameters from 14-200 mm and are designed to fit shafts ranging from 4-160 mm in diameter. Units ensure minimal friction and quiet operation. Axial thrust washers to fit bearings are also available.
