Industrial 4U Rack-Mount Computers feature 1.2 mm, heavy-duty steel.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
May 01, 2013 Measuring 16.9 x 6.9 x 17.5 in., Model RMS401 computers include three 5.25 in. and one 3.5 in. external drive bays, two internal 3.5 in. bays, and one 5.25 in. slim optical drive bay. At 16.9 x 6.9 x 20.5 in., RMS402 has three 5.25 in. and two 3.5 in. external drive bays and two 3.5 in. internal bays. Both units feature front panel with 2 USB ports, LED indicators, power on and reset switches, and front 120 mm cooling fan. Both units use PS/2 ATX PFC 110/220 Vac power supply.

Rackmount 2U Computers offer storage, I/O, expansion options.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Apr 01, 2013 With system board size capacity of 12 x 9.6 in. (ATX form factor motherboard), 16.9 x 3.5 x 18 in. RMS201 offers option of 3 full height expansion slots or 7 low-profile expansion slots. Supporting 9.6 x 9.6 in. system board (Micro ATX, mini-ITX motherboard), 18.98 x 3.48 x 15.03 in. RMS202  has 4 low-profile expansion slots. Supporting ATX form factor motherboard, 19 x 3.5 x 17 in. RMS203 supports expansion by 3 PCI slots via riser card (full height) or 7 low-profile PCI cards.

Fanless Panel PC features IP64 rating.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Mar 05, 2013 Based on Intel’s Atom N2600 1.6 GHz Dual Core CPU, 7 in. Model AFL2-W07A-N26 is equipped with 2 GB DDR3 SO-DIMM memory and 5-wire resistive type touchscreen. I/O outlet provides access to one DB-9 for RS-232 function, one RJ-11 for RS422/485, and one display port. Unit also includes 1 GbE LAN port, 2 USB 2.0 ports, 2 USB 3.0 ports, and 1 lineout. On front, PC provides 1 mini USB 2.0 port and 1 micro SD card slot. Operating from 9–36 Vdc, PC supports panel, wall, rack, stand, and arm mounting.

IP64 Touchscreen Panel PCs have light, fanless design.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Dec 20, 2012 As 15 in. (4:3) panel PC with 1,024 x 768 max resolution and 700:1 contrast ratio, AFL2-15A-H61 supports 2nd Generation Intel® Core™ i7/i5/i3/Celeron and Pentium processors, two 204-pin DDR3 SO-DIMM slots (16 GB max), and 2.5 in. SATA 3 Gbps HDD. CF Type II Socket is also standard, complimented by diverse I/O, connectivity, and expansion interfaces. Wi-Fi and integrated 1.3 MP webcam are also standard. With same features, AFL2-W15B-H61 has 15.6 in. (16:9) LCD with 1,366 x 768 resolution.

Fanless Embedded Computer serves high-performance applications.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Aug 20, 2012 Supporting 2nd Generation Intel® Core(TM) i7/i5/i3, Celeron®, and Pentium® desktop processors, TANK-720-Q67 features motherboard integrated with Intel Q67 Chipset and SATA 6 Gbps connection to 2.5 in. HDD/SSD. Connectivity/expansion is fostered via 4 DB-9 RS-232 in rear and 2 RJ-45 RS-232 with isolation in front (RS-422/485 is also available), 6 USB ports, dual combo Gigabit LAN ports, and 3 PCIe Mini slots. System supports up to 8 GB DDR3 SDRAM memory (2 GB DDR3 memory onboard).

Half-Size SBC provides up to 16 GB DDR3 memory via 2 slots.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Aug 02, 2012 Supporting Intel's Core i7/i5/i3 and Celeron processors, Model SBCHM653EH provides dual display via one VGA and one 18/24-bit dual channel LVDS. Dual Ethernet ports are standard as well as 7.1 channel HD audio. To satisfy majority of peripheral attachments, single board computer has 1 RS-422/485 port, 2 RS-232 ports, 2 SATA 3 Gbps ports, and 8 USB ports. Measuring 185 x 122 mm, Model SBCHM653EH operates in temperatures ranging from -10 to 60°C.

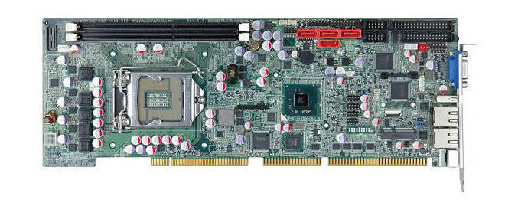

Full-Size PICMG 1.3 SBC offers multiple I/O, processor options.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Jul 24, 2012 Along with two 240-pin memory slots for up to 16 GB DDR3 system memory, SBCH613EL supports such CPUs as Intel® Core(TM) i7/i5/i3, Pentium®, and Celeron®. Display output comprises one VGA port, with option of one DVI-D connector via header and I/O kit. Dual Realtek RTL8111E controllers, which are ASF 2.0 supported, enable connection and access to internal network. Along with audio option, I/O features include 2 RS-232, one RS-422/485, 10 (max) USB ports, and 4 SATA 3 Gbps connectors.

Single Board Computer features full-size PCIMG 1.0 design.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Jul 19, 2012 Supporting Intel Core i7/i5/i3/Pentium and Celeron processors via LGA1155 socket, Model SBCH611EL includes two 240-pin memory slots that support up to 16 GB of DDR3 or DDR3L total memory. Unit provides 1 VGA port and 4 SATA 3 Gbps connectors as well as 2 RS-232, 1 RS-422/485, and 7 USB connectors. Measuring 185 x 122 mm and operating from -10 to 60°C, board also supports PCIe mini, which gives user option of installing devices such as PCIe mini SSD and wireless LAN.

Triple Screen Computer is ruggedized and portable.

Broadax Systems, Inc.    City Of Industry, CA 91748
Feb 10, 2010 As suitable platform for simulation and training applications, LCD V30 lunchbox computer supports triple LCD screens with 3,840 x 1,024 resolution and is powered by 2.6 GHz Intel Core 2 Quad 9450 processor. Features include three 3.5 in. hard drive removable kit, one slim optical drive bay, and 2 GB 800 MHz DDR2 memory. Computer also offers support for Windows 7 OS, 6 expansion slots, and 1,000 W power supply.

Panel PCs feature sealed, waterproof design.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Jan 12, 2010 Model SAILORPC-12A is 12.1 in. IP67 panel PC that supports Intel Atom 1.6 GHz N270 processor, up to 2 GB DDR2 SO-DIMM memory, GbE port, 2 RS-232 COM ports, and 2 USB 2.0 ports. It also has internal 2.5 in. drive bay and compact Flash slot. Supporting Intel Mobile Core 2 Duo processor, IP65-rated UPC-12A can also have 1 GB memory and 6 USB 2.0, 2 GbE, and 4 RS-232 COM ports. Both units integrate IEEE802.11 b/g/n wireless and support Windows CE v6.0, Windows XP Embedded, and Linux OSs.
