Solderability Tester features 1/3 in. CMOS color camera.

Ascentech    Chester, CT 06412
Sep 15, 2011 MUST III wetting balance testing system supports Gen3 MUST Camera System, which enhances and streamlines small component alignment/inspection. Specifically, camera delivers precise magnified view of part-to-solder alignment while enabling operator to monitor solderability testing process. Retrofittable to any existing MUST system, USB 1/3 in. CMOS Color Camera has 3.3x megapixel macro zoom lens and features up to 744 x 480 pixel resolution; up to 150 fps; and color to mono switching.

Solderability Test Equipment can conduct 6 separate tests.

Ascentech    Chester, CT 06412
Feb 12, 2008 ShareGen SPA 1000 Solder Paste Analyzer provides testing capabilities to help control and manage solder paste in production process. It can perform up to 6 separate tests in accordance to IEC 61189-5 and IPC-TM-650 standards and can also conduct solder paste Open Time tests. Capabilities minimize range of defects - missing components, tombstoning, component misalignment, non-wetting - to reduce inspection and rework time.

Test System measures solderability of terminations.

Ascentech    Chester, CT 06412

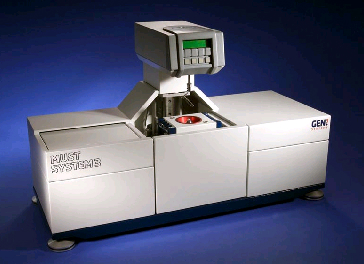

Dec 21, 2006 MUST System 3 measures solderability of PCB and/or component's metallic terminations by documenting wetting curve of unit under test. Using small solder bath or solder globule and vertical force measurements, system can test solderability of lead-free and leaded PCB lands and component leads. Tests performed are defined by IPC, IEC, MIL-STD, and EIA standards.
