Motorized Linear Rail System saves space with fold-over design.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 20, 2011 Allowing small-footprint linear actuator system for precision motion applications, Kerk® RGS/RGW linear rail platform features 180° folded-over motorized design. It contains all components needed for complete motion subassembly, including stepper motor, belt and pulley, precision lead screw, bearing supports, and rail with load carriage. Standard drive ratios available from motor to screw are 2:1, 1:1, and 1:2, and available screw leads range from 0.050-1.2 in./rev.

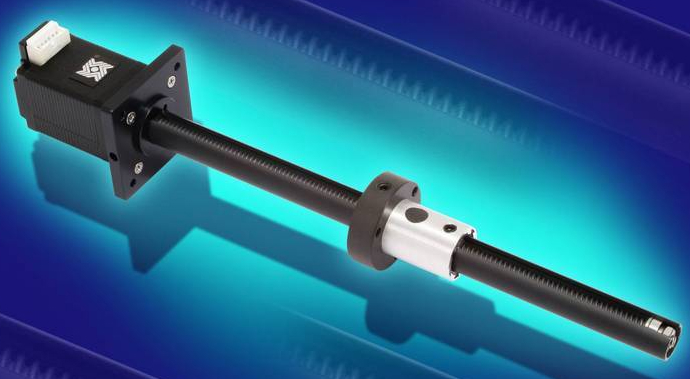

Motorized Linear Actuator has space-conserving design.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Mar 18, 2011 Integrating size 11 stepper motor, SRA04 ScrewRail® consists of Kerk® precision rolled lead screw supported by sealed ball bearings and contained within concentric steel guide rail driving integrated nut and bushing. KerKote® TFE coating and self-lubricating nut/bushing material ensure zero maintenance. Available with freewheeling or anti-backlash nut assembly, product can be used to simultaneously lift and rotate when mounted vertically. Up to 72 in. stroke length is available.

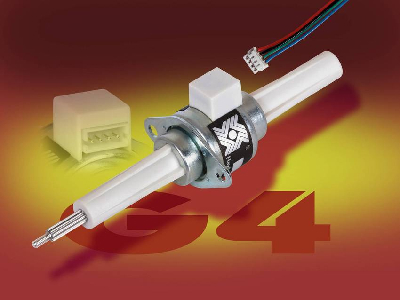

Magnetic Encoder operates with can stack linear actuators.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Mar 03, 2011 Available on 1 in. Series 25000 linear actuators, 64-line Incremental Magnetic Encoder utilizes solid state technology and includes both analog detection circuitry and full signal processing on single chip. Quadrature encoder system utilizes high-energy neodymium magnet and provides 8-bit digital resolution resulting in total of 256 output pulses/revolution. When combined with can stack linear actuator, position feedback can be obtained for use in critical applications.

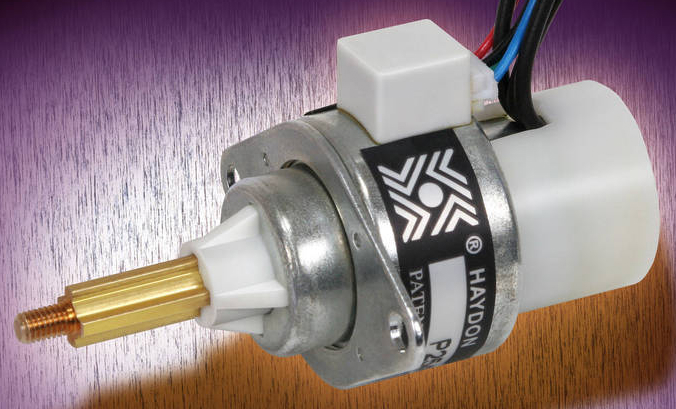

Can-Stack Linear Actuator integrates proximity sensor.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Feb 18, 2011 Captive linear actuators in the 1 in. 25000 Series incorporate end-of-stroke proximity sensor that utilizes miniature Hall effect technology in IC package that mounts directly on actuator. Hall effect offers virtually unlimited on/off cycle life due to non-contact operation of switch, which uses rare earth magnet embedded directly on end of internal screw. With current consumption of 10 mA max, proximity switch is 3-wire device and requires 3.8-24 Vdc input.

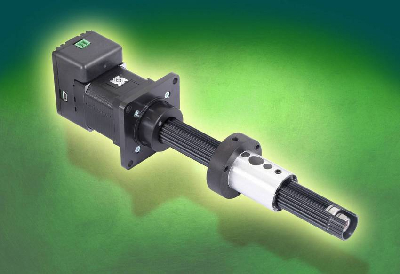

Linear Actuator targets pick-and-place mechanisms.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Dec 23, 2010 Combining mechanical drive, guidance, and control in single component, Programmable Motorized SplineRail(TM) Linear Actuator uses Size 17 single or double stack stepper motor with integrated Haydon(TM) IDEA(TM) Drive, which incorporates GUI for programming. SplineRail technology utilizes Kerk® precision rolled lead screw, supported by bearings and contained within concentric aluminum spline, driving integrated Kerkite® composite polymer nut/bushing. Screw leads range from 0.05-1.2 in. per revolution.

Captive Linear Actuators come in array of stroke lengths.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Dec 09, 2010 Available with 0.551, 0.708, 0.984, and 1.22 in. stroke lengths, 19000 Series rotary-to-linear motion device has 20 mm dia body and up to 180 oz linear force. Can-stack linear actuator, featuring integrated anti-rotation mechanism, is engineered with optimized stator tooth geometry, neodymium magnets, and custom engineered polymers. Applications include micro-fluidic dispensing, electronic throttle control, fine adjustment control for optics, antenna movement, and scanning devices.

Captive Linear Actuator provides 1.22 in. stroke length.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 29, 2010 With body diameter of 20 mm and linear force up to 180 oz, 19000 Series Can-Stack Linear Actuator features optimized stator tooth geometry, neodymium magnets, custom-engineered polymers, and large ball bearings. Unit is suited for variety of applications including precision medical equipment, scientific instrumentation, scanning devices, advanced optics, and other mechanisms requiring high force in small package size.

Motorized Linear Actuator combines drive, guidance functions.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 21, 2010 Model SAA06 Motorized SplineRail(TM) utilizes precision rolled lead screw, supported by bearings and contained within concentric extruded aluminum spline, driving integrated composite polymer nut/bushing. KerKote® TFE coating and self-lubricating Kerkite® nut/bushing material lend to extended life expectancy. When mounted vertically, SplineRail can also be used to simultaneously lift and rotate (Z-theta motion). Actuator uses Haydon(TM) Size 17 single or double stack stepper motor.

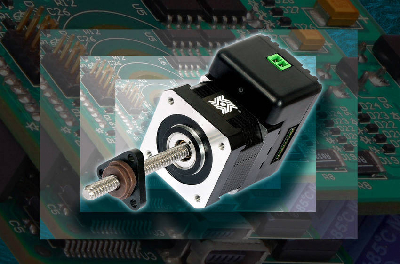

Linear Programmable Actuator provides 20 in. stroke length.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 18, 2010 Programmable via graphical user interface, IDEA(TM) External Linear Actuator System integrates electronic drive and fully programmable control unit with linear actuator. RoHS-compliant unit features single supply voltage of 12-48 Vdc, 2.6 Arms max rated current per phase, and 8 opto-isolated general purpose I/O. Inputs are rated for 5-24 Vdc, 4 mA max, while open collector outputs are rated 5-24 Vdc, 200 mA max. Applications include gantry robots, optics and lasers, and fluid dispensing.

Low-Current Electronic Drive offers on-screen programming.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Sep 17, 2010 RoHS-compliant PCM4806 IDEA(TM) linear actuator drive is optimized to regulate low current power stage suitable for controlling smaller Haydon can-stack linear actuators. In addition to providing on-screen buttons for programming, GUI offers automatic population of motor and drive parameters based on entered Haydon actuator part number. Inputs are rated for 5-24 Vdc, 4 mA max per input, and outputs are open collector, 5-24 Vdc, 200 mA max.
