Modular Feeder adjusts to accommodate various tape sizes.

Count On Tools    Gainesville, GA 30501

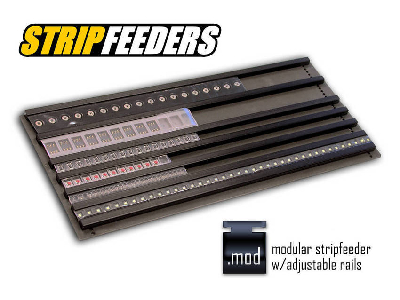

Dec 07, 2012 Designed for loading tape-and-reel components onto compact modules for prototype and high-mix/low-volume applications, StripFeeder .mod System features removable rails that can be mounted to accommodate wide array of tape sizes. Rails align with precision pin locaters and lock down tightly with magnets to guarantee stable, repeatable application. Rails are available in 0.5, 0.7, and 1.125 in. heights for deep pocket components, as well as 0.25 in. for paper tape components.

PCB Support System requires no air or electronics.

Count On Tools    Gainesville, GA 30501

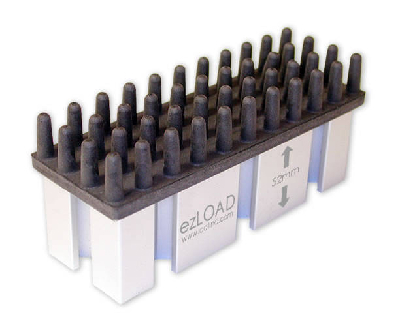

Dec 04, 2012 Featuring precision machined aluminum base with magnetic supports and soft, ESD-safe foam fingers, ezLOAD PCB Support System for EKRA Screen Printers eliminates component damage during assembly process. ezLOAD PAD features active grip technology to securely hold boards during screen printing. Compatible with any SMT equipment, system is customizable depending on machine requirements, specialized components, or specific application requirements.

Custom Nozzles reliably handle ultra-smooth components.

Count On Tools    Gainesville, GA 30501

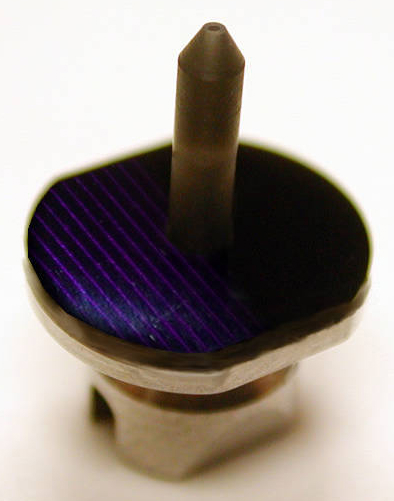

Aug 31, 2012 Suited for semiconductor market, urethane nozzle series features tips that prevent components with very fine surface finishes from getting stuck on nozzle during pick-and-place process. Urethane material creates vacuum bond with components and promotes placement accuracy as well as reliability while overcoming substrate sticking issues. Material also improves component release onto board, preventing misplaced parts, lost components, or miss-picks.

Board Support System eliminates damage during assembly.

Count On Tools    Gainesville, GA 30501

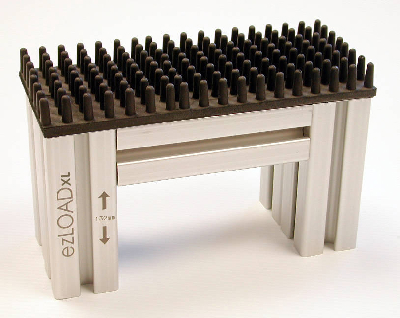

Jun 28, 2012 Featuring extruded aluminum base and soft, ESD-safe foam fingers, ezLOAD XL PCB Support System can be customized for any length and width combination. Horizontal posts can be unlocked and replaced with longer or shorter ones to accommodate other board sizes. With active grip technology, ezLOAD PAD securely holds boards during assembly process. Compatible with any SMT equipment, system has no mechanical functions to fail and requires no air, electronics, or communication from user.

Interchangeable Cup Nozzles accommodate variety of components.

Count On Tools    Gainesville, GA 30501
May 09, 2012 Designed for Universal Instruments' Flexjet 2/3/Inline 7 equipment, Interchangeable Cup Nozzles enable users to purchase one nozzle base with multiple tips that can be changed out to accommodate wide array of components with single tool. Series includes H012/H055 Replaceable Tip Nozzle with 2.0 and 3.5 mm cups as well as H013/H056 Replaceable Tip Nozzle with 5.0, 6.0, and 8.0 mm cups.

Tape-and-Reel Component Feeder features removable rails.

Count On Tools    Gainesville, GA 30501
May 03, 2012 Built to JEDEC-standards, StripFeeder .mod System can be adjusted by repositioning rails on base plate at desired width to accommodate wide array of tape sizes. Rails align with precision pin locators and lock down tightly with magnets. Customers can also remove rails to accommodate larger components up to 120 mm tape width. By holding components securely in machined tracks, design prevents parts from being miss-picked, flipped in pocket, or lost.

PCB Support Modules handle multiple board widths. .

Count On Tools    Gainesville, GA 30501

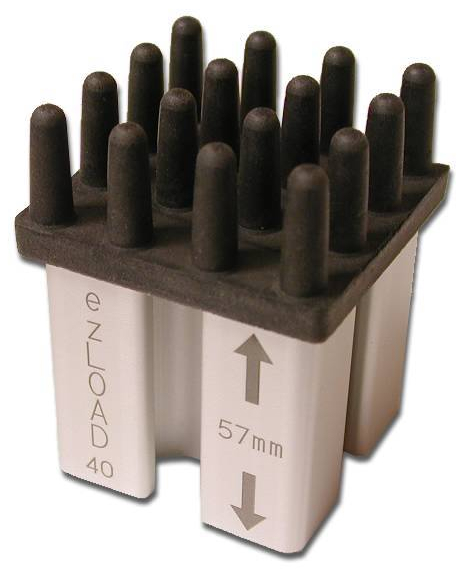

May 01, 2012 Benefitial to EMS companies and contract manufacturers, ezLOAD 40 Series features 40 x 40 mm extruded aluminum base and soft foam pad. Compact design, which helps target more specific areas on builds with increased precision, also provides capability to flexibly handle multiple board widths. Protecting components while allowing boards to move freely through assembly line, ESD-safe ezLOAD PAD features active grip technology. Customizable product is compatible with any SMT equipment.

Multipurpose Mallet features balanced design.

Count On Tools    Gainesville, GA 30501
Aug 30, 2011 Featuring FSC-certified hickory wooden handle, PB Swiss Tools Model PB 304 has 2 different shaped heads made of wear-resistant polyamide. Hardened head features steel plate covering polyamide head for flat striking surface, best suited for heavy-duty applications. Soft head, featuring crowned striking surface made of special polyamide material, is intended for precise, fine striking and other gentle or light-duty applications.

Hex Keys feature inlaid holding ring for robust operation.

Count On Tools    Gainesville, GA 30501

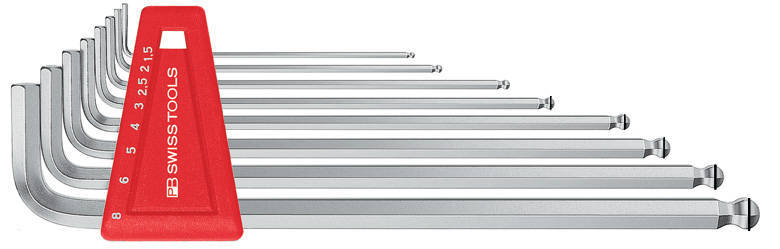

Jul 19, 2010 PB Swiss Tools' Holding Ring Hex Keys allow fasteners to be inserted or removed in hard-to-reach locations, without fastener falling off tool or sacrificing strength. Hex key L-wrenches for hexagonal socket screws (mm) are equipped with holding ring on ball end, and inlaid circlip spring ring holds screws firmly onto tool. Inlaid design of holding ring eliminates wear concerns while allowing movement at up to 30° angle when tightening/loosening screw over full 360° rotation.

Standard and Custom Nozzles suit SMT pick-and-place machines.

Count On Tools    Gainesville, GA 30501

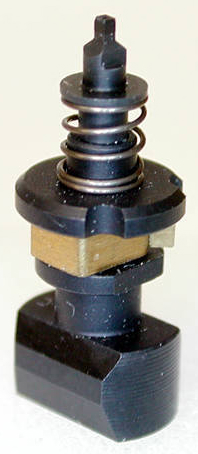

Jun 11, 2010 Available for Assembléon MC-24 and MC-24X as well as Yamaha YG300, standard 300-series nozzles are capable of handling components with sizes ranging from 01005 to larger BGAs and QFPs for large mix and minimum changeover. Functionality, guaranteed to perform properly with original equipment, enables direct replacement for OEM nozzles and helps optimize production lines. Additionally, custom-engineered nozzles are available for odd-form components.
