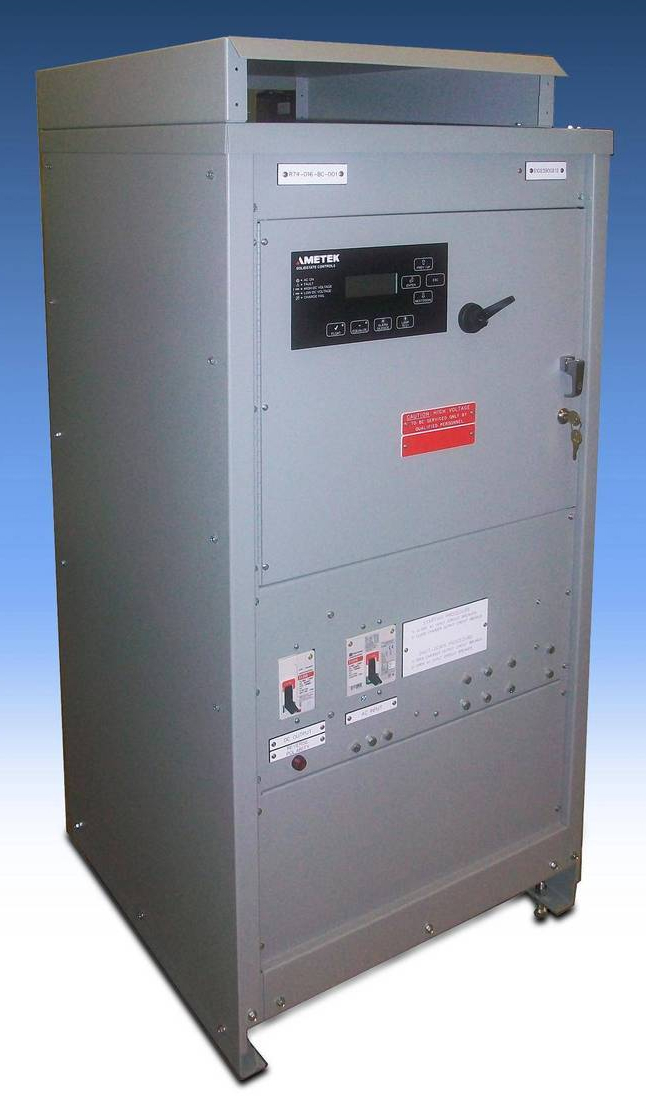

Battery Charger incorporates digital control circuitry.

AMETEK Solidstate Controls    Columbus, OH 43085
Sep 10, 2012 Along with PWM control systems, digital ProcessPower® DCR utilizes SCR phase control to provide regulated DC output and limited current via smoothing filter. Thyristor-based system comes in 32-1,250 A sizes for battery voltages of 24, 48, 120, and 240 Vdc. Able to operate with or without batteries, unit is designed for conversion of AC to DC power for charging batteries while supplying power to continuous DC loads such as inverters. Control and alarm set-points may be defined by user.

Thermal Imaging Camera offers high resolution at any distance.

AMETEK Solidstate Controls    Columbus, OH 43085
Jun 02, 2011 Arc Series thermal imaging camera features high resolution radiometric imagers and field of view options that can view targets at any distance with high clarity. Operating over temperature range of -20 to +1,000°C, unit incorporates software that performs temperature processing and enables visualization of thermal data. Compact product connects to range of I/O modules using industrial Ethernet, allowing for stand-alone operation without PC, and suits heavy industrial and automation applications.

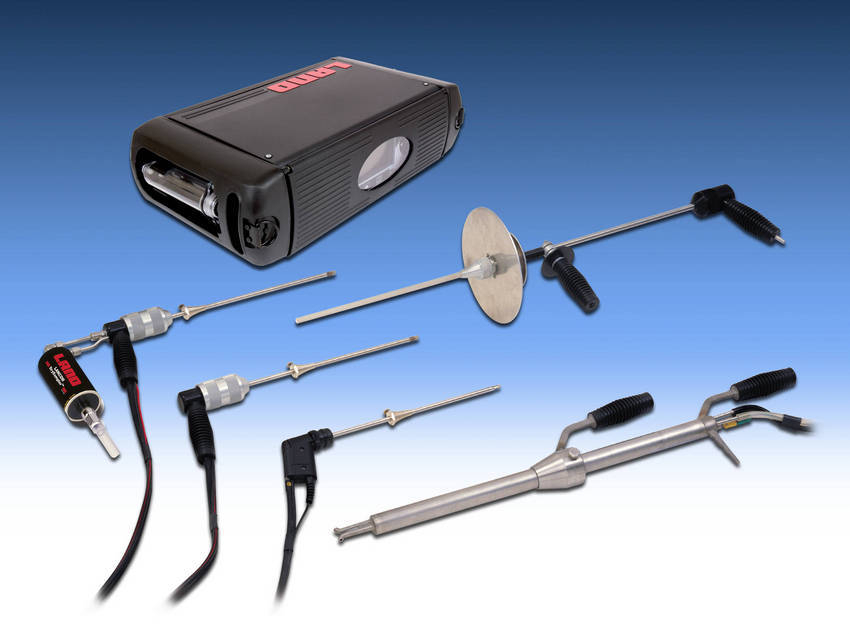

Portable Flue Gas Analyzer monitors up to 9 different gases.

AMETEK Solidstate Controls    Columbus, OH 43085
Apr 26, 2011 Weighing less than 15 lb, Lancom 4 monitors CO(low), CO (high), O2, CO2, NO2, SO2, H2S and total hydrocarbons, with 17 measurement parameters, including combustion efficiency, excess air, oxygen normalization, loss and total NOx. Features include color display, dual rechargeable batteries for 8 hr operation, and USB communication for data transfer. Range of sample probe types and lengths are available, and sample conditioning system ensures high accuracy and 0.1 ppm measurement resolution.

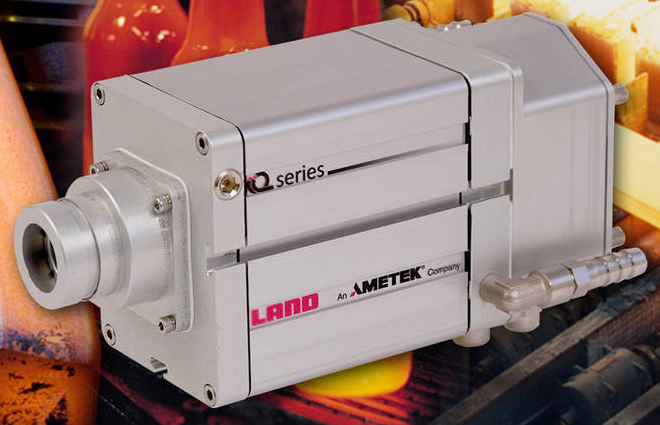

Rugged IR Thermometers suit high-temperature applications.

AMETEK Solidstate Controls    Columbus, OH 43085
Oct 05, 2010 Intended for use in process control applications, industrial iQ Series has all-metal design with integrated water cooling and air purge. It can be configured using any permutation of 4 wavelengths, 4 feature levels, and 4 focus distances to suit range of processing requirements. The 8 in. size accommodates limited-space applications, and screw terminal and power connections facilitate installation and operation. Alarm relays come standard, and other options are available.

Thermal Imaging Camera provides continuous process monitoring.

AMETEK Solidstate Controls    Columbus, OH 43085
Aug 24, 2010 Operating at 1 µm, fixed Model FTI-E 1000 combines thermal imaging with temperature measurement from 1,100-5,400°F, over range of 4 models. High-resolution detector array coupled with precision optics enables targets as small as 0.013 mm² to be resolved. Enabling live images and video to be captured, dedicated software provides timed acquisition, full range of temperature measurements, and various alarm functions. Applications include boilers, cement kilns, pipe welding, and glass furnaces.

Thermal Imaging System monitors polysilicon crystal growth.

AMETEK Solidstate Controls    Columbus, OH 43085
Aug 13, 2010 Designed to measure temperatures from -4 to 2,912°F with ±1% accuracy, FTi-E Fixed Thermal Imaging System provides complete thermal view of process with display that responds immediately to changes, which can then be used to trigger alarms, automatically control process, or provide quality control information. Thermal imager, housed in NEMA 4, RF-shielded enclosure, can operate continuously without user intervention and can be controlled remotely via local touchscreen interface or PC.

Furnace Monitoring System utilizes thermal imaging technology.

AMETEK Solidstate Controls    Columbus, OH 43085
May 07, 2010 Through small opening in furnace wall, FTI-Eb Borescope uses Land FTI-E thermal imaging camera to accurately profile temperature from over 110,000 individual points. Water-cooled and air-purged camera lens withstands temperatures to 2,192°F and is designed to provide wide-angle view inside furnace. Unaffected by hot CO2 and H2O found in combustion atmospheres, system also features optional auto-retraction mechanism, image processing software, and ruggedized industrial housing.

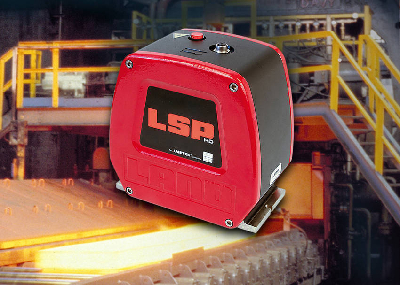

Infrared Linescanner optimizes industrial process imaging.

AMETEK Solidstate Controls    Columbus, OH 43085
Apr 02, 2010 Combining high-speed scanning and high-resolution optics, Model LSP-HD can scan 1,000 data points up to and including 150 Hz. Unit features rugged housing and sapphire viewing window, making it suitable for operation in harsh industrial environments. Applications include steel making, glass manufacturing, metals processing, and bulk materials handling.

Dust Compliance System performs opacity measurement.

AMETEK Solidstate Controls    Columbus, OH 43085
Jul 29, 2009 Utilizing 3 technologies, Model 4500 Mk III performs reliable stack opacity measurement and dust concentration monitoring. Homogeneous LED light source, combined with Flood LED, helps achieve optimal stability and accuracy, while this solid-state system also lends to reliable operation. Featuring fully automatic zero checking and drift compensation, system is able to report data as opacity, dust density, or optical density.

Fixed Thermal Imager can withstand harsh environments.

AMETEK Solidstate Controls    Columbus, OH 43085
Jul 10, 2008 Available in 4 models for monitoring temperatures from -4 to 2,910°F, FTI-E features thermal imaging camera, industrial processor, and LIPS FTI software for application-specific thermal analysis. Suited for installation on plant or in control room, processor provides local process control, configuration, and process visualization, while software can monitor/control up to 4 imagers at full frame rate and automatically stores images and video in event of any alarm.
