Light Pipe System combines brightness, design flexibility.

Bivar, Inc.    Irvine, CA 92618 2593
Aug 23, 2010 ORCAdapt(TM) consists of ORCA adaptor, with built-in ORCA Super Flux LED, and flexible light pipe system available in 1 or 2 mm sizes. Available lengths range from 2.5 in. to 238 ft, system works with single, bi-color, and tri-color ORCA LEDs. Press fit lens mounting facilitates installation and provides vibration and shock resistance. Featuring input-driven color adjustment capabilities, system suits field instrumentation, heavy equipment, and transportation applications.

Light Pipe System enables flexible design for LED indicators.

Bivar, Inc.    Irvine, CA 92618 2593
Jan 05, 2010 Flexible light pipe system includes 2 mm optical-grade core that optimizes light transmission. Part of plastic optical fiber Light Pipe System series, unit also features LED adapter, lenses available in different shapes, and lens cap that diffuses light for minimal loss of intensity. Flexible RoHS-compliant PVC alloy outer jacket maximizes light transmission and protects core and cladding during installation and operation.

Panel Mount LED Assemblies offer color adjustment capability.

Bivar, Inc.    Irvine, CA 92618 2593
Dec 30, 2009 Intended for commercial and industrial machinery, 3-lead common cathode, bi-color PM5-3 Series provides multi-color status indication and multiple configuration choices, including stripped wires and 0.100 in. pitch 3-pin connector. White diffused lens appearance offers wide viewing angle and uniform indication. Available in 0.16 in. protrusion and recessed versions, 5 mm RoHS-compliant assemblies are vibration-resistant and come with 94V-0 rated plastic holder.

SMT LED Indicator Assemblies offer quick installation.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 30, 2007 Offering individual display station design with 4-8 tier elevations, SHA Series features internal adaptor board and card edge connector for surface-mounted assembly applications. Each tier spaces LED indicators uniformly at 0.200 in. centers for standard elevation consistency; 8-tier assembly measures 1.620 in. high. Offered in standard and custom configurations, RoHS-compliant products are offered with choice of LED types, colors, and viewing angles.

LED Blocks offer power, lighting, and mounting options.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 28, 2006 Housed in 1 x 1 in. package, 1 W Series B3 Hi-Brite Blocks(TM) are surface mounted onto miniature internal PCB and assembled in low-profile base for diffused or flood lighting, or modular base with direct drive or integrated dc/dc current regulator. RoHS-compliant units exhibit viewing angle of 100° in high power group, using InGaN and AllinGaAIP materials with wavelengths of 465-635 nm. Mountings choices include interlocking, mounting tab, or quick-mount adhesive backing.

Power LED Module delivers up to 90 lumen brightness.

Bivar, Inc.    Irvine, CA 92618 2593
Sep 13, 2005 Designed for solid state lighting uses, LK3 Series is based on Cree® XLamp technology and packaged onto metal core PCB base. It uses standard reflow technologies to achieve electrical and thermal connections without epoxy, providing electrically neutral thermal path. Self-contained, lead-free, 3 W module offers 100º viewing angle, full spectrum wavelengths from 465-635 nm (white to 8,000 K), and 700 mA max If rating. When off, lens is transparent water clear.

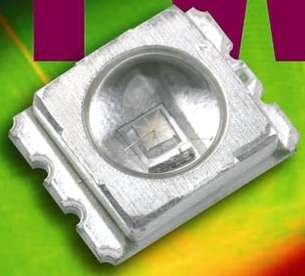

Surface Mount LED Device offers 120° viewing angle.

Bivar, Inc.    Irvine, CA 92618 2593
Jun 29, 2005 SMLC RGB features tri-chip RGB design comprised of single AllnGaP and 2 InGaN/SIC chip dies with peak wavelengths of 625, 568, and 430 nm, respectively. Maximum rating of forward current drive is 200 mA, and operating temperature range is -40º to 100ºC. Unit is packaged in 0.075 x 0.110 x 0.138 in. PLCC-4 carrier with 4-pad metal heat dissipating base. Other models include single and bi-color chips in red, green, blue, and yellow, including ultra and HE colors.

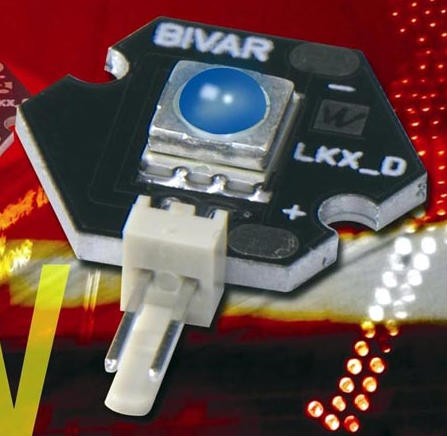

Full Spectrum LED Module is used for general illumination.

Bivar, Inc.    Irvine, CA 92618 2593
May 20, 2005 Featuring metal core PCB assembly, LK Series employs Cree® XLampâ„¢ technology and produces 40–60 lumens for backlighting applications. Lead (Pb)-free, aluminum module has integrated lens and measures only 0.800 in. in hexagon pattern. With viewing angle of 100º, 1 W SMT LED module delivers max If rating of 400 mA and offers full spectrum wavelengths from 465–635 nm as well as white to 8,000 K. Operating temperature ranges from -30 to +100ºC.

Light Pipe enables LED positioning on both sides of PCBs.

Bivar, Inc.    Irvine, CA 92618 2593
May 20, 2005 Suited for display applications, quad-level light pipe addresses needs of aTCA and cPCI designers to place 4 separate indicators within confines of one mezzanine card. PCB is populated with 2 right-angle SMT LEDs and 2 SMT LEDs, and footprint allows for quad-level indicator use in less than 0.5 in. of front panel space. Lead (Pb)-free, RoHS-compliant product suits applications where multiple messaging and complex status indication is required.

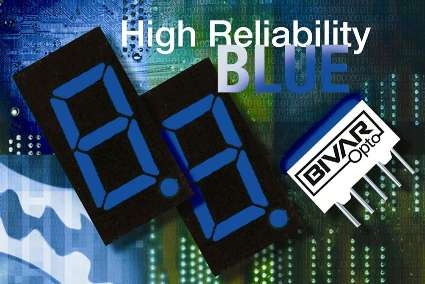

LED Displays feature dual-chip redundancy.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 20, 2005 Single-digit, 7-segment BD Blue Series offers 5 digit heights from 0.301–1 in. in 24 styles and models. For uniformity, each segment features 2 chips in series. Connection and choice of common anode or common cathode circuitry enables use in any numeric display configuration. Utilizing compounded diffused lens for even color distribution, Pb-free displays feature standard wavelength of 465 nm and are suited for medical and life support systems, avionics, and industrial controls.

PCB Packaging Hardware is lead-free.

Bivar, Inc.    Irvine, CA 92618 2593
Mar 28, 2005 Offered in 571+ different styles and sizes, line of snap-in and vertical, standard-mount card guides accommodate 1/16, 3/32, or 1/8 in. PCBs and are manufactured in compliance with WEEE and RoHS Pb-free materials and processes. Offered in 31 styles, VERT-O-GIDEâ„¢ offers 2-channel vertical guide for 1/16 in. PCBs. Line also includes CARD-O-PULLâ„¢ PCB ejectors, inserter/extractors, PCB handles and CUT-OUT-COVERâ„¢ connector cutout covers.

LED Indicator suits fault and status display applications.

Bivar, Inc.    Irvine, CA 92618 2593
Mar 15, 2005 Compliant with RoHS Pb-free materials/processes, Right Angle Model SRM-32 can replace PCB through-hole LED assembly displays. Measuring 2.4 x 3.2 mm, SMT unit is packaged with lens centerline 1.4 mm from PCB surfaces. It can be supplied with single, bi-color, or tri-color operation with either single or dual chip internal PCB. Unit offers peak wavelengths from 470–660 nm, axial intensity of 140–160 mcd at 20 mA, and forward voltage and current of 4.0 Vf at 20 mA.

Surface-Mounted LED meets RoHS PB-free regulations.

Bivar, Inc.    Irvine, CA 92618 2593
Feb 01, 2005 Measuring 0.059 x 0.063 x 0.024 in., programmable RGB Model SMTC0606 employs 3 individually addressable LED die. Tri-chip design is comprised of single AlGaInP and 2 InGaN/SIC chip dies, featuring peak wavelengths of 635, 520, and 465 nm respectively. Lens appearance when off is water clear. Absolute maximum rating of forward current drive is 125 mA. Unit is encapsulated in epoxy blend to withstand temperature, operation, and assembly processes.

Warm White Wedge-Based LEDs have service life of 100,000 hr.

Bivar, Inc.    Irvine, CA 92618 2593
Dec 10, 2004 Directly interchangeable with incandescent lamps, WB5 LEDs output same color as T-1¾ wedge-based incandescent bulbs (3,500°K) and utilize flat faced lens design with internal reflector. Products have 180° wide viewing angle and are rated at 2.5–48 Vdc. Requiring 10–30 mA operating current, subminiature units measure 0.80 in. long x 0.230 in. dia and offer solid-state design for shock and vibration resistance. Custom versions are available.

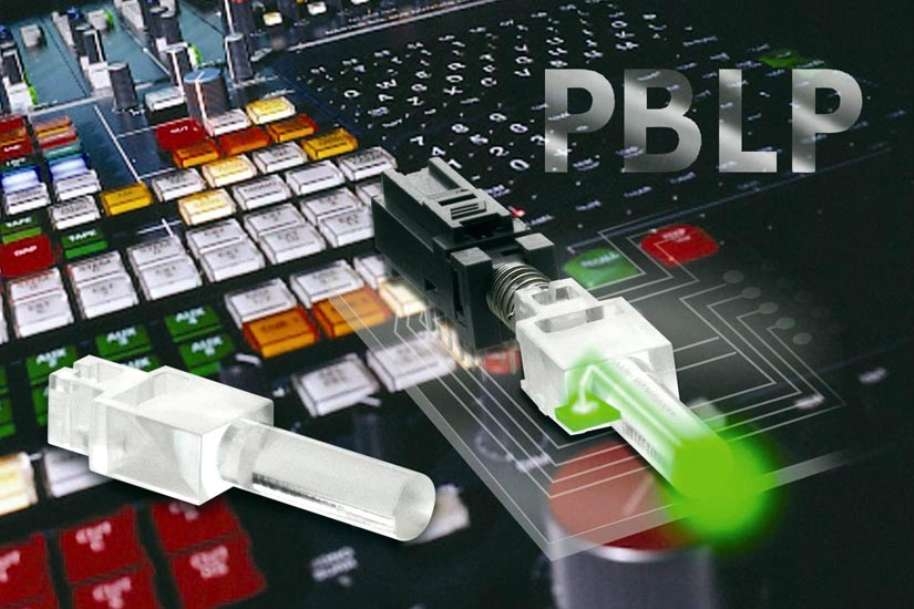

Light Pipe creates lighted displays for non-lighted units.

Bivar, Inc.    Irvine, CA 92618 2593
Sep 01, 2004 PBLP Series offers integral prism design within light pipe, directing surface-mounted LED light down the center of light pipe. It includes slide-on base for easy mounting on standard push-button shafts of through-hole or surface-mounted PCB-mounted switches. When used in conjunction with surface-mounted LED chip sets, it enables non-lighted switch models to perform same function as lighted push-button switch types.

Wedge-Based LEDs have 180° viewing angle.

Bivar, Inc.    Irvine, CA 92618 2593
Jul 28, 2004 Designed to replace T-1 ¾ wedge-based incandescent bulbs, WB5 Series LEDs feature flat-faced lens design with internal reflector for light intensity. Subminiature products, rated 2.5–48 Vdc, measure 0.80 in. long and 0.230 in. in diameter. With service life rated at up to 100,000 hr, LEDs require typical operating current from 10–30 mA and come in 10 standard colors. Custom colors and electrical characteristics are available.

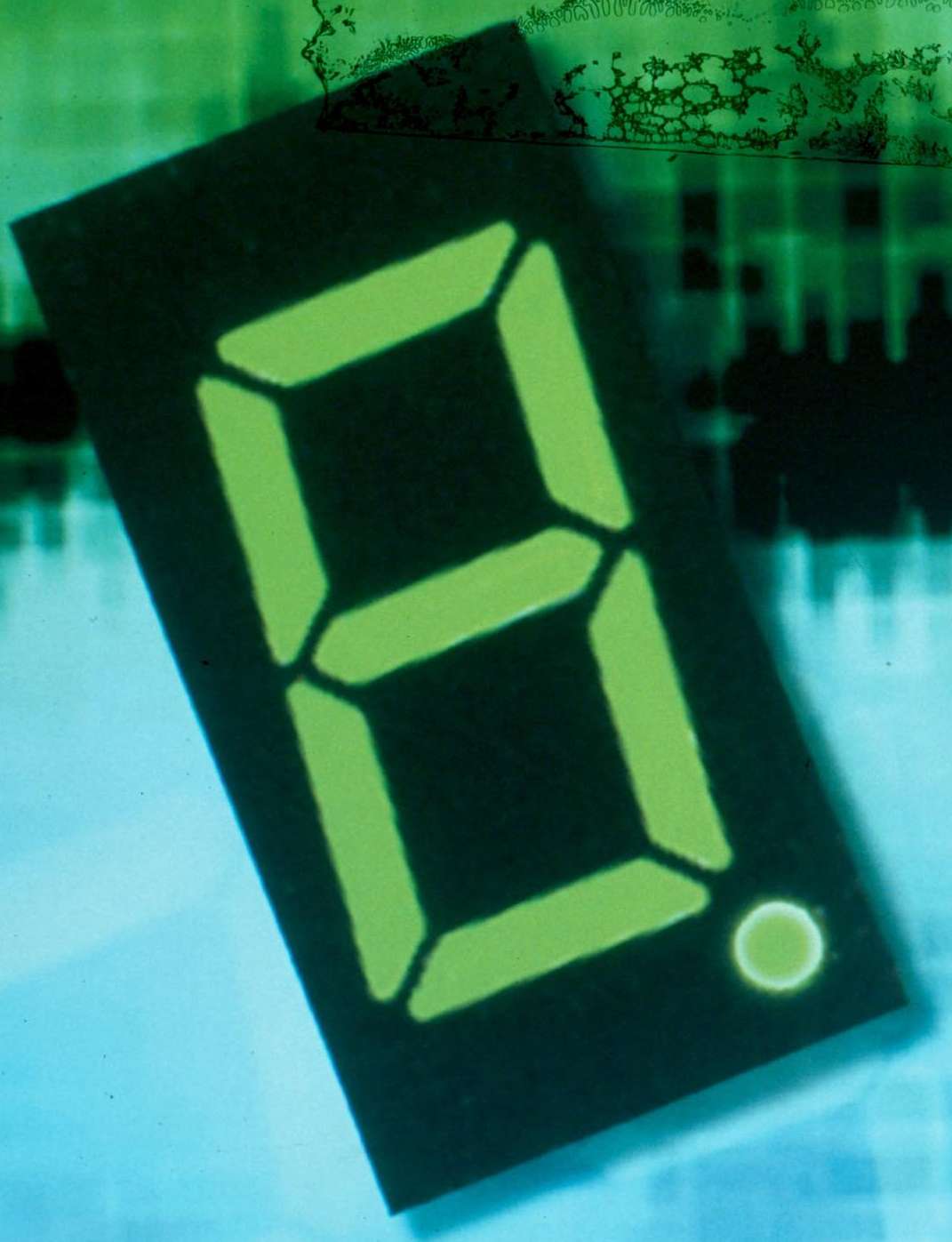

LED Displays provide uniformity and consistency.

Bivar, Inc.    Irvine, CA 92618 2593
Jul 19, 2004 With tight BIN control processes for brightness and color consistency, Series BD single-digit, 7-segment LED displays offer 6 different digit heights from 0.276–1.0 in. Available in 24 different styles and models, displays offer standard wavelengths from 465–630 nm and employ common anode or cathode circuitry, which enables use in any numeric display configuration. Standard face color is black with white diffused segments.

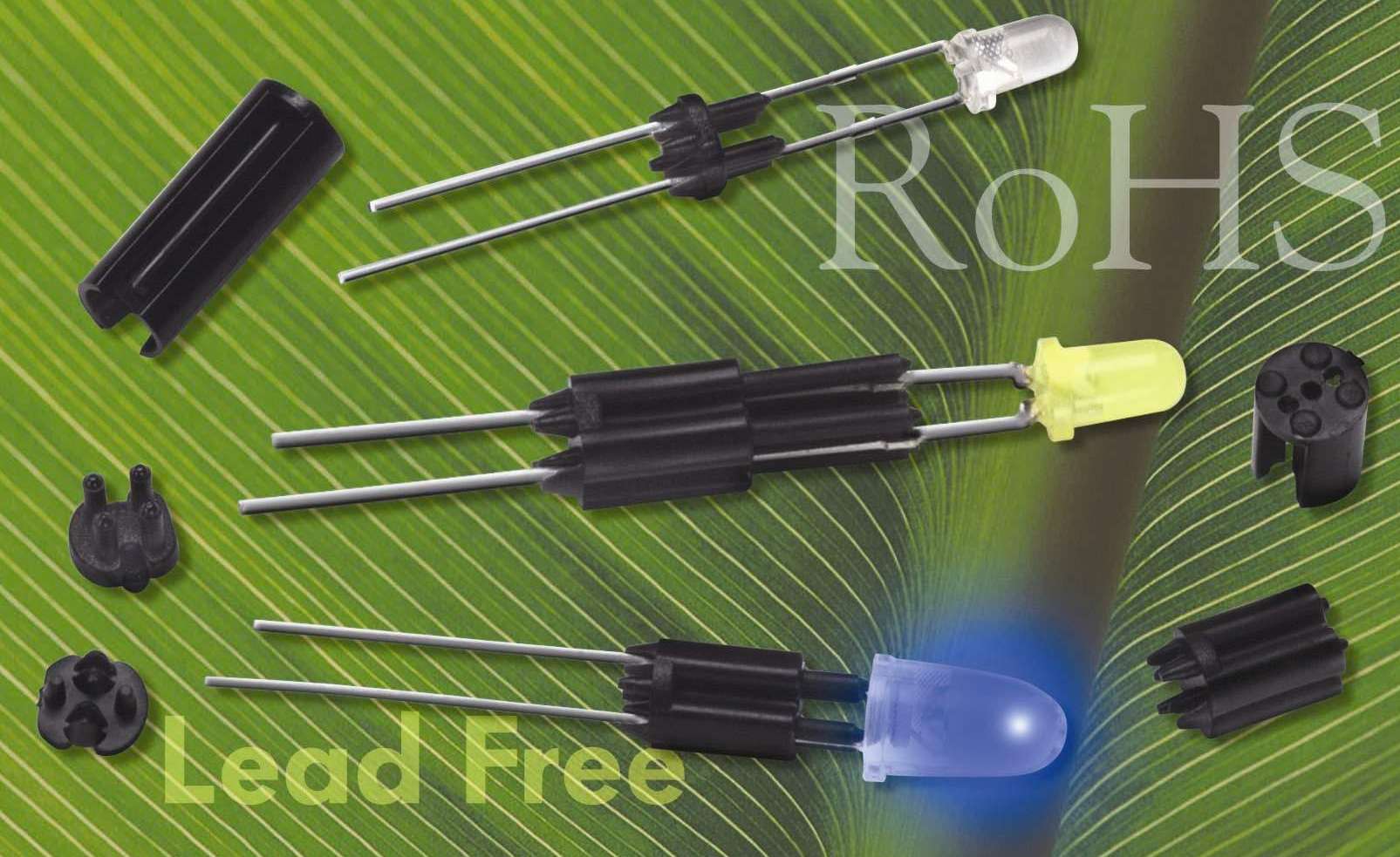

LED Mounts meet requirements for Pb-free soldering.

Bivar Inc    Irvine CA, 92618
Jul 01, 2004 Molded from UL-rated 94V-O Nylon, Series SRM provides lead-free material per Directive 2002/95/EC for Reduction of Hazardous Substances. Mounts accept T-1, T-1¾, and rectangular LED devices, and are available in 18 elevations from 0.100-0.520 in. Leads are guided through dividers within mount to prevent possible shorting. Molded standoffs enable removal of process residues that may accumulate during assembly and facilitate solder joint inspection.

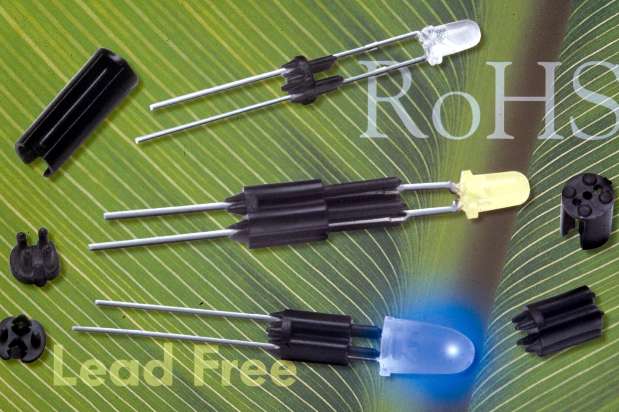

Universal LED Mounts are self-retaining and lead free.

Bivar, Inc.    Irvine, CA 92618 2593
Jun 17, 2004 Molded from UL-rated 94V-O Nylon, SRM Series self-retaining LED mounts provide lead-free material per Directive 2002/95/EC for Reduction of Hazardous Substances (RoHS). Leads are guided through dividers within mounts to prevent possible shorting. Constructed with integrally molded standoffs, series accepts T-1, T-1¾, and rectangular LED devices and is available in 18 elevations from 0.100–0.520 in.

Hand Tool cuts and strips 1 and 2 mm fiber and cable.

Bivar, Inc.    Irvine, CA 92618 2593
Jun 14, 2004 Designed for cutting or stripping plastic optical fiber (POF) and flexible light pipe (FLP) cabling, palm-sized HandyPro Fiber Cutterâ„¢ is molded from ABS plastic. It cuts 1 and 2mm fibers, including native or sheathed fiber and glass cabling, utilizing integral stainless steel blade. Tool, measuring 1.75 x 1.12 in., accurately strips fiber sheathing or cuts fibers while fitting comfortably in user's palm.
