Weight Indicator enhances process precision.

Hardy Process Solutions    San Diego, CA 92123 1825
Apr 19, 2013 Model HI 6300 reads, conditions, and digitizes load cell sensor and strain gage signals found in process weighing applications, such as inventory management, batch, blending, filling, dispensing, and check weighing. Equipped with display that features 140° viewing angle and discrete status messaging, solution digitizes and processes net and gross weight data from Hardy or other industry standard load cells and sends that data directly to PLC or computer system.

Summing Box supports up to 4 load cells.

Hardy Process Solutions    San Diego, CA 92123 1825
Apr 19, 2013 Enabling use of C2®, eCAL™, and Integrated Technician® technologies, HI 6010 distributes excitation voltage to up to 4 load cells and transfers each load cell's performance characteristics and weight signals to weight controller. Unit is housed in NEMA 4X polycarbonate enclosure with threaded brass cover inserts, O-ring, and flangeless surface mounting for sanitary wash-down installation. Box is suited for batching/blending, filling/dispensing, level-by-weight, and check-weighing applications.

Weigh Feeder Control Module offers easy installation and set-up.

Hardy Process Solutions    San Diego, CA 92123 1825
Aug 22, 2011 Mounting directly into Allen-Bradley® MicroLogix(TM) 1500 or CompactLogix(TM) chassis, Model HI 1769-FC supports Add-on Profile (AOP) set-up for installation and programming. Device controls augers, vibratory and belt-based feeders, as well as proprietary feeder designs and features true 5-point automatic rate calibration, automatic feeder refill, and various alarms including rate tolerance and disturbance. INTEGRATED TECHNICIAN® feature provides system diagnostics and troubleshooting.

Sanitary Checkweighers suit food and beverage industry.

Hardy Process Solutions    San Diego, CA 92123 1825
Mar 26, 2010 Designed to accommodate sanitary, pressure, and temperature demands of food and beverage industry, Enviro(TM) series carries wahdown rating and offers front-panel checkweighing functions. Programmable limits with multi-color indicators and 500% overload capability enhance checkweighing process, while LED and button size facilitate use. Compliant with RTE and ATI standards, checkweigher is rated to IP69K and incorporates knife-proof overlay.

Feed Rate Controller turns volumetric operation gravimetric.

Hardy Process Solutions    San Diego, CA 92123 1825
Feb 19, 2010 Mounted directly into Allen-Bradley® ControlLogix® chassis, HI 1756-FC single-feeder control module can convert auger, belt, and vibratory-based feeders from volumetric to gravimetric feeding. Closed-loop rate controller features true 5-point automatic rate calibration, automatic feeder refill, and various alarms utilizing PLC's rack I/O. Configurable to application at hand, solution incorporates WAVERSAVER® to eliminate effects of surrounding vibration and C2® electronic calibration.

Checkweigher Bench Scales feature sanitary design.

Hardy Process Solutions    San Diego, CA 92123 1825
Jan 15, 2010 Made of 304 SS with IP67K-rated instrument, Enviro(TM) Checkweigher Scales meet needs of food and chemical industries for sanitary checkweighing electronics that withstand high-pressure, high-temperature washdown environments. Units prevent materials and moisture from forming colonization points for harmful bacteria. Offering capacities from 2-100 lb and platform sizes of 10 x 10, 12 x 12, and 18 x 18 in., scales feature 4 programmable checkweigh ranges, 3 remote inputs, and RS232/RS485 outputs.

Weight Controller offers ControlNet(TM) network interface.

Hardy Process Solutions    San Diego, CA 92123 1825
Nov 27, 2009 Measuring 3 in. deep, Model HI 4050 is available with ControlNet(TM) network interface, which allows transfer of time-critical application information at 5 Mbit/sec in redundant, deterministic, and predictable manner. Information can be transmitted to up to 98 additional nodes at distances of 250-5,000 m. In addition to WAVERSAVER®, which eliminates effects of vibration, controller includes C2® electronic calibration, SD-based memory card, and IT® for system diagnostics.

Rate Controller has stainless steel NEMA 4x enclosure.

Hardy Process Solutions    San Diego, CA 92123 1825
Jul 02, 2009 Offered with AC or DC power, HI 4060 rate controller includes standard EtherNet 10/100 Base T port, with embedded web server and RS 232 printer or scoreboard display port. It features INTEGRATED TECHNICIAN® (IT) for system diagnostics and troubleshooting and has secure memory module with SD card (SMM®-SD), which allows manual transfer of configuration data to another instrument or PC using SD technology. Product can be slaved to other devices for ration metric control.

Loss-in-Weight Rate Controller suits variety of feeders.

Hardy Process Solutions    San Diego, CA 92123 1825
Mar 02, 2009 Suited for auger, belt, and vibratory-based feeders, compact, single-feeder, closed-loop HI 4060 converts them from volumetric to gravimetric. It provides analog output to control feeder speed and adjusts this signal based on required rate at which feeder is losing weight. Features include embedded web server, true five-point automatic rate calibration, automatic feeder refill, various alarms including rate tolerance and disturbance, and RS 232 printer or scoreboard display port.

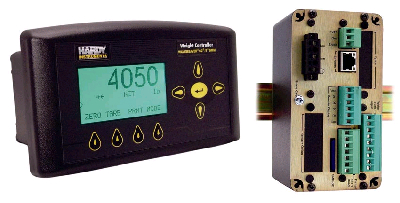

Weight Controller features Allen-Bradley remote I/O.

Hardy Process Solutions    San Diego, CA 92123 1825
Feb 22, 2008 Measuring 3 in. deep, Model HI 4050 includes standard Ethernet 10/100 BaseT with embedded web server and RS232 printer or scoreboard display port. WAVERSAVER® eliminates effects of surrounding vibration, while C2® allows for electronic calibration without need for test weights. Available with ac or dc power and in-panel, remote or blind DIN rail mounting, controller can use Allen-Bradley remote I/O network to communicate with Rockwell PLCs.
