Non-Contact Position Sensor offers 360° continuous rotation.

BEI - Duncan Electronics    Irvine, CA 92618
Oct 23, 2009 Supplied in 15.55 x 82 x 113 mm, through-hole, hollow shaft package, 8360 Series suits applications where space and mounting flexibility are critical. It can fit around or over shaft and distinguishes 0.088° increments of motion with accuracy of better than ±2 mechanical degrees at room temperature. Along with 12-bit resolution, features include redundant, dual analog outputs; IP65 sealing; and support for application-specific modifications.

Hall Effect Sensor features 360° rotation capability.

BEI - Duncan Electronics    Irvine, CA 92618
Sep 19, 2007 Model 9360 Non-Contacting Rotary Dual Output Hall Effect Sensor enables 360° of absolute position feedback for rotary position sensing needs in specialty vehicles. Features include compression molded rotating neodynium disk magnet, and an integrated Hall effect chip sealed liquid tight to meets seal class IP66/IP67. Unit offers electrical angle of 0-359.9°, operating temperature range of -40 to 85°C, accuracy at ±0.9%, and both analog and PWM outputs.

Non-Contact Rotary Position Sensor suits harsh environments.

BEI - Duncan Electronics    Irvine, CA 92618
Jan 30, 2007 Specified over -40 to +257°F range, 9950 sensor features integrated Hall effect chip enclosed in liquid-tight, fully sealed, 50 x 37.5 x 34.1 mm plastic package that meets IP67 requirements. EMI-resistant product has one analog output and can withstand 10 G vibration, 20-2,000 Hz; 50 G shock; and half sine pulse of 5 msec duration. Over its life expectancy of up to 35 million cycles, sensor exhibits electrical angle of up to 120°, ±2.0% standard linearity, and accuracy of ±3.0% FS.

Optical Encoders offer plug and play installation.

BEI - Duncan Electronics    Irvine, CA 92618
Mar 16, 2004 Series 920 miniature, incremental encoders are capable of accepting disc radii as small as 9.78 mm with resolutions to 2,450 ppr. Featuring 5-pin mating connector that mates with AMPHEONOL and MOLEX configurations, units measure 1.25 x 1.05 x 0.39 in. including caliper, connector, and PCB board. Opto-ASIC design includes phased array photo diode IC noted for ±0.010 in. tolerance to axial movement and 50 mA power consumption.

Position Sensors offer range of shaft mounts and connectors.

BEI - Duncan Electronics    Irvine, CA 92618
Oct 08, 2003 Series 600 Linear Position Sensors are available with multiple spherical rod end bearings, as well as magnetic mounting faces, L-brackets, spring loaded shafts, and tapered tip styles. All feature external sensor body diameter of .620 in. Sensors offer linearity up to ±.08% with 10 million mechanical cycles and over 1 billion dither cycles. They withstand temperatures from -55 to +125°C with continuous operation and repeatability within .0005 in.

Potentiometer handles extreme environments.

BEI - Duncan Electronics    Irvine, CA 92618
Jun 13, 2003 Series 5320 shaft-driven, panel potentiometer is fully sealed and impervious to contamination and moisture. It withstands storage temperatures up to 150°C and offers continuous operation at 125°C. Unit delivers more than one million full rotation cycles and is rated to meet requirements of International Electrotechnical Commission 529 for Enclosure Protection IP66 and IP67. It is suitable for position feedback and operator input applications.

Position Sensor is insensitive to input power fluctuations.

BEI - Duncan Electronics    Irvine, CA 92618

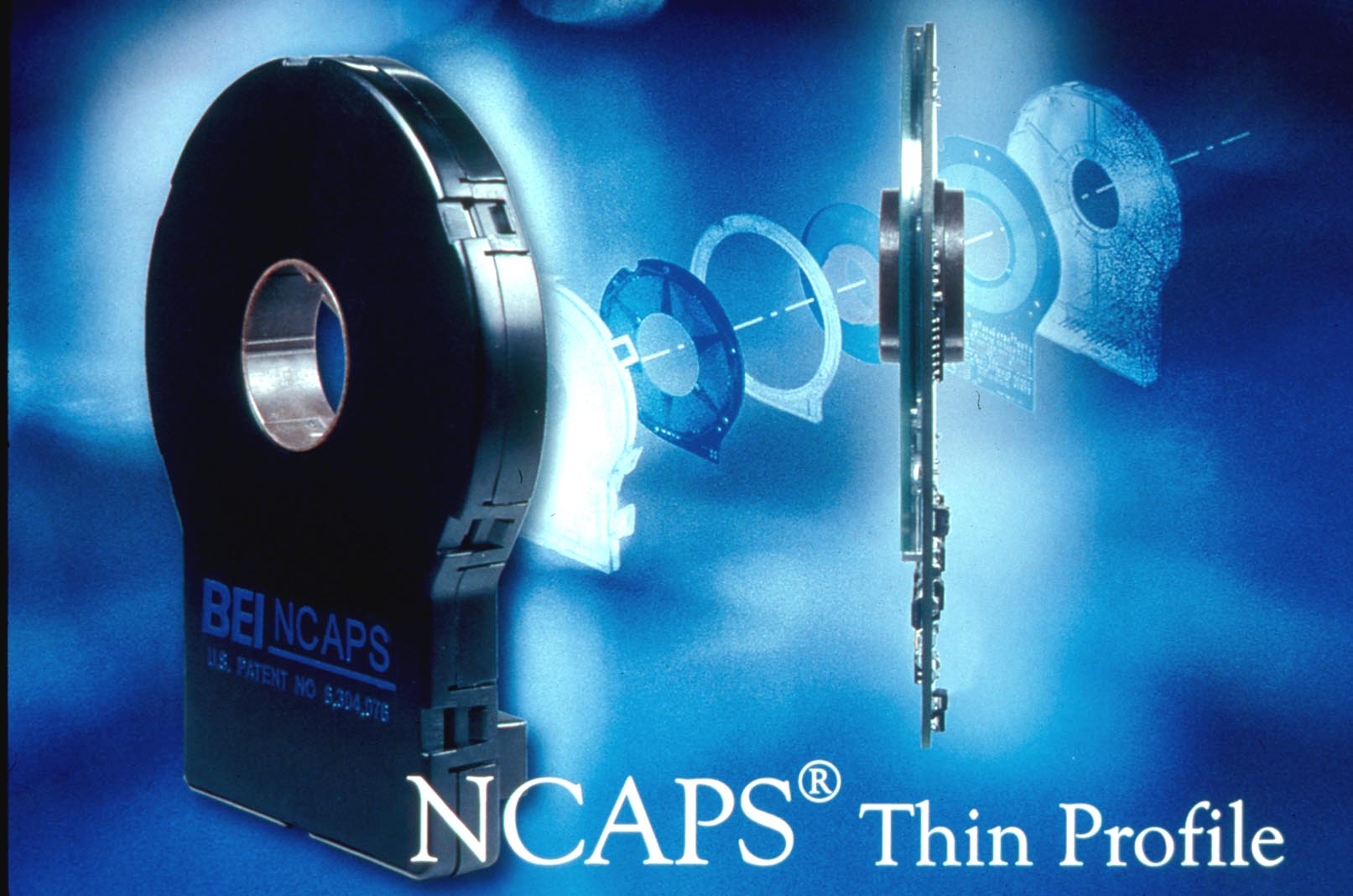

Jun 17, 2002 Based on phase shift principle, 7000 Series NCAPS® (Non-Contacting Angular Position Sensor) offers 0.21 in. profile solution for motion control, rotary position, or steering angle sensing. Features include 360° absolute rotary position feedback in sealed package and multiple outputs with up to four functional output channels. Sensors can be factory programmed to give pulse width modulation (PWM), Analog, Saw Tooth, or Dual Triangle outputs.

Rotary Encoder suits tight constraint applications.

BEI - Duncan Electronics    Irvine, CA 92618

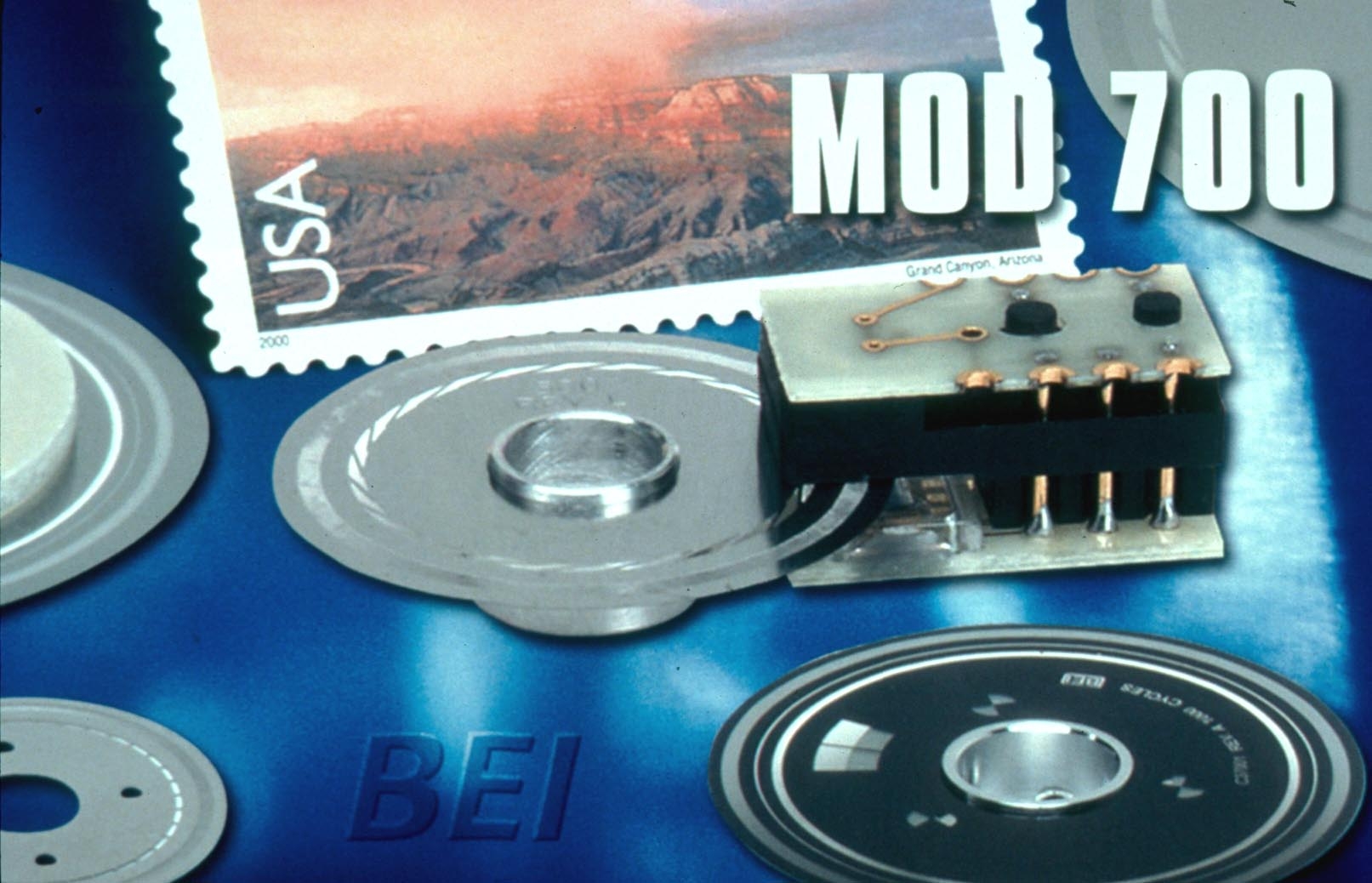

Jun 17, 2002 Frameless Incremental Rotary Encoder MOD 700 Series is Opto-ASIC configured into small caliper for PCB mounting. It measures 17.7 x 9.6 x 8.89 mm and offers resolutions to 2,540 PPR (Pulse Per Revolution). Encoder has 0.030 in. air gap for mounting without tight tolerance constraints. Chip also offers 5 V TTL dual channel quadrature output and index. Stainless steel code disk has optical radii from .375 to .860 in. and accommodates shaft diameters of .125 to 1.0 in.

Thin Position Sensor measures all the angles.

BEI - Duncan Electronics    Irvine, CA 92618

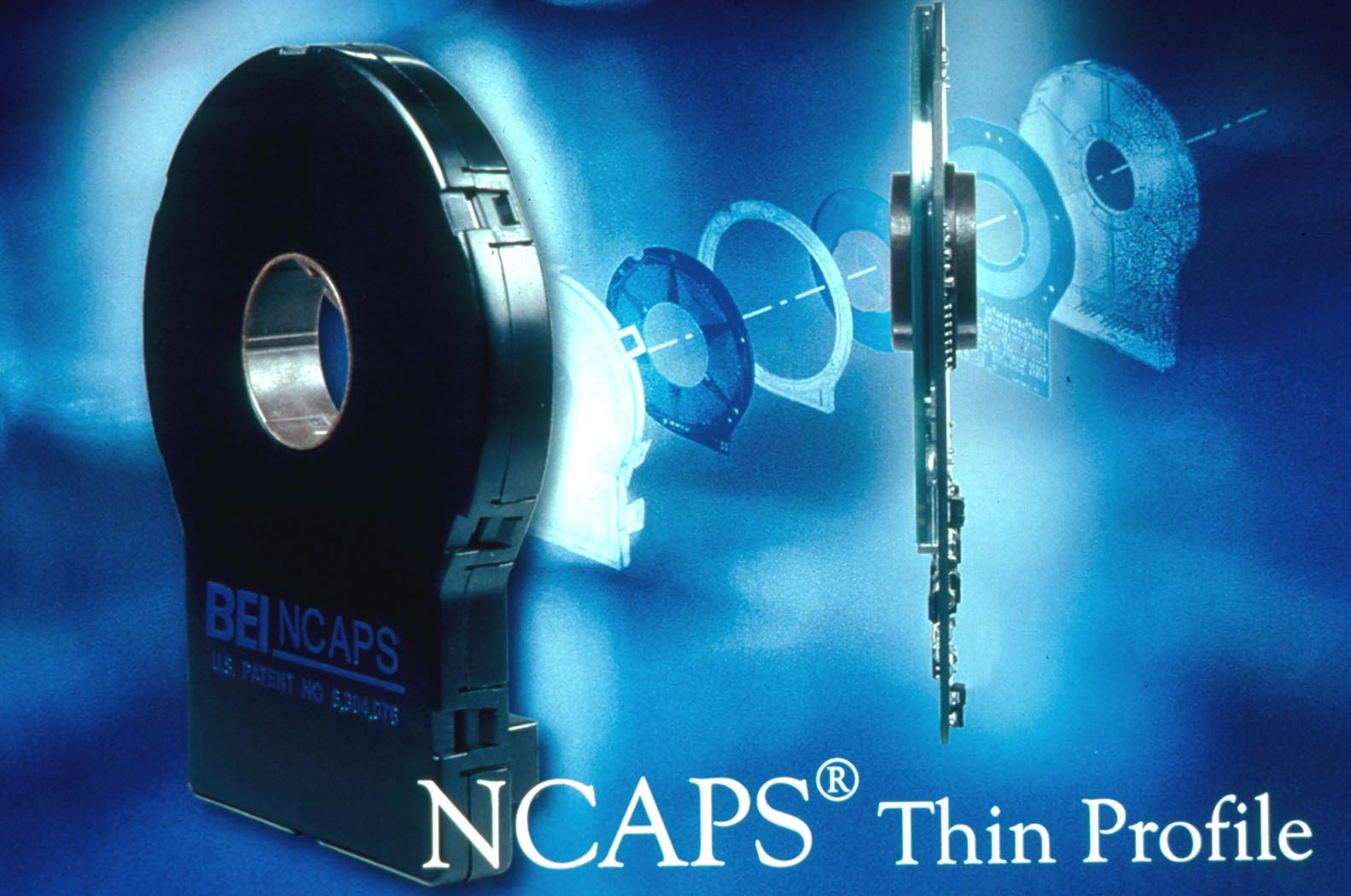

Apr 10, 2002 NCAPS(R) non-contacting angular position sensor is less than 0.21 in. thick without housing and provides true 360 deg absolute rotary position feedback. It offers extremely thin solution for motion control, rotary position, or steering angle sensing. Sensor has multiple outputs with up to four functional output channels. Each sensor can be factory programmed to give pulse width modulation (PWM), analog, saw tooth, or dual triangle outputs.

Optical Encoders suit tight package constraint applications.

BEI Duncan Electronics Div.    Tustin, CA 92780-7303

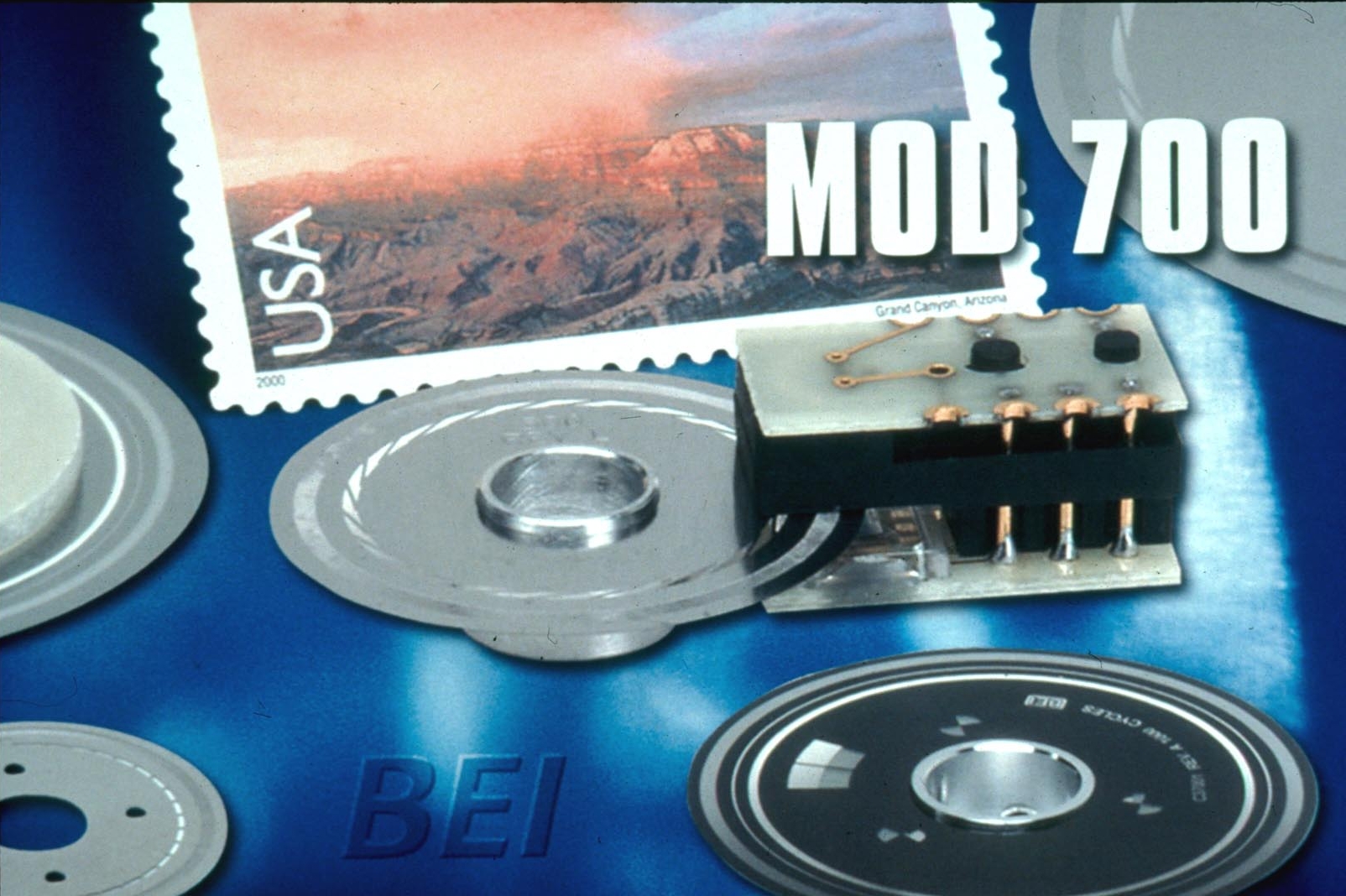

Apr 09, 2002 MOD 700 Series incremental rotary encoders are comprised of LED and OptoASIC in 17.7 x 9.6 x 8.89 mm package. They offer resolutions as high as 2,540 ppr. OptoASIC provides +/- 0.010 in. tolerance for axial movement, 40 mA power consumption, and operating temperature of 0 to 85 deg C. Stainless steel code disk features range of standard optical radii, from .375 to .860 in., and can accommodate shaft diameters from .125 in.
