Speed Reducer has heavy-duty design.

Rockwell Automation    Greenville, SC 29615-4617
Dec 14, 2006 Case carburized helical/bevel speed reducer, DODGE® Motorized TORQUE-ARM II(TM), features AGMA-rated gearing design with heavy-duty bearings, HNBR oil seals, and Reliance Electric(TM) motor and drive options. Offered in 2 sizes with horsepower ratings from 1-15 hp and output speeds from 5-140 rpm, product is available as right-angle shaft mounted integral gearmotor or right-angel shaft mounted C-face speed reducer. Both are available with DODGE twin tapered bushing system.

Take-Up Frame is constructed with 304 stainless steel.

Rockwell Automation    Greenville, SC 29615-4617
May 25, 2006 Designed to withstand harsh washdown environments, ULTRA KLEEN(TM) Wide Slot Take-up Frame offers protection against chemicals used for sanitation, and is suitable for conveyor systems used in poultry, meat, vegetable, fruit, and other food plants. Corrosion resistant frame is available in sizes 300 and 308, and is offered in travel lengths of 3, 6, 9, 12, and 18 in.

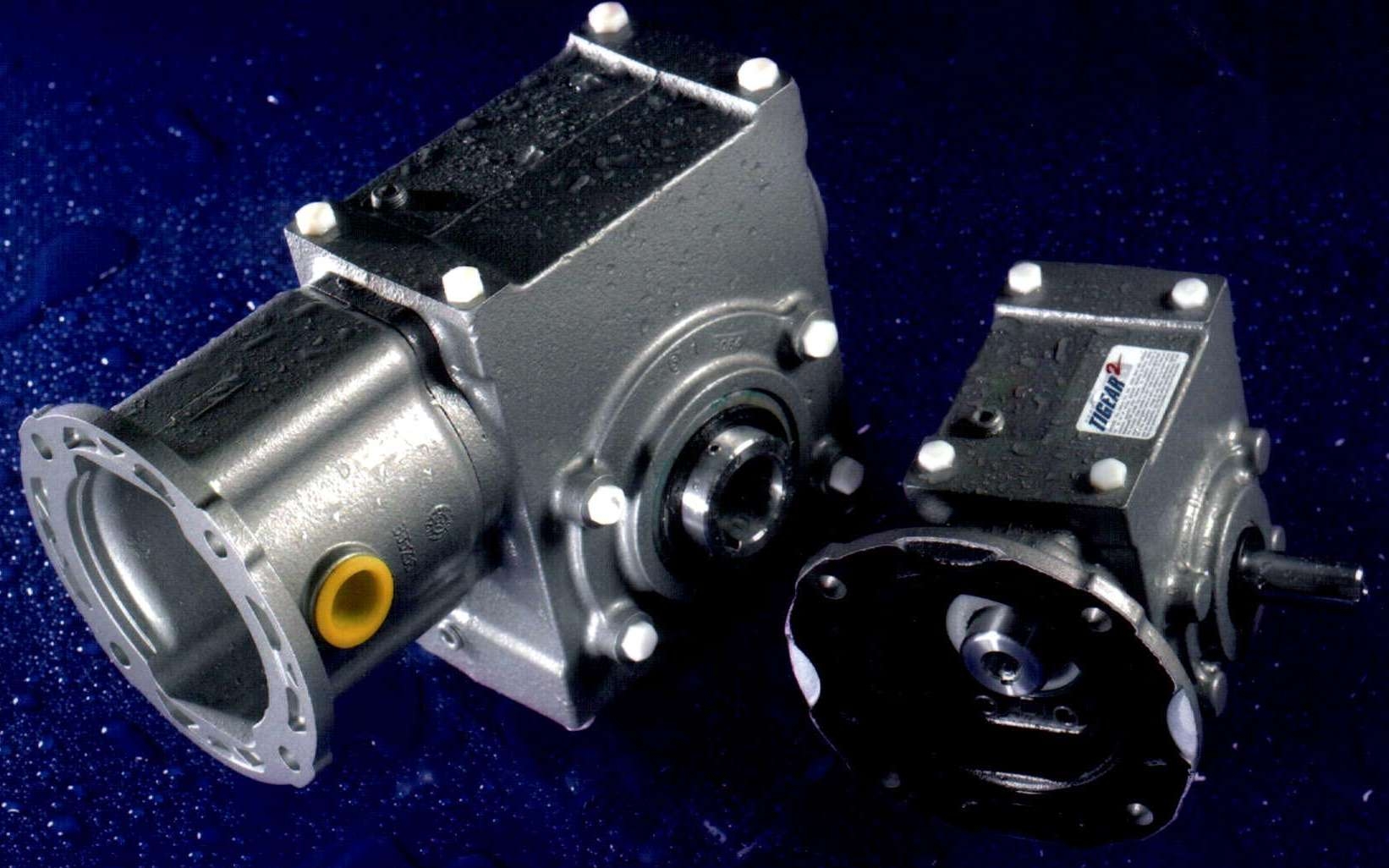

Reducer is corrosion-resistant for harsh applications.

Rockwell Automation    Greenville, SC 29615-4617
Mar 16, 2004 Suited for washdown conditions of food/beverage industry, DODGE® E-Z KLEEN TIGEAR-2â„¢ single-reduction right angle worm speed reducer employs 13-step coating system, stainless steel output shafts or hubs, and stainless steel hardware. Interior is protected by 2-piece harsh-duty sealing system. Unit delivers up to 6,800 lb-in. torque and is available in sizes 13–40 in Quill, Adaptable, and Separate Input configurations as well as solid and hollow bore output configurations.

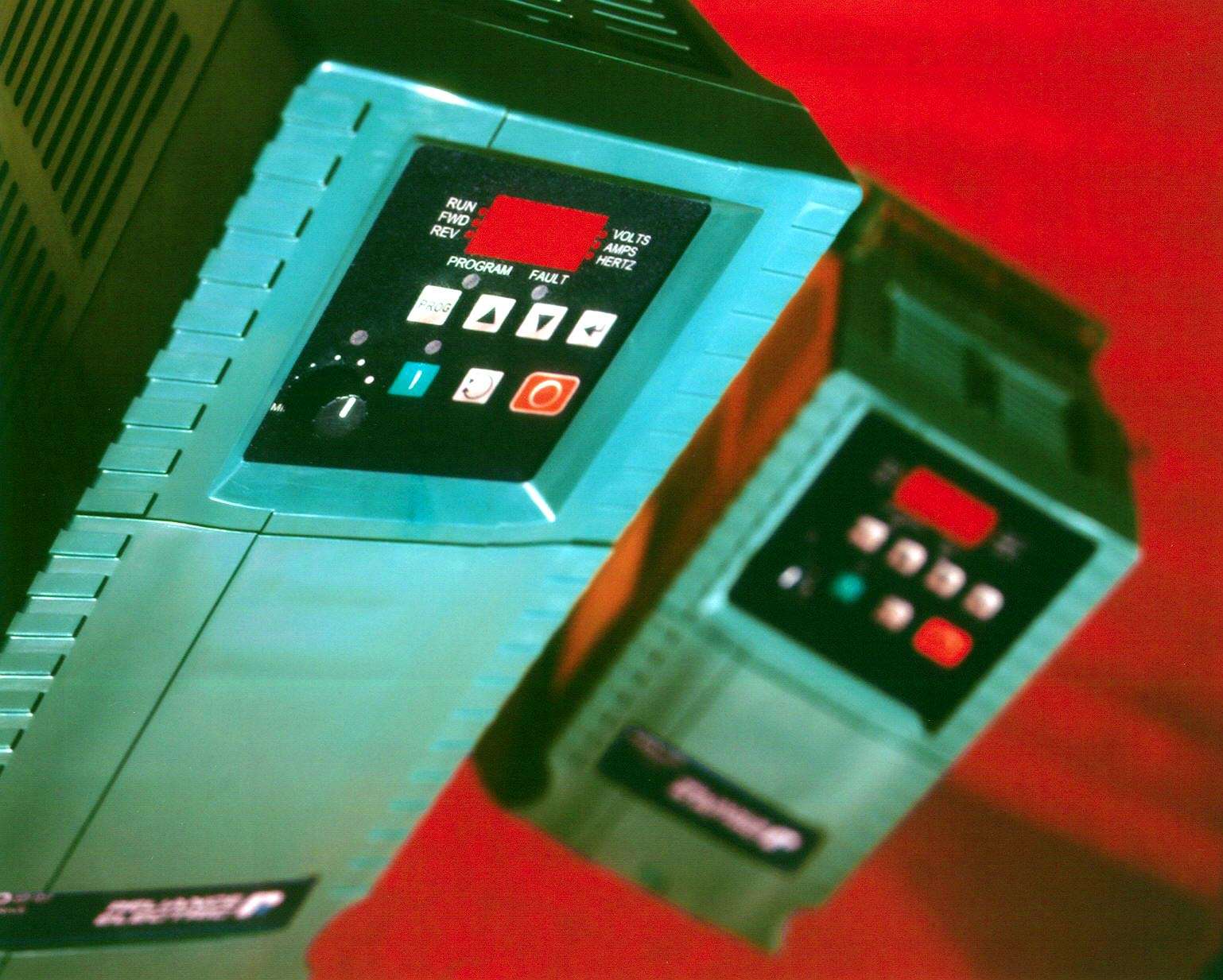

Washdown AC Drive suits food and beverage industry.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
Aug 01, 2003 Reliance SP600 AC drive, offered in NEMA 4X/12 and IEC IP66 enclosure, is available in tamper-proof enclosure. Able to withstand direct spray of water at pressures up to 1,000 psi, it also protects against dust particles as small as 75 microns. Drives are offered with 240 Vac drive rating from 0.5–10 hp and 480 and 575 Vac ratings from 0.5–20 hp. With controllable speed range of up to 80:1, Drives are software selectable for volts/hertz or sensorless vector control.

AC Microdrive offers simplified setup of drive applications.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
May 28, 2003 Model MD65 delivers 60:1 constant torque speed range and output frequency range up to 400 Hz. Overload protection is provided at 150% for 1 min and at 200% for 3 sec. Available from .25–10 hp, drive delivers ±1% speed regulation through sensorless vector speed control. Ratings are available in 115, 230, and 460 Vac inputs. For setup and operation, onboard keypad features out-of-the-box settings, auto tuning, and diagnostic capabilities for troubleshooting and fault detection.

Adapter Ball Bearing features concentric 360° inner ring.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
Jan 02, 2003 DODGE GRIP TIGHT features pull/push adapter system and interchangeable housing design. Adapter is press fit to shaft for full concentric contact, 360° through length of bearing, eliminating fretting corrosion and preventing shaft damage. Steel bearing has cast iron adapter meeting ISO standards. It is offered in normal and medium duty with shaft diameters of 1/2 to 3 7/16 in. and 17–70 mm. PROGUARD PLUSâ„¢ seal with flingers keeps lubricants in and contaminants out.

Speed Reducers deliver up to 6,800 lb-in. torque.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
Dec 02, 2002 DODGE® TIGEAR-2â„¢ single reduction, right angle worm speed reducers have totally enclosed, ventless sealing system that provides leak-free performance. Factory-filled synthetic lubricant accommodates range of operating temperatures. Tapered adapter bushing system virtually eliminates fretting corrosion on hollow shaft applications. Locking nut creates positive means for easy removal. Ten sizes cover center distances from 1.33–4.75 in.

Motor suits mild nuclear environments.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
Jul 15, 2002 Reliance® motor meets IEEE-334-1994 requirements and is available in 1E-Safety Related or non-1E classification. It features cast iron construction, including frame, end brackets, and bearing inner caps, as well as zinc-plated hex head hardware, stainless T-drains, and severe-duty TEFC-XEX enclosure. Class H insulation system is supplied for extended thermal life.

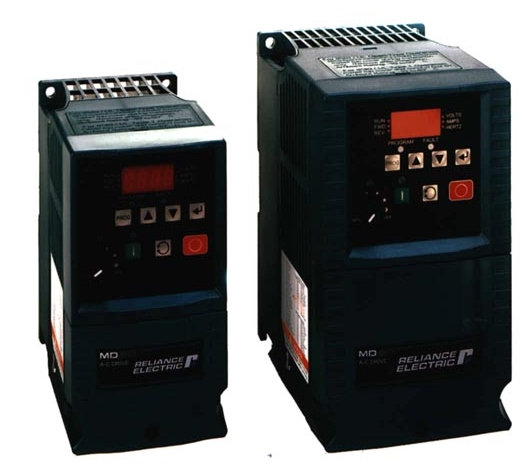

Motor Drive features built-in LED display and keypad.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
Jun 19, 2002 Variable speed Reliance MD60 microdrive for output frequencies up to 240 Hz has internal dynamic brake circuitry, finger-safe IP20 enclosure, and V/Hz operation from ¼ to 5 hp. It is available in 115 Vac, 230 Vac, and 460 Vac ratings. Drive can be used for industrial applications, such as material handling, fans, and pumps. It has constant torque over 40:1 speed range.

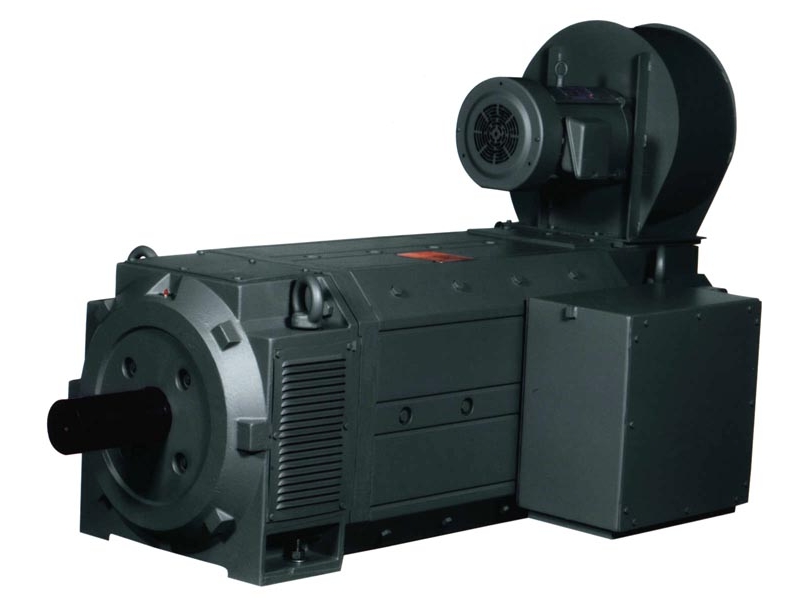

DC Motor meets global OEM needs.

Rockwell Automation, Dodge & Reliance Electric Headquarters In The Americas    Greenville, SC 29615-4617
May 20, 2002 Reliance C500/GS315 provides flexibility to meet either NEMA or IEC dimensional requirements. Four-pole configuration in square, laminated frame improves commutation and heat dissipation. Cast-iron end brackets, with integral mounting feet, put load-carrying members in same vertical plane to eliminate vibration. Motor is available through 800 hp and suits metal, paper, petrochemical, converting, printing, and crane and hoist industries.
