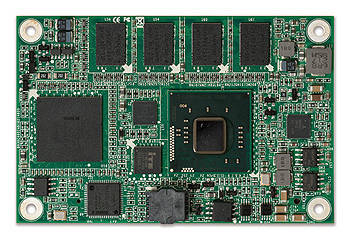

Type 10 Nano COM Express Module offers low power consumption.

American Portwell Technology    Fremont, CA 94538
Mar 12, 2013 Consuming less than 12 W for fanless solution, 84 x 55 mm PCOM-B21A is driven by Intel® Dual-Core Atom™ N2800/2600 processor, operates from -40 and +80°C, and supports all Type 10 carrier boards. COM Express form factor suits space-restricted applications and supports DDR3 memory up to 4 GB (N2800) and 2 GB (N2600). Features include 4 PCIe x1 lanes that can be configured to one PCIe x4; 8 USB 2.0 ports; dual independent displays via VGA, LVDS, and DisplayPort; and optional on-board SSD.

Network Security Appliance offers bulk encryption/decryption.

American Portwell Technology    Fremont, CA 94538
Dec 13, 2012 Based on Intel Crystal Forest-Gladden platform of Intel BGA1284 type processors and Intel Communications Chipset 89xx series, 1U rackmount Model CAR-3020 includes built-in Intel QuickAssist Technology and support for both ECC DDR3 and DDR3 memory up to 16 GB. Appliance also supports 1 PCIe x8 or 2 PCIe x4 expansion slots, character/graphical display module, and 14 Ethernet ports. Unit is suited for DNS firewall, VPN, IDS/IPS, anti-spam, anti-virus, UTM, and network management applications.

Panel PC features Intel Atom D2550 dual-core processor.

American Portwell Technology    Fremont, CA 94538
Dec 11, 2012 Based on 1.86 GHz D2550 processor and Intel NM10 chipset, EUDA2 comes standard with 12.1 or 15 in. true flat projected capacitive multi-touch display. Unit has wide DC input of 12–24 V ±20% and auto loss power-on feature in event of power failure. Aluminum tooling, heat sink, and thermal pad makes EUDA2 truly fan free and cool running. Ready for VESA mounting, IP54-rated PC includes HDD tray, I/O board docking, Golden Finger connector, and RS-232/433/485 port selectable via BIOS.

Network Security Appliance offers multiple expansion slots.

American Portwell Technology    Fremont, CA 94538
Dec 10, 2012 Based on Intel Romley platform supporting dual Intel Xeon E5-2600 Socket R-type processors, Intel Xeon E5-2600 v2 family, and Intel C604 chipset, 2U rackmount Model CAR-5030 supports up to 16 cores, 2QPI, and 40 MB cache. Unit features 6 slots of DDR3 RDIMM/UDIMM and ECC memory up to 1,024 GB. Supporting up to 5 Portwell Ethernet modules, 1 PCIe x4, and 3 PCIe x8 standard expansion slots, appliance is suited for IPS, IDS, firewall, VPN, anti-spam, anti-virus, and UTM applications.

Fanless Panel PC suits industrial automation application.

American Portwell Technology    Fremont, CA 94538
Nov 23, 2012 Powered by 1.86 GHz Intel® Atom™ dual-core processor D2550 and Intel NM10 chipset, FUDA features 5-wire resistive single touchscreen and aluminum front bezel. Cable-less design, with 50 mm thick console tested to IP65 standards, includes ultra-slim HDD tray, CF cover, and choice of 10.4–19 in. display. I/O board docking and COM port are selectable by BIOS, and APIs and EtherCAT support are standard. Operating from 0 to +50°C and 5%–95% RH, PC resists vibrations to 1 G and shock to 15 G.

ATX Motherboard supports 3rd generation Intel Core processors.

American Portwell Technology    Fremont, CA 94538
Oct 31, 2012 Based on Intel’s mobile QM77 PCH supporting third generation Intel Core i7/i5/i3 processor with power management technology, RUBY-D714VG2AR features four 240-pin DIMM sockets to support dual-channel DDR3 1,600/1,333 SDRAM up to 32 GB, and dual display support via VGA/DVI-D/HDMI. Board provides dual Intel GbE LANs, 4 USB 3.0 connections at rear I/O, and 6 USB 2.0 connections via onboard headers, plus 6 serial ports and 5 SATA interfaces with support for RAID 0/1/5/10 and CF-SATA II.

Rackmount 2U Network Server has modular architecture.

American Portwell Technology    Fremont, CA 94538
Oct 30, 2012 Utilizing Intel® Platform for Communications Infrastructure, CAR-5020 targets network security, communications, and infrastructure market. Intel® QuickAssist Technology, supported by Intel Communications Chipset 89xx Series, provides encryption/decryption and offloading workload acceleration from processor. In addition to dual Intel® Xeon® processors E5-2600 series with up to 16 cores and 2 QPI links, server supports dual-channel DDR3 1333/1066 UDIMM/ RDIMM memory (128 GB max).

Network Communication Security Appliance uses CPU virtualization.

American Portwell Technology    Fremont, CA 94538
Oct 30, 2012 Occupying less than 105 x 148 mm footprint on desktop, CAD-0215 is based on embedded AMD G-Series APU T24L with AMD Virtualization™ (AMD-V™). Solution features AMD64 support for 64-bit OSs and supports 4 Gigabit Ethernet ports, 8 GB DDR III memory, 2 x USB 2.0 ports, CompactFlash slot, and optional 2.5 in. HDD. Consuming less than 25 W, appliance employs system fan that produces less than 35 dB.

GbE Fiber Bypass Network Card provides intrusion prevention.

American Portwell Technology    Fremont, CA 94538
Oct 15, 2012 Equipped with quad ports and 2 segments, Model NIP-52240 uses Fiber Switch Module with board-to-board high-speed connection technology instead of outside wired design. Generation 3 Bypass function supports Normal Mode, Bypass Mode, and Open Mode when system crashes or encounters power failure. Utilizing Intel® Ethernet controller 82580EB as core technology, NIP-52240 provides Intel® VMDq and Jumbo Frame functions. Card can support up to 12 GbE SFP with 6 bypass segments in 1U appliances.

Type VI COM Express Module is designed on 95 x 95 mm platform.

American Portwell Technology    Fremont, CA 94538
Jul 19, 2012 Powered by mobile Intel® Express QM77 PCH with 22 nm third generation quad-core/dual-core Intel Core(TM) i7/i5/i3 processors, PCOM-B219VG uses power sharing technology between CPU and graphics engine to maximize performance. Feature set includes Intel HD Graphics 4000, ECC DDR3 SDRAM, LVDS/Display Port, Gigabit Ethernet, and support for AMT 8.0. Support is included for 3 independent displays; 7 PCI-E lanes; 4 SATA ports; display port (DP), HDMI, and DVI; and 4 USB 3.0 ports.
