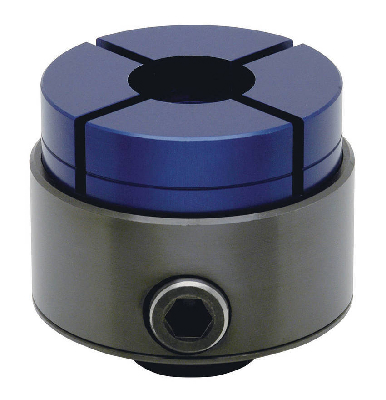

O.D. Holding Clamps lock workpieces with irregular shapes.

Fixtureworks    Fraser, MI 48026
Apr 23, 2013 Available in sizes up to 90 mm diameter in both round and square styles, lmao® O.D. Holding Clamps handle irregular shapes and workpieces with circumference. SAE-1045 alloy steel body provides strong, solid base, while 4-part aluminum jaws can be machined to custom fit part. Clamps allow for part repeatability of ±0.03 mm and jaw locating repeatability of ±0.02 mm. With clamping stroke of 0.15 mm for each jaw, clamps are suited for use with die cast, extruded, solid-drawn, and prefinished parts.

Ergonomic Quick Release Pins are installed and removed quickly.

Fixtureworks    Fraser, MI 48026
Nov 06, 2012 Domed Handle Quick Release Pins feature ergonomic dome actuator button aiding in installation and removal of units, even if operator is wearing gloves. When button is depressed, balls retract into pin allowing it to be inserted or removed. Dome actuator buttons are available in 300 series stainless steel or 2024-T4 aluminum and clear anodized, while positive locking pins are offered in 4130 alloy steel, 17-4 stainless steel, and 300 Series stainless steel shank materials.

Index Plungers come in various styles and configurations.

Fixtureworks    Fraser, MI 48026
May 23, 2012 Fixtureworks® offers Kipp® hand-retractable index plungers, which come in locking and non-locking styles in both inch and metric sizes and are used to locate, stop, align, and hold parts. Used in fixturing applications where pressure and indexing are needed, products are available in stainless steel, Novo-Grip, and plastic pull knob; threaded end; cam action; and L-handle configurations. Locking style allows plunger to remain in retracted position.

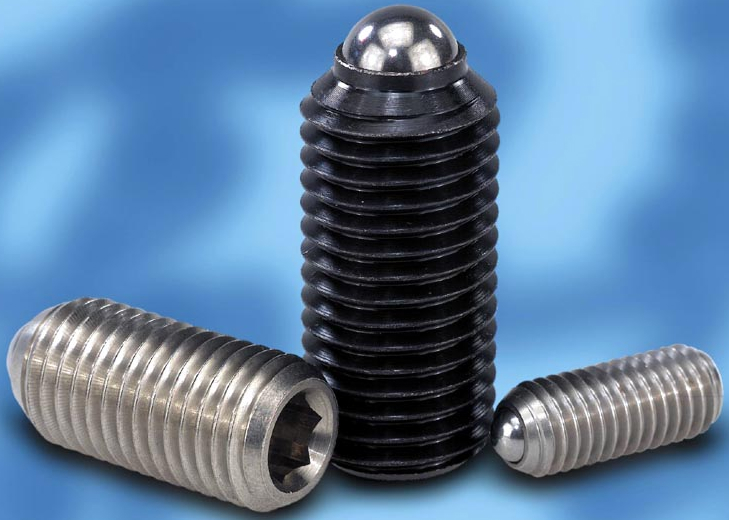

Spring Plungers include variety of styles, constructions.

Fixtureworks    Fraser, MI 48026
May 09, 2012 Offered in threaded and press fit styles, Kipp® Spring Plungers are used to locate, stop, align, and hold parts in various applications. Ball and pin type styles, in sizes from 6-32 to 5/8-11 and M3-M24, are available, and spring forces range from 0.34 lb (initial) to 60.7 lb (end). Plungers are offered in steel with black oxide finish or stainless steel, and press fit plungers feature thermoplastic or stainless steel body, both with stainless spring and stainless hardened ball.

Pull Clamps lock and precisely locate workpieces.

Fixtureworks    Fraser, MI 48026
Mar 05, 2009 Suited for high volume, repetitive jobs, Imao® Pull Clamps provide workpiece locating using precision ground clamping pins in conjunction with fixture-mounted clamp mechanisms. Clamping bases come in 2 operating ranges, one for standard duty workloads with clamping forces of 200 and 550 lb, and heavy-duty series that provides 1,348 or 1,798 lb of clamping force. Each style of clamp features 3 hole locations for attaching handle, allowing user to select best clearances.

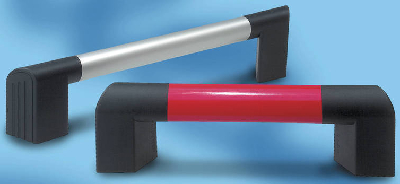

Multi-Tasking Pull Handles offer range of options.

Fixtureworks    Fraser, MI 48026
Jan 16, 2009 Offered in 11 styles, Kipp NOVO-GRIP® carrying, lifting, and open/close pull handles are available in cast iron, duro- and thermoplastic, stainless steel, and aluminum to accommodate varying tasks and environmental conditions. Ergonomic design elements, lending to efficient operation and comfort, include full round, oval, or contoured rectangular profiles. Available lengths extend from 55-600 mm, and load bearing capacities range from 500-1,500 N.

Spring Plungers are offered with multiple options.

Fixtureworks    Fraser, MI 48026
Oct 19, 2006 Offered in threaded styles and press fit types, Kipp® Spring Plungers suit fixturing applications where pressure is required to aide in accurate positioning and indexing of components. They can also provide lock and release actuation, apply force to help disengage or lift workpieces from workholding devices, or provide spring tension for bumper-type cushioning of parts. Products come in 590+ individual configurations, with ball and pin type plungers, in inch and metric sizes.

Spring Plungers come in 590 individual configurations.

Fixtureworks    Fraser, MI 48026
Aug 23, 2006 Available in threaded and press fit types, Kipp® Spring Plungers are suited for fixturing applications where pressure is required for accurate positioning and indexing of components. Offered in inch and metric sizes, units come with ball and pin type plungers, and in steel with black oxide finish or stainless steel. Insertion methods include slotted drive, hex socket, and top slot style for use in blind hole applications. Light, standard, and heavy end force selections are available.

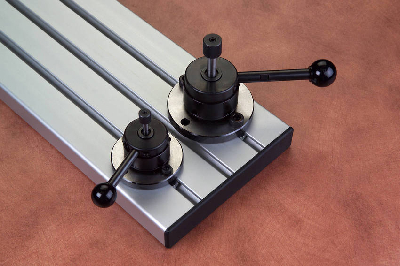

Swing Clamps suit repetitive workholding applications.

Fixtureworks    Fraser, MI 48026
Jul 05, 2006 Offered in standard force line and heavy-duty models, Imao® One-Touch Swing Clamp series is manufactured from heat-treated alloy steel with black oxide finish. Standard range includes 2 sizes with 170 or 260 lb clamping force, 32 or 45 mm min clamping height, and 25 or 32 mm arm length. For heavy-duty models, clamping force is rated to 786 or 1,348 lb, arm length is 42 or 48 mm, and variable clamping height ranges from 70-80 mm or 80-90 mm.

Side Clamps offer up to 10,340 lb clamping force.

Fixtureworks    Fraser, MI 48026
Jun 09, 2006 Securely holding workpieces by applying simultaneous lateral and downward clamping forces to sides, Imao® Clamps provide unobstructed access to entire top surface for machining operations in single setup. Jaws provide straight or diamond-serrated gripping surfaces. Manufactured from alloy steel with black oxide finish, side clamps are operated by means of hex socket ball screw; clockwise turn of screw forces clamp jaw forward and downward to hold workpiece.
