Automated XY Stages position microscopy samples.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jan 27, 2012 Measuring 188 x 188 x 45 mm, Open Frame XY Stages replace manual stages found on microscopes and enable scanning speeds at 25 mm/sec. Linear encoder feedback ensures correct positioning with resolution of 0.1 µm and repeatability of 0.25 µm, while motion controller allows smooth positioning without vibration or shock to delicate samples. Very precise manual fine positioning is achieved through computerized control system and associated joystick.

Direct Drive Rotary Servo Tables have 250 mm center aperture.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jan 05, 2012 Using direct drive motor technology, AccuRing tables provide accurate angular positioning and velocity control with zero backlash and no gear wear or vibration. System accuracy and repeatability of stage are maintained over time, and performance is ensured with encoder resolutions to 0.18 and 0.36 arc sec. In addition to accuracy of ±5 to 20 arc sec and bi-directional repeatability of ±0.5 arc sec, features include 115-350 Nm torque, 200 rpm speed, and 68 table height.

Motorized Rotary Table features 130 mm center aperture.

IntelLiDrives Inc.    Philadelphia, PA 19152
Apr 26, 2011 Constructed of anodized aluminum, RTLA-130 features micro-step drive that enables angular speed up to 20°/sec and double row of preloaded bearings that allow for off-center loads. Device offers load capacity of 50 kg and travel range of 360° with 0.001° resolution and 0.005° repeatability. Measuring 240 x 240 x 62 mm, stage is equipped with precision ground and hardened worm gear, 2-phase stepper motor, and Omron optical home sensor.

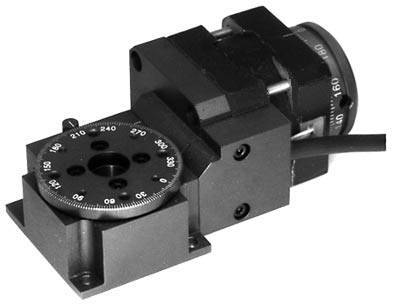

Micro Rotary Stage provides load capacity of 6 kg.

IntelLiDrives Inc.    Philadelphia, PA 19152
Oct 01, 2010 Featuring anodized aluminum body with pre-loaded ball bearings, Model RTHM-153 rotates optical components and small tooling in confined spaces, such as laser cavities and disk texturing machines. Precision ground worm gear produces consistent driving torque to rotor and eliminates variations in motor current. Equipped with reference home sensor, stage features angular resolution up to 0.2 arc-sec, which may be achieved from DC Servo or stepper motor controls.

Cartesian Robotic Platform features multi-axis XYZ design.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jul 23, 2010 Offering platform for diverse laboratory automation applications, Cartesian Multi-Axes Systems come in standard configurations that include left- or right-handed XY, XYZ, and XZ systems. Stages can be side- or base-mounted with elevation raisers and base platform, and optional rotary axis can be mounted to Z stage. Available with stroke from 50 mm to 1.8 m, systems feature T-style arm or H-style gantry, 5 micron repeatability, and 200 Kg dynamic load capacity.

Rotary Table features direct drive servo motor technology.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jun 04, 2010 Fitted with 4-point contact preloaded ball bearings, SRT-03 Rotary Table offers low and high speed windings up to 1,000 rpm, 0.2 arc-sec resolution, and 5 arc-sec accuracy. Encoder is mounted directly to rotor for positioning accuracy and to eliminate backlash, positioning delays, and maintenance requirements. Providing peak torque of 10 Nm, table can be used as flexible indexer or to replace mechanical transmissions such as gearboxes and timing belts.

Direct Drive Rotary Table features low-profile stage.

IntelLiDrives Inc.    Philadelphia, PA 19152
Apr 28, 2010 Planar ServoRing(TM) rotary table Model PSR150 features table height of 42 mm, table OD of 150 mm, and center aperture of 10 mm that can be used for air or wire line feed-through or beam delivery. Angular contact bearings control wobble, moment stiffness, and friction. System utilizes 3-phase planar brushless motor, low cog magnetic design for smooth rotation and dynamic performance, and 18,000 line encoder that allows for 0.1 arc-sec positioning resolution.

Direct-Drive Rotary Stages have zero-backlash design.

IntelLiDrives Inc.    Philadelphia, PA 19152
Apr 01, 2010 Designed for optimal angular positioning and velocity control, AccuRing series consists of large aperture rotary stages with no gear wear/vibration. Products are rated for 800 rpm continuous rotation and can also be configured as multi-axis gimbals. In addition to angular contact bearings and precision-machined rotating shaft, stages feature encoder resolutions up to 0.16 arc sec, accuracy of ±5 arc sec, and bi-directional repeatability of ±0.5 arc sec.

Linear Actuators have low-profile narrow positioning stages.

IntelLiDrives Inc.    Philadelphia, PA 19152
Mar 31, 2010 Model LSMA-175 precision linear actuators feature compact, fully-enclosed stages that measure 25 x 50 mm. Stages have travel ranges between 50 and 200 mm, with positioning repeatability of 0.31 micron, and maximum speed of 10 mm/sec with 8 kg payload. Micrometer-grade screw with lead pitch of 0.5 mm, miniature linear bearing, and non-contact limit switches with stepper or DC servo motor are included. Products are suited for life sciences and scientific applications.

Single-Axis Linear Actuator achieves speed to 200 mm/sec.

IntelLiDrives Inc.    Philadelphia, PA 19152
Mar 31, 2010 As motorized ball-screw carriage guided by linear bearing, BSMA-058 has aluminum stage base supplied with dust-proof strip to prevent particle ingress/egress. Single or double carriage versions are available, stroke ranges from 050-600 mm, and repeatability is 5 microns. Suited for high-speed single-axis or multi-axis motion automation application, actuator is offers 2.5 and 5 mm ball screw pitches, dynamic load capacity of 140 Kg, and dynamic moment of 60 Nm.
