Locking Toolholder eliminates cutter pullout.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Oct 01, 2012 By utilizing powRgrip’s gripping strength in conjunction with locking system and threaded cap, secuRgrip anti-pull system locks collet and cutter to toolholder body to eliminate cutter slippage during metal removal applications. Solution has TIR of 0.0001 in. and lets manufacturers preset their tool heights. While REGO-FIX users can modify existing powRgrip holders for use with this system, solution nominally makes use of existing standard carbide or HSS endmill designs.

Extended Length Toolholders provide reach up to 14 in.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Apr 26, 2010 Suited for aerospace and energy industries, Xtended Length (XL) toolholders feature Micro-Friction-Dampening (MFD) system, which reduces holder and tool vibrations. Available in ER and powRgrip® product lines, toolholders are offered with CAT, BT, HSK, and REGO-FIX CAPTO tapers in 2 in. increments up to max length of 14 in.

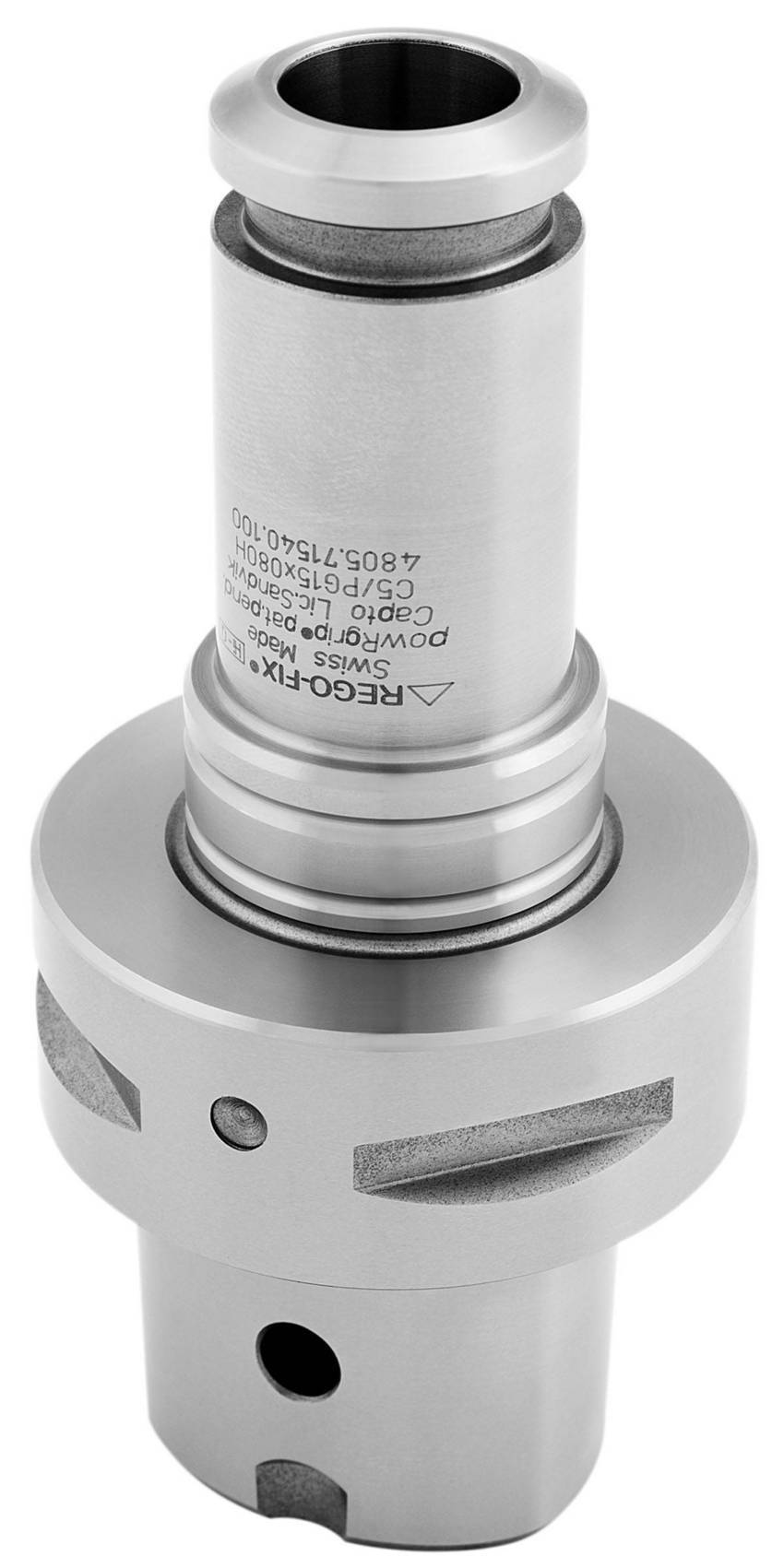

Toolholders are suited for high-speed cutting applications.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Apr 16, 2010 Balanced by design to G 2.5 at 25,000 rpm, Q+® system CAPTO toolholders are suited for high-speed and high performance cutting applications. High precision toolholders are available in powRgrip® collet system and ER toolholder line. Type H toolholders are ready to accept Hi-Q® balancing rings that allow precision balancing of system up to 80,000 rpm.

Toolholding System clamps tool shanks up to 1 in. diameter,.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Aug 04, 2008 Comprised of toolholder and collet, powRgrip® PG 32 uses mechanical properties of holder material to generate gripping force with run-out below 0.0001 in. Available in metric and inch diameters up to 25 mm and 1 in., respectively, system is suited for high speed machining applications, and offers range of taper selection, including CAT, BT, HSK and TC versions. It takes less than 10 sec to press in any tool or remove it from holder.

Coolant Flushing Disks help extend tool life.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Apr 15, 2008 Designed for users without coolant through tools, ER Coolant Flush Disk can direct coolant down shaft to cutting tip of endmill to promote efficient chip removal. These Swiss-quality disks, offered in standard and metric sizes from .125-.75 in. and 3.0-20.0 mm, are equipped with long nose that acts as directional spray nozzle. Products are fully compatible with all REGO-FIX collets and coolant nuts and can be interchanged with sealing disks according to required tool shank diameter.

Collets are compatible with PG 10 toolholders and machines.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Mar 31, 2008 Developed to counteract inaccuracies caused by runout when using small diameter cutting tools for high precision machining, PG Microbore Collets achieve T.I.R. of less than 0.0001 in. or better after 20,000 tool changes. They are offered in standard and metric sizes, and can accurately clamp tool shanks ranging from 0.0079-0.0354 in.

Toolholding System maintains TIR of less than 0.0001 in.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Nov 08, 2007 Utilizing interference between toolholder and collet to generate clamping force, powRgrip® PG 32 clamps tool shanks up to 1 in. in diameter. Collet is inserted into holder using tabletop mini-press that generates 9 tons of force. Since no heat is required, tools can be used immediately after tool change. Suited for high-speed machining applications, system is balanced by design and offers extensive taper selection including CAT, BT, HSK, and TC version.

Balancing Rings benefit machining processes.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Apr 26, 2007 REGO-FIX® balancing rings system enables standard toolholders to be upgraded to balanceable systems at any time. Without use of tools or weighted balls, it can balance toolholder and assembly up to 42,000 rpm at any G-rating. Uninhibited design lets rings rotate full 360° for infinitely adjustable weight distribution. Compatible with most balancing machines, rings are suited for operators seeking extended tool and spindle bearing life as well as optimal surface finish and chip load.

Toolholders suit high-speed machining applications.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Mar 30, 2007 Manufactured per DIN standard 69893, HSK Toolholders are balanced to G2.5 at 25,000 rpm. Design delivers hollow taper accuracy to AT3 tolerances, optimizing spindle-to-holder fit. Made from high tensile strength, case-hardened steel for minimized wear, toolholders are coolant-through capable and available in wide variety of forms and sizes.

Toolholding Systems offer pre-set capabilities.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Mar 09, 2007 Available in ER 8 to ER 25 types with clamping ranges of 0.5-13 mm, swissQuick Toolholding Systems are suited for use on CNC milling machines. Units are manufactured per DIN standard 69893 and are balanced by design to G2.5 at 25,000 rpm. Toolholders seamlessly integrate with all REGO-FIX components, including Hi-Q balancing rings for TIR accuracy.
