Shrink Fit Machine has compact, tabletop design. .

Lyndex-Nikken Inc.    Mundelein, IL 60060
Sep 28, 2010 Equipped with 3-phase 220 V power connector, Shrink Fit Machine can insert cutting tool into shrink fit holder in 2 sec. Induction coil allows unit to handle cutter bodies made from HSS, heavy metals and carbide, and automatic cutter size detection function eliminates need for inputting size of cutter shank, reducing set up time. Device is compatible with all holders with varying geometries, shrinking 2-40 mm with same inductor.

Heavy-Duty, Rigid Rotary Tables have up to 66,139 lb capacity.

Lyndex-Nikken Inc.    Mundelein, IL 60060
May 24, 2010 Super Large Rotary Tables are available in 5 models, including CNC802 with 31.50 in. faceplate capacity and CNC2000 with 78.74 in. faceplate capacity. Products include casting material with ground carbide worm screw mechanism, providing balance suitable for rigid machining. Devices also include large dual-face contact bearing support that dampens machining vibrations and evenly distributes loads. They offer range of 2.7-5.5 rpm and indexing accuracy of 15 arc-sec.

Trunion Rotary Table allows 5-sided machining of workpiece.

Lyndex-Nikken Inc.    Mundelein, IL 60060

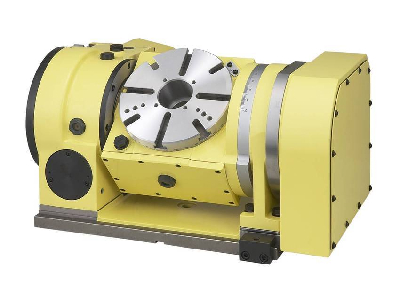

Apr 24, 2009 Engineered for BT30 vertical machining centers, Model 5AX-201 features 8 in. faceplate trunion work envelope, drop trunion, and rotary/tilting axis clamping torque of 434/452 lb-ft, respectively. For minimized friction and wear, carbide worm system uses carbide worm screw and ion nitrided worm wheel rather than conventional bronze or bronze alloy actuation mechanism. Worm gear is ion nitrided to depth of 0.1 mm with external surface hardness of 68Rc.

Shrink Fit Toolholders offer optimized gripping.

Lyndex-Nikken Inc.    Mundelein, IL 60060

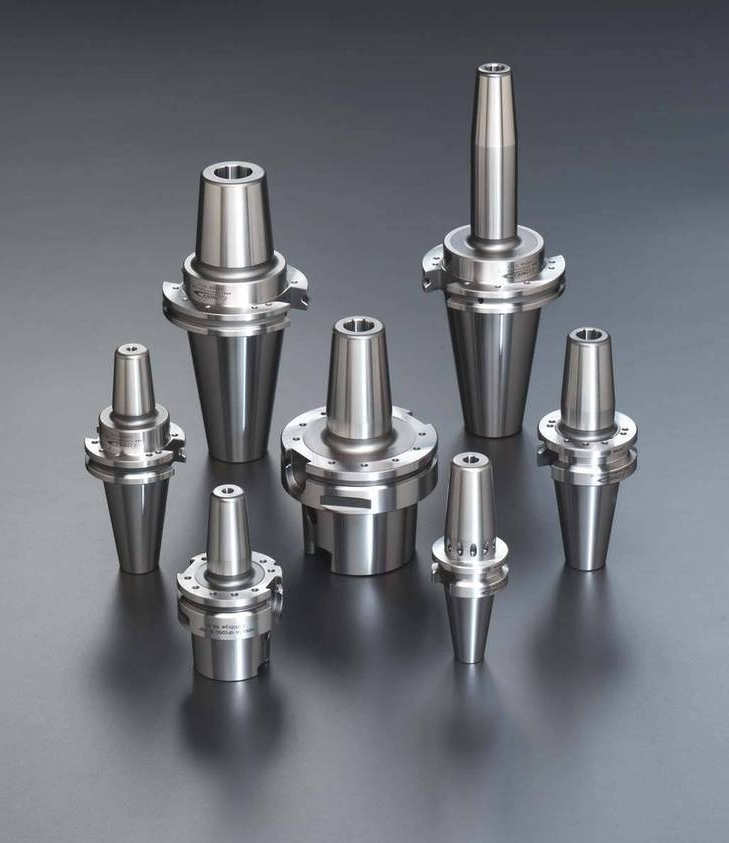

Apr 17, 2009 Model HSK32E/40E Shrink Fit Tool Holders are prebalanced to 2.5 G at 40,000 rpm while #40 taper/HSK63 holders are balanced to 2.5 G at 20,000 rpm and #50 taper/HSK100 units to 2.5 G at 15,000 rpm. Combined with Shrink Fit Unit, toolholders heat up and cool, with thermal contraction exerting uniform pressure for gripping. Units allow for tool changes in less than 30 sec and are available in both inch and metric sizes.

Tool Holders work with shrink fit machines.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Jan 29, 2009 Suited for Makino MAG machines, HSK80F Shrink Fit Holders are designed for machining of complex aluminum monolithic parts for aerospace. When used in combination with Shrink Fit Machine, holders heat up to expand inside diameter, and as they cool, thermal contraction exerts pressure that shrinks down around tool for uniform gripping. Process allows for tool changes in less than 30 seconds.

Rotary Table is suited for oil patch applications.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Jun 05, 2008 Designed for Oil Patch industries' large pipe applications and large diameter bar work applications, CNCB450 Ultra Large Bore Rotary Table with 205 mm dia features 8 in. dia through hole and clamping system. Carbide worm system incorporates carbide worm screw and ion nitrided worm wheel. Worm screw consists of less brittle V-grade form of carbide, while worm gear is ion nitrided to depth of 0.1 mm and external surface hardness of 68 Rc.

Collet System operates at up to 40,000 rpm.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Jan 29, 2008 Available in 30-, 40-, and 50-tapers, as well as HSK and 3-Lock models, VC Toolholder features runout within 0.00012 in. at 4 x D. Smooth profile eliminates noise related to high-speed rotation, while groove under nut dampens micro-harmonic vibrations. TiN bearing nut maximizes torque by minimizing friction associated with nut tightening. VC Collet System features 8° collet design, which contributes to rigidity and gripping torque.

Shrink Fit Toolholders offer consistent, repeatable results.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Jan 24, 2008 Constructed for optimum rigidity, HSK32E/40E, No. 40 taper/HSK63, and No. 50 taper/HSK100 Shrink Fit Holders are respectively pre-balanced to G2.5 at 40,000, 20,000, and 15,000 rpm. Used in combination with a Shrink Fit Unit, products heat up to expand holder ID. As holder cools, thermal contraction exerts uniform pressure that shrinks down around tool for uniform gripping. Process allows for tool changes of under 30 sec. Inch and metric sizes are available.

Presetter utilizes CMOS image sensor with STN screen.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Aug 03, 2007 Used in tool measurement and inspection, E123 Presetter features solid ground granite column and base construction for rigid and accurate performance. Hand wheels are incorporated for final framing of profile in screen, and fixed rotating spindle uses 6 mini-bearings with radial concentricity error compensation. Offering resolution from 1-5 µm, measurement over 130 mm X-Axis and 360 mm Z-Axis is fully automatic and includes radii as well as angle values.

Collet System operates at up to 40,000 rpm.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Jul 06, 2007 Producing high-accuracy finishes, VC Toolholder features slim, smooth profile that eliminates noise related to high-speed rotation and reduces air current created by hex nuts and slots on periphery of most toolholders. Runout is within 0.00012 in. at 4xD, and 8° collet design contributes to rigidity and gripping torque. Wall thickness at base and gauge length promote rigidity and static stiffness. Machine comes in 30-, 40-, and 50-tapers as well as HSK and Nikken 3-Lock models.
