Latest New Product News from Creform Corp.
Modular Workstation combines multiple assembly operations.Creform Corp. Greer, SC 29652-0830
Jul 22, 2014 Eliminating unnecessary steps for assemblers, mobile workstation combines multiple assembly operations into single units. Construction, consisting of Creform plastic coated steel pipe and metal joints, facilitates customization and modification. With 700 lb capacity and average dimensions of 83 x 48 x 61 in., workstation features plastic work surface; skatewheel conveyors; 2-level, L-shaped slide pipe flow rack; 2 return levels; computer monitor; florescent light; and tool balancer.

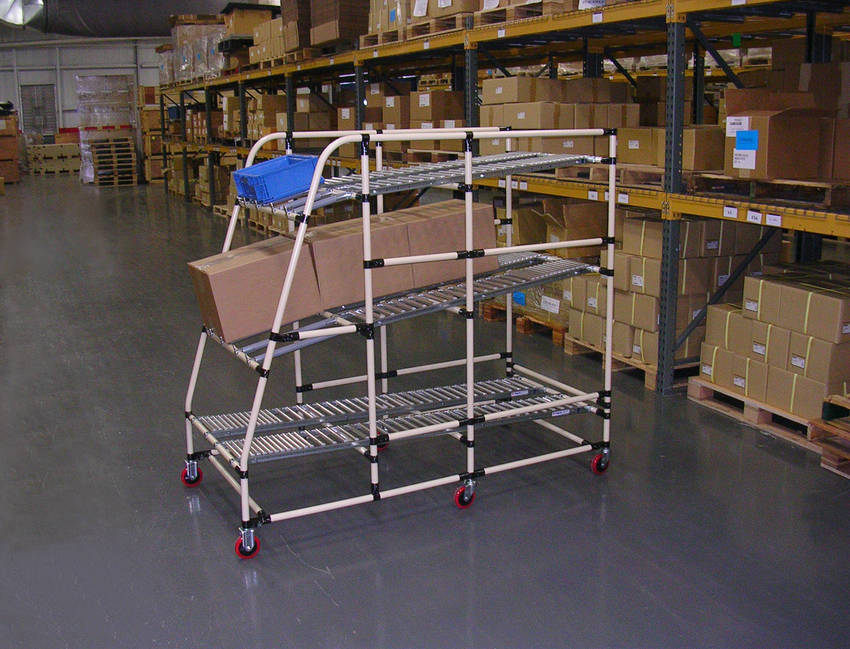

Heavy-Duty Flow Racks combine rugged design and flexibility.Creform Corp. Greer, SC 29652-0830
Jun 17, 2014 Constructed using 42 mm pipe and joint system, heavy-duty flow rack supports 1,200 lb of boxes and totes. Racks are 72 in. wide, 40 in. deep, and 60 in. tall and meet all flow lanes restrictions within ergonomic zone. While top and bottom levels each have 5 flow lanes, middle level has 4. Flow lane widths can be modified to match box or tote widths as needed. Flow lanes feature low-friction, heavy-duty skatewheel conveyors that allow shallow flow lane angles.
Automated Guided Vehicle operates in space-restricted areas.Creform Corp. Greer, SC 29652-0830
Apr 25, 2014 Measuring 34 x 18 x 37 in., AGV consists of cart built with pipe and joints and bolt-on 12 V drive unit, which uses 1 deep cycle AGM battery that will operate for one 8-hour shift. Single direction vehicle follows peel and stick magnetic tape guidepath, and also responds to commands from magnetic tape strips placed on floor perpendicular to guidepath, eliminating need for programming. With minimum turning radius of 12 in. at slow speed, AGV is suited for light-duty applications in tight spaces.
Communication Center Kiosk offers modularity and durability.Creform Corp. Greer, SC 29652-0830
Dec 10, 2013 Mobile, 4-sided, rotating information kiosk, able to be customized to meet specific needs and then modified, is built to withstand plant floor environments while offering aesthetics that complement office decor. Construction is based on plastic-coated steel pipe and metal joints, and 32 in. high x 14 in. wide panels can be modified to different sizes, swapped out, or hinged. Base is supported by 4 swivel, locking casters for mobility or feet for stationary structure.
Creform Kanban Stations create simple production system.Creform Corp. Greer, SC 29652-0830
Jul 23, 2013 Responsive to change, modular stations use Creform® System of plastic-coated steel pipe and joint components along with Creform Kanban plastic dividers and spacers that provide compartmental storage for cards. Dividers/spacers, which measure 6 ¼ x 5/8 x 4 in., interlock with each other without adhesive and can be oriented vertically or horizontally. Spacers create wider slot openings, and slot caps provide labeling surface or can be used to block off positions.
Portable Heavy-Duty Workstation fits through commercial doors.Creform Corp. Greer, SC 29652-0830
Jun 20, 2013 Used for temporary maintenance or assembly jobs, 34 x 30 x 82 in. workstation has base constructed with Creform 42 mm dia pipe and joints. Load capacity is 650 lb without bracing, and 4 in. stem casters enable mobility. Work surface has ½ in. plastic top, and flow level below pull out drawer presents parts, boxes, or totes from back of unit to operator. Upper structure's main support is 42 mm pipe integrated with 28 mm pipe and 42/28 mm joints, allowing mounting of Creform accessories.
Drawbridge Shelf Cart uses gas struts.Creform Corp. Greer, SC 29652-0830
May 10, 2013 Utilizing gas struts for tilt-up feature, Drawbridge Shelf Cart is suited for protecting and delivering totes, containers, or unpackaged parts from warehouse to sequential operations in production. Struts control speed of raising/lowering by counterbalancing weight of each tilt-away shelf. Cart has 34 x 70 in. footprint and holds up to 600 lb, but can be built to other sizes. Four 4 in. diameter urethane casters, 2 fixed and 2 with brakes, provide for stable rolling and secure positioning.
Programmable AGV carries up to 900 lb of cargo.Creform Corp. Greer, SC 29652-0830
Apr 26, 2013 Featuring smooth, flat bed steel top that can hold two 3 x 3 ft pallets of materials, boxes, totes, and unpackaged parts, AGV has max speed of 164 fpm and base with custom-designed, fabricated steel frame. Bidirectional feature lets each end independently follow magnetic tape guidepath, eliminating need for return guidepath in system. Programmed via PC or onboard HMI touchscreen, AGV utilizes PLC that stores up to 50 courses with up to 128 commands each.
AGV Tugger runs full 8-hour shift without recharging.Creform Corp. Greer, SC 29652-0830
Feb 06, 2013 Driving under stationary cart, properly positioned on magnetic tape guidepath, heavy-duty Model BST (undercarriage) AGV extends tow pin into cart's receiver catch and moves it to programmed destination. It then retracts tow pin, leaving cart for intended purpose and moves on to service another cart. Unit features load capacity of 2,000 lb, drawbar of 130 lb, and adjustable control of up to 7 speeds. For safety, AGV has obstacle sensor with 7 sensing areas and 2 outputs, temporary slow and stop.
Housekeeping Cart supports 5-S programs.Creform Corp. Greer, SC 29652-0830
Dec 28, 2012 Constructed using Creform® System of plastic-coated steel pipe, joints, and hardware accessories, Housekeeping Cart stores and transports brooms, dust pans, mops, buckets, and hand brushes, as well as trash containers. Top and bottom pans, measuring 24 x 24 in., have 3 in. lip to contain spills and leaks. If needed, portable clean-up station can be expanded to house vacuums and power scrubbers. Color-coding by type or department is made possible by wide selection of pipe colors.
Click below for more Product News from Creform Corp.
Other Company News From Creform Corp.
Jul 24, 2014
Mobile Heavy Equipment Manufacturer Increases Efficiencies Using Creform Custom AGV
May 14, 2014
Creform Bi-Directional AGV Automatically Sequences Engines to Heavy Equipment Production Line
Feb 01, 2014
Truck Cab Manufacturer Safely and Efficiently Moves Aluminum Stringers Without Damage
Sep 12, 2013
Custom Performance Wheel Manufacturer Uses Creform Carts to Safely Move Products Through Production
Mar 22, 2013
Multiple Use Mobile, Height Adjustable Workstation for Medical Device Manufacturer
Mar 05, 2013
Creform BST Style AGV and Flexible Kitting Cart Eliminates Line-Side Assembly Storage
Feb 05, 2013
New Carts Help Eliminate Safety Concerns
Feb 05, 2013
High-Capacity, Heavy-Duty Flowrack
Nov 08, 2012
Continuous Improvement and Lean are Still the Watchword at Creform Booth
Oct 24, 2012
Cart Protects Unpackaged and Kitted Parts from Warehouse to Production Floor
Aug 15, 2012
Bag Compartment Cart Protects Low-Volume, High-Value Composite Aerospace Parts
May 15, 2012
Warehouse Vertical Divider Cart
May 01, 2012
Creform 42mm Pipe System Provides the Muscle for Handling Heavy Containers with Ease
Nov 08, 2011
Opportunity Charging Lets Creform Tite-Space BST AGV Work around the Clock
Sep 08, 2011
Reconditioned Creform AGV Fleet Allows Automaker to Capitalize on Original Investment
Jul 25, 2011
A Metalworking Manufacturer's Problem of Handling Overweight Totes Solved
Jul 21, 2011
Creform Features New AGV at Aatexpo11
Feb 17, 2011
Creform's Communication-Center Provides Shop Floor Answers
Dec 22, 2010
Creform Features New Products at ProMat 2011
Feb 25, 2009
Creform Cart Concept 'Harnesses' Wiring Components for Assembly, Transport
Aug 14, 2008
Two New 'ESD' Logistics Structures Enhance Applications
Oct 08, 2007
Economical, Custom-Designed Flow Rack RX For In-Process Parts Handling
May 02, 2007
Compartmented AGV Delivers Sequenced Assembly Productivity
