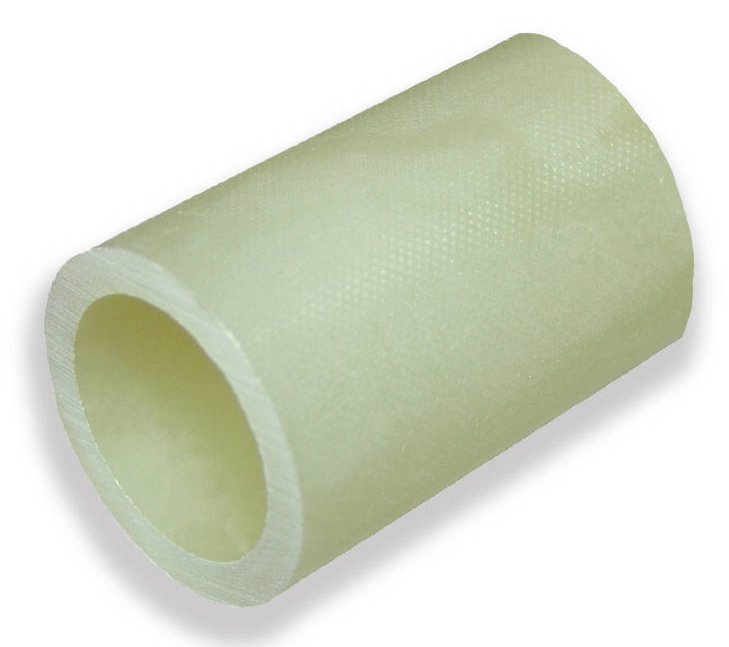

High-Strength Tubing features fine weave glass substrate.

Norplex Micarta    Postville, IA 52162
Sep 05, 2012 Composed of glass fabric with epoxy resin system, RT130X is designed for electrical and mechanical strength as well as flame resistance. Extra fine weave glass substrate allows for cleaner machining with less exposed fiber. Standard lengths are 18 and 36 in. IDs range from 0.094-48 in., ODs range from 0.156-49.50 in., and wall thickness ranges from 0.031-0.750 in. Tubing complies with NEMA FR-4 and is flame resistant to a UL94 V-O rating.

High-Strength Tubing suits thick wall applications.

Norplex Micarta    Postville, IA 52162
Mar 28, 2012 Composed of heavy weave glass fabric with epoxy resin system, RT571 exhibits strength at elevated temperatures and facilitates production of thick walled tubes. Walls can be up to 2X ID without checks and cracks. Compliant with NEMA G-10 and MIL-I-24768/2 Type GEE, tubing can be manufactured in standard lengths of 36 and 48 in. with IDs from 0.750-35.688 in., ODs from 1.00-36 in., and wall thickness from 0.125-2.00 in.

Thermoset Composites handle heavy load-bearing applications.

Norplex Micarta    Postville, IA 52162
Jun 19, 2009 Designed for load-bearing applications in ships, metal-rolling mills, and off-road construction equipment, BR60 and BR70 laminates perform under continuous water exposure without loosing strength. They consist of multiple piles of heavy-weight canvas cloth saturated with phenolic resin system, modified disulfide, which provides internal lubrication to reduce frictional heat generation and wear of metal shafts on bearing. Composites will not seize to metal shafts or score them.

Composites perform well in petrochemical applications.

Norplex Micarta    Postville, IA 52162
May 20, 2009 Consisting of multiple plies of woven fiberglass saturated with polyimide resin, P95 offers high mechanical strength and low coefficient of thermal expansion. Material maintains physical properties at temperatures up to 240°C, and other properties, such as compressive strength of 70,000 psi, low moisture absorption, and chemical resistance, allow use in variety of harsh environments. It is finished in 36 x 48 in. sheets with thicknesses ranging from 0.007-4.00 in.

Thermoset Composites withstand tough environments.

Norplex Micarta    Postville, IA 52162
Feb 04, 2009 Comprised of 4 grades, NP193 series features blend of aramid fabric substrates impregnated with various resins. While NP193E uses high-temperature epoxy resin for wear resistance, NP193M uses melamine resin for corrosion resistance. Use of high-temperature phenolic resin system with woven aramid fiber/glass fabric imbues NP193P with mechanical strength, while NP193PM combines high-temperature phenolic resin with aramid and soft glass fibers as well as non-conducting solid lubricant.

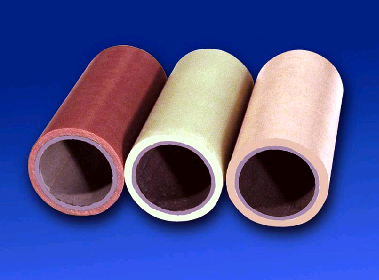

Convolute Tubing targets high performance applications.

Norplex Micarta    Postville, IA 52162
May 07, 2008 Offered in 18-24 in. lengths, Micro ID Tubing features 0.094-0.187 in. ID and 0.156-0.500 in. OD. Phenolic paper grades such as RT629 and RT630 are used in electrical, heavy industrial, and general-purpose applications, while RTB320X, composed of extra-fine weave linen cloth and phenolic resin, is suited for ball bearing retainers in rotary equipment. Glass fabric grade, RT500X, uses extra-fine weave glass reinforcement with epoxy resin for cryogenic insulation.

Pre-Preg Thermoset Composite suits slot cell insulation.

Norplex Micarta    Postville, IA 52162
Nov 02, 2007 Composed of electrical grade epoxy resin combined with woven glass substrate, NP511B can be molded in conjunction with abrasion-resistant substrates such as Kevlar(TM) or Nomex(TM) to minimize or eliminate surface wear damage to copper and steel components in generators. Non-brominated resin system offers mechanical strength at temperatures to 170°C. When cured properly, NP511B retains half of its room temperature flexural strength at temperatures to 150°C.

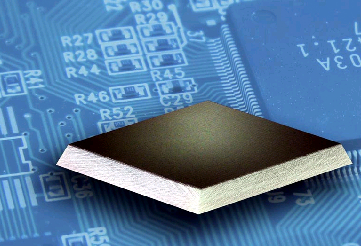

Composite Surface features static dissipative properties.

Norplex Micarta    Postville, IA 52162
Oct 03, 2007 Consistently maintaining surface resistivity of 10⁶ to 10⁹ W/square, StatNot(TM) XC stabilizes static electricity and conductivity. It combines with certain base materials to achieve critical material properties for specific application requirements, such as mechanical strength, moisture resistance, and creep resistance. Composite surface is suited for applications in electronic assembly, such as test fixtures and assembly work surfaces.

Custom Tubing features overwrapped design.

Norplex Micarta    Postville, IA 52162
Aug 08, 2007 Available in lengths of 36 and 48 in., OverWrap Tubing can be manufactured with overwrap sizes of 0.625-2 in. and outside diameters from 0.75-3.5 in. Composite material is wrapped around rigid core, enabling manufacturers to use products with different properties on inside and outside of tube. OverWrap Tubing can enclose virtually any rigid tubing or cylindrical core that adheres to composite prepreg materials, including steel, copper, brass, and certain thermoplastics.

Tubing Material suits high-temperature applications.

Norplex Micarta    Postville, IA 52162
Apr 11, 2007 Convolute wound tubing material, RT511, is able to maintain its strength at temperatures to 150°C while providing electrical insulation. Made of glass epoxy resin system, product is available in IDs from 0.750-48 in. and ODs from 0.875-50 in. with wall thicknesses from 0.062-1.0 in. It also performs in situations where bond strength and delamination are important requirements.
