Medical-Grade PC Power Supply provides 250 W max total output.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Mar 04, 2013 Suited for space-constricted applications, 81.5 x 40.5 x 190 mm TMPC-250-1U has 90–264 Vac input rating and active PFC and is approved by UL, cUL, and TUV to third edition EN 60601-1, IEC 60601-1, and UL 60601-1 medical standards. MTBF at full load is higher than 205K hr at 25°C ambient, and Earth leakage current is typically as low as 155 µA @ 264 Vac. Available DC output voltages and max loads include +3.3 V/12 A, +5 V/14 A, +12 V/18 A, -12 V/0.3 A, -5 V/0.3 A, and +5 Vsb/2.5 A.

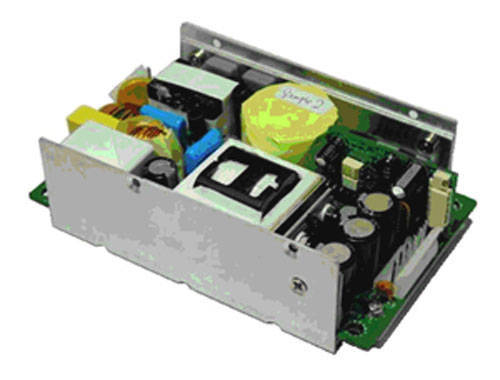

Multi-Output AC/DC Power Supply occupies 3 x 5 in. footprint.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Nov 16, 2012 Comprising 2-, 3-, and 4-output models, TW150 series comes in respective 1.34 and 1.57 in. profiles for open PCB and U-bracket types. Open frame switching power supply, with +3.3, +5, ±12, ±15, +24, +28, +48 flexible DC output combination, can deliver 150 W continuous output power at 30 cfm forced air or 120 W @ convection cooling on open PCB and 130 W @ convection cooling on U-bracket. Features include 90–264 Vac universal input, active PF of up to 0.99, and active efficiency of 80%.

AC/DC Power Adapters comply with medical and safety standards.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Nov 15, 2012 Offering 90-105 W continuous output power, TMP105 power adapters operate at 90-264 Vac universal input and have in-rush current of 80 A at 115 Vac or 120 A at 230 Vac, at 25°C cold start. Fanless adapters operate at full load in temperatures from 0-40°C with derating required from 100% at 40°C linearly to 50% at 60°C. They feature active efficiency of up to 91%. Class I and Class II models are available, both protected against overvoltage and overcurrent conditions.

Medical Grade Power Supplies have low (1.59 in.) profile design.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Oct 05, 2012 Approved to medical and ITE safety standards, TMPC 1U series comprises 250, 300, and 350 W PC power supplies with 90–264 Vac universal input, active PFC, and DC output voltages and max loads of +3.3 V/16.0 A, +5 V/18.0 A, +12 V1/16.0 A, +12 V2/16.0 A, -12 V/0.5 A, -5 V/0.2 A, +5 Vsb/2.5 A. Products measure 7.48 x 3.94 x 1.59 in., are 80 PLUS Bronze certified, and deliver 80% min efficiency at full load. Depending on model, MTBF at full load ranges from 135K–198K hr at 25°C ambient.

Medical Grade AC Power Adapter incorporates USB socket.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
May 01, 2012 Available in black or white, TMW7-5 comes with built-in standard type A USB socket or output cable with mini USB-B connector. Class II power adapter, featuring 90-264 Vac universal input and 5 Vdc output, comes in fixed or interchangeable AC plug configurations. Power supply delivers up to 6 W continuous output power, with standard 5 V/1 A or optional 5 V/1.2 A output; typical efficiency is 75% at full load; and standby power consumption is less than 0.3 W.

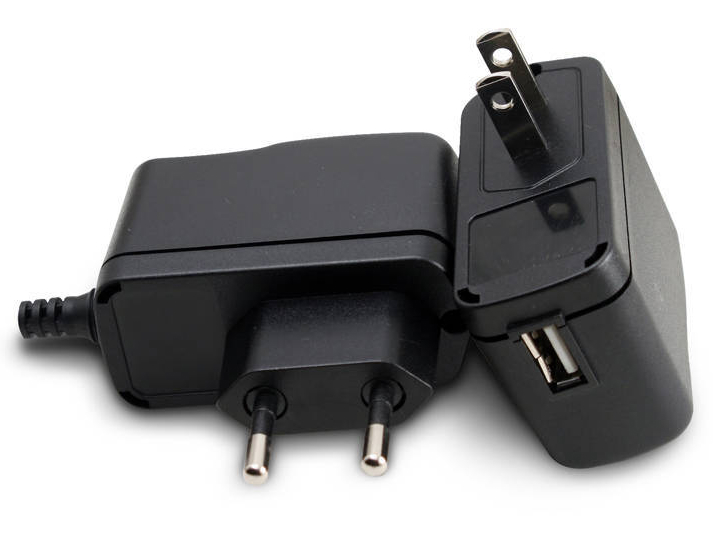

Medical Wall Mount Power Adapters also have USB charger.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jun 24, 2011 Featuring 90-264 Vac, 47-63 Hz universal input in fixed or interchangeable AC plug configurations, TMW7 Series is available with USB socket on case or output cable with DC plug. Structured with Class II insulation, adapters deliver 4-7 W continuous output power and output voltage of 3-28 V. Units have low leakage current of 100 µA max at 264 Vac/60 Hz, withstand 5,656 Vdc input to output, and provide 67% minimum efficiency at full load. Four different wall plugs meet worldwide requirements.

Wall Mount Power Adapters deliver 5-7 W continuous output.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jun 01, 2011 Operating at 90-264 Vac, 47-63 Hz universal input, TVW7 series AC/DC power adapters deliver 5-7 W of continuous output power and have output voltage range of 3-27 V. They consume 0.3 W standby power at no load and include overvoltage, overload, and short-circuit protection. Fully loaded at -10 to +40°C ambient temperature, they require 25% derating at +50°C. Models with 5 V/1 A output feature USB socket, while other models are equipped with 5 ft DC output cable and barrel plug.

Medical and ITE Power Adapters offer 135 W continuous output.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Apr 06, 2011 Fanless TMP135 series of medical power adapters are approved to UL 60601-1, EN 60601-1 3rd edition medical standards, and ITE adapters to UL 60950-1, EN 60950-1 2nd edition ITE standards. Peak power for 10 sec is up to 270 W, leakage current is less than 200 µA, and efficiency is up to 91%. Operating at full load over temperature range of 0-40°C, and with derating to 50% at +60°C, adapters require 90-264 Vac universal input. They include overvoltage and overcurrent protection.

AC/DC LED Power Supplies handle constant current to 1,000 mA.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Oct 28, 2010 RoHS-compliant LIS12 series includes 4 standard models with 18-36, 12-24, 9-18, and 9-12 V forward voltage ranges, respectively suited for driving 6-9, 4-6, 3-4, and 2-3 white LEDs in series where 350, 500, 700, and 1,000 mA constant current is required. Offering outputs from 8-12 W, products accept 90-264 Vac universal input that is isolated from DC output and operate with 80% efficiency. Packages measure 2.56 x 1.50 x 1.06 in., and IP65/67 ratings are available.

Medical Power Supplies deliver 200 W of continuous DC power.

Tumbler Technologies, Inc.    Santa Clara, CA 95054
Jun 17, 2010 Approved to UL 60601-1, CSA C22.2 No. 601.1, and EN 60601-1 medical standards, TMC200 series measures 3 x 5 x 1.5 in., operates from 90-264 Vac input, and withstands voltages of 4,000 Vac from input to output, 1,500 Vac from input to ground, and 500 Vac from output to ground. Features include power factor of 0.98 typical and earth leakage current of 220 µA at 264 Vac, 63 Hz. Series includes 7 models of single 12-48 V, 200 W output at 5.3 cfm forced air or 150 W at convection cooling.
