Tunable RF Components support mobile data demands.

ON Semiconductor, LLC    Phoenix, AZ 85008
Mar 14, 2013 Offered in WLCSP and QFN packages, TCP-30xx PTIC Series features tuning range of 4:1 and capacitance from 1.2–8.2 pF. PTICs allow efficient use of smartphone's power amplifier to minimize current drain. TCC-103 PTIC Control IC, designed to work with PTICs, provides control and bias in tunable solution. Digital-to-analog IC includes boost converter with 3 programmable outputs up to 24 V, and interface that allows independent control of multiple tuning elements from single MIPI/SPI bus element.

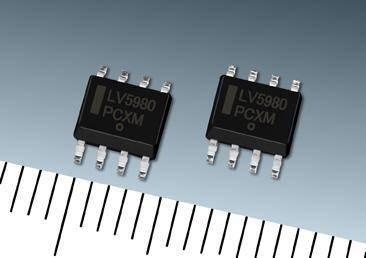

DC-DC Converter IC optimizes efficiency at light load.

ON Semiconductor, LLC    Phoenix, AZ 85008
Mar 06, 2013 With max current of 3 A, Model LV5980MC regulates input voltages from 4.5–23 V down to output voltage as low as 1.235 V. Device operates at 63 µA, with both pulse-width modulation and pulse-frequency modulation, and can achieve 80% efficiency at output current of 2 mA in typical applications. Step-down converter includes internally fixed switching frequency of 370 KHz and 100 mΩ high-side MOSFET. Housed in SOIC-8 package, IC is suited for home and office electronics.

Clock Distribution ICs support networking and communications.

ON Semiconductor, LLC    Phoenix, AZ 85008
Mar 06, 2013 Operating from supply voltage of 2.5 and 3.3 V, NB6L56 2:1 Clock/Data Multiplexer handles clock speeds up to 2.5 GHz and data streams up to 2.5 Gbps. Differential inputs incorporate internal 50 Ω termination resistors accessed through VT pin. Outputs are 800 mV emitter coupled logic signals. Consisting of 3:1 multiplexer and 1:10 clock/data fanout buffer, NB3F8L3010C operates from 3.3 or 2.5 V core supply and has total of 10 single-ended LVCMOS outputs, each capable of running at 200 MHz.

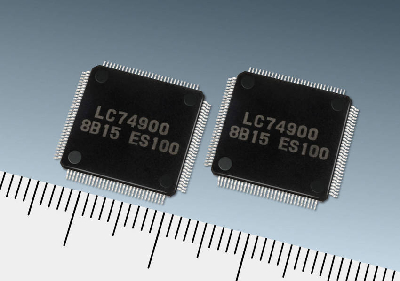

Video Signal Processor ICs optimize small LCD picture quality.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 16, 2013 Capable of supporting resolutions up to WVGA, Model LC749000PT is suited for automotive applications, while Model LC749000AT targets consumer products. Integrated ADC receives direct analog picture signal inputs from camera, while decoding circuit decodes analog signals in NTSC and PAL formats. Size of decoded picture signal is then adjusted according to resolution of connected LCD panel by de-interlacer/scaler. Built-in programmable timing controller transfers RGB output to LCD panel.

Stepper Motor Driver IC suits office automation equipment.

ON Semiconductor, LLC    Phoenix, AZ 85008
Dec 28, 2012 Offered in 5.6 x 15.0 mm SSOP44J package, Model LV8702V operates from 9–32 V while minimizing heat generation, vibration, and noise from motor in applications such as positioning control in printers. Device detects motor condition through driver waveform monitoring; power consumption is reduced by automatically reducing current value according to rotation speed or load of motor. Additional features include output short protection, thermal shutdown function, and step-out detection function.

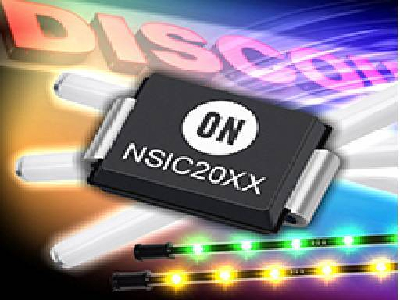

Constant Current Regulators suit solid state lighting systems.

ON Semiconductor, LLC    Phoenix, AZ 85008
Dec 07, 2012 Based on self-biased transistor technology, NSIC20xx Series offers max voltage rating of 120 V, 3 W and can withstand peak voltages of AC off-line HBLED lighting applications. Models NSIC2020BT3G, NSIC2030BT3G, and NSIC2050BT3G have steady state current capability of 20, 30, and 50 mA, respectively. Devices turn on immediately and reach 45% regulation with anode-cathode voltage of 0.5 V applied. Offered in 2.20 x 3.56 x 4.32 mm package, regulators support junction temperature of -55 to +175°C.

Pre-Configured DSP System suits ivisible-in-canal hearing aids.

ON Semiconductor, LLC    Phoenix, AZ 85008
Nov 05, 2012 Measuring 0.180 x 0.123 x 0.060 in., Rhythm™ R3710 enables hearing aid manufacturers to develop discrete products intended to be placed deep in ear canal. Adaptive noise reduction algorithm is included, and iSceneDetect™ environmental classification algorithm automatically optimizes hearing aid to maximize comfort and audibility by analyzing acoustic environment. Other features include up to 8 WDRC channels, iLog™ Datalogging, and adaptive feedback cancellation.

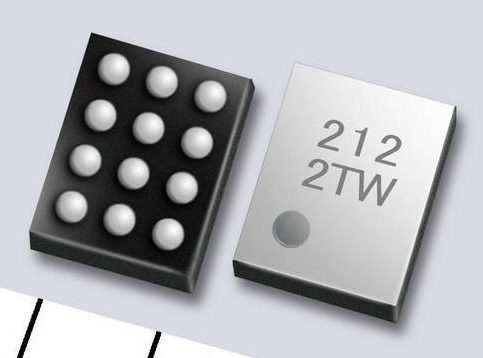

Auto Focus Control IC enhances smartphone camera modules.

ON Semiconductor, LLC    Phoenix, AZ 85008
Oct 25, 2012 Supplied in lead- and halogen-free, 12-pin WL-CSP to foster thin, light smartphone designs, LC898212XA-MH features digital logic with closed loop control system and function for positioning sensor. Closed loop architecture promotes accurate auto focus control while minimizing power consumption. Function for positioning sensor consists of constant current DAC and gain adjustable op-amp, and output of positioning sensor is read by integrated 10-bit ADC. PWM drive system is also included.

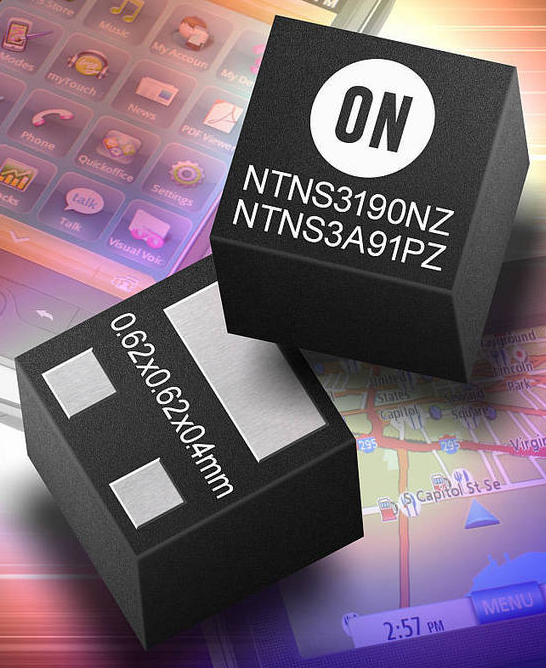

N- and P-Channel MOSFETs come in compact package.

ON Semiconductor, LLC    Phoenix, AZ 85008
Oct 24, 2012 Supplied in 0.62 x 0.62 x 0.4 mm XLLGA3 package with total surface mount area of 0.38 mm², NTNS3193NZ 20 V, single N-channel MOSFET and NTNS3A91PZ -20 V, single P-channel MOSFET are optimized for space-constrained portable consumer electronics. Both Pb-free, halogen-free, and RoHS compliant devices offer 1.5 V gate drive capability. Respectively, NTNS3193NZ and NTNS3A91PZ offer 0.75 and 1.3 Ω typ on resistance @ ±4.5 voltage gate to source (VGS).

Power Management ICs provide multi-channel operation.

ON Semiconductor, LLC    Phoenix, AZ 85008
Oct 04, 2012 Optimized for battery powered systems such as smartphones and digital cameras, Model NCP6924 integrates two 800 mA, 3 MHz step down DC-DC converters and 4 LDO regulators for total quiescent current of 105 µA, while Model NCP6914 integrates single 800 mA, 3 MHz step down DC- DC converter and 4 LDO regulators to deliver quiescent current of 72 µA. Featuring 5 and 6 voltage rails, both are sized to supply power to mixed signal modules, or to complement power distribution to application processor.
