Compact Scraper Assembly provides uniform roll/belt cleaning.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Aug 13, 2012 Featuring rugged and compact construction with lightweight alloy, VeriLite(TM) scraper assembly removes contaminants such as dirt, scale, coatings, and adhesives that can lead to operational or runnability issues. Self-pivoting scraper blade holder provides precise blade loading against roll or belt for uniform cleaning, while overall design accommodates applications where installation space is restrictive.

Steam System targets high-speed corrugating machines.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Aug 08, 2012 Unlike conventional steam systems, Kadant Johnson Corrugator Steam System controls differential steam pressures and blow-through steam flows for each steam-heated roll, providing highest possible heat transfer and temperature uniformity while minimizing maintenance. System addresses heat transfer limitations that have been found to negatively impact performance of high-speed single-facers.

Float-Free Level Control targets pressure-powered pumps.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Jan 06, 2012 Designed to retrofit major float-operated pump brands, Float-Free Level Control Assembly features drop-in, bolt-on mounting flange to facilitate upgrade. Unit incorporates 2-probe level control and NEMA classified control assembly. External to tank, motive pressure 3-way valve enables visual check of operation. Assembly has no moving parts in contact with condensate, and no springs, linkage, or floats that are prone to wear and failure.

Bi-Metal Doctoring Blades suit drum flaking applications.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Jul 07, 2010 ProFlake(TM) doctor blades utilize bi-metal technology that optimizes blade life and flaker performance. Doctor blades are made from non-brittle, wear-resistant alloy that allows blade tip to maintain its doctoring edge throughout useful life and also has low-friction design that is gentle on drum surface. Variety of blade widths, thicknesses, and bevel configurations are available.

Direct Steam Injection Water Heaters are custom-engineered for operating conditions.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Jun 10, 2010 Nominally available in 1.5-6 in. sizes, direct steam injection water heaters raise temperature of water and water-based slurries by injecting steam directly into fluid. They accommodate various industrial processing applications and are custom-engineered based on operating conditions to ensure optimal performance and efficiency. Absence of moving parts, with exception of actuator and modulating spindle, promotes reliability and service life.

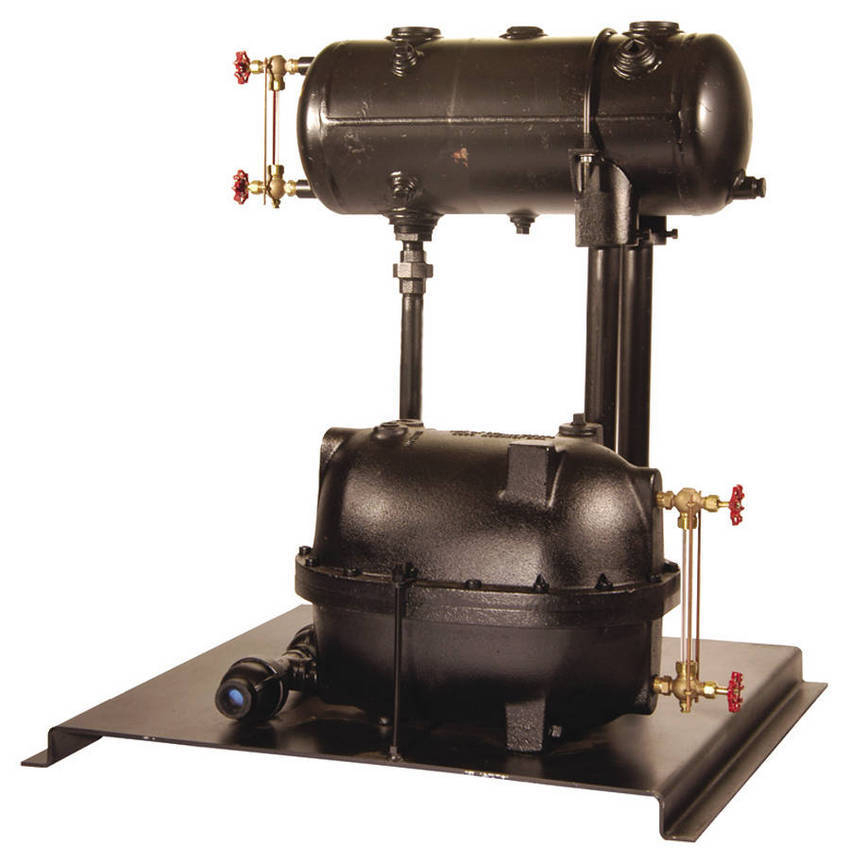

Skid Mounted Condensate Pumps feature float-free design.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Apr 06, 2010 Having no springs, pivot points, or floats, Liqui-Mover® pressure-power condensate pumps offer capacities up to 180,000 lb/hr. They use 150 psig ASME labeled steel tanks and are rated up to 450°F. Using steam or compressed air as motive pressure to lift or pump high-temperature condensate, pumps reduce or eliminate loss of flash steam and associated heat energy.

Rotary Joint targets steam and thermal oil applications.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Jul 06, 2009 Designed for applications with rotating pipe and 2 flow passages, SNX self-supported rotary joint features convex seal ring, rotating horizontal pipe, and 2 carbon graphite support bearings that are widely-spaced to support joint. It is available with 1 in. threaded or quick-release flange nipple connection and is rated for up to 500°F, 300 psig, and 450 rpm for steam service. Joint can also be applied to thermal oil applications up to 650°F and 150 psig.

Rotary Union suits heat transfer fluid applications.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Mar 09, 2009 Rated up to 500°F, 200 psig, and 3,500 rpm, RX Rotary Union is suited for high-temperature thermal oil applications. Tapered roller bearings support large radial and thrust loads, while bearing isolation barrier in seal chamber prevents moisture and contamination from entering bearing area. Available in sizes from 3/8 to 6 in. and in single- and dual-flow configurations, union also includes stainless steel springs located outside flow area and integral flange.

Environment-friendly Absorbent handles non-agressive liquids.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Dec 10, 2008 Made from 100% recycled post-consumer paper waste, fiber-based industrial absorbent absorbs oils, solvents, lubricants, coolants, water, and non-aggressive liquids on contact. Product is created using fibrous sludge waste from select paper mills and has one-to-one weight-to-weight absorbency. Gran-sorb industrial absorbent is dust- and silica-free, leaves no stains, cleans up quickly, has low ash content, and is safe for disposal by incineration.

Pinless Syphon Elbow suits steam-heated rotating cylinders.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Aug 05, 2008 Featuring integral locking mechanism that secures elbow into position, 45° Syphon Elbow is intended for installation on blind rolls or rolls with hand hole access. All components of elbow are constructed of stainless steel to provide corrosion-resistance. In addition, 45° angle results in less cantilever weight compared to long bent syphon pipe, causing less stress on horizontal syphon pipe thread connection.
