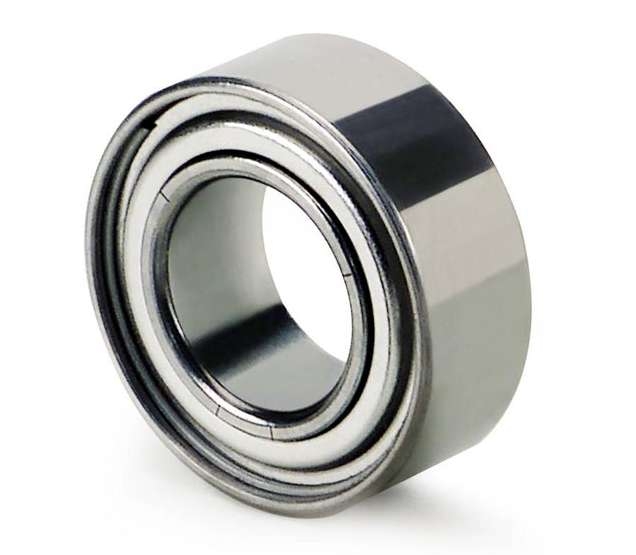

Miniature Bearings withstand extreme service environments.

Kaydon Corp Bearings Div    Muskegon, MI 49441
Jul 29, 2005 Measuring less than 1 in., Miniature Bearings are assembled in class 10,000 clean rooms under class 100 laminar flow benches. Dimensional and functional accuracy are in accordance with ABEC and ISO standards. Units are available with selection of steels, ceramic rolling elements, closures, mounting configurations, retainers, and lubricants to meet specific needs. They are suited for medical, dental, aviation, lab instruments, and semiconductor manufacturing equipment.

Thin Section Bearings suit turntable applications.

Kaydon Corp Bearings Div    Muskegon, MI 49441
Aug 12, 2004 Miniature Reali-Slim® TT Series features single 4-point contact ball radial design, consisting of single row of balls with gothic arch raceway and 1-piece separators. Radial, axial, and moment-load capable, bearings are pre-lubricated and ready for use. They feature bore sizes from 1.5-6.0 in. with height of .25 in. Versions are available with internal or external spur gear, or in non-geared designs. Geared versions are 64 diametral pitch with 20º pressure angle.
