Automated CNC Measuring System handles large, complex parts.

Detroit Precision Hommel    Rochester Hills, MI 48309
May 10, 2012 With up to 7 CNC axes, Jenoptik Wavemove measures and evaluates complex shaft or prismatic parts. Workpieces are positioned in tilt fixture mounted on rotary table on granite base. With traverse length of 120 or 200 mm, system performs roughness and contour measurement using intelligent arrangement of probing systems. Detailed, exportable analyses of measuring results provide exact statements about quality of production process, based on many parameters from automotive industry.

Surface Roughness Measuring System serves on production lines.

Detroit Precision Hommel    Rochester Hills, MI 48309
Jul 18, 2011 Using array of probes and accessories, ergonomically designed Hommel-Etamic W5 can track 5 separate measurement programs, up to 100 separate profiles, with total storage capacity of up to 10,000 completed measurements. Integrated click wheel and color display with GUI facilitate operation, while support prism centers workpieces reliably on correct measuring position and protects probe for measurements in bores from 12 mm dia. All necessary connection are made via USB interface.

Measurement System facilitates engine manufacturing.

Detroit Precision Hommel    Rochester Hills, MI 48309
Oct 06, 2009 Utilizing pneumatic measurement principles, Hommel-Etamic Valvescan measures roundness, radial run-out, and concentricity of valve seats on cylinder heads. When combined with TPE99 A/E Converter, system delivers resolutions down to 0.01 µm on diameters, 0.7° on angles, and 10% or better GR&Rs. Parts are not required to be absolutely clean as jets in air tooling provide high-pressure part blow off to remove contaminants. SPC32 Software is included for statistical process control.

Machine offers automatic form and roughness measurement.

Detroit Precision Hommel    Rochester Hills, MI 48309
Aug 25, 2009 Featuring dual-tip scanning system and ±1,500 µm measuring stroke, Hommel-Etamic Roundscan permits automatic measurement of form and roughness in one pass. System can handle parts up to 540 mm dia, 900 mm in height, and up to 100 kg. Positioning probe tip anywhere on workpiece, CNC-controlled rotation and tilt module guarantees measurements can be made automatically at any measurement position. Low friction guides on measuring axes also enable profile and waviness parameters to be evaluated.

Dimensional Gage performs pneumatic measurement and matching.

Detroit Precision Hommel    Rochester Hills, MI 48309
Aug 12, 2009 Providing high accuracy measurement of precision ID and OD of workpieces, Matchscan MS500 Basic suits applications such as fuel injector assemblies, cam and crank bores in engine blocks, where precision fit is essential for correct part function. It includes 17 in. touch screen computer, CMZ32 software for automatic measurement with multi-language capabilities, and SPC32 software for statistical control of measurement processes. Unit can also perform sub-micron part classification.

Metrology System measures roughness/contour simultaneously.

Detroit Precision Hommel    Rochester Hills, MI 48309
Jun 27, 2008 Able to measure roughness and contour of any shape in 1 pass, HOMMEL nanoscan can measure surfaces with stroke of 24 mm with resolution of 0.68 nm. Laser interferometer features resolution of 0.6 nm, allowing surface structures from submicrometer range to 24 or 48 mm to be recorded. CNC-controlled horizontal and vertical axes include digital scales providing resolution of 10 nm and probe arms are magnetically coupled on traverse unit to simplify handling, operation, and safety.

Inspection System provides 360° view of bore surfaces.

Detroit Precision Hommel    Rochester Hills, MI 48309
Feb 14, 2008 Consisting of optical sensor, computer, and slide to position sensor, IPS-10 internal inspection system installs within production line to inspect bores with diameter of 14-50 mm and depths to 450 mm. Images are scanned continuously by CMOS ring sensor array and system automatically detects surface flaws such as cavities, scratches, porosity, valleys, edge flaws, and unmachined surfaces. Included software sorts out defective parts and displays results as flaw statistics.

Roughness Measuring System operates within production line.

Detroit Precision Hommel    Rochester Hills, MI 48309
Nov 07, 2006 Featuring 10 in. touchscreen display, W55 Roughness Measurement System acquires and archives measured values of roughness, profile and waviness, and tolerances for any parameter and transfers data to statistics server via LAN interface. Up to 30 workpiece programs can be stored for different part numbers or different features. System integrates into product line and allows use of central or standard printers, USB memory sticks, and standard peripheral devices.

Flexible Shaft Measuring System has ±1 micron accuracy.

Detroit Precision Hommel    Rochester Hills, MI 48309
Feb 22, 2005 Opticline non-contact CNC shaft gaging system measures form, dimensional, and positional tolerances of shaft-type parts in submicron detail and instantly records results. Accommodating shaft diameters from 0.2–480 mm and lengths from 1–2,500 mm, system uses calibration processes and telecentric camera measuring systems to measure complicated workpiece geometries. Optical measuring head records multiple characteristics in one pass.

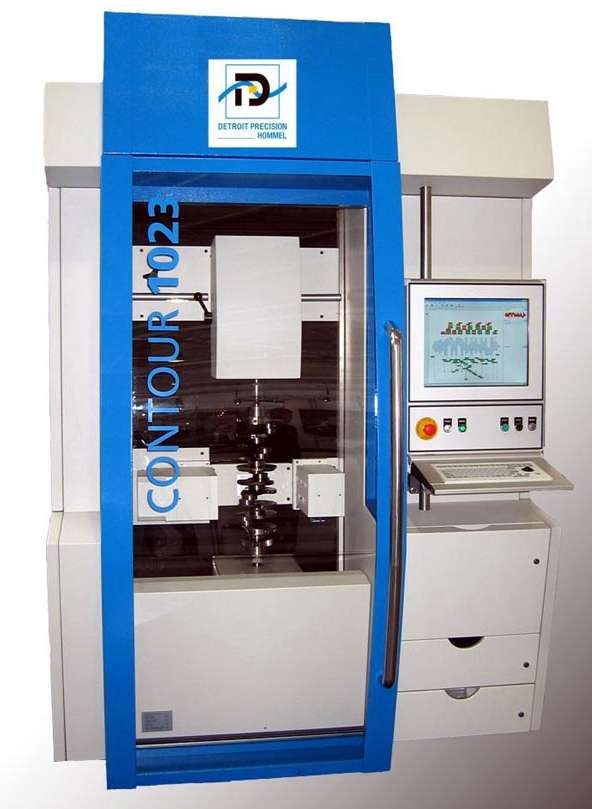

Measuring Systems are offered in contact and noncontact types.

Detroit Precision Hommel    Rochester Hills, MI 48309
May 07, 2003 Opticline noncontact metrology system measures form, dimensional, and positional tolerances of symmetrical parts in submicron detail. CCM and CFM Gageline multipoint contact systems measure crankshafts and camshafts, and can measure 20 parts/hr using Windows NT measuring software. Flexible shaft gaging system accommodates shaft sizes from 0.2 to 270 mm dia, 1 to 1,500 mm long with measuring accuracies to ±1 micron.
