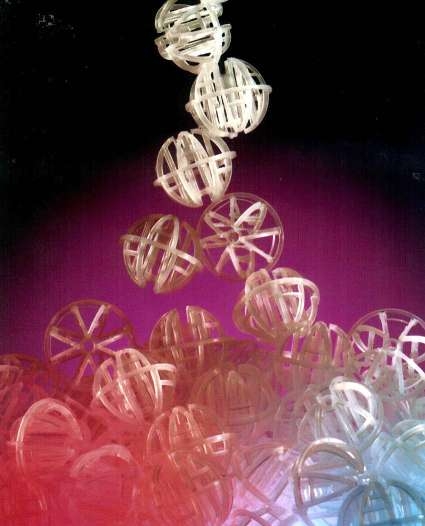

Cooling Tower Packing is compatible with all tower types.

Tri-Mer Corp.    Owosso, MI 48867
Jun 22, 2005 Manufactured from 100% virgin polypropylene, Tri-Packs CT facilitates continuous formation of droplets throughout packed bed. Shape of ribs, struts, and drip rods give media optimal wetting characteristics and maintains uniform liquid distribution throughout tower. Free of corners and valleys, media eliminates puddling, while preventing dry spots and compression interlock. Supplied in 4 sizes, Tri-Packs CT is corrosion-proof and resistant to most chemicals.

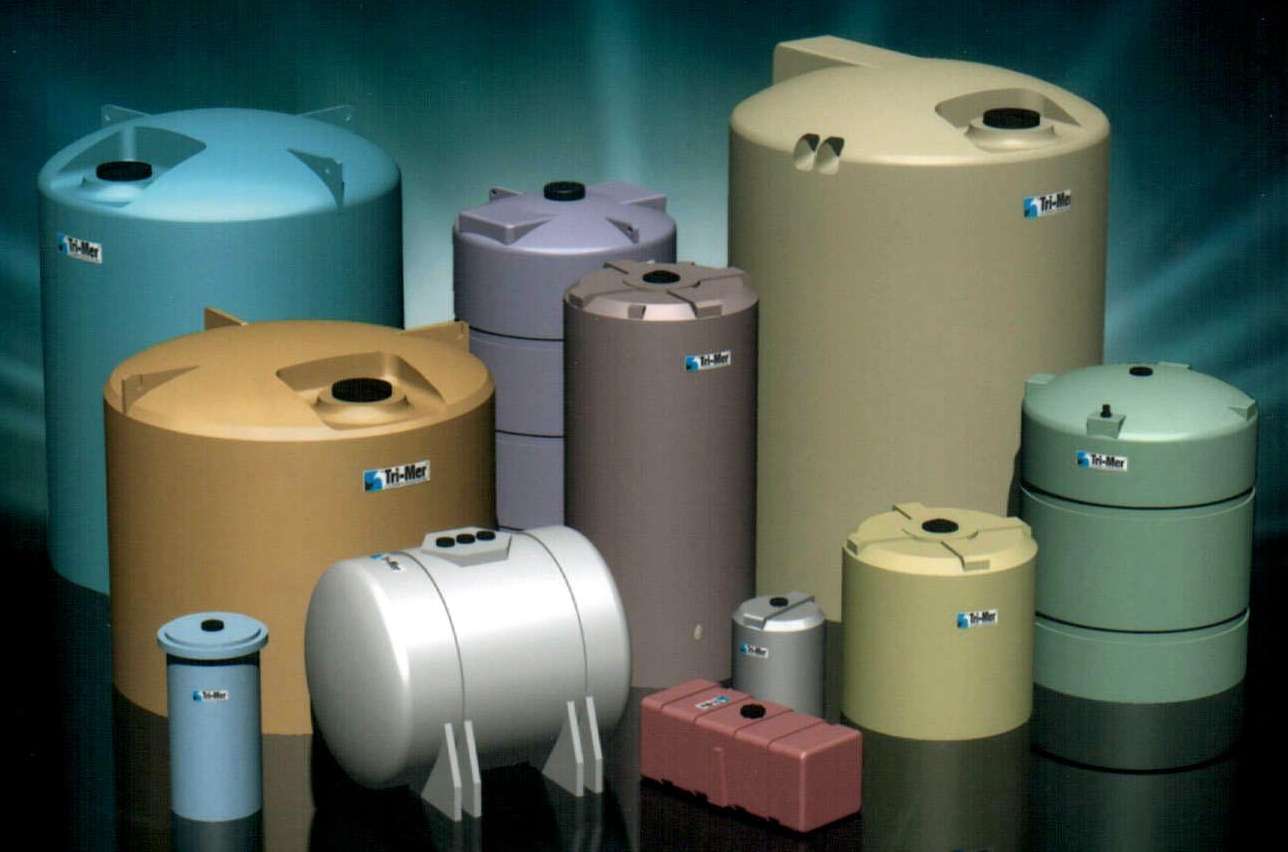

Roto-Mold Tanks offer custom shapes and colors.

Tri-Mer Corp.    Owosso, MI 48867
Aug 12, 2004 Made from polypropylene, polyethylene, PVDF, and Halar, impact-resistant Roto Mold Tanks are available with or without insulation in .25 or .50 in. gage. Standard tanks come in vertical, horizontal, open top, domed, and rectangular shapes with up to 10,000 gal capacity. They are suited for chemical storage, wastewater storage, marine applications, and high-temperature uses. Tanks using FDA-approved, UV-stabilized, flame-retardant, or anti-static resins are available.

RTM Molded Tanks are available in 4 materials.

Tri-Mer Corp.    Owosso, MI 48867
Apr 01, 2004 Offered in polypropylene, polyethylene, PVDF, and Halar, RTM (Resin Transfer Molding) molded tanks are seamless, one-piece units with smooth interior and exterior. Impact-resistant products can be manufactured in vertical, horizontal, open top, domed, and rectangular shapes, with capacities to 10,000 gal. They are offered with or without insulation, in .25 or .50 in. gage. Inserts can be used to mold-in fittings and hardware or create 2-compartment tanks.

Downdraft Workstation collects fines, dusts, and fumes.

Tri-Mer Corp.    Owosso, MI 48867
Apr 01, 2004 Suited for metal-working operations, Downdraft Workstation captures aluminum, magnesium, zirconium, beryllium, titanium, and other volatile dusts, as well as traditional ferrous metal dusts, with 99.5% efficiency at .5 microns. Available in steel, stainless steel, or polypropylene, workstations can include Whirl Wetâ„¢ dust collector. Ten standard sizes range from 1,200–6,000 cfm. Maximum work-surface capacity is 250 lb/ft².

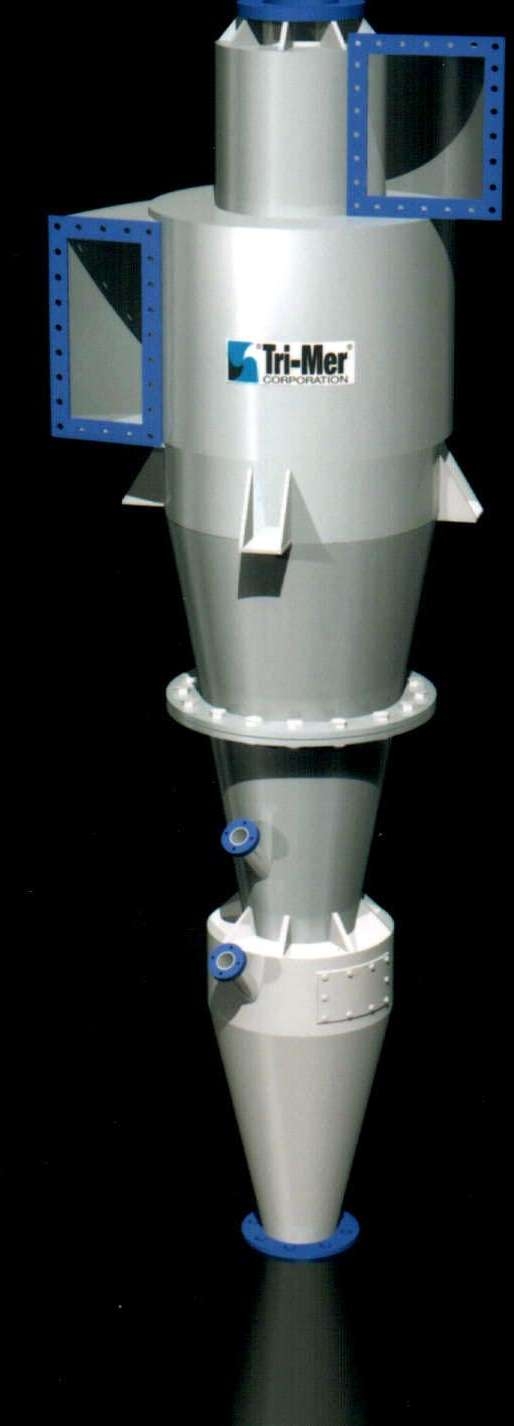

Dust Collectors provide filtration and separation.

Tri-Mer Corp.    Owosso, MI 48867
Mar 17, 2004 Suited for collection of large particulate and pre-filtering, Cyclonic Particulate Collectors feature separate dust collector trap and direct-drive fan. Products are custom manufactured in carbon steel, stainless steel, exotic metals, or all polypropylene, with urethane, rubber, or refractory linings. They are suited for use where high dust loadings, high temperatures, highly abrasive dusts, or sticky dusts exist.

Dust Collectors capture dusts 5 microns and above.

Tri-Mer Corp.    Owosso, MI 48867
Mar 05, 2004 Custom-engineered to specific pressure or vacuum, Pulse Jet dust collectors are turnkey systems with fail-safe final filter and automatically-actuated damper control. They also feature control instrumentation for bag differentials, temperature, current draw, and hopper dust levels. Systems are offered in bottom bag access or top-clean air plenum access designs and have no internal moving parts. Timer is field-adjustable for pulse duration and interval.

Tanks available in 304 or 316 stainless steel.

Tri-Mer Corp.    Owosso, MI 48867
Jan 15, 2004 Stainless Steel Tanks, offered in lengths to 110 ft and depths to 15 ft, come in round, elliptical, conical, cylindrical, cone-topped, truncated, and square shapes. They are available on stand-alone basis or with custom material handling, ducting, piping, pumps, agitation, and baffling. Instrumentation is available to control temperature or other variables. Applications include food/dairy, pharma, brewery, chemical, and metal finishing industries.

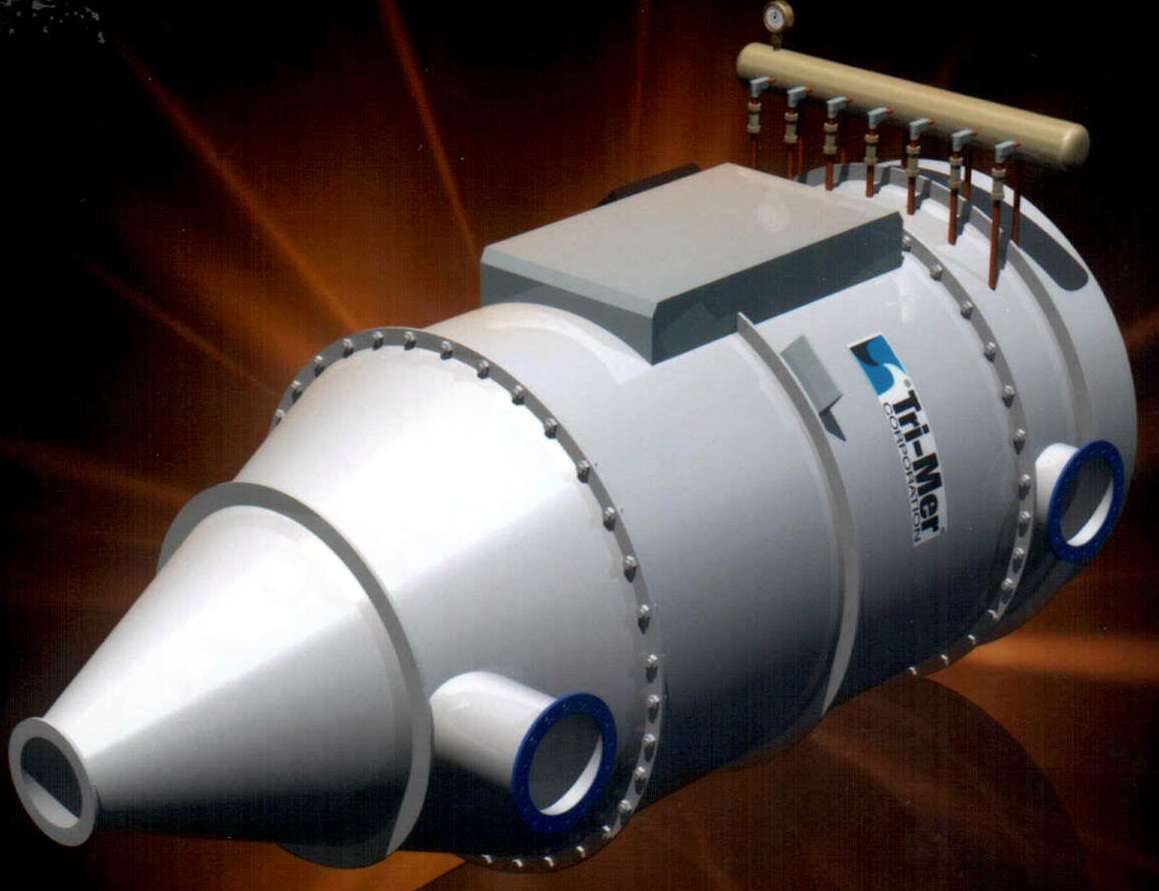

Wet Scrubbers eliminate odors from industrial sources.

Tri-Mer Corp.    Owosso, MI 48867
Mar 07, 2003 Multi-use Odor Scrubbers produce Zero Odor at stack. They accommodate gas inlet temperature up to 2000°F, and can be engineered to accommodate particulate in addition to gases. Velocities range between 150–500 fpm. Mist eliminator can be specified to 99% at 2 microns for applications that require very low output numbers. Systems are pre-piped and include PLC controls. They are made of UV-stabilized polypropylene; PVC and stainless steel is available.

Four-Stage Scrubber suits acid fume environments.

Tri-Mer Corp.    Owosso, MI 48867
Dec 02, 2002 Quadra-Scrubâ„¢ provides continuous operation with zero shutdown, and consistently produces collection efficiencies ranging from 99% and higher. Chemical-free system is made of UV-stabilized polypropylene and utilizes mechanical separation technology. Four stages, arranged as series of cartridges, have independent magnehelic gage to indicate when cleaning is necessary. Applications include battery forming and steel pickling.

Centrifugal Blower suits corrosive applications.

Tri-Mer Corp.    Owosso, MI 48867
Nov 13, 2002 Tri-Blo Series, with solid polypropylene housing, eliminates risk of delamination. Impellers incorporate backwardly inclined, non-overloading design. Available in Belt Drive and Direct Drive configurations, units can be piped in parallel for high air volume applications. Blower operates at temperatures up to 180°F and pressures to 12 in. psig. Capacities range from 100 to 100,000 cfm. Available with variable-frequency drive, unit is engineered for retrofitting.
