Intel-Based Industrial PC eliminates rotating media and fans.

Nematron Corp.    Ann Arbor, MI 48103
Nov 05, 2010 Featuring panel mounting depth of 2.4 in., ePC Lite is based on 1.6 GHz Intel® Atom N270 processor and can run most complex HMI and SCADA applications. Unit features Intel 40 GB SATA SSD, 15 in. XGA LCD, 1 GB DRAM, analog resistive 5-wire touchscreen, and NEMA 4 front panel. Powered by 12 Vdc Class 2 power source, PC offers variety of I/O, including 10/100/1000 Ethernet port, 1 RS-232 port, 3 USB 2.0 ports, audio output, and external analog or digital video connection.

Industrial Computers without any rotating media or fans.

Nematron Corp.    Ann Arbor, MI 48103
Mar 22, 2010 Featuring panel mounted depth of less than 3.2 in., Fan-less ePC Series includes 12.1, 15, 17, and 19 in. sizes - all available with 5-wire Analog Resistive touchscreens and NEMA sealed panel mount front panels. Each model is powered by 1.6 GHz Intel® Atom(TM) N270 CPU, and connectivity is fostered via 10/100/1000 Ethernet, RS-422/485, RS-232, USB 2.0, and PS/2 ports. Products also integrate removable 40 and 80 GB SATA solid-state hard drives as options and 100-240 Vac input power supplies.

Industrial Monitor fits into limited-space applications.

Nematron Corp.    Ann Arbor, MI 48103
Mar 04, 2010 RoHS-compliant and CE-marked M1200 is 12.1 in. SVGA industrial monitor with TFT LCD designed to accommodate space-constrained installations. While standard features include clear Lexan window, built-in 100-240 Vac power supply, and NEMA 4/4x/12 powder-coated aluminum front panels, available options include 5-wire analog resistive touchscreen, stainless steel front panel, and integrated 24 Vdc power supply. UL/cUL and Class I Division 2 approved when mounted in NEMA enclosure.

Industrial Computers offer 2 PCI expansion slots.

Nematron Corp.    Ann Arbor, MI 48103
Feb 04, 2009 Available with Intel Core 2 Duo 2.2 GHz processor running at 800 MHz, ePC-Plus Series comes in 15, 17, and 19 in. versions with 2 removable hard drives and hot-swappable, removable DVD-R/W drive. I/O ports include two 10/100/1000 Ethernet, one RS-485/422/232, two RS-232, four USB 2.0, PS/2 mouse, PS/2 keyboard, and external Video connection. Measuring less than 4.125 in. deep when panel mounted, PCs come standard with 100-240 Vac input power supplies and NEMA 4/4x/12 front panels.

Operator Interface combines connectivity, color clarity.

Nematron Corp.    Ann Arbor, MI 48103
May 22, 2008 PowerView 8000 Series encompasses 4 sizes, all of which have 65K Color TFT LCDs with analog resistive touchscreens. Addressing connectivity, interfaces feature 3 USB 2.0 ports, 3 configurable RS-232/485 ports, CompactFlash port, Audio, and 10/100 Ethernet port. Included development package, ViewBuilder 8000, delivers capabilities for peer-to-peer communication and global data access as well as object libraries, historical and real time trending, and alarm and recipe management.

Industrial PCs have panel-mounted depth of less than 3.0 in.

Nematron Corp.    Ann Arbor, MI 48103
Feb 12, 2008 Suited for HMI and SCADA applications in harsh environments and hazardous locations, RoHS-compliant ePC-Series is comprised of 15 in. XGA (ePC1500), 17 in. SXGA (ePC1700), and 19 in. SXGA (ePC1900) LCD versions. Each features 5-wire analog resistive touchscreen, 100-240 Vac input power supply, and NEMA 4/4x/12 panel mountable front panel. Supporting up to 2.0 GHz Intel Core Duo processor and 2 GB DRAM, PCs offer CompactFlash socket and range of I/O.

Flat Panel Monitors feature panel mounted depth of 2.75 in.

Nematron Corp.    Ann Arbor, MI 48103
Jan 31, 2007 Offered in 15, 17, and 19 in. sizes, industrial M-Series features NEMA-sealed panel mount front panels and 100-240 Vac input power supplies. Stainless steel front panels and 24 Vdc input power are optional. All provide VGA connections and allow connection via USB or RS-232 for optional 5-wire analog resistive touchscreen. With UL approval for Class I and II, Div 2 hazardous locations, monitors can be installed in harsh factory automation applications.

Remote Terminal Unit utilizes Modbus protocol.

Nematron Corp.    Ann Arbor, MI 48103
Jan 22, 2003 Model OL4228 Remote Terminal Unit extends OptiLogic family of products to systems using Modbus communications. Any Modbus/TCP capable, PC-based application can interface with line of OptiLogic Ethernet I/O modules.

Flat Panel Monitors suit space-limited applications.

Nematron Corp.    Ann Arbor, MI 48103
Nov 08, 2002 Analog Flat Panel Monitors, available in 12.1, 15, and 17 in. sizes, offer TFT displays and optional resistive touchscreens. High-brightness models are available for direct sunlight applications. Industrial monitors feature aluminum front panels that meet NEMA 4/IP65 standards. Models also include 16.7 million available colors (15 and 17 in. models) and up to 1750 cd/m² (high brightness LS series). All models can be arm, panel, wall, or rack mounted.

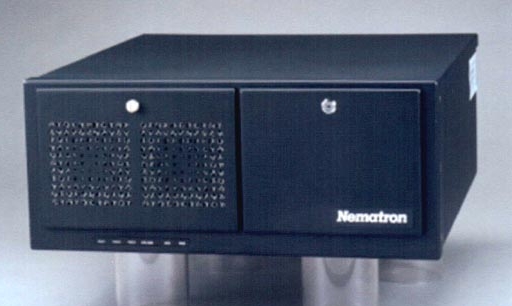

4U Rack Mount Computer offers processor options.

Nematron Corp.    Ann Arbor, MI 48103
Sep 19, 2002 RackMount 19 in. industrial computer is offered with 1.6 GHz or 2.2 GHz Intel Pentium 4 processor, in addition to 850 MHz Intel Pentium III CPU. It has space for 2 hard drive bays and 3 additional device bays. Computer comes standard with 10/100 BaseT Ethernet (RJ45) and 2 hot swappable fans in industrial enclosure. User can choose Microsoft Windows NT, 2000, or XP operating systems. OpenControl software can be factory installed.
