Conveyor Rollers are designed for minimal noise and wear.

Interroll Corp.    Wilmington, NC 28405
Nov 05, 2008 Supporting speeds to 360 fpm and loads to 80 lb, 1700 Series has Taperhex Black shaft design featuring double spring-loaded tapered hexagonal shuttle pressed into profile holes of roller for secure fit. Shaft is not susceptible to any movement relative to profile, and Taperhex Black is constructed of electrically conductive technopolymer, which is optimized for noise reduction and wear resistance. Areas of use include package and parcel conveying.

Drum Motor is suited for food processing applications.

Interroll Corp.    Wilmington, NC 28405
Aug 12, 2008 Available with 3-phase motors and internal gearing system with no external moving parts, Drum Motor 127i reduces noise in light- to medium-belt conveyor applications. Internal gearing system is rated to 97% efficiency, while spring-loaded and labyrinth seals prevent contamination and oil loss. Able to operate in temperatures to 104°F, self-contained unit supports conveying speeds to 315 fpm with 1.0 hp and requires oil changes every 20,000 hr.

Roller Drive has spring-loaded rotor locking break mechanism.

Interroll Corp.    Wilmington, NC 28405
Aug 05, 2008 Designed specifically for decline conveyors with fail safe requirement, Model EC100B RollerDrive features spring loaded fail safe brake that prevents drifting on inclines while ensuring smooth operation and low noise emission. Mechanical rotor-locking break is spring-loaded and cycles with main power; it does not cycle with each start and stop of the conveyor. As long as the power bus is on, the magnetic force created by solenoid keeps rotor free.

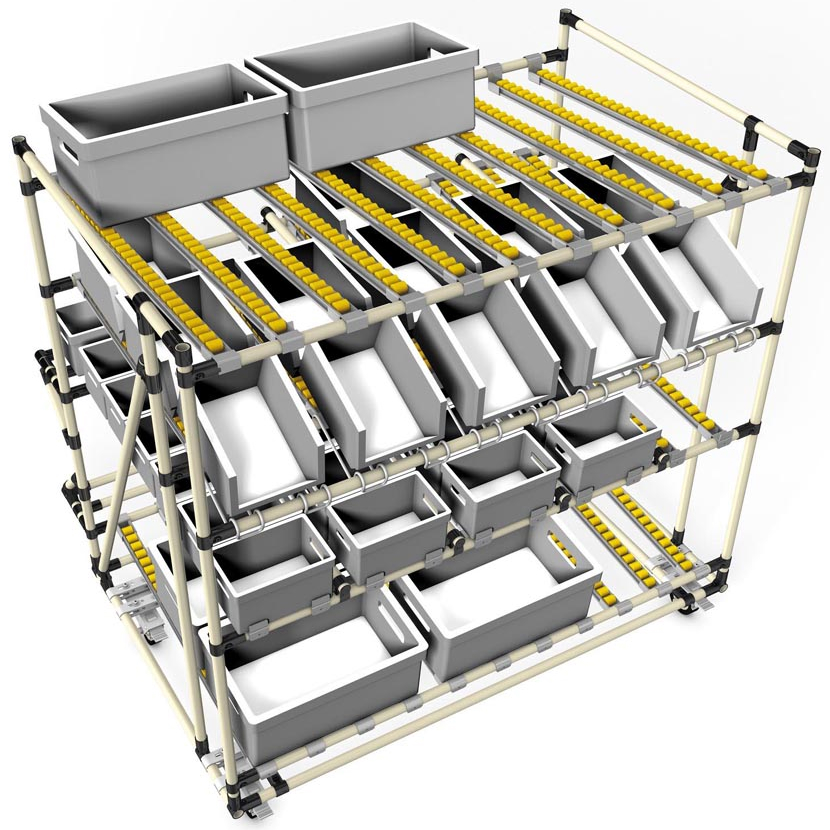

Rack System promotes productivity through adaptability.

Interroll Corp.    Wilmington, NC 28405
Apr 30, 2008 Eliminating inefficient organization, waste, and superfluous production steps, Flex Flow Rack promotes productivity and lean manufacturing. Three components comprise this solution: tube, connector, and supporting element. Flexible design can be constructed to meet any operational task as well as adapted and reconfigured to adjust to changing logistical processes. Areas of use include warehouse stocking applications.

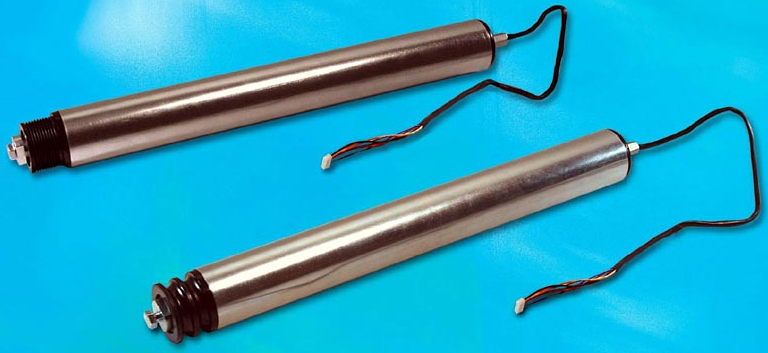

Roller Drive provides energy efficient conveying.

Interroll Corp.    Wilmington, NC 28405
Mar 25, 2008 Designed for incline, straight, and spiral conveyors, 24 Vdc EC110 RollerDrive enables conveying speed up to 475 fpm and continuous torque capabilities up to 37 lbf-in. Noise emission levels of less than 55 dBA can be achieved during operation. Unit features solid hexagonal shaft on motor side that ensures form fit to prevent drive from spinning, and anti-spinning bracket that completely secures drive in frame, minimizing wear and tear.

Powered Rollers transport boxes up to 300 lb.

Interroll Corp.    Wilmington, NC 28405
Feb 27, 2007 Operating with drive components located away from conveyor area, 3800 Series minimizes risk of contamination that may have adverse effects on drive performance. Units feature 1.9 in. diameter steel tube, standard O-rings, multi-rib belts, and sealed precision bearings that can handle speeds up to 360 fpm. Rollers are designed for use in conveyor systems that transport containers and boxes with individual weights up to 300 lb.

Conveyor Motor features 9-groove idler hub design.

Interroll Corp.    Wilmington, NC 28405
Feb 02, 2007 Offering alternative to grooved rollers, RollerDrive products are available with Multirib Belt, which enables customers to utilize belt with potential of using up to 4V's. Hub promotes roller-to-roller performance and efficiency as well as torque transmission. Since drive unit is separated from conveyed goods, it reduces chances of belt being damaged from wet or sharp goods. Max load capacity is rated at 94 lb, and max velocity is rated at 394 fpm.

Rollerdrives offer operating life up to 6,000 hr.

Interroll Corp.    Wilmington, NC 28405
Jan 29, 2007 With nominal current of 0.83 A, Series BT100 Brush Type RollerDrives offer efficient power management and include noise emissions below 60 dBA while achieving application speeds up to 315 fpm. Integral thermal protection eliminates need for any external control. Suited for light or intermittent duty postal, warehouse, or manufacturing material handling applications, RollerDrives interface with Z-card for any type of zero pressure accumulation solution.

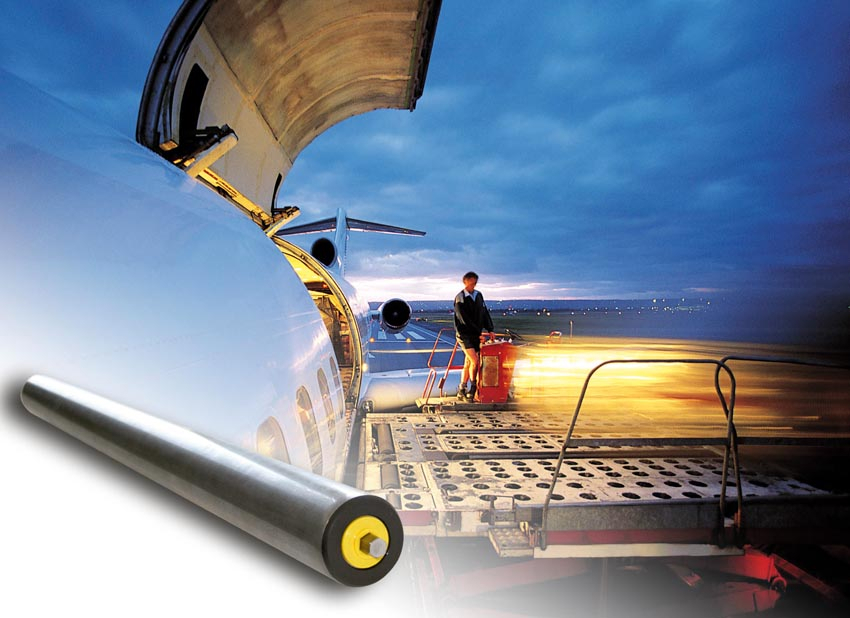

Conveyor Roller suits baggage handling systems.

Interroll Corp.    Wilmington, NC 28405
Jan 04, 2007 Designed for airport baggage handling industry, 1450 heavy-duty conveyor roller is available in 3.5 x .120 in. steel tube, polyamide Interroll housings with ABEC 1 6205ZZ precision ground chrome steel ball bearings. Shaft options include .687 in. hex shaft and robust 20 mm dia version that is end drilled and tapped for bolted construction.

Drive Control Module is designed for HTBL RollerDrives.

Interroll Corp.    Wilmington, NC 28405
May 18, 2006 HTBL (High Torque Brushless) ZPA (Zero Pressure Accumulation) DriveControl module suits HTBL RollerDrive conveying in any postal, distribution center, or manufacturing application. Module installs without external control PLC, but also allows use of external PLC for integration into existing control scheme. It interfaces with PNP and NPN style photo eyes, and offers diagnostic capability with indicators that identify system-specific faults without PLC monitoring.
