Electrical Measuring Devices can reduce downtime, disturbances.

Phoenix Contact    Harrisburg, PA 17111 0100
Apr 29, 2013 Able to work as stand-alone units or integrate with energy management system, EMpro measuring devices detect, monitor, and analyze electrical characteristics of machines and systems. Plug-in expansion modules allow information from devices to be passed to control center, where information can be visualized and evaluated. While equipped with Ethernet, RS-485, and PROFIBUS DP interfaces, devices can also be accessed directly via their pushbutton configuration navigation menu.

Lightning Arresters provide Level III and IV protection.

Phoenix Contact    Harrisburg, PA 17111 0100
Feb 27, 2013 Featuring DIN rail-mount base, VAL-MS-T1/T2 Varistor-Based Arresters are rated for Type 1 lightning strike events with measured 10/350 µs test current of 12.5 A or Type 2 surge events with measured 8/20 µs max discharge surge current of 50 kA. All plugs have thermal disconnect device triggering visual and integrated remote monitoring contacts, allowing continuous monitoring of varistor’s health. Locking mechanism keeps connector in base element, even when subjected to high currents or vibration.

WLAN Radio offers wireless networking up to 300 Mbps.

Phoenix Contact    Harrisburg, PA 17111 0100
Feb 05, 2013 Featuring 40 mm wide metal housing with data and antenna ports placed on top and bottom, FL WLAN 5101 802.11a/b/g/n Radio meets needs of most bandwidth-demanding applications such as IP-based video surveillance, plant networking, and mobile operator access for programming and maintenance. Cluster Management technology facilitates wireless network management; all access points in WLAN network can be configured and managed via single web interface using any access point within network.

Cable Ties feature tapered edges.

Phoenix Contact    Harrisburg, PA 17111 0100
Nov 20, 2012 Available in tensile strengths ranging from 18–243 lb, Cable Ties come in variety of options, including stainless steel, UV-resistant, heat-resistant, and identifiable. Ties have tapered edges to prevent damage to wires and protect hands of installer. Round tip, facilitating initial threading and installation, also makes it easy to pick up ties from flat surfaces. Versions are available for harsh outdoor and high-temperature environments.

Hand Tool Options enable complete wire processing.

Phoenix Contact    Harrisburg, PA 17111 0100
Nov 16, 2012 Inserted in handle of tool, Crimpfox-WF die provides stripping capability from 20-10 AWG and cutting capabilities from 24-10 AWG, in addition to crimping. Tool features easy follow through ratchet release and releasable pressure lock mechanisms. Crimpfox-N provides optimum transfer of force, requiring minimal manual impact.

Electronic Motor Manager optimizes predictive maintenance.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 26, 2012 Designed to monitor effective power consumed by motors, Contactron EMM uses data to analyze errors and provide early warning to controller. User can set parameters to detect dangerous operational conditions, such as overload, underload, pollution, and wear. In worst case scenario, EMM can shut down motor to protect system. With selectable tripping curves of class 10 to class 30, module provides full 3-phase motor protection. Up to 16 EMMs can be controlled with single Profibus gateway.

Cable Entry System aids feed-through cabinet installation.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 24, 2012 Cable Entry System (CES) makes it possible to pass pre-wired cables through enclosure wall without cutting terminated connector end, maintaining integrity, warranty, and approvals of pre-wired cable. Offering cable grommets that fit around most types of cable before mounting to enclosure wall, CES features plastic sealing frames that contain metal reinforcements for rigidity. Available in thermoplastic or NBR rubber, cable grommets provide strain relief and up to IP65 protection.

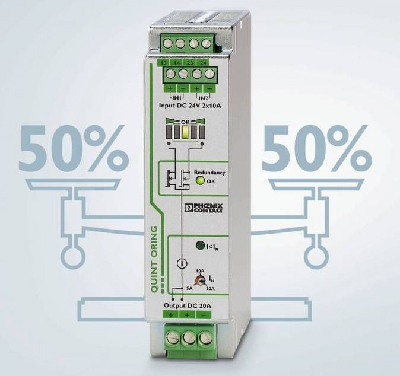

Redundancy Modules feature Auto Current Balancing technology.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 16, 2012 Saving energy by using MOSFETs for decoupling, Quint ORing Active Redundancy Modules feature ACB technology, which automatically and symmetrically distributes load current without regard to effects such as temperature drift. If load powered by redundant power supplies draws more current than single power supply can provide, module will send alarm to control system. Rated at 24 Vdc, 32 mm wide module accepts up to two 5 or 10 A inputs, while 38 mm wide model accepts up to two 10 or 20 A inputs.

MCR Surge Protection Device offers multi-stage monitoring.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 12, 2012 As intelligent MCR device with remote monitoring, PT-IQ provides proactive functional monitoring for signal interface surge protection devices. System informs user if plug replacement is needed before components fail due to overload, preventing unnecessary service while also ensuring system availability and signal quality. Other features include impedance-neutral plugging, insulation measurement without disconnection, and snap-lock mechanism for facilitated plugging/unplugging.

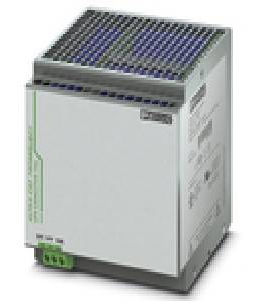

Intelligent UPS supports dual-layer capacitor batteries.

Phoenix Contact    Harrisburg, PA 17111 0100
Aug 21, 2012 Available with capacitor-based, dual-layer batteries, QUINT UPS-IQ series provides intelligent power backup in mission-critical systems. Capacitor-based energy storage can operate from -20 to +60°C and has operational lifespan of up to 20 years depending on ambient conditions. Functionality also provides users with visibility into performance behavior of capacitors, including State of Charge (SOC), State of Health (SOH), and State of Function (SOF).
