Wire-To-Board IDC Connectors withstand harsh environments.

AVX Corp.    Raleigh, NC 27604
May 24, 2013 Providing gas-tight, plated through-hole wire-to-board termination, 9177-600 Series is available as single-contact or fully integrated capped contact solution. Units feature opposing dual phosphor-bronze tines and exhibit optimized spring characteristics, ensuring stable termination during extreme temperatures, shock, and vibration. Capable of accepting 12-18 AWG stranded or solid wires, RoHS-compliant connectors are rated for up to 15 A per contact and 600 Vac at temperatures from -40 to +125°C.

Thin-Film Directional Couplers serve wireless applications.

AVX Corp.    Raleigh, NC 27604
May 20, 2013 Suited for portable communications devices, DB0603N thin-film, 3 dB, 90° couplers come in surface-mountable, 0603 size LGA package; have 800–6,000 MHz range; and provide 10 W continuous power handling. Package contributes to minimal profile and parasitics characteristics and also lends to optimal solderability and heat dissipation as well as self-alignment during reflow. RoHS compliant couplers also feature construction ruggedized for reliable automatic assembly.

Board-to-Board Compression Connectors endure 5,000 mating cycles.

AVX Corp.    Raleigh, NC 27604
May 16, 2013 Offered in 2- and 3-position configurations for commercial, medical, and harsh industrial application, 9155-100 Series power connectors support 1.3 mm compressed height and are rated for 3 A/contact, 125 Vac, and -40 to +105°C operation. Gold-plated beryllium copper contacts are insert-molded within insulator for location and mechanical stability, and sweeping contact design provides 0.7 mm Z-axis deflection range, extended contact wipe, and >40 g contact force at min operating deflection.

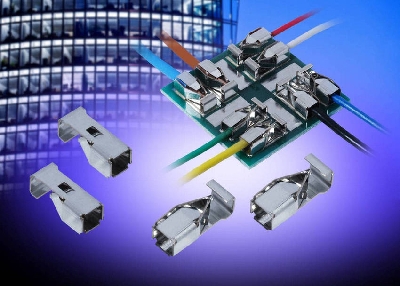

Boxed Contact System enables solderless wire termination.

AVX Corp.    Raleigh, NC 27604
May 08, 2013 Intended for solid-state lighting, 9296 Series enables single-contact placement, expanding design functionality in wire-to-board applications. Surface-mount, single-poke, dual-beam contact system features optimized solder pad and closed-box design that captures wires from all sides. Accepting 12-20 AWG solid and stranded wires, contacts are rated for 10–20 A, depending on AWG. RoHS-compliant contacts, made of tin-over-nickel-plated copper alloy, operate from -40 to +125°C.

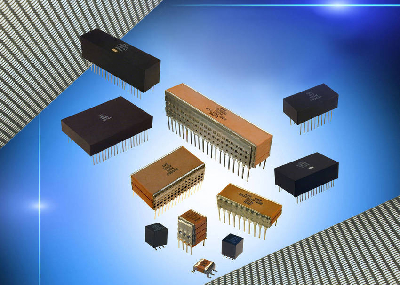

Stacked MLC Capacitors feature 25 V rating.

AVX Corp.    Raleigh, NC 27604
Apr 09, 2013 Featuring MIL-PRF-49470 Level B reliability, SMPS Series 25 V Capacitors offer capacitance range of 1.5–390 µF and operating temperature of -55 to +125°C. Units are available with through-hole and surface-mount lead options to provide mechanical decoupling of ceramic chips from board and minimize stress during board flexing, vibration, and temperature cycling. Applications include I/O filters of high-power/high-voltage power supplies as well as bus filters and DC snubbers for high-power inverters.

RF Chip Capacitors target automotive applications.

AVX Corp.    Raleigh, NC 27604
Apr 04, 2013 Designed to meet or exceed AEC Q200 requirements, U Series features lead-free, plated Ni/Sn terminations and temperature range of -55 to +125°C. Models in 0402 case size offer working voltages of 25 and 50 WVdc with capacitance from 0.2–22 pF at 1 MHz, while models in 0603 case size feature working voltages of 50, 100, and 200 WVdc with capacitance from 1.0–100 pF at 1 MHz. RoHS-compliant capacitors are suited for automotive WiFi, collision avoidance, and traffic alert systems.

MLC RF Capacitors features near-pure silver electrodes.

AVX Corp.    Raleigh, NC 27604
Mar 15, 2013 Rated for use from -55 to +125°C, lead-free and RoHS-compliant microwave MLCCs of UQ Series have 0.1–1,000 pF capacitance range and are available in 7 voltages from 50–500 V as well as 8 capacitance tolerances from ±0.1 pf to ±20%. Case sizes include 0605, 1210, 0709, 0402, 0603, and 0805, and termination styles include nickel barrier Sn/Pb (60/40), 100% tin, and non-magnetic barrier/tin. Products meet or exceed requirements of EIA-198, MIL-PRF-55681, and MIL-PRF-123.

Automotive Varistors provide bi-directional ESD protection.

AVX Corp.    Raleigh, NC 27604
Mar 08, 2013 Based on zinc-oxide technology, Automotive Sub pF AG Series features capacitance value of 0.8 pF with tolerance of ±20%. AEC-Q200-Qualified units have working voltage range up to 16 V and offer multi-strike capability, protecting sensitive circuits from over voltage. Housed in low-profile 0402 package, RoHS-compliant varistors are suited for antennas, RF circuits, and optics as well as HDMI, Firewire, Thunderbolt, GPS, camera link, sensors, and touchscreen interfaces.

Multilayer Ceramic Capacitors offer super dielectric option.

AVX Corp.    Raleigh, NC 27604
Dec 20, 2012 With N1500 super dielectric option, SV Series is suited for snubbers in high-frequency power converters, resonators in SMPS, AC line filtering, and high-voltage coupling/DC blocking. Radial leaded units feature capacitance range of 100 pF to 0.47 µF with tolerances of ±5%, ±10%, and 20%; voltage range of 600-5,000 V; and max dissipation factor of 0.15%. Operating from -55 to +125°C, capacitors are coated with high dielectric strength epoxy, which eliminates possibility of arc flashover.

Single-Piece Connector solves Edison-replacement LED bulb issues.

AVX Corp.    Raleigh, NC 27604
Dec 19, 2012 Available in 2–6 positions, 9159-500 SMT, bottom entry, board-to-board, card edge connector eliminates process of hand soldering wires to top side of PCB in Edison-replacement LED bulb assemblies. Design lets perpendicular PCB be mated to top-mounted main FR4 or metal core PCB from bottom side using standard pick and place equipment and reflow soldering. Functionality also promotes performance in designs regarding color control and specific line control.
