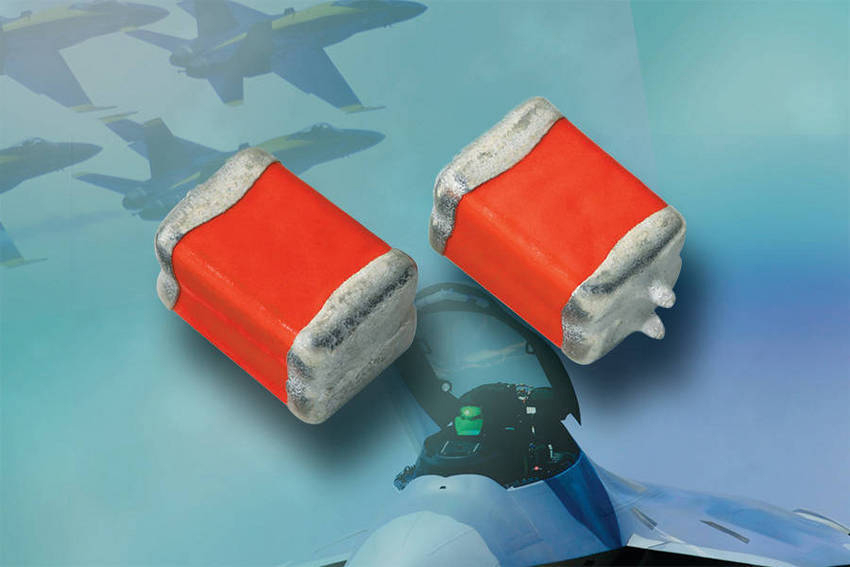

Solid Tantalum Chip Capacitors work with +28 V power supplies.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 21, 2013 Approved to DLA Specification 13008, Hi-Rel TANTAMOUNT® 597D series capacitors are optimized for DC/DC conversion and power distribution in weapons and radar systems, avionics, and space-based electronics. Dual anode construction ensures ESR down to .015 Ω at +25°C and 100 kHz. Units operate over temperature range of -55°C to +85°C, and up to +125°C with voltage derating. Nine case sizes are available, covering capacitance range of 10–1,500 µF over 4–63 V voltage range.

IR Emitters and Photodiode are suited for IR touch panels.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 15, 2013 IR emitters VSMG10850 (850 nm) and VSMB10940 (940 nm) and package-matched, high-speed silicon PIN photodiode VEMD10940F, with radiant sensitivity from 780–1,050 nm, offer ±75° angle of half intensity in 3 x 2 x 1 mm side-view SMT package. Offered in clear, untinted plastic packages, IR emitters provide radiant intensity of 1 mW/sr typ @ 20 mA and switching times of 15 nsec. Featuring daylight blocking filter, VEMD10940F offers reverse light current of 3 µA and dark current of 1 nA.

Bridge Rectifiers feature reverse voltages to 1,000 V.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 10, 2013 Housed in surface mount MBLS package with typical height of 1.4 mm, Models MBL104S, MBL106S, MBL108S, and MBL110S feature max peak reverse voltage ratings of 400, 600, 800, and 1,000 V, respectively. Miniature,1 A glass passivated units provide surge current capability of 30 A, low forward voltage drop of 0.95 V at 0.4 A, and max junction temperature of +150°C. RoHS-compliant and halogen-free, single-phase rectifiers are suited for AC/DC full wave rectification in smartphone chargers.

P-Channel High-Side Load Switches come in compact WCSP6 package.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 26, 2013 Designed for 1.5–5.5 V operation, SiP32458 and SiP32459 slew-rate-controlled p-channel high-side load switches feature integrated gate pump, 4.2 µA quiescent current, and controlled slow turn-on slew rate of 3 msec typ at 4.5 V. Products come in 6-bump wafer-level CSP package with 1 x 1.5 mm footprint and 0.5 mm pitch, support 3 A continuous current, and provide switch on-resistance of 30 mΩ typ at 1.5 V, 26 mΩ typ at 1.8 V, and 20 mΩ typ at 3.3 and 5 V.

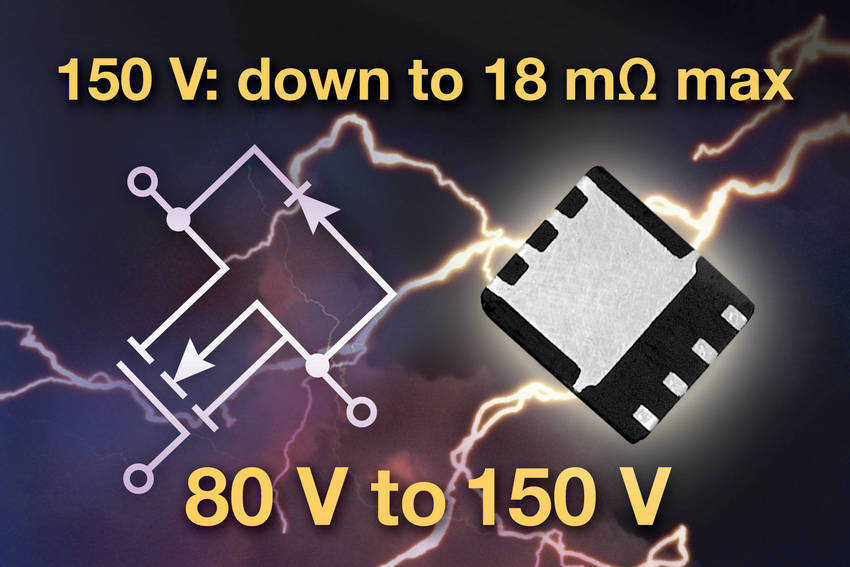

Power MOSFET offers on-resistance down to 18 mOhm.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 23, 2013 Housed in thermally enhanced PowerPAK® SO-8 package, Model SiR872ADP extends ThunderFET® technology to 150 V. Device offers low on-resistance of 18 mΩ at 10 V and 23 mΩ at 7.5 V while maintaining low gate charge of 31 nC at 10 V and 22.8 nC at 7.5 V. N-channel TrenchFET® power MOSFET is optimized for primary-side switching and secondary-side synchronous rectification in DC/DC converters, DC/AC inverters, and boost converters for telecom bricks, solar micro-inverters, and brushless DC motors.

Infrared Emitting Diodes offer wide-dome lenses.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 09, 2013 With 850, 890, and 940 nm wavelengths, VSMY2853, VSMF2893, VSMB2943, and VSMB2948 Series provide ±25° and ±28° angles of half intensity and optical power from 20–35 mW/sr at 100 mA drive current. Units feature GaAIAs surface emitter chip (VSMY2853), double hetero (VSMF2893), and multi quantum well (VSMB2943, VSMB2948) technologies. Supplied in 2.3 x 2.3 x 2.5 mm gullwing and reverse gullwing packages as well as 2.3 x 2.55 x 2.3 mm side-view packages, emitters offer switching speeds down to 10 ns.

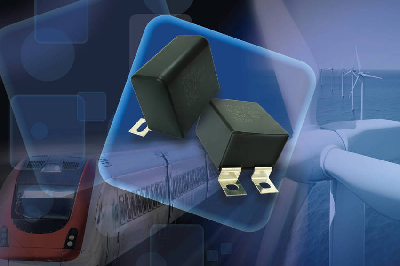

Snubber Capacitor mounts directly on IGBT module.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 05, 2013 Offered in flame-retardant plastic case with epoxy resin seal, Model MKP386M features capacitance range of 0.047–10 µF, operation to +105°C, and 7 voltage ratings from 700–2,500 Vdc and 420–800 Vac. Device reduces voltage and current spikes caused by switching of IGBTs, which are sources of EMI. With pulse strength to 2,500 V/µs and peak current capabilities to 1,850 A, metallized polypropylene film capacitor is suited for power/frequency converters, solar inverters, and wind power motor drives.

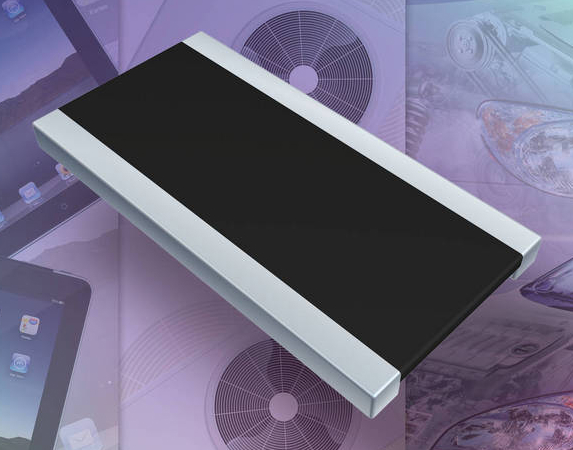

Power Metal Strip Resistor has low resistance, 1020 case size.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 03, 2013 Suited for all types of current sensing and pulse applications, Vishay Dale WSL1020 comes in 0.200 x 0.100 x 0.025 in. package with wide side terminal construction that yields 2 W power rating. SMT Power Metal Strip® resistor, operating over -65 to +170°C range, features construction that incorporates solid metal nickel-chrome alloy resistive element with TCR <20 ppm/°C. Resistance values range from 0.003–0.006 Ω, with tight tolerances of 0.5%, 1.0%, and 5.0%.

SMT Power Metal Strip® Resistor has 2 W power rating.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 27, 2013 Supplied in 0.200 x 0.100 x 0.025 in. 1020 case, WSL1020 features wide side terminal construction as well as solid metal nickel-chrome alloy resistive element with TCR <20 ppm/°C. Resistance values for this lead (Pb)-free, RoHS-compliant device range from 0.003–0.006 Ω, with tight tolerances of 0.5%, 1.0%, and 5.0%. Other features include all-welded construction, -65 to +170°C operating range, 0.5–5 nH inductance, response to 50 MHz, and thermal EMF <3 µV/°C.

Thin Film Resistor Chips feature extended S level failure rate.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 20, 2013 Intended for military and aerospace applications, E/H Series offers S level failure rate of 0.001% per 1,000 hr in 12 case sizes. MIL-PRF-55342-qualified SMD resistors feature electroplated nickel barrier for operating conditions to +150°C, TAMELOX resistive element, and high-purity alumina substrate for power ratings to 1,000 mW. With less than - 25 dB noise, resistors offer absolute TCR down to ±25 ppm/°C, laser-trimmed tolerances down to 0.1 %, and resistance range from 10 Ω to 6.19 MΩ.
