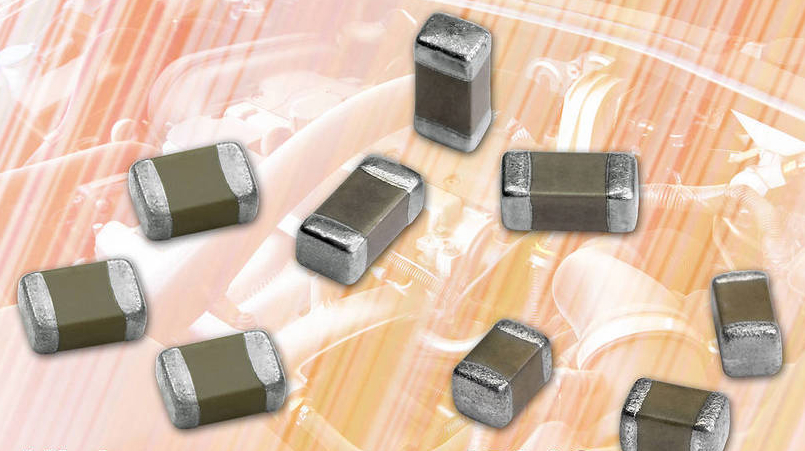

Automotive SMD MLCCs conserve space and operate up to +150°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 14, 2013 Qualified to AEC-Q200 with PPAP available on request, VJ automotive series includes surface mount multilayer ceramic chip capacitors (MLCCs) VJ….31 and VJ….34 in 0402 case size with X8R dielectric. Also, 0603 and 0805 case sizes featuring X8R dielectric offer working voltages of 100 V. Available in terminations with 100% tin plate matte finish (VJ….31) or with conductive epoxy assembly termination (VJ….34) for hybrid applications, products offer 330 pF to 27 nF capacitance range.

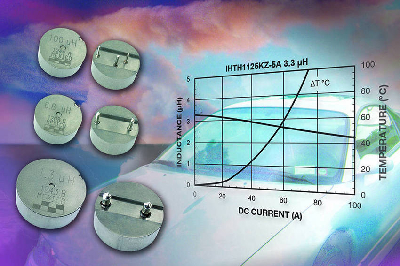

High-Temperature Inductors target automotive applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 13, 2013 Offered in 0750 and 1125 case sizes, respectively, IHTH-0750IZ-5A and IHTH-1125KZ-5A operate at up to +155°C with currents to 125 A and inductance values from 0.47–100 µH. With frequency range up to 10 MHz for some values, devices offer solution for voltage regulator modules and DC/DC converters. AEC-Q200-qualified inductors, housed in RoHS-compliant, lead-free shielded package, are suited for engine and transmission control units, diesel injection drivers, HID lighting, and noise suppression.

Fast Recovery Rectifiers minimize switching losses.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 10, 2013 Featuring planar structure and platinum doped lifetime control, FRED Pt® Hyperfast and Ultrafast Recovery Rectifiers include 3 A devices in SMA package, 3 and 4 A devices in SMB package, and 4 and 5 A models in SMC package. Solderable units are intended for PFC diodes, boost diodes, and freewheeling diodes in power switching applications. With operating junction temperature to +175°C, RoHS-compliant rectifiers minimize switching losses in consumer products and electronic ballast lighting.

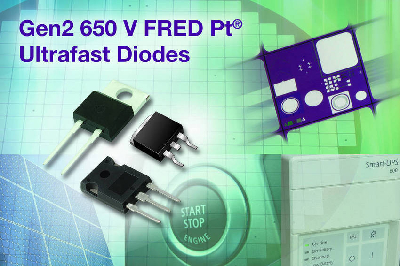

FRED Diodes minimize switching losses.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 31, 2013 Offering rated currents from 2–150 A, Gen2 650 V FRED Pt® Ultrafast Diodes minimize switching losses in solar inverters, UPS systems, electric vehicles, welding machines, and servers. H Series supports applications working above 40 KHz, while U Series, available on request, supports applications up to 40 KHz. Bare die devices feature max operating junction temperature of +175°C, typical reverse recovery times down to 28 ns at +25°C, and forward voltage down to 1.38 V typical.

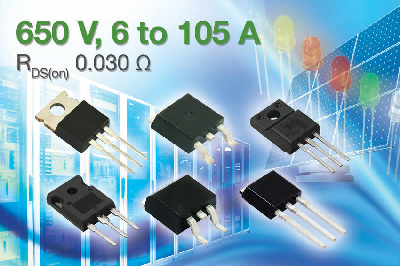

N-Channel Power MOSFETs offer on-resistance down to 30 mOhm.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 24, 2013 Available in 8 different packages and 22 additional models, E Series offers extended on-resistance from 30–600 mΩ at 10 V and max current ratings from 6–105 A. RoHS-compliant, 650 V devices withstand high energy pulses in avalanche and commutation modes with guaranteed limits through 100% UIS testing. Based on Siliconix Super Junction Technology, MOSFETs are suited for switch mode applications, including PFC, server/telecom power systems, UPS systems, battery chargers, and LED lighting.

Solid Tantalum Chip Capacitors work with +28 V power supplies.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 21, 2013 Approved to DLA Specification 13008, Hi-Rel TANTAMOUNT® 597D series capacitors are optimized for DC/DC conversion and power distribution in weapons and radar systems, avionics, and space-based electronics. Dual anode construction ensures ESR down to .015 Ω at +25°C and 100 kHz. Units operate over temperature range of -55°C to +85°C, and up to +125°C with voltage derating. Nine case sizes are available, covering capacitance range of 10–1,500 µF over 4–63 V voltage range.

IR Emitters and Photodiode are suited for IR touch panels.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 15, 2013 IR emitters VSMG10850 (850 nm) and VSMB10940 (940 nm) and package-matched, high-speed silicon PIN photodiode VEMD10940F, with radiant sensitivity from 780–1,050 nm, offer ±75° angle of half intensity in 3 x 2 x 1 mm side-view SMT package. Offered in clear, untinted plastic packages, IR emitters provide radiant intensity of 1 mW/sr typ @ 20 mA and switching times of 15 nsec. Featuring daylight blocking filter, VEMD10940F offers reverse light current of 3 µA and dark current of 1 nA.

Bridge Rectifiers feature reverse voltages to 1,000 V.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
May 10, 2013 Housed in surface mount MBLS package with typical height of 1.4 mm, Models MBL104S, MBL106S, MBL108S, and MBL110S feature max peak reverse voltage ratings of 400, 600, 800, and 1,000 V, respectively. Miniature,1 A glass passivated units provide surge current capability of 30 A, low forward voltage drop of 0.95 V at 0.4 A, and max junction temperature of +150°C. RoHS-compliant and halogen-free, single-phase rectifiers are suited for AC/DC full wave rectification in smartphone chargers.

P-Channel High-Side Load Switches come in compact WCSP6 package.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 26, 2013 Designed for 1.5–5.5 V operation, SiP32458 and SiP32459 slew-rate-controlled p-channel high-side load switches feature integrated gate pump, 4.2 µA quiescent current, and controlled slow turn-on slew rate of 3 msec typ at 4.5 V. Products come in 6-bump wafer-level CSP package with 1 x 1.5 mm footprint and 0.5 mm pitch, support 3 A continuous current, and provide switch on-resistance of 30 mΩ typ at 1.5 V, 26 mΩ typ at 1.8 V, and 20 mΩ typ at 3.3 and 5 V.

Power MOSFET offers on-resistance down to 18 mOhm.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 23, 2013 Housed in thermally enhanced PowerPAK® SO-8 package, Model SiR872ADP extends ThunderFET® technology to 150 V. Device offers low on-resistance of 18 mΩ at 10 V and 23 mΩ at 7.5 V while maintaining low gate charge of 31 nC at 10 V and 22.8 nC at 7.5 V. N-channel TrenchFET® power MOSFET is optimized for primary-side switching and secondary-side synchronous rectification in DC/DC converters, DC/AC inverters, and boost converters for telecom bricks, solar micro-inverters, and brushless DC motors.
