Syringe Heater ensures consistent material viscosity.

DL Technology, LLC    Haverhill, MA 01832
Jul 29, 2005 Intended for programmable temperature control and preheating of dispense materials, DL Syringe Heater is available in 10 and 30 cc sizes, and operates at 24 V up to 65 W. Unit is precision engineered from aluminum to conduct heat directly to syringe, while non-conductive mounting prevents transfer of heat to valve or motor. When combined with DL HY-FLOâ„¢ Valve, Syringe Heater provides complete solution for large-volume liquid dispensing applications.

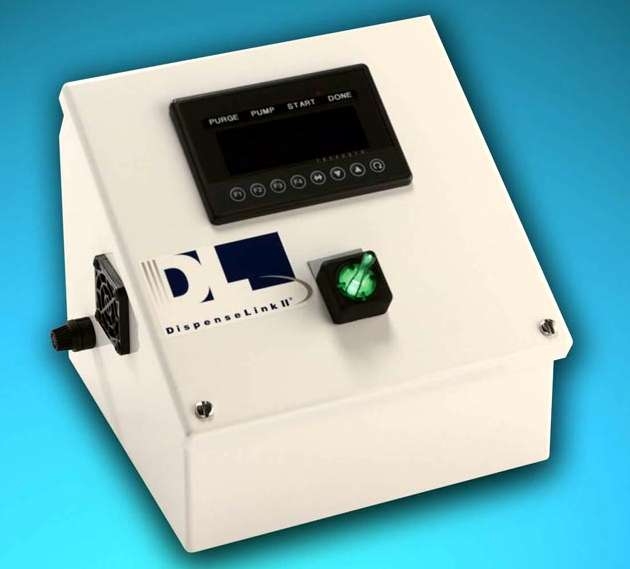

Dispensing System offers secure, programmable operation.

DL Technology, LLC    Haverhill, MA 01832
Jul 07, 2005 DispenseLink II® system is compatible with Micro Valveâ„¢ for micro-volume dispensing or HY-FLOâ„¢ valve for large-volume dispensing applications. PLC controls provide single-dispense programming for RPM, index, and acceleration, while programmable encoder controls rotation of auger and provides 57,000 counts per 360° revolution, allowing valve to repeatably dispense down to 0.005 in. System includes mounting hardware, 5 m cables, and digital pressure gauge.

Dispensing Enhancement Kit integrates with existing valves.

DL Technology, LLC    Haverhill, MA 01832
Jan 06, 2004 Micro Dispensing Enhancement Kit offers solution to worn or outmoded dispensing valves without off-site repairs or entire valve replacement. It includes DL Cartridge, DL Pump Body with adapter for existing motor, DL Pump Mount, and DL stainless steel needles. Compliant Z-axis is provided for use with footed dispense needles.

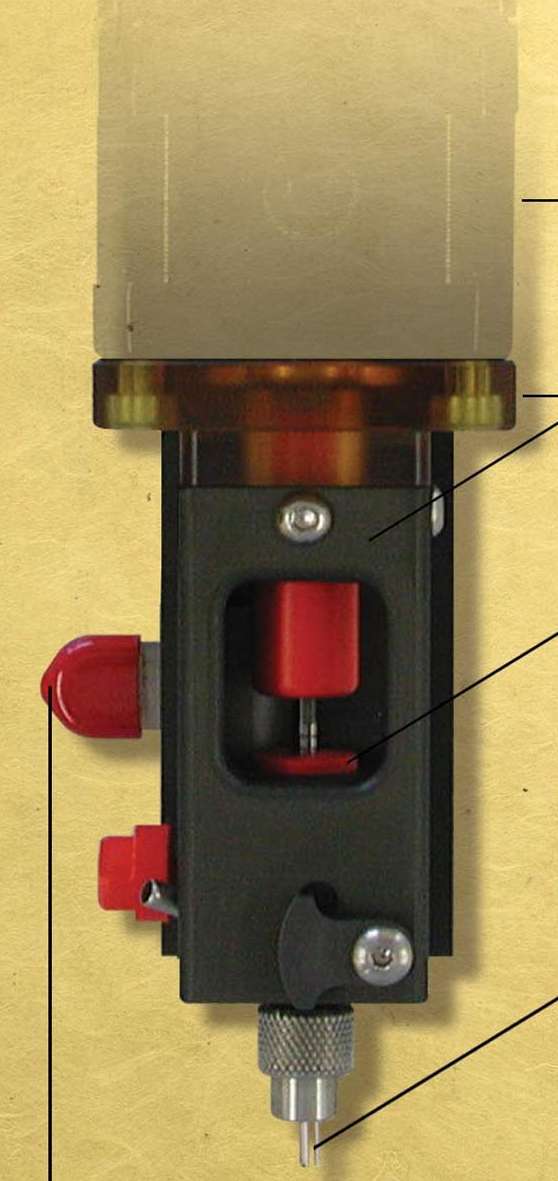

Dispensing Valve features encoder count.

DL Technology, LLC    Haverhill, MA 01832
Jul 31, 2003 Micro Valveâ„¢ uses programmable encoder, which controls rotation of auger, providing 200,000 counts per 360° revolution. Valve can repeatably dispense 5.5 mil volumes, depending on material and application requirements. Multiple cartridge styles accommodate 3 different needle styles. Auger and cartridge liner are carbide, creating almost frictionless operation. Valve is suited for high-density interconnect, optoelectronics, and semiconductor packaging applications.

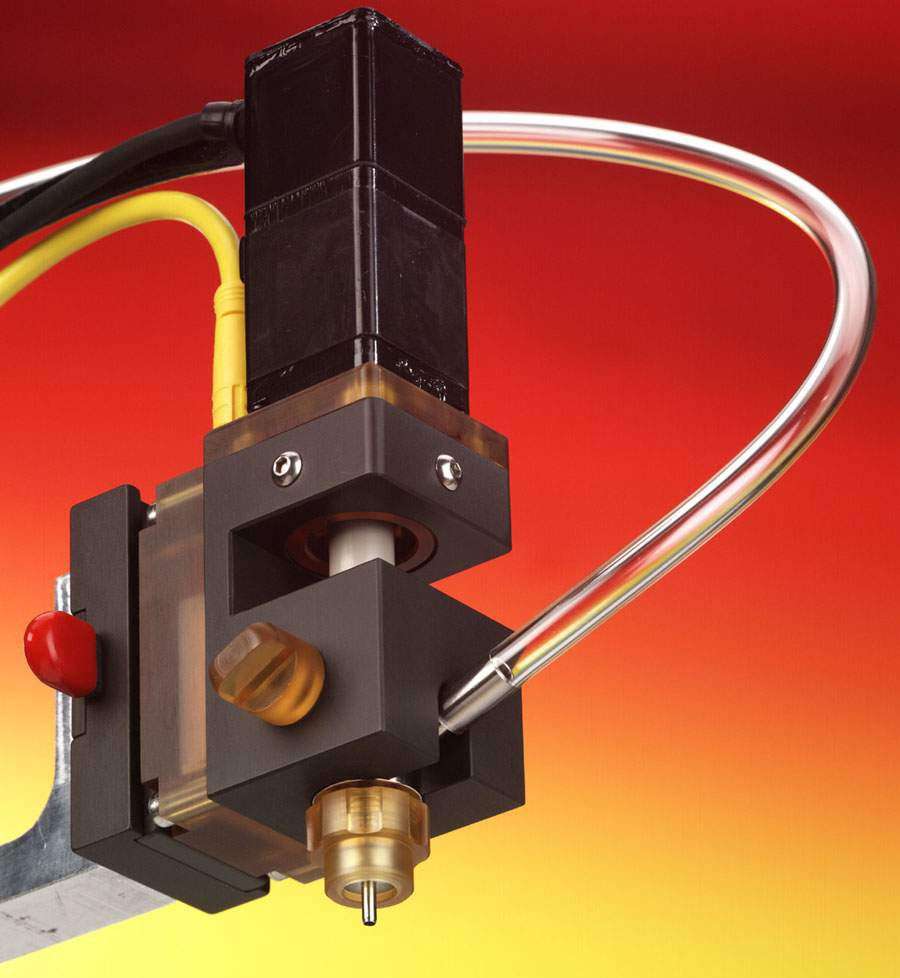

Dispensing Valve offers precise thermal controls.

DL Technology, LLC    Haverhill, MA 01832
Jul 08, 2003 With flow rate as high as 250 mg/sec, HY-FLOâ„¢ maintains consistent temperature and material viscosity in large-volume dispensing applications. Embedded thermocouple offers closed-loop control, while plastic prevents heat migration to gantry and motor. Auger rotation, controlled by brushless motor with programmable encoder, provides 8,000+ counts per 360° revolution. Valve uses 24 V, 40 W Kapton heater and copper cartridge and operates in temperatures from ambient to 100°C.

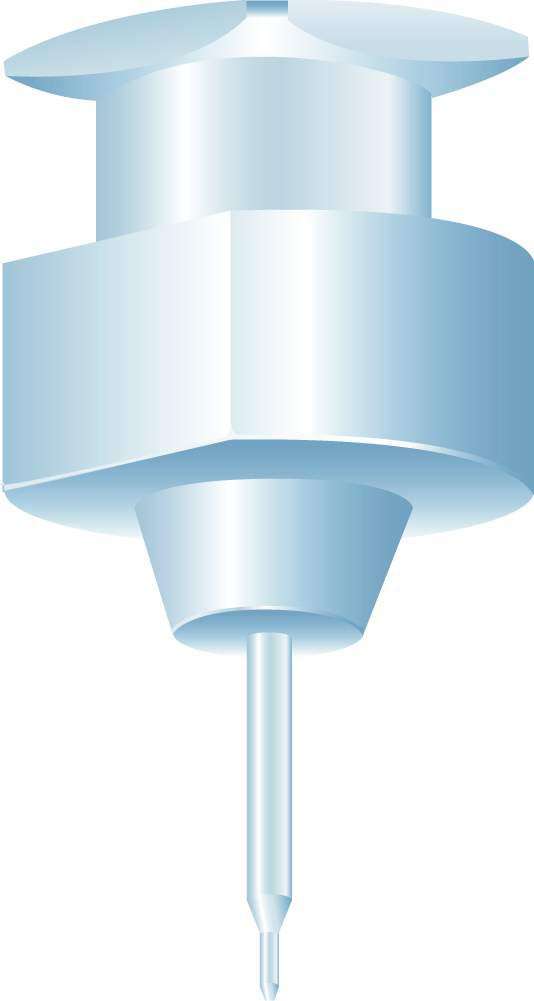

Stainless Steel Needles dispense epoxies and solder paste.

DL Technology, LLC    Haverhill, MA 01832
Mar 07, 2003 EZ-FLOâ„¢ Luer-Lok® style dispensing needles are precision machined from single piece of stainless steel with ID tolerance of ±0.0002 in. Chamfered tips are finely ground in conical direction for better transfer of material from needle tip to dispensing surface. Easy Release needles accommodate surface mount epoxy, solder paste, solder mask, and conductive epoxy. They are offered in 22–28 gauge with .25 in. length.

Dispense Valve Cartridge suits micro volume applications.

DL Technology, LLC    Haverhill, MA 01832
Dec 11, 2002 No-Drip vacuum-sealed cartridge dispenses flux, underfill, and encapsulation. Product utilizes post-dispense vacuum to reverse internal auger, drawing excess material back into cartridge. Amount and duration of vacuum is programmable. Unit dispenses low-viscosity materials that tend to drip between dispense locations. Precision machined DL Cartridges are available in 3 styles: floating/fixed, large-hub, and Luer-style.

Dispensing System upgrades any platform to micro volumes.

DL Technology, LLC    Haverhill, MA 01832
Aug 06, 2002 DispenseLinkâ„¢ provides micro volume capability for any dispensing platform in high density interconnect, semiconductor packaging, and SMT applications. It includes controller, DL Micro Valve, and DL custom machined dispensing needles. System can provide dot arrays, lines, fill routines, and custom patterns at material volumes of 10 mils or less. Needles are machined from solid stainless steel and have conically chamfered tip.

Controller provides micro volume dispensing capability.

DL Technology, LLC    Haverhill, MA 01832
Nov 17, 2001 DispenseLink is designed for micro volume dispensing for high-density interconnect, semiconductor packaging and SMT applications. Providing programmable increment and velocity control for DL Micro Valve, controller has capability for dot arrays, lines, fill routines, and custom patterns at material volumes of less than 10 mL. Brushless motor controls auger rotation with programmable encoder, providing more than 57,000 counts per 360° revolution.
