Digital Input Modules decentralize control of up to 64 sensors.

Pilz Automation Safety L.P.    Canton, MI 48187
Jun 18, 2010 Rated to IP67, PDP67 F 8DI ION enables decentralized monitoring of all sensors in field to be connected to PNOZmulti configurable control system. Digital input modules enable contact-based as well as electronic sensors to be connected outside control cabinet in accordance with PL e of EN ISO 13849-1 and SIL 3 of EN/IEC 62061. Using one cable for communication and supply, product accommodates up to 64 safe sensors via safe data link.

Decentralized I/O System is designed with modular approach.

Pilz Automation Safety L.P.    Canton, MI 48187
Jun 08, 2010 PSSuniversal accommodates compact modules, available with 16 digital standard inputs and 16 digital standard outputs. Three modules are also compatible with electronic and base modules in PSSuniversal, and various available connectors enable modules to accommodate 1-, 2-, or 3-wire connections. Plug-in terminals can be pre-assembled, and area is available for labeling equipment identifier for each signal. Signal and status LEDs are also standard.

Automation Control System offers safe processing of analog values.

Pilz Automation Safety L.P.    Canton, MI 48187
Jun 08, 2010 With failsafe analog input modules, PSS 4000 is suitable for safe, decentralized recording of analog values. Two different modules are available for safety-related evaluation of voltage signals from -10 to +10 V or current signals from 0-25 mA. PSSuniversal PLC offers various head modules to which I/O modules can be connected individually and which are available for control functions, local preprocessing, or in form of communication interface for SafetyNET p.

Safety and Control System offers half-byte mapping feature.

Pilz Automation Safety L.P.    Canton, MI 48187
Apr 09, 2010 Along with PROFINET interface, PSSuniversal features half byte mapping, which facilitates orientation within system. Integrated standard automation lends to safety, while software accelerates commissioning. There is an absence of feedback between standard and safety, and safety settings for each device are made at single point. Based on modular structure, system minimizes planning and management effort via utilization of FS addresses plus number of addresses.

Safety Gate System measures only 45 mm wide.

Pilz Automation Safety L.P.    Canton, MI 48187
Jan 19, 2010 Combining safety gate monitoring, safe guard locking with escape/auxiliary release, E-STOP, and request and acknowledgement functions, PSENsgate offers security for machines, including protection against hazardous movements and overrun. It can be used in applications up to PL e of EN ISO 13849-1, SIL 3 of EN/IEC 62061, and Category 4 of EN 954-1, and is suited for any industry, where safety gates have to be opened repeatedly for assembly or operational purposes.

Safety Speed Monitoring Relay comes with monochrome display.

Pilz Automation Safety L.P.    Canton, MI 48187
Jan 19, 2010 Suitable for all common motor feedback systems and proximity switches, PNOZ s30 monitors safe standstill, speed, and direction of rotation. It is operated via rotary knob and comes with chip card for storing application parameters, allowing for exchange of units without need for separate software. Monitor sends advance warning to motor control system if set warning threshold is reached, helping to avoid shutdowns. Parameter data is password-protected.

Safety Controller features miniature, 45 mm wide design.

Pilz Automation Safety L.P.    Canton, MI 48187
Nov 04, 2009 Bridging gap between standard and programmable relays, PNOZmulti Mini performs machine control tasks and monitors 2 or more safety functions such as emergency stop, safety gates, and light beam devices. Software-configured unit comes with 20 inputs, 10 if device being monitored requires dual channel wiring and 4 semiconductor outputs, 2 if dual channel wiring is required. LCD provides on-site diagnostics, while push and turn operator control allows access to status and diagnostics messages.

Safety Gate Switch is magnetically operated.

Pilz Automation Safety L.P.    Canton, MI 48187
Sep 16, 2008 PSENslock series combines secure safety gate monitoring and non-contact magnetic interlock. Electro-magnetic holding force of 500 N prevents unintentional opening of swing/sliding gates, and transponder technology is manipulation-proof because switch and actuator are different items. Tolerant to gate misalignment, IP67-rated series is designed for applications up to SIL3 and offers flexible mounting options and double-sided LED diagnostics.

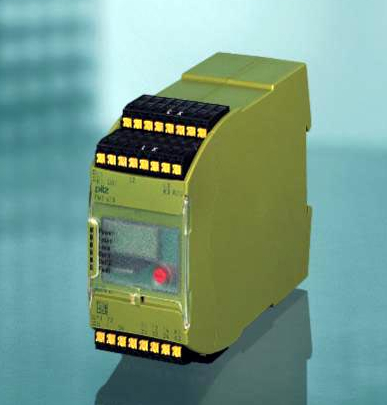

Electronic Relays monitor various motor values.

Pilz Automation Safety L.P.    Canton, MI 48187
Sep 10, 2008 Designed to monitor voltage, current, temperature, and phase sequence, PMDsigma Relays enable users to set values via rotary knob and save them to chip card. Data remains flexible and can be copied to other units. Model PMD s10 monitors true power of motors with rating up to 11 kW, and can process frequencies from 0-1,000 Hz, making it suitable for dc and ac motors as well as frequency-controlled drives. With relays, users can implement early warning system for hazardous plant conditions.

Light Barriers use single infrared or laser beam.

Pilz Automation Safety L.P.    Canton, MI 48187
Mar 21, 2008 Suited for machinery safety applications, PSEN op2S/4S Light Barriers feature M22 threaded bodies that are sealed to IP67. Wiring is completed via M12 connectors on transmitter and receiver. Infrared units have max operating range of 8 m and response time of 1.5 ms, while laser version has extended range of 40 m and response time of 320 µs. Barriers conform to requirements of BS EN 954-1, Category 2, 3, or 4, and are compliant and approved in accordance with EN61496-1 and IEC61496-2.
