Mini-ITX Motherboard features Intel® Atom(TM) processors.

Advantech Automation Corp.    Cincinnati, OH 45240
Feb 13, 2012 Featuring standard 170 x 170 mm form factor, Model AIMB-214 combines Intel® Atom(TM) N2600, N2800, and D2700 dual core processors with integrated GMA 640/400 MHz graphics and Memory Controller Hub. Board can support up to 2 or 4 GB of DDR3 1066 SDRAM, depending on processor. Equipped with up to 6 USB 2.0 ports and 6 COM ports, Model AIMB-214 supports dual display output for LVDS, embedded display port, and VGA.

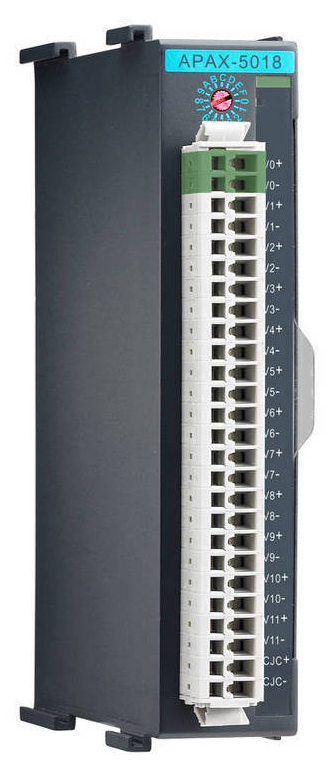

Thermocouple Module offers 12 configurable input channels.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 17, 2011 Offered as high-density, analog input solution for reading thermocouple sensor data, APAX-5018 allows each of its 12 input channels to be configured with different input types and ranges regardless of voltage, current, and thermocouple inputs. Integrated wire burn-out detection enables each input channel to detect connection status of thermocouple sensors automatically. If thermocouple is not connected/sensed, channels return to configured values to avoid unexpected event occurrences.

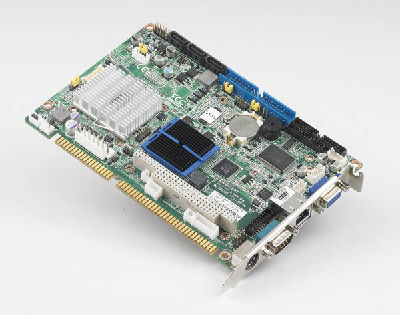

Single Board Computer uses single and dual core processors.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Resistant to heat and dust in extreme environments, ISA half-size Model PCA-6782 is available with dual-core Intel Atom D525 CPU or single-core Intel Atom N455 CPU, both with 2 GB of DDR2 667 MHz memory. Integrated graphic core is based on Intel's Embedded Gen 3.5+ graphic technology with 224 MB shared memory, enabling 2D/3D graphic processing tasks without additional graphic card. Equipped with VGA and LVDS video outputs, Model PCA-6782 supports dual display applications.

Modbus Gateways integrate Ethernet cascading capability.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Able to fulfill installation and Web browser configuration requirements for remote monitoring applications, EKI-1221D and EKI-1222D offer transparent connectivity between Modbus (ASCII, RTU) serial devices and Ethernet-based Modbus/TCP equipment. Both have built-in Ethernet switches for cascading/daisy-chain connectivity and flexible cabling. Designed to fulfill any master/slave relationship, gateways provide 921k baud speeds and support 16 TCP masters and 16 TCP slaves.

Flash-based Solid State Drive includes security features.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 13, 2011 Featuring 7-pin interface in vertical configuration, Model SQF-SDM SATA Disk on Module resists shock and vibration while providing storage for industrial PCs, POS, medical devices, and networking infrastructure. Drive uses SSD controller from TDK and SLC NAND flash memory, which is rated up to 5,000,000 program/erase cycles. Available in 2-32 GB capacities, module includes Flash Lock utility, which can lock SQFlash to corresponding platform so it cannot be accessed by another platform.

DIN-Rail PCs suit machine, factory automation applications.

Advantech Automation Corp.    Cincinnati, OH 45240
Dec 07, 2010 Powered by 500 MHz AMD Geode(TM) LX 800 processors, UNO-1150G and UNO-1150GE feature fanless, industrial design with ground isolated chassis, IP40 protection, and remote monitoring support. Connectivity features include VGA, RS-232, and 2 RS-232/422/485 ports as well as 2 Ethernet ports, 2 USB 2.0 ports, audio interfaces. Additionally, UNO-1150GE features 2 PCI-104 slots, one mini-PCI, and one bay for SATA HDD and SSD devices. CompactFlash interface is also standard.

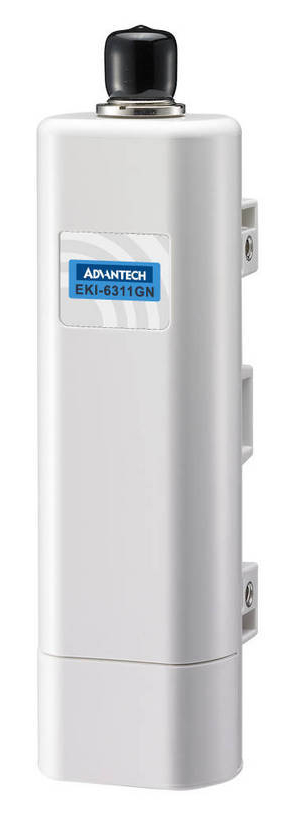

Wireless Access Point accommodates high-speed transmissions.

Advantech Automation Corp.    Cincinnati, OH 45240
Sep 23, 2010 Backwards compatible with 802.11b/g frequencies, EKI-6311GN security-enabled IEEE 802.11n industrial wireless access point supports STP, WMM, and IGMP snooping protocols to foster reliability. Data rate capabilities to 150 Mbps allow high-speed Internet access with various data and network video surveillance transmissions, while 600 mW output power enables deployments extending to 5 km. PoE injector, included, enables unified supply of data and power for deployment flexibility.

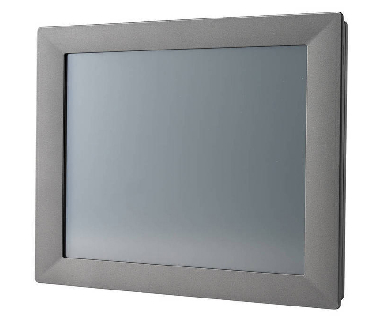

Touch Panel PCs feature advanced IP65 rating.

Advantech Automation Corp.    Cincinnati, OH 45240
Aug 27, 2010 Based on Intel® Atom(TM) eMenlow XL processor, Model TPC-651H features 5.7 in. SVGA TFT LCD and Model TPC-1251H has 12 in. SVGA TFT LCD. Both fanless units provide front sealed design, operating temperature of -20 to 60°C, and 2 kV isolation protection for all serial ports. Equipped with 2 serial ports and 2 USB 2.0 ports, PCs accept variety of peripherals. NEMA4/IP65 front panel provides resistance to harsh conditions of any industrial environment.

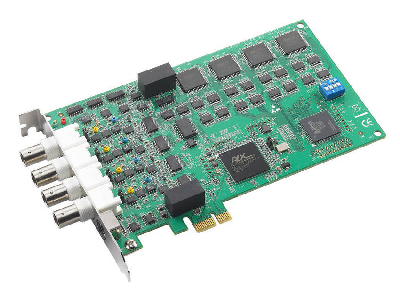

Analog Data Acquisition Card features PCI Express interface.

Advantech Automation Corp.    Cincinnati, OH 45240
Aug 09, 2010 Featuring multiple trigger modes, 12-bit Model PCIe-1744 achieves sampling rate of 30 MHz with independent analog-to-digital converters for each of 4 analog input channels. Large sample FIFO buffers per channel help ensure all readings are securely captured. Typical applications include automatic test equipment, quality control, and factory production.

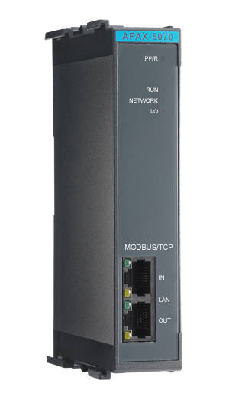

Remote I/O Module features flexible Modbus address mapping.

Advantech Automation Corp.    Cincinnati, OH 45240
Jul 26, 2010 With APAX-5070 Modbus/TCP Remote I/O solution, any PC, controller, or HMI device that supports Modbus/TCP protocol can add remote I/O functionality to access data and perform read and write actions. Unit features 2 RJ-45 ports with same IP address, which can build daisy chains to connect remote I/O devices directly without additional Ethernet switch. Modbus address mapping allows user to allocate mapping automatically or manually to minimize size of transferred data.
