Anybus Gateways facilitate PROFINET migration.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Oct 11, 2012 With Anybus X-gateways, plant owners and machine builders can migrate to PROFINET without making changes to existing machinery. Units can connect PROFIBUS and CANopen to PROFINET IRT with fiber optics, and ControlNet, EtherNet/IP, and DeviceNet to PROFINET IRT with copper cabling. PROFINET interface supports up to 220 bytes of I/O for both input and output data. With baud rate of 100 Mbps, gateway uses two RJ45 connectors or two SC-RJ connectors, allowing installations in line or ring topology.

Network Communications Modules come with M12 connectors.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Oct 02, 2012 Available for PROFIBUS RT, PROFINET, DeviceNet, EtherNet/IP, Modbus TCP, and EtherCAT, Anybus CompactCom modules with M12 connectors enable network connectivity for machinery that operates in wet, dusty, or other demanding industrial environments. Protection ratings of IP20 and IP67 apply, respectively, to modules with and without housing, and all CompactCom modules are completely interchangeable.

Wireless Bridge connects industrial Ethernet devices.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Nov 29, 2011 Using Anybus® Wireless Bridge, industrial Ethernet-based equipment can be connected via wireless technology and protocols such as Profinet, EtherNet/IP, and Modbus TCP can be bridged over distance up to 400 m. Wireless transmission is made via Bluetooth or WLAN technology. By connecting industrial devices and networks over wireless link, bridge enables users to create connections through hazardous areas, hard-to-reach locations, or moving installations where cables are not desirable.

Machinery Monitoring Software enables remote management.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Nov 22, 2011 Intended for industrial applications based on cloud technology, Netbiter® lets users monitor and control machinery from standard Web browser. All-in-one remote management solution includes communication gateways, secure hosting servers, and Web UI. Gateway connects to any type of remote equipment, usually via Modbus protocol, and sends information via Internet or secure GSM/GPRS connection which requires no VPN or static IP addresses.

Protocol Converter lets CAN-devices connect to industrial networks.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Aug 01, 2011 With throughput delay of no more than 5 msec, Anybus® Communicator CAN(TM) Protocol Converter enables any industrial device with CAN interface to communicate with Profibus, Profinet, DeviceNet, EtherNet/IP, EtherCAT, or CANopen networks. This allows automation devices, even those with slower CAN communication, to be integrated into high-speed fieldbus/Ethernet networks without restrictions to upper network. Dual-port switch enables daisy chaining and eliminates need for external switch.

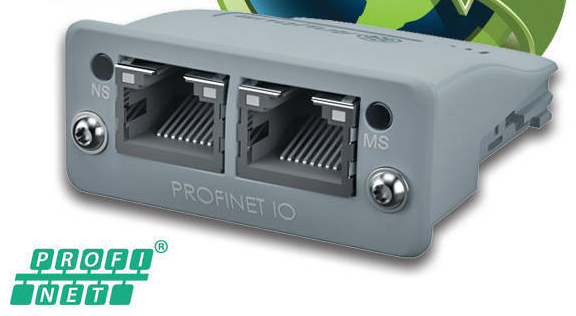

Embedded Communications Module supports PROFIenergy profile server.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Nov 22, 2010 Anybus-CompactCom PROFIenergy communication module, comprised of embedded Profinet communication module with integrated PROFIenergy profile server, supports manufacturing plant energy consumption reduction efforts of AIDA automobile manufacturers. Due to standardized PROFIenergy commands, central controller can switch complex automation systems consisting of automation devices from various manufacturers into standby mode during production breaks and standstill times.

Network Gateway connects CANopen, Ethernet, and fieldbus.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Oct 26, 2010 Supplied in DIN rail-mount plastic housing, CANopen X-gateway series connects CANopen networks with up to 10 other fieldbus and industrial Ethernet networks. Implementation is based on HMS NP30 MPU and is certified by CAN in Automation (CIA) for full conformance to CANopen DS 301 v4.0.2. On CANopen side, gateways function as masters, while on uplink network side they work as slaves. Operating from 24 V supply, series can integrate into any kind of industrial automation system.

Plug-In Communications Module fosters industrial automation.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Apr 28, 2010 Anybus-CC 2-port communication module with integrated switch enables automation device with integrated Anybus-CC slot to connect to any PLC with EtherNet/IP support and eliminates need for external switches. In addition to supporting EtherNet/IP real-time communication with bus or ring topologies, module provides TCP/UDP-IP socket interface and DLR (Device Level Ring) network protocol support. Onboard 2-port switch offers two 100 Mbps full duplex Ethernet interfaces with RJ45 connectors.

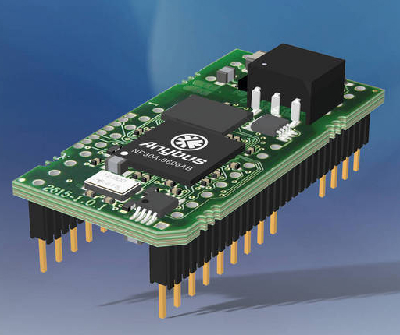

Interface Module conforms to CANopen standard.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Mar 03, 2010 Packaged in 8 cm² housing, Anybus-IC contains HMS NP30 microprocessor with integrated CAN controller and CANopen slave software stack. Embedded, single-chip device has 32-pin dual in-line design and requires single 5 V/150 mA power supply. Supporting up to 144 bytes of input data and 144 bytes of output data, Anybus-IC functions as standard CANopen slave and contains all hardware and software necessary for any automation device to communicate over CANopen network.

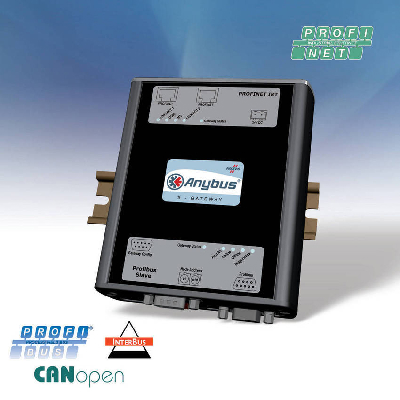

Profinet Gateways include integrated 2-port switch.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Feb 08, 2010 Featuring Profinet IO device interface with Isynchronous Real-Time functionality, Anybus X-Gateways enable integration of existing Profibus, Interbus, or CANopen fieldbus networks into Profinet-based network segments. Units provide transparent link for up to 240 bytes of I/O signals between 2 networks. Built for DIN rail mounting, stand-alone devices are suited for automobile industry where fieldbus networks are slowly being migrated to Profinet.
