Modular Tabletop Conveyors come in lengths of 3-40 ft.

DE-STA-CO Industries    Madison Heights, MI 48071
Apr 02, 2010 Featuring modular frame design in 18 in. increments, Modular Tabletop Conveyor Series provides multiple-station chassis for assembly of complicated products. For 3, 4.5, and 6 in. links, overall width of conveyor is approximately 13.5 in, accommodating linear and rotary parts handlers. Tapped holes along length of conveyor receive custom or standard tooling plates, while open backbone allows electrical, pneumatic, and mechanical components to pass through.

Ring Index Drives suit automated machinery applications.

DE-STA-CO Industries    Madison Heights, MI 48071
Jan 09, 2009 Designed with large through-holes to accommodate variety of automated machinery and equipment, CAMCO® Ring Index Drives include Models 1100RNG, 1550RNG, 750RNG, and 2000RNG with nominal ring diameters of 1.0, 1.5, .75, and 2.0 m, respectively. Users can attach fixtures directly to dial ring, eliminating need for additional dial plate. Direct shaft-mounted motorized drive package features precision ground cam with preloaded cam followers, cast steel housing, and preloaded center rib design.

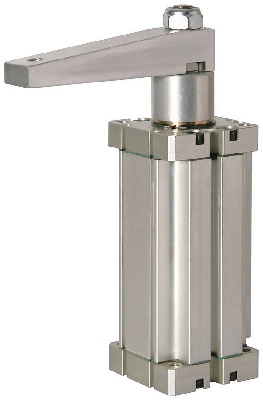

Pneumatic Swing Clamps deliver precise control.

DE-STA-CO Industries    Madison Heights, MI 48071
Dec 16, 2008 Featuring integral sensing capability that allows for precise control and monitoring of clamping position, 9500 series has no-backlash option, fixed orifice porting, and fully enclosed design. Clamps exert 41-212 lbf without deforming delicate parts and are adaptable to welding and assembly operations. Designed to allow for fixed and radially adjustable arm connections, series also features clamping arm with 90° swing that minimizes obstruction in workplace and reduces cycle time.

Manual Toggle Clamps combine holding power, ergonomics.

DE-STA-CO Industries    Madison Heights, MI 48071
Aug 28, 2008 Offering max holding capacity from 295-1,680 lb, horizontal handle hold-down action clamps of 2013, 2017, 2027, and 2037 series incorporate ergonomic handle grip, 2 flanged washers, and spindle assembly. Straight base options are available, and knob on end of open U bar prevents spindle slippage. While low pivot points provide for perpendicular clamp force, straight downward action helps prevent workpiece movement in fixture. Hand clearance in open position eliminates pinch points.

Modular Conveyors come in light-, medium-, and heavy-duty.

DE-STA-CO Industries    Madison Heights, MI 48071
Aug 28, 2008 With max conveyor length of 16 ft and chassis widths from 1.77-5.5 in., light-duty DCM Series handles part widths up to 4.6 in. and can transport up to 44 lb. Systems are driven by regulated, brushless 24 Vdc motor with variable speed and selectable direction. Medium-duty conveyors, operating with single or dual belt, come in chassis widths from 2.4-9.8 in., while heavy-duty models, driven by 230/480 V spur gear motor, come in widths from 7.9-31.5 in. and transport up to 275 lb.

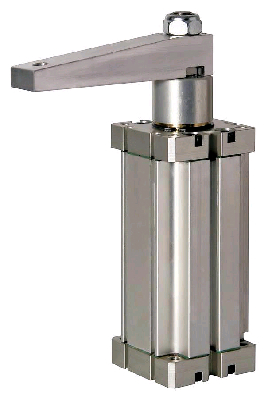

Pneumatic Swing Clamps feature fully enclosed design.

DE-STA-CO Industries    Madison Heights, MI 48071
Feb 11, 2008 Equipped with sensing capability for precise control and monitoring of clamping position, 9500 Series exerts clamping force from 41-212 lb without deforming delicate parts. Clamps feature switch grooves for 4 mm dia or 6 x 5 mm switches and fixed orifice porting to eliminate need for flow controls. Offering 90° swing, units allow for fixed and radially adjustable arm connections. Series eliminates linear travel during rotation and features no backlash option.

Conveyor Systems offer customizable options.

DE-STA-CO Industries    Madison Heights, MI 48071
Jun 06, 2007 DCM series of conveyors are available in light, medium, and heavy duty specifications with pivotal motor mounts for continuous operation and fast belt changes. With compact design and integrated control, light duty conveyor can transport up to 44 lb of parts. Medium duty unit comes with 2.4-9.8 in. chassis widths, while heavy duty unit is available in widths from 7.9-31.5 in. and driven by 230/480 V spur gear motor that permits transportation of up to 275 lb.

Gripper Series carries class 10 cleanroom rating.

DE-STA-CO Industries    Madison Heights, MI 48071
Feb 13, 2007 Designed for FDA, medical, and cleanroom applications, RPLC parallel gripper series features external components made from corrosion-resistant materials that optimize performance in de-ionized water. Internal components are lubricated with cleanroom-grade grease, while stainless steel stationary and non-contacting shields eliminate possibility of contaminants penetrating Dual-V roller bearings. Use of non-synchronous motion allows for independent jaw motion.

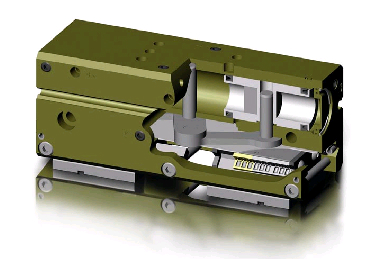

Parallel Grippers accommodate up to 4 sensors.

DE-STA-CO Industries    Madison Heights, MI 48071
Feb 06, 2007 Integrating DIRECTCONNECT(TM) technology, DPP Series can be mounted to other modular automation products without use of adaptor plates. Dual-V roller bearings provide low friction, while shielded design repels contamination from penetrating bearings, and purge/scavenge port enables use in clean room environments. Through non-synchronous motion option, grippers offer independent jaw motion that enables picking and placing at point other than gripper's center.

Manual Toggle Clamps offer holding capacity of 150-2,400 lb.

DE-STA-CO Industries    Madison Heights, MI 48071
Nov 14, 2006 Horizontal Handle Hold-Down Action Clamps, Series 2013, 2017, 2027, and 2037, feature ergonomic handle grip, 2 flanged washers, and spindle assembly. Low pivot points provide perpendicular clamp force while straight downward action helps to prevent movement of workpiece in fixture. Knob on end of open U bar prevents spindle slippage. Design facilitates hand clearance in open position, optimizing safety by eliminating pinch points.
