Broaching Attachments machine military parts.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Apr 10, 2009 With HexMaster(TM) Rotary Broaching Attachments, users can machine Hex, Double Hex, and other ID and OD shapes in seconds on most CNC lathes, mills, or screw machines with feed rates up to .012 ipr and speeds to 2,000 rpm. Attachments are suited for manufacturing military fasteners and defense parts.

Recess Milling Attachment fits most screw machines.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Oct 01, 2008 Quick change Rotary Recess Milling Attachments are offered with Erickson style spindles. Rotary recess milling eliminates bird nest chips typical to recessing operations, and Erickson style collets minimize runout while allowing use of various tool diameters. Features include enclosed return springs; fine infeed adjustment; and precision, hardened and ground dovetail slide with tapered steel gib and 1-touch adjustment.

Rotary Broaching Attachment works with Swiss screw machines.

Schlitter Tool, Inc.    Warren, MI 48093 6036
May 22, 2008 HexMaster(TM) ELITE can make ID hexes, broaches, splines, and other shapes on Swiss, Davenport, and small CNC lathes or screw machines where space is of concern. Available with shank sizes of 12 or 22 mm and 5/8 or ¾ in., this holder offers quick-set fixturing and is suited for broaching forms less than 3/8 in. dia. Solution enables manufacture of shapes in nearly any metal on nearly any machine.

Shave Tool Holder fights chatter.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Aug 23, 2002 Ultimate G Style shave tool holder has dovetail float mechanism, hardened and ground dovetail slide, and tapered gib. Dovetail float mechanism, with more bearing surface than original pin style holders, reduces chatter. Holder has replaceable tool post that can be removed without having to remove shave tool holder or altering setup at machine. Tool posts are available for standard dovetail tools or HSS and super carbide insert type tools.

Tool Holders suit Tornos multiple-spindle screw machines.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Jun 04, 2002 Floating Tornos shave tool holders are manufactured from high-alloy steel for strength and rigidity. Tools compensate for machine spindle and indexing movements, and eliminate OD size and concentricity variations. They improve knurling and threading operations as well as surface finish. Design features include key that prevents chips from packing into keyway. One calibrated screw provides zero backlash taper adjustment. Holders have removable tool post.

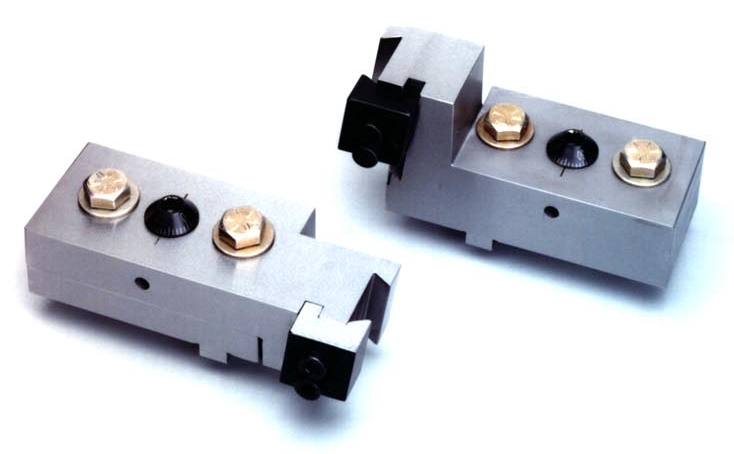

Tool Holders suit multi-spindle screw machines.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Apr 29, 2002 Tornos form tool holders are manufactured from high-alloy steel, and offers key that prevents chips from packing into keyway and affecting taper mechanism. One calibrated screw in holder design provides zero backlash taper adjustment. Holders have 8 deg rake angle, and accept 5/8 in. dovetail tooling. Two holder designs, models 31-21 and 31-22, are available to accommodate both sides of spindle.
