SMT Common Mode Choke offers custom design opportunities.

Renco Electronics, Inc.    Rockledge, FL 32955
Jan 16, 2013 Designed for AC power line filtering and EMI suppression in switch-mode power supplies, RL-9250 can operate from -40 to +105°C and supports custom engineering. Surface mount common mode choke, offering inductance values from 0.075–12.0 mH and dielectric withstanding voltage rating of 2,000 Vac line-to-line, is engineered to function in diverse environments.

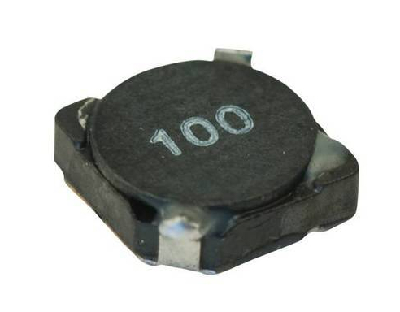

Surface Mount Power Inductor includes magnetic shield.

Renco Electronics, Inc.    Rockledge, FL 32955
Oct 30, 2012 Taller in size than Model RL-7500, Model RL-7500-4 features low resistance to minimize power loss and operates from -40 to +130°C. High current unit comes in tape and reel packaging and is suitable for power line DC-DC conversion in LED applications, notebook computers, and other electronic equipment.

Shielded Radial Chokes suit noise filtering applications.

Renco Electronics, Inc.    Rockledge, FL 32955
Jul 12, 2012 Available with 12 new inductance values from 1.2-10 mH, RL-8054-1 Series is suitable for EMI input circuits in switched mode power supplies. Units feature full magnetically shielded design and meet any space demand at 7.8 mm in diameter and 7.5 mm in height. Durable construction allows for operating temperature range of -40 to +130°C.

Gate Drive Transformer supports green initiatives.

Renco Electronics, Inc.    Rockledge, FL 32955
May 25, 2012 Suited for use in push-pull converters as well as half- and full-bridge circuits, RL-9500 is designed with isolated primary winding, 1:1:1 turn ratio, and 3,000 V Hi-Pot. Product comes in space-conserving 18 mm profile package and is constructed to support operation from -40 to +130°C.

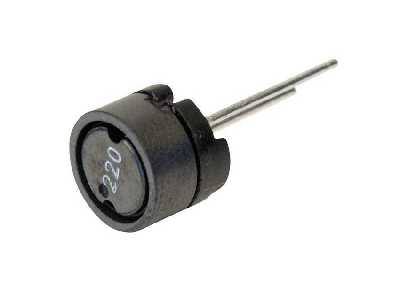

Radial Choke Coil features magnetically shielded design.

Renco Electronics, Inc.    Rockledge, FL 32955
Apr 24, 2012 Measuring 7.8 mm in diameter by 7.5 mm in height, Model RL-8054 includes stand-off capability and operates over temperature range of -40 to +130°C. RoHS-compliant device is packaged in tape and reel quantities of 300 and suitable for use in noise filtering applications.

Surface Mount Inductors resist high temperatures.

Renco Electronics, Inc.    Rockledge, FL 32955
Mar 27, 2012 Standing at 2 mm tall, RL-8100 Series offers pick and place from tape and reel packaging. Units operate from -40 to +130°C, displaying high heat resistance as well as magnetically shielded construction. Surface mount inductors are suited for use in laptops, smartphones, and other personal computing devices.

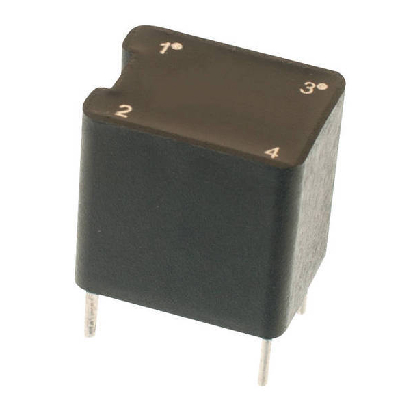

Current Transformer features 10-200 kHz frequency range.

Renco Electronics, Inc.    Rockledge, FL 32955
Mar 01, 2012 Featuring encapsulated design and 3,750 V Hi-pot, Model RL-9740 is suited for use in industrial monitoring controls and switch mode power supply applications. Thru-Hole Current Transformer meets all IEC950 insulation and VDE requirements. Housed in 19 mm high package with 4 PCB pins, device operates from -40 to +130°C.

Pot Core Inductors feature high inductance.

Renco Electronics, Inc.    Rockledge, FL 32955

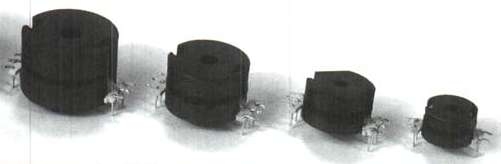

Aug 16, 2004 POWER POTSâ„¢ Series RL-7300 has 23 standard values for each of 5 different sizes. Units offer inductances from 10 mH to 1 H and handle currents from 12 mA to 1 A. Pot core design is capable of handling dc currents while maintaining stable inductance due to high saturation currents and self-shielding. Typical applications include dc chokes, differential mode chokes, filters, switching circuits, and low power circuits.

Toriodal Transformers suit general-purpose applications.

Renco Electronics, Inc.    Rockledge, FL 32955
Apr 23, 2003 Custom toriodal transformers, offered with power ratings of 10–3000 VA, provides low mechanical hum, low electromagnetic field, and flexible sizing parameters for designing. Mounting options include metal mounting disc with rubber pad or epoxy potted center hole and mounting hardware, while connections can be fly leads with tinned tips or any connector specified by customer. Applications include audio and medical equipment and lighting controls.

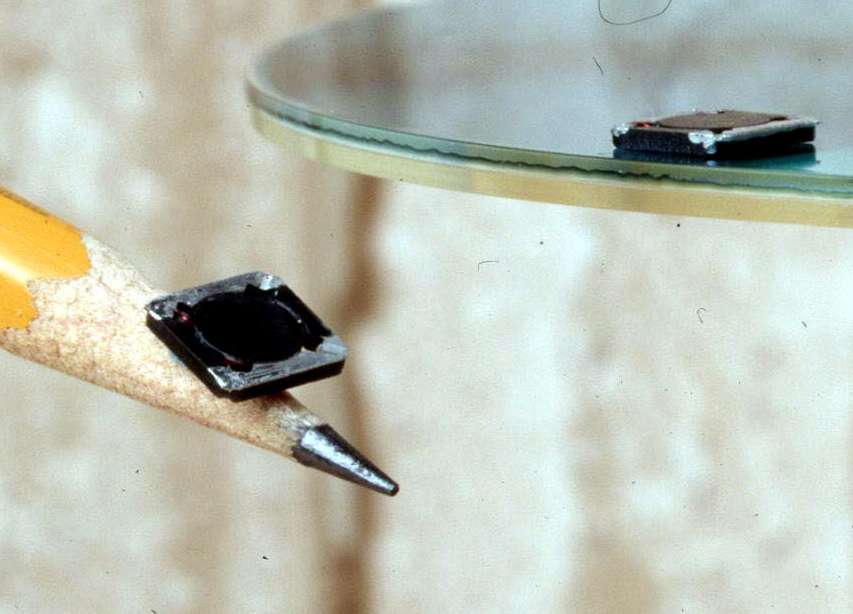

SMT Power Inductors have low profile and small footprint.

Renco Electronics, Inc.    Rockledge, FL 32955
Feb 20, 2003 Series RL-7200 inductors measure 1 mm high and have footprint of 7.4 x 7.3 mm. Covering inductance value range from 1–560 µH, units employ shielded design that eliminates EMI. Manufactured using fully automated production process, product operating temperature range is -40 to +85 °C, without any compromise in performance. Inductors are suited for use in mobile phones, notebook computers, PC cards, PDAs, and handheld devices.

Power Inductor offers 16 values in one miniature size.

Renco Electronics, Inc.    Rockledge, FL 32955

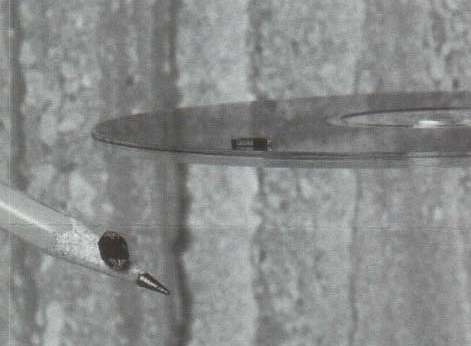

Feb 10, 2003 Model RL-7000 measures less than 1 mm high and provides complete suppression of EMI, along with high-saturation current handling up to 2.5 A. Surface-mount unit has ferrite shield and is suitable for use in mobile phones, notebook computers, PC cards, PDAs, and handheld devices.

Current Sensors offer four standard values in one size.

Renco Electronics, Inc.    Rockledge, FL 32955
Dec 16, 2002 Series RL-7100 provides ratios of 1000:1 with 4 sensing currents up to 200 A. Molded aperture is PC mountable and made to meet IEC 360 and other safety agency requirements when used with insulated conductor. Frequency range is 47–400 Hz. Applications include load sensing, switchgear/switchboard, power demand monitoring, and power failure.
